slide-1
SLIDE 1

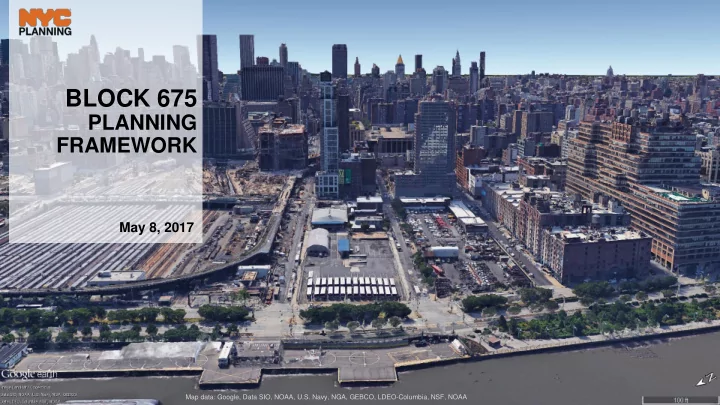

BLOCK 675

PLANNING FRAMEWORK

May 8, 2017

Map data: Google, Data SIO, NOAA, U.S. Navy, NGA, GEBCO, LDEO-Columbia, NSF, NOAA

slide-2
SLIDE 2

PURPOSE OF THE FRAMEWORK

  • Articulate the Department’s vision for Block 675 in terms of

appropriate uses, density, massing and urban design

  • Establish parameters to inform the review of future private land

use applications

  • Support targeted expansion of Special Hudson River Park District

2

slide-3
SLIDE 3

TABLE OF CONTENT

3

  • 1. Hudson River Park and Special Hudson River Park District
  • 2. Block 675 Background
  • 3. Block 675 Planning Framework
slide-4
SLIDE 4
  • I. OVERVIEW | Hudson River Park

Image Courtesy of Hudson River Park Trust

4

HELL’S KITCHEN

  • In 2013, State legislature adopted an amendment to the Hudson River Park Act to allow the Hudson River

Park Trust to sell development rights to sites within one block of the Park’s boundary, to the extent permitted by local zoning law.

Tribeca Greenwich Village Meatpacking Chelsea Hell’s Kitchen Clinton

slide-5
SLIDE 5
  • I. OVERVIEW | Special Hudson River Park District

5

Pier 40

  • St. John’s

Center Objectives of the Special District (adopted Dec. 2016)

  • Facilitate the repair, rehabilitation, maintenance and development of HRP through the transfer of

development rights

  • Promote an appropriate range of uses that complements HRP and serves residents of varied incomes
slide-6
SLIDE 6
  • I. OVERVIEW | Special Hudson River Park District

6

Special Hudson River Park District Map

  • As adopted, the Special Hudson River

Park District only includes Pier 40 (granting site) and the 550 Washington Street (receiving site).

  • It is anticipated that, in the future, to

transfer floor area from additional areas

  • f Hudson River Park to new receiving

sites, the Special District boundary will be amended to include those sites.

  • Sites on Block 675 have been identified

as potential new receiving sites for unused development rights on Piers 59, 60 and 61 including head houses in Hudson River Park.

slide-7
SLIDE 7
  • 2. BLOCK 675 | Background

Image courtesy of Google Earth; Map data: Google, SIO, NOAA, U.S. Navy, NGA, GEBCO

7

  • Ownership
  • Site Conditions
  • Existing Zoning &

Limitations

  • Built Character &

Surrounding Growth

  • Public Realm
  • Infrastructure Needs

Western Rail Yards West Chelsea

ConEd Terminal Stores Starrett-Lehigh

slide-8
SLIDE 8
  • 2. BLOCK 675 | Background

Image courtesy of Google Earth; Map data: Google, SIO, NOAA, U.S. Navy, NGA, GEBCO

8

  • Ownership

Douglaston Development LLC Lalezarian Properties LLC The Georgetown Company LLC Outparcel (Georgetown Company LLC)

  • Gas station and minimart
  • Art studios
  • DSNY office
  • PANYNJ parking/office
  • PA easement, used for bus parking
  • DSNY storage/maintenance
  • Auto repair shop

Western Rail Yards West Chelsea ConEd

slide-9
SLIDE 9
  • 2. BLOCK 675 | Background

Source: Zoning Resolution, Zoning Map, DoF Map PLUTO

9

  • Ownership
  • Site Conditions
  • Existing Zoning &

Limitations Limitations

M2-3 M1-5 Hudson Yards WCh R8 M2-3 M1-6

12th Ave 11th Ave 10th Ave

  • W. 29th St
  • W. 34th St

10 19 (11) 5 / 7.5 7.5 / 12 10 2 2 5 33 24 33 24 21.6 13+2 6 21.6 13 13 5 5 6.5 2

C6-4

slide-10
SLIDE 10
  • 2. BLOCK 675 | Background

Source: DoF, PLUTO; land use information in HY is included based on as-of-right uses permitted by zoning and project information known to DCP. Subject to change.

10

  • Ownership
  • Site Conditions
  • Existing Zoning &

Limitations

M1-6 M2-3 C6-4 C6-4 C6-3

M2-3

  • Low density medium manufacturing district
  • Industrial and commercial uses
  • No residential use permitted

M1-6

  • High density light manufacturing district
  • Light industrial and commercial uses
  • No residential use permitted

12th Ave 11th Ave

  • W. 29th St
  • W. 33rd St
  • W. 28th St
  • W. 30th St

Mixed use (projected) Mixed use (projected)

10 19 (11) 5 / 7.5 7.5 / 12 10 2

M2-3

slide-11
SLIDE 11
  • 2. BLOCK 675 | Background

Source: Building height information in HY is included based on information known to DCP. Subject to change.

11

  • W. 29th St
  • W. 34th St
  • W. 30th St

* Roof heights of buildings in Hudson Yards are shown to the extent known for illustrative purposes

  • Ownership
  • Site Conditions
  • Existing Zoning &

Limitations

  • Built Character &

Surrounding Growth

slide-12
SLIDE 12
  • 2. BLOCK 675 | Background

12

  • Open space and street network
  • Public transit
  • Ownership
  • Site Conditions
  • Existing Zoning &

Limitations

  • Built Character &

Surrounding Growth

  • Public Realm

BLOCK 675

ConEd

slide-13
SLIDE 13
  • 2. BLOCK 675 | Background

13

  • Ownership
  • Site Conditions
  • Existing Zoning &

Limitations

  • Built Character &

Surrounding Growth

  • Public Realm
  • Infrastructure Needs
  • Hudson Tunnel

Image courtesy of Hudson Tunnel Project http://www.hudsontunnelproject.com/documents/2017-04-05_Preferred_Alternative_Figure..pdf

slide-14
SLIDE 14
  • 3. BLOCK 675 | Planning Framework

Image courtesy of Google Earth; Map data: Google, SIO, U.S. Navy, NGA, GEBCO, LDBO-Columbia, NSF, NOAA

14

  • ZONING MECHANISM
  • USES
  • DENSITY
  • URBAN DESIGN / MASSING
slide-15
SLIDE 15
  • 3. BLOCK 675 | Planning Framework

Image courtesy of Google Earth; Map data: Google, SIO, U.S. Navy, NGA, GEBCO, LDBO-Columbia, NSF, NOAA

15

  • ZONING MECHANISM
  • Text Amendment: Special Hudson River Park District
  • Map Amendment: Rezoning
  • Text Amendment: MIH area
  • Special Permit: Transfer of Floor Area from Hudson River Park (max. 20%)
  • Chairperson Certification: Payment obligations to HRPT

Block 675 Piers 59, 60, 61 and head house

slide-16
SLIDE 16
  • 3. BLOCK 675 | Planning Framework

Source: DoF, PLUTO; land use information in HY is included based on as-of-right uses permitted by zoning and project information known to DCP. Subject to change.

16

  • ZONING MECHANISM
  • USES

11th Ave

  • W. 30th St.
  • W. 29th St.
  • W. 28th St.

Block 675

  • Include a mix of residential,

commercial, and public facility uses

  • Provide affordable housing within

MIH framework

Mixed use (projected) Mixed use (projected) ConEd

slide-17
SLIDE 17
  • 3. BLOCK 675 | Planning Framework

17

  • ZONING MECHANISM
  • USES
  • Include a mix of residential,

commercial, and public facility uses

  • Provide affordable housing within

MIH framework

  • Activate streetscape along W 30th

St.,11th Ave. and at prominent corners

  • Retail continuity at street level
  • Transparency on the ground floor

11th Ave Looking South Conceptual illustration of north side of W 30th Street in Western Rail Yards

slide-18
SLIDE 18
  • 3. BLOCK 675 | Planning Framework

18

  • ZONING MECHANISM
  • USES
  • Include a mix of residential,

commercial, and public facility uses

  • Provide affordable housing within

MIH framework

  • Activate streetscape along W 30th

St.,11th Ave. and at prominent corners

Open Space Corridor Commercial / Residential Corridor Active uses/glazing on ground floor Active uses/glazing on lower floors

  • W. 30th St.
  • W. 29th St.
  • W. 28th St.

11th Ave

slide-19
SLIDE 19
  • 3. BLOCK 675 | Planning Framework

19

  • ZONING MECHANISM
  • USES
  • Include a mix of residential,

commercial, and public facility uses

  • Provide affordable housing within

MIH framework

  • Activate streetscape along W 30th

St.,11th Ave. and at prominent corners

  • Animate the High Line interface
  • Active and semi-active uses on

frontages facing the High Line

  • Transparency at and above the High

Line level

slide-20
SLIDE 20
  • 3. BLOCK 675 | Planning Framework

Photo credit: Adrian Bonanni, DCP Manhattan Office

20

  • ZONING MECHANISM
  • USES
  • Include a mix of residential,

commercial, and public facility uses

  • Provide affordable housing within

MIH framework

  • Activate streetscape along W 30th

St.,11th Ave. and at prominent corners

  • Animate the High Line interface
  • Active and semi-active uses on

frontages facing the High Line

  • Transparency at and above the High

Line level

slide-21
SLIDE 21
  • 3. BLOCK 675 | Planning Framework

21

  • ZONING MECHANISM
  • USES
  • Include a mix of residential,

commercial, and public facility uses

  • Provide affordable housing within

MIH framework

  • Activate streetscape along W 30th

St.,11th Ave. and at prominent corners

  • Animate the High Line interface
  • Accommodate public facility and

infrastructure needs

  • Ventilation structure
  • Potential EMS facility
  • Other

ConEd

  • W. 29th St.
  • W. 28th St.

11th Ave

  • W. 30th St.

Service street

slide-22
SLIDE 22
  • 3. BLOCK 675 | Planning Framework

22

  • ZONING MECHANISM
  • USES
  • DENSITY (EXISTING)

M2-3

2 FAR

EXISTING

M1-6

10 FAR

  • Inland portion
  • Low density medium

manufacturing district

  • Waterfront portion
  • High density light manufacturing

district

  • W. 29th St.
  • W. 28th St.

11th Ave

  • W. 30th St.

M2-3

2 FAR

(WRY) C6-4

10 FAR

(WCh)

C6-3 5 / 7.5 FAR C6-4 7.5 / 12 FAR

(ERY) C6-4

11(19) FAR

slide-23
SLIDE 23
  • 3. BLOCK 675 | Planning Framework

23

  • ZONING MECHANISM
  • USES
  • DENSITY (RECOMMENDED)

M2-3

2 FAR

  • Inland portion
  • High density commercial

districts

  • 20% development rights from

Hudson River Park

  • Waterfront portion
  • Higher density commercial

districts

  • 20% development rights from

Hudson River Park

  • Floor area exemption for Hudson

Tunnel ventilation structure

(WRY) C6-4

10 FAR

(WCh)

C6-3 5 / 7.5 FAR C6-4 7.5 / 12 FAR

RECOMMENDED

(ERY) C6-4

11(19) FAR

  • W. 29th St.
  • W. 28th St.

11th Ave

  • W. 30th St.

C6 Districts

slide-24
SLIDE 24
  • 3. BLOCK 675 | Planning Framework

24

  • ZONING MECHANISM
  • USES
  • DENSITY
  • MASSING / URBAN DESIGN
  • Establish a strong building base that

rises to appropriate heights Block 675

B C

(~ 25’ – 45’) (~ 45’ – 85’) (~ 85’ – 90’)

C A B General range of recommended base heights: A B C

slide-25
SLIDE 25
  • 3. BLOCK 675 | Planning Framework

Note: Building heights based on information known publicly; sources include PLUTO, DOB, press releases, Curbed, etc.

25

  • ZONING MECHANISM
  • USES
  • DENSITY
  • MASSING / URBAN DESIGN
  • Establish a strong building base that

rises to appropriate heights

  • Contribute to a dynamic bulk rhythm
  • Appropriate massing response to a

transitioning context

slide-26
SLIDE 26
  • 3. BLOCK 675 | Planning Framework

26

  • ZONING MECHANISM
  • USES
  • DENSITY
  • MASSING / URBAN DESIGN
  • Establish a strong building base that

rises to appropriate heights

  • Contribute to a dynamic bulk rhythm
  • Appropriate massing response to a

transitioning context

  • Allow views of the city and towards the

Hudson River Block 675

Sight lines

slide-27
SLIDE 27
  • 3. BLOCK 675 | Planning Framework Summary

27

BLOCK 675 Zoning Mechanism Uses Density Massing / Urban Design

  • Text amendment: new granting and receiving

sites in Special Hudson River Park District

  • Map amendment: rezoning
  • Text amendment: MIH area
  • Special permit: transfer HRP development rights
  • Chair certification: payment schedule
  • Include a mix of residential and commercial uses
  • Provide affordable housing within MIH framework
  • Activate streetscape along W. 30th St / 11th Ave
  • Animate the High Line interface
  • Accommodate public facility and infrastructure

needs

  • Inland portion:
  • High density C6 district

+ Up to 20% HRP TDR

  • Waterfront portion:
  • Higher density C6 district

+ Up to 20% HRP TDR

  • Floor area exemption for Hudson Tunnel ventilation

structure

  • Establish a strong building base that rises to

appropriate heights

  • Contribute to a dynamic bulk rhythm
  • Allow views of the city and towards the Hudson

River
