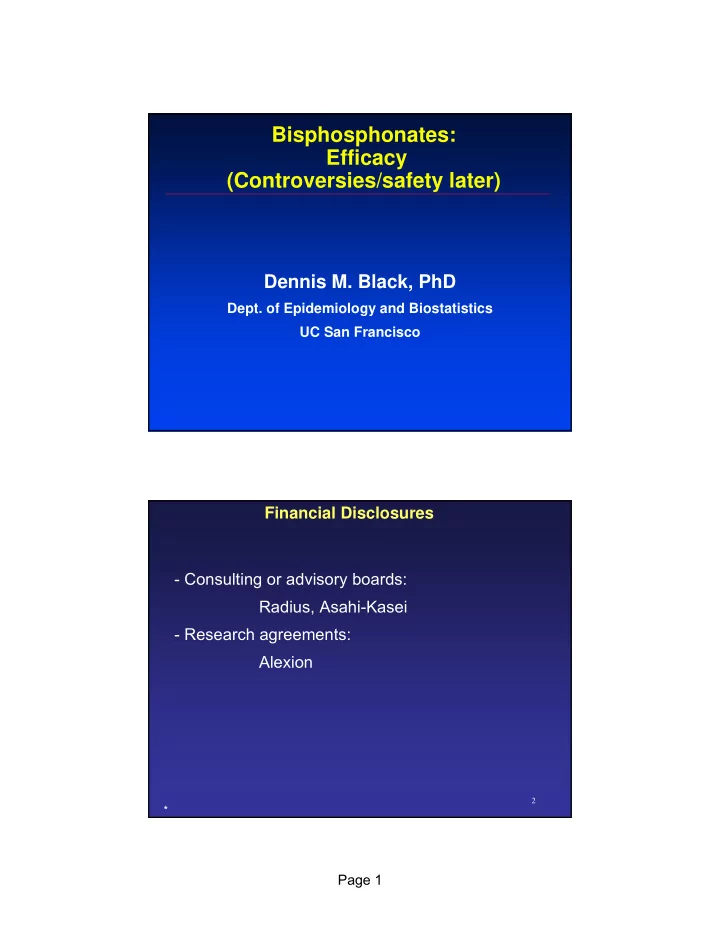

Bisphosphonates: Efficacy (Controversies/safety later)

Dennis M. Black, PhD

Dept. of Epidemiology and Biostatistics

UC San Francisco

2

Financial Disclosures

*

Consulting or advisory boards:

Radius, Asahi-Kasei

Research agreements:

Alexion

SLIDE 2

Page 2

A bit of background
A quick summary of a very large

literature of RCTs

Bisphosphonates Efficacy: Outline

13

Structure of Bisphosphonates Structure of Bisphosphonates Structure of Bisphosphonates

When R1 is an OH group binding to hydroxyapatite is enhanced R2 = -CH2-3-pyridine = Risedronate R2 = -CH2CH2CH2NH2 = Alendronate R2 = -CH2CH2NH2 = Pamidronate R2 = -CH3 = Etidronate The R2 side chain determines potency P-C-P is essential for binding to hydroxyapatite

OH R1 OH O O P P C OH OH R2

Russell, R., et al.,OI I999;Suppl 2:S68-80

SLIDE 3

Page 3

Bind to hydroxyapatite crystals in bone
Inhibit bone resorption

– Impact on osteoclasts

Results in increased bone density
Some can reduce fracture risk
Several approved for oral use, 2 for

injection/IV

Quickly summarize a very extensive

literature

Bisphosphonates: Overview

Bisphosphonates Available in U.S.

Name Administration Year Etidronate Oral 1977 Alendronate Oral (1/wk) 1995 Risedronate Oral (1/wk or 1/mo) 2000 Ibandronate Oral (1/mo) 2004 Zoledronic acid IV (1/yr) 2007

Bisphosphonates (alendronate>80%) represent vast majority of osteoporosis treatment

SLIDE 4

Page 4

Large set of placebo-controlled clinical trials

with fracture endpoints starting in 1996

Trials also show BMD gains and reductions

in bone turnover Evidence base supporting bisphosphonates

Summary of Bisphosphonate Fracture Reductions (up to 5 Years)*

*Khosla S, et al. J Clin Endocrinol Metab 97: 2272–2282, 2012

Also reductions ~25% in non-vertebral fractures

SLIDE 5

Page 5

Alendronate: Fracture Intervention Trial (FIT)

First large fracture trial (1992-97)

– Designed/managed by UCSF – Details: ALN most used and FIT a model for later studies

6,459 women aged 55-80

–Femoral neck BMD <0.68 g/cm2 (T<-1.6)

Randomized to daily alendronate vs. placebo

–5 mg for 2 years –10 mg for 3rd & 4th year

Black, et. al, Lancet, 1996; Cummings,

et. al. JAMA 1998

Alendronate: Fracture Intervention Trial (FIT)

Two separate studies

1. Women with existing vertebral fracture*

– Vertebral Fracture arm – Main endpoint: new vertebral fractures – Goal: n=2000 – 3 years of follow-up

2. Women without existing vertebral fracture**

– Clinical Fracture Arm – Main endpoint: new clinical fracture – Goal: n=4000 – 4.2 years of follow-up

* Black, et. al, Lancet, 1996; **Cummings, et. al. JAMA 1998

SLIDE 6

Page 6

Fracture Intervention Trial: Baseline characteristics

Vert Fx Arm Clinical Fx Arm (w/ vert. fx) (w/o vert fx) n = 2027 n = 4436

Vert. Fx

100% 0% Age 71 68 BMD (FN) 0.57 0.59 Prior Clin. Fx 58% 36%

Change in Bone Turnover Markers Over Three Years with Alendronate

PBO ALN ALN

B J

% Reduction

Years

1 2 3

70
60
50
40
30
20
10

0 J J 1 2 3

% Reduction

70
60
50
40
30
20
10

Resorption (NTX) Formation (BSAP)

Black, et. al, Lancet, 1996

PBO ALN ALN

SLIDE 7

Page 7

Effect of Alendronate on Spine BMD (5 mg/day 2 yrs then 10mg/day)*

6 12 18 24 30 36

Months

2

2 4 6 8

6.2% PA Spine * ~ 8% increase with 3 years of 10 mg daily (70 mg/wk) ALN ALN PBO

Alendronate and Vertebral Fracture Risk (women w/ existing VFx)

4 8 12 16 PBO Alendronate Incidence (%) 1 or more

Black, et al, Lancet, 1996. 47% reduction P<.001 15% 8%

New Vertebral Fractures

SLIDE 8

Page 8

Alendronate and Vertebral Fracture Risk (women w/ existing VFx)

4 8 12 16 PBO Alendronate Incidence (%) 1 or more 2 or more

Black, et al, Lancet, 1996. 47% reduction P<.001 15% 8% 5% 0.5% 90% reduction P<0.0001

New Vertebral Fractures

Hip Fractures: (Women with existing vertebral

fractures)

Months of Follow-up % of women with any clinical fracture Placebo Alendronate Relative hazard: 0.49 (0.23, 0.99) 2 4 12 24 36 2.2% 1.1%

Black, et. al, Lancet, 1996

SLIDE 9

Page 9

Fracture Reductions in in Women with Existing Vertebral Fractures

Results for primary outcomes
Vertebral fractures: 47% decrease (p<0.001)
All clinical fractures: 28% decrease (p<0.01)
Results for secondary fracture outcomes
Wrist fractures: 48% decrease (p<0.001)
Hip fractures: 51% decrease (p=0.047)

Black, et. al, Lancet, 1996

What About the Women Without Existing Vertebral Fractures at Start?

50% risk of vertebral fracture
Overall, reductions in clinical

fractures were not significant

– Relative hazard: 0.86 (0.73, 1.01) –Reduction in hip and nonspine fracture more evident in those with hip BMD T-score <-2.5

Cummings, JAMA, 1997

SLIDE 10

Page 10

Any Clinical Fracture Incidence (ALN v PBO)

in Women without Existing Vertebral Fractures

Overall 0.1 1 10 Relative Hazard (± 95% CI) 0.86 (0.73, 1.01) Baseline BMD T-score < - 2.5

2.0 – -2.5
1.6 – -2.0

~1/3 ~1/3 ~1/3

Cummings, JAMA, 1997

0.64 (0.50, 0.82) 1.03 (0.77, 1.39) 1.14 (0.82, 1.60)

Hip Fracture Reduction

in Women without Existing Vertebral Fracture

Baseline BMD T-score Overall < - 2.5

1.6 – -2.5

0.1 1 10 Relative Hazard (± 95% CI) 0.79 (0.43, 1.44) 0.44 (0.18, 0.97) 1.84 (0.7, 5.4)

SLIDE 11

Page 11

Risedronate and Fracture Risk: The VERT Study

2458 women mean age 68,
All with existing vertebral fracture
Daily 5 mg (n=813) vs PBO (n = 815);
Endpoints: new vertebral, nonvertebral fracture

Harris, et al, JAMA, 1999.

Risedronate and Fracture Risk

4 8 12 16 PBO 5 mg Incidence (%) New Vertebral Fractures New Nonvertebral Fractures*

* Osteoporotic fractures, Harris, et al, JAMA, 1999. RR = 0.59 (0.43-0.82) 16.3% 11.3% 8.4% 5.2% RR = 0.60 (0.39-0.94)

SLIDE 12

Page 12

Risedronate and Hip Fracture Risk (“HIP” study)

9497 women age > 70y (Mean = 78y)
Primary endpoint: hip fractures
Women 70 - 79 had T-score < -3.0 and one or

more risk factors

Women > 80 y had one or more risk factors

(not necessarily low BMD)

Risedronate/PBO, plus 1 g Ca, daily for 3 yr

– McClung, NEJM, 2001

Risedronate and Hip Fracture Risk: HIP Study Results

Overall Subgroup analysis Study

Group 1 Group 2 (age 70-79, (age >80, BMD T< -3) risk factor)

% redux. 30%

40% 16%

P 0.02

0.01 0.35 McClung, et. al. NEJM, 2001

SLIDE 13

Page 13

Effect of Alendronate and Risedronate

n Non-vertebral Fractures:

Conclusions

Alendronate and Risedronate

–Spine fractures reduced in all women studied –Non-vertebral fracture reductions:

» Largest in those with lowest BMD (<-2.5) or with existing fractures (especially vertebral fracture)

Suggests two groups with greatest clinical

benefit:

» Low BMD (T-score < –2.5) or » Existing vertebral fracture

Oral Ibandronate Fracture Study

2946 post-menopausal women for 3 years
Existing vertebral fracture and low BMD
2.5 mg/day vs. placebo

– Chesnut, et. al. JBMR 8/2004

SLIDE 14

Page 14

Oral Ibandronate Fracture Study: Results for Daily vs. PBO

Vertebral fractures: 50% reductions
Non-vertebral fractures: no overall

reduction

– In women with lowest BMD?? –Evidence of reduction among those with very low BMD at baseline (T < -3 at fn hip)

Chesnut, et. al. JBMR 8/2004

Less Frequent Dosing of Bisphosphonates

All fracture studies of Alendronate,

Risedronate and Ibandronate used daily dosing

Bisphosphonate dosing inconvenient
Less frequent dose is desirable

SLIDE 15

Page 15

Less Frequent Dosing of Bisphosphonates via “Bridging Studies”

“Bridge” to less frequent dose via BMD

and marker studies starting in 2000

Weekly: Alendronate and Risedronate (7x

daily dose)

Similar BMD, markers.

– No increase in upper GI effects.

Monthly: Ibandronate (60 x daily),

Risedronate (30 x daily)

No oral drugs tested for fracture effects

for less frequent than daily dosing

Example: Bridging from daily to weekly Alendronate: BMD Changes at Spine

Month 6 12 Mean Percent Change 1 2 3 4 5 6 ALN 10 mg Daily ALN 70 mg Once Weekly

Mean Percent Change from Baseline  SE

SLIDE 16

Page 16

IV Bisphosphonates

Oral BP’s effective daily, weekly or

monthly

– Compliance low: < 30% still using after 1 year!!

What about less frequent use via injection
r IV?
Ibandronate (quarterly injections) and

zoledronic acid (annual infusions) both available

IV Zoledronic Acid Fracture Trial (HORIZON Pivotal Fracture Trial)

5 mg given once per year, 3 years

–15 minute infusion

7706 patients with osteoporosis
Primary Endpoints: Vertebral and hip fracture

* Black, et. al, NEJM, 5/07

SLIDE 17

Page 17

Effect of Zoledronic acid on Morphom etric Vertebral Fracture Effect of Zoledronic acid on Morphom etric Vertebral Fracture

ZOL 5 m g Placebo

% Patients W ith New Vertebral Fracture 1 0 Years 5 1 5

3 .3 %

0 –3

1 0 .9 %

7 0 % Reduction P< .0 0 0 1

9 0 % reduction in those w ith > 2 new Vfx ( 6 6 vs 7 ) P< .0 0 0 0 1

Effect of Zoledronic Acid on Hip Fracture Risk Effect of Zoledronic Acid on Hip Fracture Risk

Cum ulative I ncidence ( % ) Tim e to First Hip Fracture ( m onths) 1 2 3 3 6 9 1 2 1 5 1 8 2 1 2 4 2 7 3 0 3 3 3 6 P = .0 0 2 4 Placebo ( n = 3 8 6 1 ) ZOL 5 m g ( n = 3 8 7 5 )

* Relative risk reduction vs placebo

Also, 25% reduction in non- vertebral fractures (p<.01)

RH= 0 .5 9 ( 0 .4 2 , 0 .8 3 )

SLIDE 18

Page 18

Are BP’s effective after a fracture? Are BP’s effective after a fracture? Zoledronic Acid after a Hip Fracture:

Recurrent Fracture Trial (only post hip-

fracture trial)

 ZOL given <12 weeks after hip fracture  2127 men/women, 23 countries, 1-3 years of FU  ZOL 5 mg annual or placebo  Primary Endpoint: new clinical fractures

 Results:

▬ New clinical fractures reduced 35% (RR=0.65, p=.001) ▬ Also reduction in total mortality 22% (RR=0.78, p=.01)

Zoledronic Acid after a Hip Fracture:

Recurrent Fracture Trial (only post hip-

fracture trial)

 ZOL given <12 weeks after hip fracture  2127 men/women, 23 countries, 1-3 years of FU  ZOL 5 mg annual or placebo  Primary Endpoint: new clinical fractures

 Results:

▬ New clinical fractures reduced 35% (RR=0.65, p=.001) ▬ Also reduction in total mortality 22% (RR=0.78, p=.01)

Lyles KW, et al. N Engl J Med. 2007.

Summary of Bisphosphonate Fracture Reductions (up to 5 Years)*

*Khosla S, et al. J Clin Endocrinol Metab 97: 2272–2282, 2012

SLIDE 19

Page 19

Use of Bisphosphonates Longer than 5 years?

Controversial ..Talk to Dr. Rosen later!

Summary: Bisphosphonate Efficacy

Many large trials show that bisphosphonates

reduce fracture risk (up to 5 years)

– Most definitive in women but likely similar effect in men – Most effective in those with lowest BMD and those with history of fracture

Approved as oral in weekly and monthly dosages

– Alendronate, Risedronate and Ibandronate – All now generic

Annual IV also available

– Zoledronic acid (now generic)

Used by millions around the world
Benefits far outweigh risks (later)

SLIDE 20

Page 20

Thanks to great colleagues at UCSF

Cummings Bauer A Schwartz And many wonderful staff

1994 FIT Newsletter (10 yrs)

*Jarvinen, et al. BMJ, 5/15
