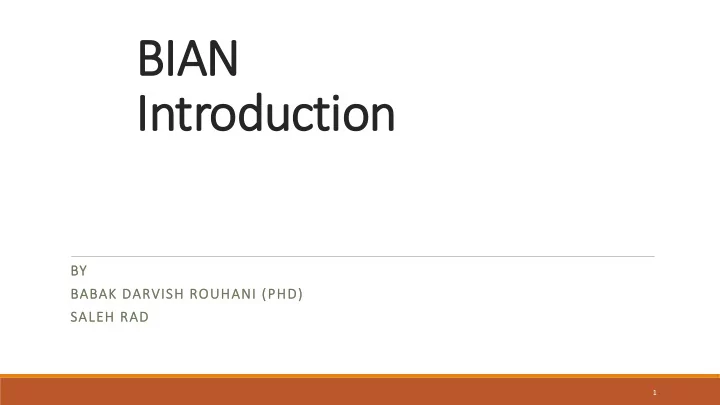

BIAN Introduction

BY BABAK DARVISH ROUHANI (PHD) SALEH RAD

1

SLIDE 2 2

Enterprise Architecture

SLIDE 3

Enterprise Architecture

3

Enterprise Architecture (EA)

• To align Business and Information Technology
• To integrate environment for enterprise

EA define :

• As-Is Architecture
• To-Be Architecture
• Migration Plan

SLIDE 4

Enterprise Architecture (Cont)

EA comprise

• Framework
• Methodology

4

Enterprise Architecture Framework (EAF) is

• logical structure
• Enterprise model

EA is designed, developed, managed, and maintained through implementation methodology. EA Implementation is effective when the intended EA’s goals are achieved.

SLIDE 5 5

Enterprise Architecture (Cont)

SLIDE 6

BIAN 8

6

SLIDE 7 7

SLIDE 8 8

• Enterprise Management

and Controlling

• Product and Service

Enabling

• Enterprise Enabling
• Bank Operation
• Customer and Sales
• Channels

SLIDE 9 9

SLIDE 10

Developer Perspective

10

SLIDE 11 11

SLIDE 12 BIAN Business Services DevOps Repository IFW Tooling for REST API Channel Apps Legacy Systems API Connect Tooling Swagger/Stub IFW Tooling 3rd PartyApps

API Platform

Developer Portal Scalable Runtime Security & Control Enterprise SOA Business Process Business Rules Integration withESB JavaScript/Java BPEL/WSDL/Java Linkage Deploy Banking APIs Supporting Services Customized Integration Banking Platform for APIs (Cloud or On Premise) Open Banking APIs Model Driven Development

Case Study – Model Driven Approach to BankingAPIs

SLIDE 13 13

SLIDE 14

Bank Perspective

14

SLIDE 15

Overview

• The BIAN Service Landscape provides a taxonomy of all business capabilities within a bank. Within

BIAN, each business capability is known as a Service Domain. The taxonomy enables the bank to identify what technologies are satisfying a business capability. Often, a technology will span multiple business capabilities. Depending on the desired result, this can be good or bad.

• By leveraging interactions between Service Domains in order to satisfy a business process, banks are

able to break up the technologies that satisfy the capabilities. This results in a more component based, or service-oriented, deployment.

• Using the Service Domains of BIAN to establish the scope of an RFI/RFP enables a bank is able to

stay focused on how various vendors satisfy the capabilities desired.

15

SLIDE 16 16

Using The BIAN Service Landscape to Define Scope

SLIDE 17 17

Business Scenarios

SLIDE 18 18

Wireframes

SLIDE 19 19

Feature Sets

Service Domain Payment Order - Payment order provides a structured service to oversee

• ne or more payment transactions for a customer, taking into account customer specificrules

and constraints

Non-functional Operational Features Technical Architecture Features Key: Gap Needs Work Covered  Dual operations control and user access configuration  Extended office hours  Configurable workflow  High availability/security  High connectivity Payment Order Feature Description Vendor A Vendor B Feature Types Functional Initialize& Register  Automated order capture (mutiple sources)  Order details verification  Batch/scheduled payment order capture (e.g. client ACH files)  Deferred payment order capture (warehousing) Invocation & Execution  Order repair  Batch/scheduled payment order update ` `  Reversed order handling  Network availaility update Maintain & Analyze  Customer payment order entitlements/rules  Payment order return for resubmission * OFAC/regulatroy checks/  Risk/limit checks and daylight overdraft/offset rules & off-line host support  Maintain rule/format requirements (content/minimum requirements)  Payment execution with payment preferences Report & Notify  Customer payment order activity  User defined reporting and UI field definition  Notify rule/format requirements

SLIDE 20

Using BIAN as part of an RFI/RFP process

Illustrative Bank Example

• RFI/RFP approaches
• “Are you BIAN compliant?”; “Are you BIAN certified?”
• Structuring the RFI by BIAN service domains
• Lessons learned from a vendor
• Provides vendor a straight forward approach to understandscope
• Quick and powerful communication vehicle for thevendor
• Strong involvement of the bank’s architecture management teamhelpful
• Look out for Core Banking analysts adoptingBIAN

20

SLIDE 21

• By leveraging the Service Landscape, Business Scenarios, Wireframes, and Feature Sets, a

Bank successfully defines scope and can assess vendor ability to meet the requirements of the

• rganization in a component based, or service-oriented approach.

21

SLIDE 22

Vendors Perspective

22

SLIDE 23

Overview

• BIAN is ready to be used as a structural element within a bank’s business transformation

journey

• From a vendor perspective BIAN helps articulating scope and strength of a vendors solution
• It offers vendors the opportunity to utilize BIAN as a structural element of the vendor’s architecture

framework and business transformation methodology

23

SLIDE 24 24

The Banking Architecture Framework fromSAP: SPRINT – Leveraging BIAN

Business Architecture Business Process Message Flow Application Architecture Capability Model BIAN Service Landscape Business Object Model C u s tomer & S e g m e nt MICROSOFT CORPORATION E n t e r p r i s e S e r v i c e s P r o d u c t F a c t o r y C h a n n e l S e r v i c e s B a n k i n g S e r v i c e s a n d O p e r a t i o n s P r e

• S

a l e s A s s i s te d C h a n n e l s D i r e c t C h a n n e l s S e r v i c i n g Payments O r i g i n a t i

• n

S a l e s / C r

• s

s S a l e C u s t

• m

e r I n f

• r

m a t i

• n

M a n a g e m e n t O p e r a t i

• n

a l D a t a P r

• d

u c t S e r v i c e s M g m t . M a n a g e m e n t L e n d i n g P r

• d

u c t s D e p

• s

i t P r

• d

u c t s T r a d e P r

• d

u c t s B i l l i n g a n d M e r c h a n t P r

• d

u c t s C a p i ta lM a r k e ts P r

• d

u c t s S t r a t e g ya n d M a r k e t F i n a n c ea n d R i s k T e c h n

• l
• g

y & O p e r a t i

• n

s S u p p

• r

t A n a l y s i s A c c

• u

n t i n g M a n a g e m e n t M a r k e t i n ga n d C

• m

m u n i c a tio n s H u m a nR e s

• u

r c e s M odel B ank -Business Capability M odel (S am pl e V i ew ONLY) This model and related content is property of SAP. Please do not distribute

• utside

SAP. E n h an ce Foundati

• n

al New E

• L/

Replace Gap # Initiative Number B u s i n e s s Capability H e a t

• M

a p P r

• d

u cts MaturityA n a ly s is Introductory S t a g e G r

• w

th S t a g e M a turity S t a g e DeclineS t a g e Total L ife C y c l e T im e Distribution Channels Analysis

Sales Planning Execution

Business Case& Validation Design & Blueprint Realization Run & Optimization Vision & Strategy

SLIDE 25

• By using the BIAN deliverables you create a common language between the Bank and the

service Provider.

• The BIAN Service Landscape provides a comprehensive “Bank on a Page” that enables

both Banks and Vendors to clearly define their agreed migration strategy.

25

SLIDE 26

Case Study

26

SLIDE 27 27 Business Area Business Domain Service Domain Business Role TYPE Service Operation Full Name Input Parameters Output Parameters Comment

SLIDE 28

SLIDE 29

SLIDE 30

RUP- SOMA

30

SLIDE 31

RUP-SOMA

31

SLIDE 32

RUP-SOMA (Cont)

32

SLIDE 33

Discussion

33

SLIDE 34

Bank - EA

34

SLIDE 35

Q&A Q&A

35
