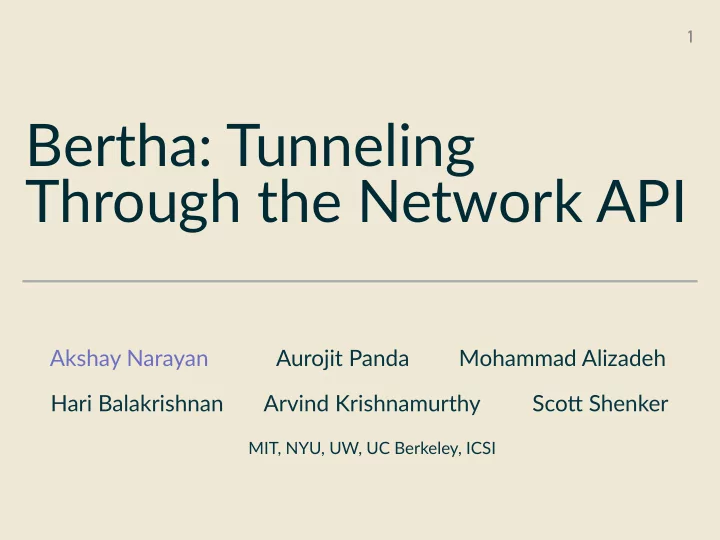

SLIDE 1
Bertha: Tunneling Through the Network API
Akshay Narayan Aurojit Panda Mohammad Alizadeh Hari Balakrishnan Arvind Krishnamurthy ScoB Shenker
MIT, NYU, UW, UC Berkeley, ICSI 1
Recent Developments
2
Bertha: Tunneling Through the Network API Akshay Narayan Aurojit - - PowerPoint PPT Presentation
Bertha: Tunneling Through the Network API Akshay Narayan Aurojit - - PowerPoint PPT Presentation
1 Bertha: Tunneling Through the Network API Akshay Narayan Aurojit Panda Mohammad Alizadeh Hari Balakrishnan Arvind Krishnamurthy ScoB Shenker MIT, NYU, UW, UC Berkeley, ICSI Recent Developments 2 New Network Infrastructure 3 New:
SLIDE 2
SLIDE 3
New Network Infrastructure
3
SmartNICs P4 Switches FPGAs App Routers Middleboxes Network New: ApplicaQon funcQonality in the network New: Network devices with programmable dataplane
SLIDE 4
Architectural API
4
SmartNICs P4 Switches FPGAs App Routers Middleboxes Network APIs encode tradiQonal end-to-end semanQcs Sockets DPDK GRPC QUIC
SLIDE 5
5
What would an API that encoded applicaQon offload semanQcs look like?
SLIDE 6
Want: An Interface
6
Offload Implementation (P4 Sharding Implementation) Platform Configured with Offloads (Configure server for KV-store) Route Traffic through offloads (Configure SDN Control Plane)
Application Developer System Administrator Network Operator
Offload-Aware Implementation (Sharded KV-Store)
Offload Developer
Implementations declares sequence of
- ffloads
Offload implementation and metadata
Application Offloads Today Proposeded Interface Application Developer Offload Developer
SLIDE 7
Server A-M Shard
Offload Deployment
7 N-Z Shard Client P4 Switch SmartNIC Offload deployment scenarios
SLIDE 8
Out-of-Band CoordinaQon
8 Server Offload Switch config + SDN policy Offload developer ApplicaQon developer Network operator System administrator
SLIDE 9
9
What would an API that encoded applicaQon offload semanQcs look like? Our Answer: Chunnels + Bertha
SLIDE 10
Chunnels
10
hBps:/ /upload.wikimedia.org/wikipedia/commons/c/cb/Fresque_25_ans_Eurotunnel.jpg
Best-Effort End-To-End Packets Chunnel(s) Bertha Bertha
hBps:/ /en.wikipedia.org/wiki/File:Front_of_model_of_tunnel_boring_machine_at_Milepost_31.JPG
SLIDE 11
Chunnels
11 P4 Switch ApplicaQon
From the applicaQon’s perspecQve, in-machine and in-network offloads are the same
Bertha Chunnel
SLIDE 12
Chunnel ProperQes
12 Best-Effort End-To-End Packets
Fallback: FuncQonality implementable by end-host applicaQon sohware
SLIDE 13
Chunnel ProperQes
13
ApplicaQon Relevance
Fallback: Portability
SLIDE 14
Chunnel ProperQes
14 Fallback: Portability
Composable
ApplicaQon relevance: Safety
Encrypt HTTP/2 TCP
Bertha ConnecQon
SLIDE 15
Bertha Roles
15 P4 Switch Kernel, eBPF Bertha NegoQaQon Discovery NegoQaQon: Figure out which Chunnel implementaQons are available (e.g., eBPF, Kernel) Decide which implementaQon to use. Discovery:
Chunnels
init() / teardown() ApplicaQon Network
SLIDE 16
NegoQaQon
16 SmartNIC Kernel, eBPF Bertha NegoQaQon Discovery ApplicaQon “I need an encrypQon Chunnel” ConsideraQons: Developer preference Offload availability Network policy “I implement encrypQon”
Encrypt
SLIDE 17
17
Cool ImplicaQons
SLIDE 18
Research DirecQons
18 Scheduling MulQplexing offloads between connecQons and applicaQons OpQmizaQon AutomaQc reordering/subsQtuQon of parts of the Chunnel specificaQon P4 Switch Kernel, eBPF Bertha NegoQaQon Discovery
Chunnels
init() / teardown() ApplicaQon Network
SLIDE 19
Chunnel OpQmizaQon
19
Encrypt HTTP/2 TCP
SmartNIC EncrypQon, TCP Chunnel ImplementaQons To use these offloads, must to traverse PCIe 3x
SLIDE 20
Chunnel OpQmizaQon
20 Reordering reduces data movement
HTTP/2 Encrypt TCP
SmartNIC EncrypQon, TCP Chunnel ImplementaQons Similar to opQmizaQons in Weld, TensorFlow, ONNX
SLIDE 21
Client Push
21 P4 Switch Server Bertha NetAdvisor Chunnel Client
SLIDE 22
End
22 Contact: akshayn@mit.edu P4 Switch Kernel, eBPF Bertha NegoQaQon Discovery
Chunnels
init() / teardown() ApplicaQon Network
