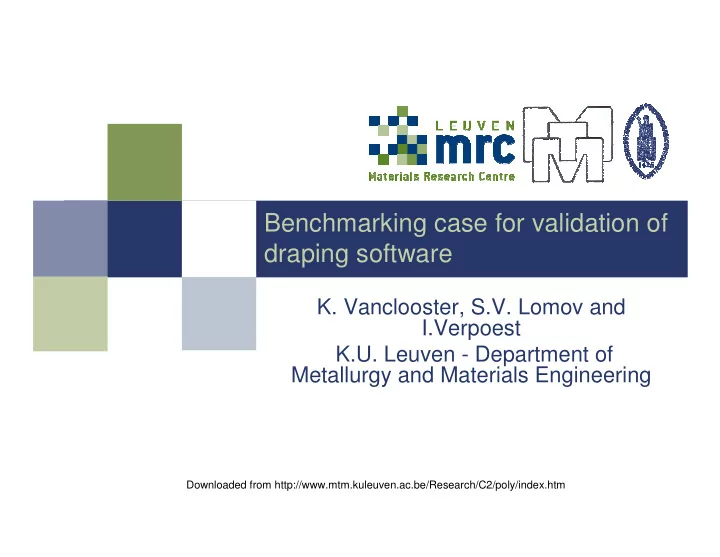

Benchmarking case for validation of draping software K. Vanclooster, S.V. Lomov and I.Verpoest K.U. Leuven - Department of Metallurgy and Materials Engineering Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm


slide-1
SLIDE 1

Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm

Benchmarking case for validation of draping software

  • K. Vanclooster, S.V. Lomov and

I.Verpoest K.U. Leuven - Department of Metallurgy and Materials Engineering

slide-2
SLIDE 2

Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm

Benchmarking case for validation of draping software

Thermoforming of woven reinforced composite

  • n “salami” shaped mould using different blank
  • rientations
slide-3
SLIDE 3

Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm

Benchmarking case for validation of draping software

Measurement of the local shear profile of the formed composite

slide-4
SLIDE 4

Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm

Benchmarking case for validation of draping software

Compare shear angle measurements with kinematic mapping and FEM approach Kinematic

Large discrepancy

slide-5
SLIDE 5

Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm

Benchmarking case for validation of draping software

FEM-simulation

slide-6
SLIDE 6

Downloaded from http://www.mtm.kuleuven.ac.be/Research/C2/poly/index.htm

Benchmarking case for validation of draping software

The mapping approach severely fails in predicting the fiber reorientation that occurs during forming. The mechanical simulation approach gives a fairly good prediction of the fiber reorientation and seems the most promising technique in having good draping simulations. The test results present a simple and distinctive benchmark for validation of any draping software
