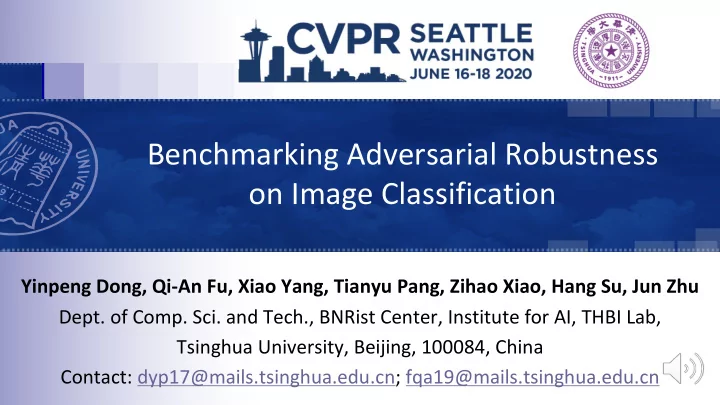

Benchmarking Adversarial Robustness on Image Classification Yinpeng - - PowerPoint PPT Presentation

Benchmarking Adversarial Robustness

• n Image Classification

Yinpeng Dong, Qi-An Fu, Xiao Yang, Tianyu Pang, Zihao Xiao, Hang Su, Jun Zhu

• Dept. of Comp. Sci. and Tech., BNRist Center, Institute for AI, THBI Lab,

Tsinghua University, Beijing, 100084, China Contact: dyp17@mails.tsinghua.edu.cn; fqa19@mails.tsinghua.edu.cn

2

Adversarial Examples

An adversarial example is crafted by adding a small perturbation, which is visually indistinguishable from the corresponding normal one, but yet are misclassified by the target model.

Alps: 94.39% Dog: 99.99% Puffer: 97.99% Crab: 100.00%

Figure from Dong et al. (2018).

Adaptive attacks [Athalye et al., 2018] Optimization-based attacks [Carlini and Wagner, 2017] Iterative attacks[kurakin et al., 2016]

Attacks Defenses

Adversarial training with FGSM [Kurakin et al., 2015] One-step attacks [Goodfellow et al., 2014] Defensive distillation [Papernot et al., 2016] Randomization, denoising [Xie et al., 2018; Liao et al., 2018]

There is an “arms race” between attacks and defenses, making it hard to understand their effects.

3

Robustness Benchmark

n Threat Models: we define complete

threat models

n Attacks: we adopt 15 attacks n Defenses: we adopt 16 defenses on

CIFAR-10 and ImageNet

n Evaluation Metrics:

• Accuracy (attack success rate) vs.

perturbation budget curves

• Accuracy (attack success rate) vs.

attack strength curves

4

Evaluation Results on CIFAR-10

ℓ" norm; untargeted attacks; white-box; accuracy curves

5

Platform: RealSafe

• We developed a new platform for adversarial machine learning research

called RealSafe focusing on benchmarking adversarial robustness on image classification correctly & efficiently.

Feature highlights:

• Modular implementation, which consists of attacks, models, defenses, datasets, and evaluations.
• Support tensorflow & pytorch models with the same interface.
• Support 11 attacks & many defenses benchmarked in this work.
• Provide ready-to-use pre-trained baseline models (8 on ImageNet & 8 on CIFAR10).
• Provide efficient & easy-to-use tools for benchmarking models with the 2 robustness curves.
• Available at https://github.com/thu-ml/realsafe (Scan the QR code for this URL).

Thanks
