Bell Island WWTP NRSBU Mission Statement To identify the long term wastewater processing and reticulation needs of our customers and to meet current and future needs in the most cost effective and sustainable manner. Regional sewage treatment

slide-1
SLIDE 1

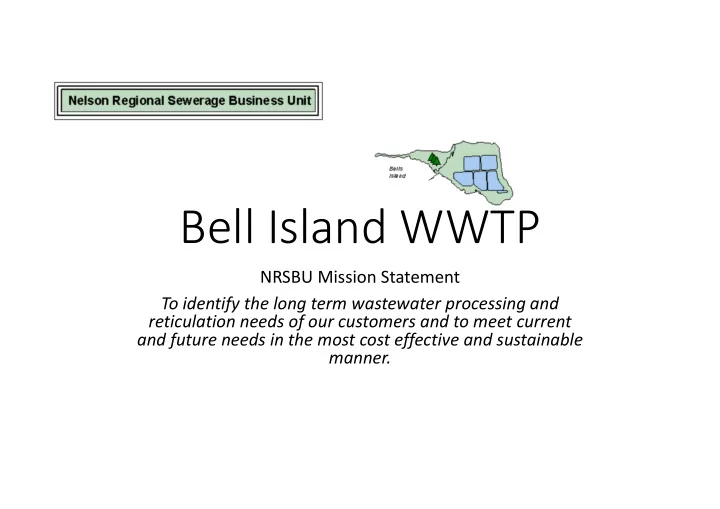

Bell Island WWTP

NRSBU Mission Statement To identify the long term wastewater processing and reticulation needs of our customers and to meet current and future needs in the most cost effective and sustainable manner.

slide-2
SLIDE 2

Regional sewage treatment

  • 1970 – Stoke Sewage Treatment Plant upgrade
  • ptions
  • Investigations suggested increasing scope of

catchment

  • 1974 – Nelson City and Waimea County worked on

regional facility

  • Bell Island chosen as site
  • 1981 - Formal Agreement signed for regional

facility

slide-3
SLIDE 3

1983

slide-4
SLIDE 4

1993 upgrade 1993 upgrade 1993 upgrade 1993 upgrade

slide-5
SLIDE 5

1993 to 1996: Remove sludge from ponds to reinstate 1993 to 1996: Remove sludge from ponds to reinstate 1993 to 1996: Remove sludge from ponds to reinstate 1993 to 1996: Remove sludge from ponds to reinstate treatment capacity and improve odour management treatment capacity and improve odour management treatment capacity and improve odour management treatment capacity and improve odour management

  • Mechanical mixers deployed in the ponds in 1993.
  • Sludge removal from the facultative ponds.
  • Sludge removed from the ponds were applied to

land at Bell Island.

  • Conditions improved but further odour issues

developed over time.

  • The original aeration basin was found to be the

source of odours.

slide-6
SLIDE 6

2004 upgrade 2004 upgrade 2004 upgrade 2004 upgrade

slide-7
SLIDE 7

2006 Capacity Review

  • Population and Industrial growth to 2025
  • Flow and Load projections
  • Upgrade designed to match projections
slide-8
SLIDE 8

2010 Treatment Plant Upgrade

  • Inlet structure with screens
  • Primary Clarifier
slide-9
SLIDE 9

Replacement Value = $75 to 80 Million

slide-10
SLIDE 10

Why does the NRSBU treat wastewater

  • To protect public health and minimise impacts on

environment

  • Separate and reduce solids
  • Reduce organic materials
  • Reduce pathogens
slide-11
SLIDE 11

Bell Island Wastewater Treatment Plant Process Diagram

slide-12
SLIDE 12

Maturation and Facultative Ponds

slide-13
SLIDE 13
slide-14
SLIDE 14

Dr Rob Lieffering – Senior Environmental Consultant Client: Nelson Regional Sewerage Business Unit (NRSBU) Date 14 June 2017

Resource Consent Renewal Bell Island Wastewater Treatment Plant

slide-15
SLIDE 15

Agenda

2 Existing resource consents - Overview 3 Regulatory framework 4 Assessment of Environmental Effects - Studies 5 Sensitive sites 1 Project Objectives

slide-16
SLIDE 16

Project Objectives

  • 1. To work with the community, key stakeholders, and tāngata

whenua to ensure a wastewater treatment and disposal solution that:

  • Provides for current and future community well-being,

health and safety

  • Ensures acceptable environmental and cultural effects
  • Provides for planned future population and

industrial/commercial growth

  • Achieves efficient use of existing infrastructure
  • 2. Obtain long term consents that provide certainty for future

growth and security for ongoing investment in the infrastructure

  • 3. Provides a solution that is the Best Practicable Option (RMA

definition) for the treatment and disposal of the wastewater.

slide-17
SLIDE 17

Overview – Existing Consents

Four Consents Cover WWTP Operations Consents to be renewed:

  • Discharge treated wastewater to Waimea Inlet
  • Discharge treated wastewater to land (irrigation)
  • Discharge contaminants (odour) to air from WWTP

Consent not being renewed

  • Discharge biosolids to Rabbit Island
  • Doesn’t expire until November 2020
slide-18
SLIDE 18

Overview – Existing Consents

Additional Consents

  • Seepage from unlined parts of WWTP to land

(oxidation ponds) – technically a discharge to land

  • Outfall diffuser structure – coastal permit for

structure within the Coastal Marine Area (CMA) These were included in earlier application but consents were not specifically granted for these. Now seeking to formally authorise these.

slide-19
SLIDE 19

Overview – Existing Consents

Discharge treated wastewater to Waimea Inlet Consent Limits – Timing:

  • Discharge may only occur for up to 3 hours

following high tide – intention that treated wastewater leaves Waimea Inlet during each tidal cycle

slide-20
SLIDE 20

Overview – Existing Consents

Discharge treated wastewater to Waimea Inlet Consent Limits – Rates:

  • Average daily discharge <20,000 m3/day
  • Maximum daily discharge <25,000 m3/day
  • Olympic swimming pool holds ~2,500 m3
  • Eastern arm of Waimea Inlet has an estimated

tidal volume in the order of 40-50,000,000 m3

slide-21
SLIDE 21

Overview – Existing Consents

Discharge treated wastewater to Waimea Inlet Consent Limits – Treatment Quality:

  • Indicator bacteria - Human health
  • Oxygen depleting potential (BOD5) - Ecology
  • Total suspended solids - Ecology and visual
  • Nutrients (nitrogen and phosphorus) - Nuisance

growths

  • Metals and other compounds - Ecology
slide-22
SLIDE 22

Overview – Existing Consents

Discharge treated wastewater to land (irrigation)

slide-23
SLIDE 23

Overview – Existing Consents

Discharge treated wastewater to land (irrigation)

slide-24
SLIDE 24

Overview – Existing Consents

Discharge treated wastewater to land (irrigation)

  • Up to 1,040 m3/day may be irrigated (centre pivot)
  • Irrigation area ~20.5 ha
  • Provides NRSBU with flexibility to manage

wastewater – alternative to discharge to Waimea Inlet

  • No nitrogen fertilisers may be applied – minimises

nutrient discharges to groundwater and the Inlet

  • Soil and groundwater quality monitoring required
slide-25
SLIDE 25

Overview – Existing Consents

Discharge contaminants to air (odour)

  • Wastewater treatment can create odours
  • Consent prohibits offensive/objectionable odour

beyond WWTP boundary (‘odour boundary’)

  • Best Island residents most likely to be affected

(~650 m from WWTP)

  • Annual meetings with Best Island residents
slide-26
SLIDE 26

Overview – Existing Consents

Discharge contaminants (odour) to air

slide-27
SLIDE 27
slide-28
SLIDE 28

Regulatory Framework

Relevant statutory documents

  • Resource Management Act 1991 (RMA)
  • Tasman Resource Management Plan (TRMP)
  • Nelson Resource Management Plan (NRMP)
  • New Zealand Coastal Policy Statement (NZCPS)
  • Waimea Inlet Management Strategy
  • Te Tau Ihu Settlement Acts (x3)
slide-29
SLIDE 29

Regulatory Framework

Policy 23(2) – New Zealand Coastal Policy Statement

  • 2. In managing discharge of human sewage, do not

allow:

  • a. discharge of human sewage directly to water in

the coastal environment without treatment; and

  • b. the discharge of treated human sewage to

water in the coastal environment, unless:

  • i. there has been adequate consideration of

alternative methods, sites and routes for undertaking the discharge; and

  • ii. informed by an understanding of tangata

whenua values and the effects on them.

slide-30
SLIDE 30

Assessment of Environmental Effects (AEE)

AEE will be based on:

  • Review of existing monitoring data/results
  • Waimea Inlet (Cawthron)
  • Groundwater
  • Soils
  • Odour complaints
  • Consideration of alternatives – including land

application feasibility – required by RMA and NZCPS

slide-31
SLIDE 31

How well do we do this

  • Wastewater discharges comply with consent

conditions

  • Effective treatment of waterborne pathogens
  • Evidence supported by environmental outcomes

will be presented by Cawthron

slide-32
SLIDE 32

Bell Island performance compared to current consent limits

slide-33
SLIDE 33

Wastewater Influent – Key Parameter Trends

slide-34
SLIDE 34

Wastewater Influent - Daily Inflow

slide-35
SLIDE 35

Treated Wastewater - Daily Discharge m3

slide-36
SLIDE 36

New initiatives

  • The NRSBU long term capital budget = $26.6 million and is mainly aimed

at enhancing the environment.

Wind generated mixers used to replace electric equipment.

slide-37
SLIDE 37

Conclusion

The NRSBU aspire to

  • meet the needs and expectations of our

community

  • use natural capital were feasible to meet objectives
slide-38
SLIDE 38

Dr Rob Lieffering – Senior Environmental Consultant Client: Nelson Regional Sewerage Business Unit (NRSBU) Date 14 June 2017

Resource Consent Renewal Bell Island Wastewater Treatment Plant (Continued)

slide-39
SLIDE 39

Additional Studies

Further work currently being undertaken:

  • Public health risks need to be better

quantified/assessed

  • To determine the movement, dispersion, and

dilution of treated wastewater following discharge

  • Existing information outdated - 1995 NIWA dye study
slide-40
SLIDE 40

Current understanding of movement of treated wastewater (based on 1995 NIWA study)

slide-41
SLIDE 41

Additional Studies

Further work currently being undertaken:

  • Hydrodynamic model of Waimea Inlet and

Tasman Bay

  • Field work (Cawthron)
  • Model development (MetOcean)
  • Model will be used to determine treated

wastewater pathways and dilutions

slide-42
SLIDE 42

Extent of Hydrodynamic Model

slide-43
SLIDE 43

Hydrodynamic Model – Preliminary Output Video

slide-44
SLIDE 44

Additional Studies

Quantitative Microbial Risk Assessment (QMRA):

  • Uses hydrodynamic model output
  • Will assess risk of illness for water sports/recreation
  • Swimming
  • Water skiing
  • Kite boarding
  • Paddle boarding
  • Will assess risk of collecting/eating shellfish
  • Initial “Sensitive Sites” identified, but input from

stakeholders sought (Posters on wall)

slide-45
SLIDE 45

Recreational water uses

slide-46
SLIDE 46

Shellfish beds

slide-47
SLIDE 47

Next Steps

  • Complete additional studies
  • Continue consultation with stakeholders
  • Prepare consent application and AEE
  • Lodge renewal application no later than 7

November 2017

  • Application will be seeking 35 year duration
  • Expected to be publicly notified early 2018 –
  • pen for public submissions
  • Hearing expected mid-2018
  • Decision expected mid/late-2018
