Basal ganglia/nucleus Parts Function of the basal ganglia Direct = Dark grey Red Blue Light grey Indirect = Dark grey Green Blue Light grey Text Fig. 26-9 Medium spiny neuron projections Neurons of the basal ganglia

slide-1
SLIDE 1

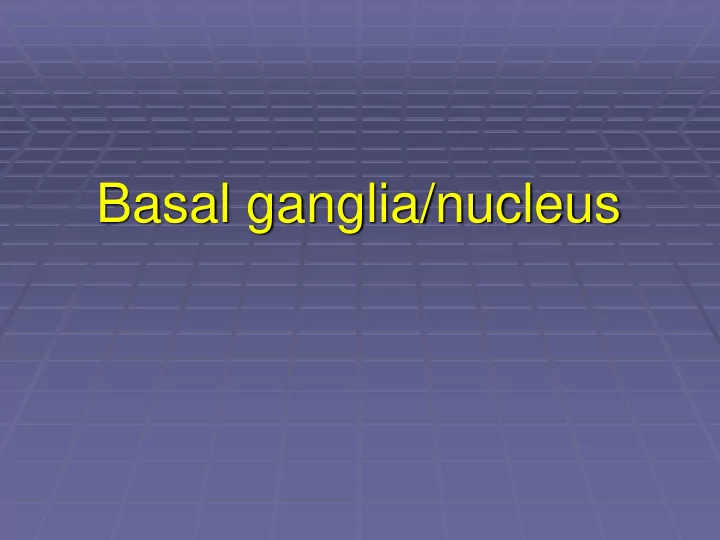

Basal ganglia/nucleus

slide-2
SLIDE 2

Parts

slide-3
SLIDE 3

Function of the basal ganglia

slide-4
SLIDE 4

Direct = Dark grey – Red – Blue – Light grey Indirect = Dark grey – Green – Blue – Light grey

Text Fig. 26-9

slide-5
SLIDE 5

Medium spiny neuron projections

slide-6
SLIDE 6

Neurons of the basal ganglia

slide-7
SLIDE 7

Connections and circuits

slide-8
SLIDE 8

Functional loops

slide-9
SLIDE 9
slide-10
SLIDE 10

Motor Loop

slide-11
SLIDE 11

Text Fig. 26-10A,B

slide-12
SLIDE 12

Text Fig. 26-10C,D

slide-13
SLIDE 13

Text Fig. 26-10C,D

slide-14
SLIDE 14

Modulators (associated nuclei)

slide-15
SLIDE 15
  • Subthalamic Nucleus ?????
  • Nigral Complex (Dopamine)
  • Pedunculo-pontine nucleus (Acetylcholine)

Modulators (associated nuclei)

slide-16
SLIDE 16
slide-17
SLIDE 17
  • Subthalamic Nucleus ?????
  • Nigral Complex (Dopamine)
  • Pedunculo-pontine nucleus (Acetylcholine)

Modulators (associated nuclei)

slide-18
SLIDE 18
slide-19
SLIDE 19

Nigral modulation

R

glu DA Direct transmission

EPSP

slide-20
SLIDE 20

glu DA Almost No direct effect of DA

Direct transmission vs. modulation

slide-21
SLIDE 21

R

enhanced

  • r diminished

response Modulation glu DA D1-Rs in the direct pathway: Excitatory effect on the pathway, hence Increase cortical activity

Direct transmission vs. modulation

Striatal medium spiny neuron

slide-22
SLIDE 22

R

enhanced

  • r diminished

response Modulation glu DA

Direct transmission vs. modulation

D2-Rs in the indirect pathway: Inhibitory effect on the pathway, hence Increase cortical activity

Striatal medium spiny neuron

slide-23
SLIDE 23

Direct and Indirect Pathways (Including the Substantia Nigra

Text Fig. 26-14A,B

slide-24
SLIDE 24
  • Subthalamic Nucleus ?????
  • Nigral Complex (Dopamine)
  • Pedunculo-pontine nucleus (Acetylcholine)

Modulators (associated nuclei)

slide-25
SLIDE 25

R

enhanced

  • r diminished

response Modulation glu Ach M4-Rs in the direct pathway:

1) Inhibitory, hence decrease

cortical activation

Direct transmission vs. modulation

Striatal medium spiny neuron

slide-26
SLIDE 26

R

enhanced

  • r diminished

response Modulation glu

Direct transmission vs. modulation

M1-Rs in the indirect pathway: excitatory, hence Decrease cortical activity

Striatal medium spiny neuron

Ach

slide-27
SLIDE 27
slide-28
SLIDE 28

Hypokinetic disorders

  • insufficient direct pathway output
  • excess indirect pathway output

Hyperkinetic disorders

  • excess direct pathway output
  • insufficient indirect pathway output

Motor behavior is determined by the balance between direct/indirect striatal outputs

slide-29
SLIDE 29

Parkinson’s disease

Pathophysiology

Primary: loss of nigrostriatal DA projection SNc Striatum

Michael J. Fox Muhammad Ali

slide-30
SLIDE 30

Parkinson’s disease

Treatment

Deep brain stimulation subthalamic nucleus (STN)/ globus pallidus interna (GPi) high frequency stimulation inactivates the STN or GPi. Dopamine Acetylcholine

slide-31
SLIDE 31

Hypokinetic disorders

  • insufficient direct pathway output
  • excess indirect pathway output

Hyperkinetic disorders

  • excess direct pathway output
  • insufficient indirect pathway output

Motor behavior is determined by the balance between direct/indirect striatal outputs

slide-32
SLIDE 32

Involuntary (unwanted) movements

  • Chorea
  • Ballismus
  • Dystonia
  • Athetosis

Hyperkinetic symptoms

slide-33
SLIDE 33

Hyperkinetic disorders: choreatic syndromes

  • 1. Huntington’s Chorea
  • 2. Sydenham Chorea
  • 3. Dystonia
  • 4. Tardive dyskinesia
  • 5. DOPA-induced dyskinesia
  • 6. Hemiballismus
  • 7. Tourette’s syndrome
slide-34
SLIDE 34

Huntington’s disease

Pathophysiology

  • Atrophy of striatum
  • Loss of striatal neurons
  • Neuropathological sequence
  • start , rostral and medial then caudal and

lateral

slide-35
SLIDE 35
slide-36
SLIDE 36

Huntington’s disease

Symptoms

Early motor signs

  • chorea (brief,

involuntary movements)

  • later have dystonia

episodes Choreatic gait Dystonic movements

slide-37
SLIDE 37

Hyperkinetic disorders:

  • 1. Huntington’s Chorea
  • 2. Sydenham Chorea
  • 3. Dystonia
  • 4. Tardive dyskinesia
  • 5. DOPA-induced dyskinesia
  • 6. Hemiballismus
  • 7. Tourette’s syndrome
slide-38
SLIDE 38

Hyperkinetic disorders: choreatic syndromes

Huntington’s disease Dystonia Tardive dyskinesia DOPA-induced dyskinesia Hemiballismus Tourette’s syndrome

Cervical dystonia After botulinum toxin

slide-39
SLIDE 39

Hyperkinetic disorders: choreatic syndromes

Huntington’s disease Dystonia Tardive dyskinesia DOPA-induced dyskinesia Hemiballismus – unilateral STN stroke Tourette’s syndrome

After treatment with the D2-R blocker sulpiride

slide-40
SLIDE 40

Hyperkinetic disorders:

  • 1. Huntington’s Chorea
  • 2. Sydenham Chorea
  • 3. Dystonia
  • 4. Tardive dyskinesia
  • 5. DOPA-induced dyskinesia
  • 6. Hemiballismus
  • 7. Tourette’s syndrome
slide-41
SLIDE 41

Hyperkinetic disorders:

  • 1. Huntington’s Chorea
  • 2. Sydenham Chorea
  • 3. Dystonia
  • 4. Tardive dyskinesia
  • 5. LDOPA-induced dyskinesia
  • 6. Hemiballismus
  • 7. Tourette’s syndrome
slide-42
SLIDE 42

Hyperkinetic disorders:

  • 1. Huntington’s Chorea
  • 2. Sydenham Chorea
  • 3. Dystonia
  • 4. Tardive dyskinesia
  • 5. LDOPA-induced dyskinesia
  • 6. Hemiballismus
  • 7. Tourette’s syndrome
slide-43
SLIDE 43

Hyperkinetic disorders:

Tourette’s syndrome

https://www.youtube.com/watch?v=e8HtTb0Vk_o https://www.youtube.com/watch?v=jYRa-fpNonY
