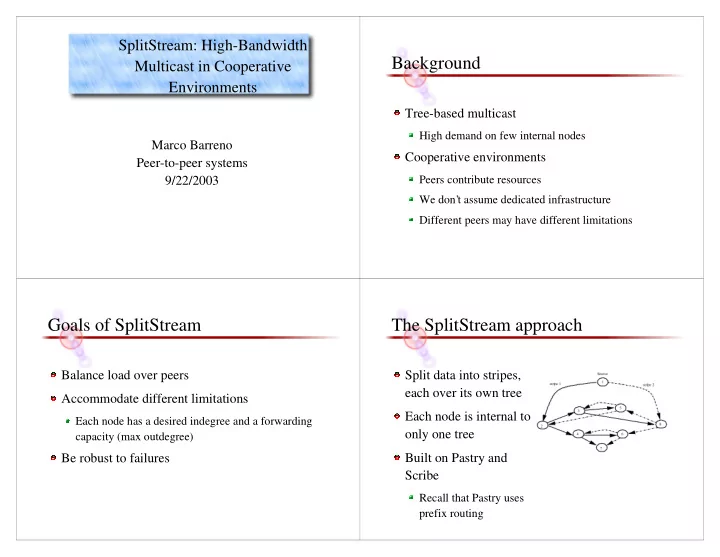

SplitStream: High-Bandwidth Multicast in Cooperative Environments

Marco Barreno Peer-to-peer systems 9/22/2003

Background

Tree-based multicast

High demand on few internal nodes

Cooperative environments

Peers contribute resources We don’ t assume dedicated infrastructure Different peers may have different limitations

Goals of SplitStream

Balance load over peers Accommodate different limitations

Each node has a desired indegree and a forwarding capacity (max outdegree)

Be robust to failures

The SplitStream approach

Split data into stripes, each over its own tree Each node is internal to

• nly one tree

Built on Pastry and Scribe

Recall that Pastry uses prefix routing

Scribe background

Built on top of Pastry Any Scribe node may create a group

Other nodes may join group or send multicast

Node with nodeId numerically closest to groupId is the rendezvous point

Root of multicast tree for the group Joins handled locally

But it’ s only a single tree

Stripes

SplitStream divides data into stripes Each stripe uses one Scribe multicast tree Prefix routing ensures property that each node is internal to only one tree

Inbound bandwidth: can achieve desired indegree while this property holds Outbound bandwidth: this is harder—we'll have to look at the node join algorithm to see how this works

Respecting forwarding capacity

The tree structure described may not respect maximum capacities Scribe’ s push-down fails to resolve the problem because a leaf node in one tree may have children in another tree

Compare this to Overcast

Overcast also creates an overlay to spread multicast work around, but...

Overcast is single-source, while SplitStream is multi- source Overcast uses a single tree, while SplitStream uses multiple trees Overcast is designed to maximize bandwidth between root and leaves, while SplitStream is designed to spread load evenly to all nodes (including leaves)

Parent location algorithm

1 Node adopts prospective child 2 If too many children, choose one to reject:

• i. First, look for one in stripe without shared prefix
• ii. Otherwise, select node with shortest prefix match

3 Orphan locates new parent in up to two steps:

• i. Tries former siblings with stripe prefix match
• I. Adopts or rejects using same criteria; continue push-down
• ii. Use the spare capacity group

The spare capacity group

If orphan hasn’ t found parent yet, anycasts to spare capacity group Group contains all SplitStream nodes with fewer children than their forwarding capacity Anycast returns nearby node, which starts a DFS

• f the spare capacity group tree, sending first to a

child...

Spare capacity group (cont.)

At each node in the search:

If node has no children left to search, check whether it receives a stripe the orphan seeks If so, verifies that the orphan is not an ancestor (which would create a cycle)

If both tests succeed, the node adopts the orphan

May leave spare capacity group

If either test fails, back up to parent (more DFS...)

A spare capacity example

Consequences

Parent is likely to be physically near orphan due to locality of Pastry and Scribe However, it is possible for the parent already to be an internal node for another stripe

If this parent fails it will bring down two stripes

Anycast can still fail

Adding the orphan may cause a cycle (fixable) No node with spare capacity provides stripe sought

Declare failure and notify the application

Correctness and complexity

Big assumptions:

All nodes join at the same time and communication is reliable Nodes do not leave the system either voluntarily or due to failures

Splitstream can deal with violations of either, but problems may arise that prevent the forest from being constructed

Simulation shows this isn’ t problematic in practice

Correctness and complexity (2)

A fairly lengthy analysis reveals this rough upper bound on the probability that the algorithm fails to build a feasible forest: But when the desired indegree of all nodes equals the total number of stripes, the algorithm never fails

Correctness and complexity (3)

Expected state maintained by each node is O(log|N|) Expected number of messages to build forest is O(|N|log|N|) if trees are well balanced and O(|N|2) in the worst case Trees should be well balanced if each node forwards its own stripe to two other nodes

Experiments Experiments (2) Experiments (3) Experiments (4)

Conclusions

So what are the major points? =)
