UK Plan for tackling roadside nitrogen dioxide levels Implications for Fareham Gosport and Hampshire FBC GBC HCC JAQU B Air Quality Compliance Directive Project Background 2008 Directive 2008/50/EC Compliance with EC target by 2010

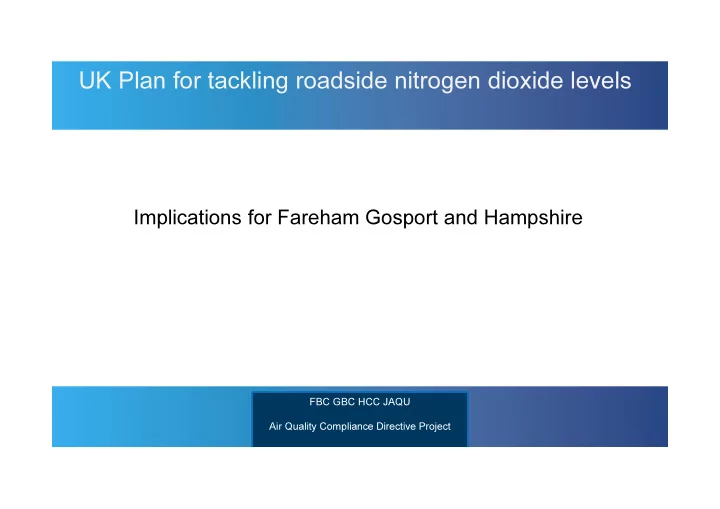

SLIDE 1

B

UK Plan for tackling roadside nitrogen dioxide levels

Implications for Fareham Gosport and Hampshire

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 2

B

2008 Directive 2008/50/EC – Compliance with EC target by 2010
Extension to 2015
2015 (April) – Supreme Court Order
2015 (September) – First AQ plan draft
2015 (December) – Final AQ plan Published
2016 (November) – Plans quashed
2017 (May) - updated plans published
2017 (July) – Final AQ plan published

“ UK plan for tackling roadside nitrogen dioxide concentrations”

ClientEarth have taken Govt to court again – Jan 2018
lost again today 21/02/2018

Background

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 3

B

UK Plan for tackling roadside nitrogen dioxide levels

Defra Pollution Climate Mapping (PCM) model used to assess compliance with EU Limit Values Projects 2020 NO2 concentrations of 42 µg/m³ on the A27 However local modelling may well give different results!

SLIDE 4

B

27 July 2017 Environment Act 1995 (Feasibility Study for Nitrogen Dioxide Compliance) Air Quality Direction 2017

Issued on 23 Local Authorities including Fareham requiring:- 1) By 31/03/2018 – Initial Plan to identify measures which will deliver compliance in the shortest possible time. (feasibility study) 2) By 31/12/2018 – Final Plan to identify preferred

ption to deliver compliance in the shortest

possible time (Working to 2020)

Implications

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 5

B

Exceedances ( from computer model)

SLIDE 6

B

Establish Strategic Member led Group

Councillor Cartwright - Chair Councillor Ford Richard Jolley – Director Planning and Regulation Graham Wright ? – HCC Senior Transport Planner Michael Lawther – Deputy CX Gosport Ian Rickman – Head of EH Fareham & Gosport

Project management / Delivery

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 7

B

Establish Technical Officer Group

Ian Rickman – Head of EH Fareham & Gosport Graham Wright – HCC Senior Transport Planner James Moore – HCC Transport Oli Seebohm - FBC Transport Planner Andrew Broster – GBC Policy Officer Transport and Traffic Emily Clark – JAQU (DEFRA/DfT) Account Manager

Project management / Delivery

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 8

B

Surrey Heath, Rushmoor and Guildford are undertaking the same work in respect of a section of bypass on the A331. Fareham’s issue is also with a section of bypass. We have the same DEFRA account holder and the same county involved. Working collaboratively to share knowledge, expertise, pain and take advantage of procurement and project management savings for the avoidance of duplication.

Collaborative working

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 9

B

Establish Collaborative Steering Group

Ian Rickman – Head of EH Fareham & Gosport Justine Fuller – Guildford Council Gary Durrant - Guildford Council Richard Ward – Rushmoor Council Emma Bourne – Surrey Heath Council Emily Clark – JAQU (DEFRA/DfT)

Project management / Delivery

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 10

B

Currently:- Procure and undertake ANPR survey by 30 October Submit plan for Feasibility plan by 30 November 2017

Prescribed Process

SLIDE 11

B

December 2017 - Traffic Survey undertaken £100k, data being analysed January 2018 – Bid to JAQU for further £750K waiting to hear January 2018 - Early Measures Funding Bid - £250k (F&G taxi scheme) March 2018 – Initial Plan submission December 2018 – Final Plan submission

Current Position

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 12

B

Up to £3 million bid for capital funding to improve air quality (Not for buses) examples:-

Incentivise low emission take up
behavioural change campaigns (incentive schemes, rewarding

businesses, encouraging employees).

encouraging active travel such as cycling + routes and

networks) Reducing journeys in air pollution hotspots

Traffic management solutions (signage etc)
Reductions in journeys through freight consolidation

Early Measures Funding

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 13

B

SLIDE 14

B

Average daily total flow

ver survey period

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 15

B

FBC GBC HCC JAQU Air Quality Compliance Directive Project

Local fleet composition compared to National

SLIDE 16

B

SLIDE 17

B

HGV Routing at 6 West Average daily

ver survey

period

SLIDE 18

B

Relative NOX emissions by site / vehicle

Split by vehicle type and Euro Standard

Site 3 Cars Vans HGVs Buses Petrol Diesel Petrol Diesel Rigid Artic Euro 1 0.1% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 2 0.2% 0.1% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 3 0.5% 1.3% 0.0% 0.5% 0.7% 0.3% 1.2% Euro 4 2.3% 10.2% 0.0% 4.4% 3.2% 1.4% 0.8% Euro 5 1.9% 24.7% 0.0% 12.8% 7.9% 1.8% 5.8% Euro 6 1.5% 11.5% 0.0% 3.8% 0.2% 0.1% 0.7% TOTAL 6.4% 47.8% 0.0% 21.5% 12.0% 3.6% 8.6% Site 15 Cars Vans HGVs Buses Petrol Diesel Petrol Diesel Rigid Artic Euro 1 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 2 0.2% 0.0% 0.0% 0.0% 0.0% 0.0% 0.1% Euro 3 0.4% 0.9% 0.0% 0.4% 0.4% 0.2% 1.2% Euro 4 2.1% 10.0% 0.0% 4.9% 3.1% 1.4% 0.7% Euro 5 1.6% 23.1% 0.0% 16.9% 10.6% 2.5% 1.9% Euro 6 1.3% 10.6% 0.0% 5.1% 0.3% 0.1% 0.1% TOTAL 5.6% 44.7% 0.0% 27.3% 14.4% 4.1% 3.9% Site 6 Cars Vans HGVs Buses Petrol Diesel Petrol Diesel Rigid Artic Euro 1 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 2 0.2% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 3 0.4% 1.1% 0.0% 0.4% 0.4% 0.2% 0.7% Euro 4 2.1% 9.9% 0.0% 5.1% 3.4% 1.5% 0.8% Euro 5 1.6% 22.5% 0.0% 17.1% 10.8% 2.5% 1.5% Euro 6 1.3% 10.8% 0.0% 5.1% 0.3% 0.1% 0.1% TOTAL 5.59% 44.37% 0.01% 27.76% 14.92% 4.32% 3.04% Site 10 Cars Vans HGVs Buses Petrol Diesel Petrol Diesel Rigid Artic Euro 1 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 2 0.4% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0% Euro 3 0.9% 2.0% 0.0% 0.6% 0.3% 0.1% 6.0% Euro 4 2.8% 10.5% 0.0% 4.8% 2.4% 1.1% 0.9% Euro 5 2.1% 23.9% 0.0% 13.2% 6.9% 1.6% 2.8% Euro 6 1.5% 10.9% 0.0% 3.8% 0.1% 0.0% 0.1% TOTAL 7.68% 47.40% 0.01% 22.46% 9.72% 2.85% 9.88%

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 19

B

Interim Model – Area of Interest

08 March 2018 Contains sensitive information 19

SLIDE 20

B

Receptors of concern

08 March 2018 20 Contains sensitive information

SLIDE 21

Interim Model Results - 2021

08 March 2018 Contains sensitive information 21

Receptor ID PCM Link ID 2017 2018 2019 2020 2021 2022 2023 2024 2025 95392_R2 95392 43.8 42.2 40.7 39.0 37.3 35.6 33.9 32.2 30.4 95469_R2 95469 46.3 44.2 42.1 39.9 37.6 35.3 33.0 30.6 28.2 95470_R1 95470 48.1 46.3 44.4 42.4 40.3 38.2 36.1 34.0 31.9 95470_R3 95470 45.7 43.8 42.0 40.0 38.0 36.0 33.9 31.9 29.8 95471_R6 95471 47.6 45.8 43.9 41.8 39.8 37.7 35.6 33.4 31.3 95471_R7 95471 47.4 45.5 43.6 41.6 39.5 37.4 35.3 33.2 31.1 95483_R1 95483 46.8 44.9 42.9 40.8 38.6 36.5 34.3 32.1 29.9 95483_R2 95483 44.6 42.8 40.9 38.9 36.9 34.8 32.8 30.7 28.7 95483_R3 95483 48.1 46.1 44.1 41.9 39.7 37.4 35.2 32.9 30.6 95483_R4 95483 43.9 42.1 40.2 38.2 36.2 34.1 32.1 30.1 28.0 95486_R1 95486 40.5 38.8 37.1 35.4 33.6 31.8 30.0 28.2 26.4 95486_R5 95486 40.3 38.7 37.1 35.4 33.6 31.9 30.1 28.4 26.6 95489_R4 95489 43.6 41.9 40.2 38.4 36.6 34.7 32.9 31.0 29.2 95489_R5 95489 40.6 39.0 37.5 35.8 34.2 32.5 30.9 29.2 27.6 95492_R2 95492 48.8 47.1 45.3 43.4 41.4 39.5 37.5 35.5 33.5 95492_R3 95492 45.9 44.1 42.2 40.2 38.2 36.2 34.2 32.1 30.1 95494_R1 95494 42.3 40.5 38.7 36.8 34.8 32.8 30.9 28.9 27.0 95495_R1 95495 47.8 45.8 43.8 41.6 39.4 37.2 35.0 32.7 30.5 95495_R2 95495 42.6 40.8 39.0 37.1 35.1 33.2 31.2 29.3 27.3 95495_R3 95495 42.0 40.3 38.5 36.6 34.6 32.7 30.8 28.9 26.9

SLIDE 22

Source Apportionment

08 March 2018 Contains sensitive information 22

Link 2021_DM _NO2 Background_ NO2 Road_ NO2 Petrol Car Diesel Car Petrol LGV Diesel LGVRigid HGV Artic HGV Buses Coaches Other A32 40.3 13.1 27.2 1.4 12.2 0.0 3.5 7.4 0.6 1.3 0.7 0.0 A27 41.4 12.4 29.1 2.1 16.7 0.0 4.9 4.0 0.4 0.5 0.3 0.1

SLIDE 23

CAZ Benchmarking

08 March 2018 Contains sensitive information 23

Do minimum / Business as usual CAZ A (Buses/Taxis Euro 6)

SLIDE 24

Fareham Taxi Fleet

08 March 2018 24 Contains sensitive information

SLIDE 25

B

Complete and issue analysis of ANPR data to

inform option development / appraisal

Including additional analysis of Taxis & PHVs
Complete preliminary AQ modelling to inform option

appraisal

Finalise long-list of measures
Develop appraisal criteria
Key factor will be when compliance will be

achieved which can be estimated using air quality model outputs

Produce SOC, including shortlist of options
Initial Evidence Submission (June 2018)
Outline Business Case (December 2018)

Tasks going forwards

FBC GBC HCC JAQU Air Quality Compliance Directive Project

SLIDE 26

B

Questions?

FBC GBC HCC JAQU Air Quality Compliance Directive Project
