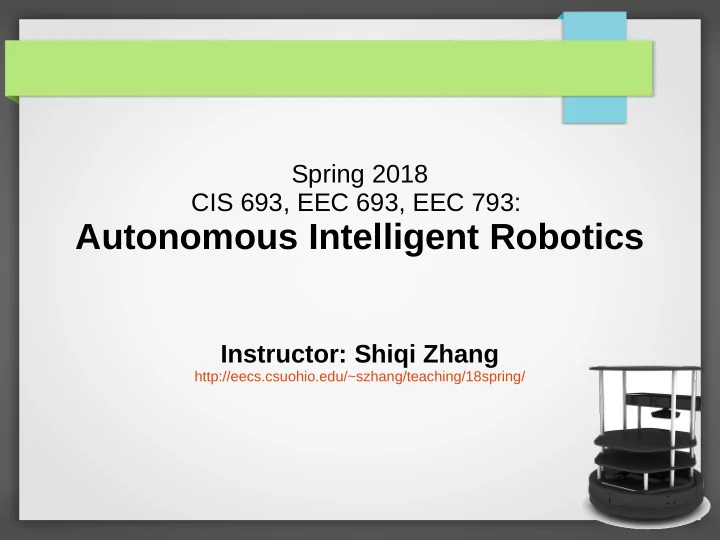

Spring 2018 CIS 693, EEC 693, EEC 793:

Autonomous Intelligent Robotics

Instructor: Shiqi Zhang

http://eecs.csuohio.edu/~szhang/teaching/18spring/

2

Ubuntu 14.04 + ROS Indigo

3

ROS: Robot Operatins System

4

Intelligent robot

External world Sensors Actuators Perception Cognition Action Sensing Modeling the world Action selection Planning Learning Multirobot coordination Motion Navigation Obstacle avoidance

5

Example: TurtleBot

TurtleBot 'create' base Microsoft Kinect

6

Software architecture

• Software architecture is

important for robotics because:

– Large code-bases – Integration of many different

(dynamic) set of devices

– Many different options for a single

component

7

Controlling robots using code

8

Straightforward approach

• Write a program to perform robot's 'cognitive' functions
• The program includes:

– Code to interface with the camera – Code to interface with the robot base – Code to understand the images and control the robot base

• Once implemented, the system works well and efficiently

9

Straightforward approach

SOFTWARE HARDWARE

USB-USB USB-Serial

Specific camera driver Serial programming specific to 'Create'

This approach suffers from a problem. Any ideas? This approach suffers from a problem. Any ideas?

10

An example problem...

• We later realized 'create' base is too slow (0.5 m/s).
• How easy it is to use a Segway base instead (up to 1.7 m/s)?

Could I have implemented my code differently to make this transition easier? Could I have implemented my code differently to make this transition easier?

11

An example problem...

• We later realized 'create' base is too slow (0.5 m/s).
• How easy it is to use a Segway base instead (up to 1.7 m/s)?

Could I have implemented my code differently to make this transition easier? Could I have implemented my code differently to make this transition easier?

12

Using robot middleware

Provide an abstraction layer and drivers between Provide an abstraction layer and drivers between computation and embodiment computation and embodiment

13

Using robot middleware

SOFTWARE HARDWARE

USB-USB USB-Serial

middleware middleware

14

The advantages

• Reuseability

– Reuse existing code and drivers written for other robots,

platforms and/or research projects

• Portability

– Easier to switch to another robotic platform

• Easier to expand functionality

15

ROS (Robot Operating System)

• A very popular robot middleware

package

www.ros.com

16

ROS (Robot Operating System)

17

ROS (Robot Operating System)

• A very the most popular robot middleware package
• Peer-to-peer architecture among nodes over a

network

– A node is a process that performs some computation – Topics are named buses over which nodes exchange

messages

– Nodes communicate with each other by publishing

and subscribing to topics

– Services enable request-response communications

between nodes

18

ROS nodes, messages, and topics

Node Node Node Node Node Node Service Topic Node Node Node publish subscribe response request

19

How it works...

USB-USB USB-Serial

Ball following

20

How it works...

USB-USB USB-Serial

vision camera 'create' control ROS master

21

How it works...

USB-USB USB-Serial

vision camera 'create' control ROS master

I will receive images

• n topic "image" and

publish blobs on topic "blobs" I will receive blobs

• n topic "blobs"

and publish velocities on topic "cmd_vel" I will receive velocities on topic "cmd_vel" I will publish images on topic "image"

22

How it works...

USB-USB USB-Serial

vision camera 'create' control ROS master

images

• n

'image' blobs on 'blobs' Velocities

• n

'cmd_vel' SET UP COMMUNICATIONS

23

To summarize...

• Robot middleware improves software's reusability

and portability

• ROS is a very popular robot middleware

– Thousands of packages – More than 100 robot platforms

• Important ROS concepts

– Node – Topic – Message – Service

24

Reading materials

• ROS tutorials

–

http://www.ros.org/wiki/ROS/Tutorials

• ROS paper:

–

'ROS: an open-source Robot Operating System', 2009

25

Demo

26

THE END
