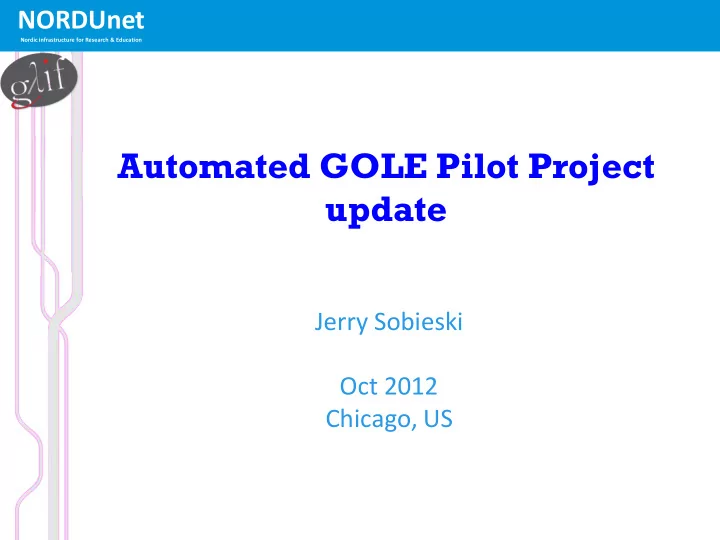

Automated GOLE Pilot Project update

Jerry Sobieski Oct 2012 Chicago, US

NORDUnet

Nordic infrastructure for Research & Education

Automated GOLE Fabric

PSNC JGN-X

NetherLight

Cern UvA CzechLight KRLight AIST KDDI Labs

StarLight

GLORIAD GEANT ACE

Nordunet

CANARIE

• The GLIF Automated GOLE global fabric

– The GLIF Automated GOLE Pilot was initiated in 2010 to provide a global fabric of Open Lightpath Exchanges for the express purpose of maturing the dynamic provisioning software, demonstrating the value of GOLEs to emerging network service models, and to develop a set of BCP for these services.

NORDUnet

Nordic infrastructure for Research & Education

Pionier.ets

Poznan AutoBAHN

StarLight.ets

Chicago OpenNSA/Argia

GEANT.ets

Paris AutoBAHN

NorthernLight.ets

Copenhagen OpenNSA

AIST.ets

Tsukuba G-LAMBDA-A

NSI Networks (“A”=Aggregator) NSI peerings (SDPs) unless otherwise indicated these are vlans 1780-1783

KRLight.ets

Daejeon DynamicKL

KDDI-Labs.ets

Fujimino G-LAMBDA-K

ACE KRLight JGN-X Pionier GEANT JGNX.ets

Tokyo G-LAMBDA-K

CzechLight.ets

Prague OpenDRAC

ESnet.ets

Chicago OSCARS

UvALight.ets

University of Ams. OpenNSA

CESNET GLORIAD.ets

Chicago OpenNSA

NetherLight.ets

Amsterdam OpenDRAC

NORDUnet + SURFnet A A A A A A A A GLORIAD

In-progress peerings (SDPs) or GOLEs

Ethernet Transport Service

NORDUnet

Nordic infrastructure for Research & Education

Pionier.ets

Poznan AutoBAHN

StarLight

Chicago OpenNSA/Argia

GEANT.ets

Paris AutoBAHN

NorthernLight.ets

Copenhagen OpenNSA

AIST.ets

Tsukuba G-LAMBDA-A

NSI Networks (“A”=Aggregator) NSI peerings (SDPs) unless otherwise indicated these are vlans 1780-1783

KRLight

Daejeon DynamicKL

KDDI-Labs

Fujimino G-LAMBDA-K

ACE KRLight JGN-X Pionier GEANT JGN-X

Tokyo G-LAMBDA-K

CzechLight.ets

Prague DRAC

Esnet

Chicago OSCARS

UvALight.ets

University of Ams. OpenNSA

CESNET GLORIAD

Chicago OpenNSA

NetherLight

Amsterdam DRAC

US LHCnet NORDUnet + SURFnet A A A A A A GLORIAD WIX

Washington OpenNSA

A HKOEP

Hong Kong

A A CANARIE MAX

NORDUnet

Nordic infrastructure for Research & Education

EVOLUTION: AUTOMATED GOLE + NSI 2013

Pionier

POX

StarLight

Chicago

AIST.ets

Tsukuba

NSI Networks (“A”=Aggregator) NSI peerings (SDPs) unless otherwise indicated these are vlans 1780-1783

KRLight.ets

DAE

KDDI-Labs.ets

Fujimino

ACE KRLight JGN-X GEANT JGNX.ets

Tokyo

CzechLight

PRA

ESnet.ets UvALight

AMS

CESNET NetherLight

AMS

US LHCnet A A A A A A A HKOEP

HKG

CSTnet

BEJ

Planned peerings (SDPs)

A WIX

WDC

Planned federated networks (GOLEs under single administrative mgmt)

A A A A A A A A MANLAN A A A GEANT

LON

NorthernLight

CHI CPH NYC HAM ASH

GLORIAD

SEA CHI

A RNP.ets A PWAVE.ets NRENs

NORDUnet

Nordic infrastructure for Research & Education

NSI Deployment

• NSI v1 deployed in 2011
• NSI v2 deploying now

– Demos at SC 2012 Nov 2012

• NSI v2 Network Engineering Workshop

– TIP 2013 Jan 2013

• To Date:

– 250,000 NSI Connections set up in 2012 over the Automated GOLE fabric

NORDUnet

Nordic infrastructure for Research & Education

Experiment to Production

• The NSI architecture is proven
• The [v1] Software is reliable

– 250,000 Circuits (!) (Jeroen vdH)

• v2 is happening…
• The ancillary services such as performance

monitoring, topo distribution need definition and community support to bring forward

• Time for [early] Production deployments

– If you are not participating in the trails, it is difficult to influence the evolution of the operational services – This is an opportunity for the entire R&E community to migrate in unison to a common globally deployed service – NORDUnet, NetherLight, StarLight are diving in…

NORDUnet

Nordic infrastructure for Research & Education

Evolution

• We want the AutoGOLE to continue – it’s a unique proving

ground!

• We want it to grow – to continue to be a rich facility for

proving GLIF concepts and recommendations

• I would suggest the GLIF community renew the

commitment to the facility:

– Add additional links to the fabric (mesh path finding, robustness, new multi-path technologies,…) – Increase the existing capacity in order to allow experiments to actually gain insights at scale – Add additional GOLEs and Networks to the fabric

NORDUnet

Nordic infrastructure for Research & Education

Leardership Transition

• Jerry Sobieski will be taking on important roles

in GN3+ in 2013…

• Need new Automated GOLE Chair
• If you are interested, and like pain and

frustration, but have a penchant for global domination, please let me know

• The silver lining: The best network hardware

and software engineers in the world are part of the team you get to hang with…
