AudGenDB Intuitive biomedical query and reporting tool using Django Byron Ruth July 13, 2011 SciPy 2011 Austin, Texas Center for Biomedical Informatics The Childrens Hospital of Philadelphia Scope National Institute of

slide-1

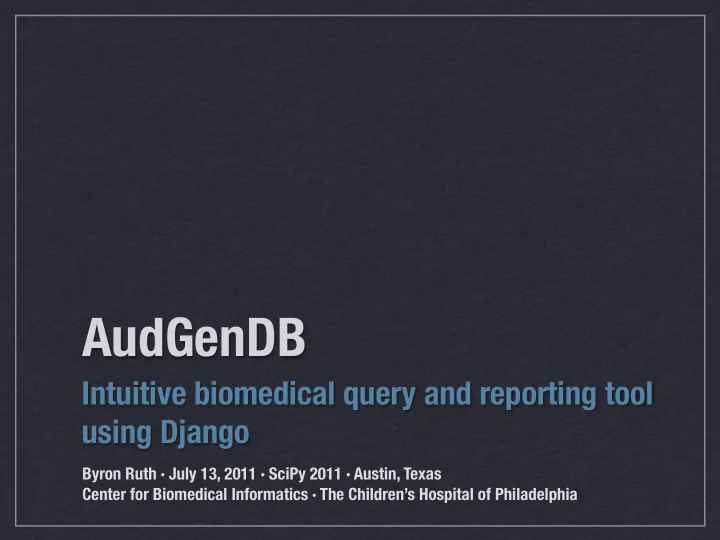

SLIDE 1

AudGenDB

Intuitive biomedical query and reporting tool using Django

Byron Ruth · July 13, 2011 · SciPy 2011 · Austin, Texas Center for Biomedical Informatics · The Children’s Hospital of Philadelphia

slide-2
SLIDE 2

Scope

  • National Institute of Health (NIH) funded project
  • Audiologic and Genetics database of

unprecedented scope and size

  • Started with CHOP’s data, intending to integrate
  • ther pediatric institutions’ data
slide-3
SLIDE 3

Data Problems

  • Clinical data is complex and messy
  • Data is scattered throughout EHR
  • Most clinical data is not “research-friendly”
  • Clinical systems are built for clinical workflows
  • Given a drop-down of choices, it can most likely

be overridden

slide-4
SLIDE 4

Example

Concept ID Line # Concept Value CHOP#AUDIO#0001 1

Ear;Stim;125;250;500;750;1000;1500;2000;3000;4000;6000;8000

CHOP#AUDIO#0001 2

R;AIR;;;20M;;;;55;; 75;;;

CHOP#AUDIO#0001 3

L;AIR;;;15;; 25;;55;;;;;

CHOP#AUDIO#0001 4

L;BONE;;; 15;; 20;;;; 60N;;;

WHAT WE HAVE WHAT WE WANT

slide-5
SLIDE 5

Solutions

  • Extract-Transform-Load (ETL)
  • Extract patients of interest from EHR
  • Stage the data in a more “queryable” data model
  • Data curation
  • Push data to production
slide-6
SLIDE 6

Great!

slide-7
SLIDE 7

We have data

  • 37,000+ Patients
  • 367,000+ Procedures (including 22,000+ surgical procedures)
  • 165,000+ Encounters
  • 56,000 Typanograms
  • 57,000+ Audiograms
  • 16,000+ Auditory Brainstem Responses (ABR)
  • 4000+ Radiology Impressions
slide-8
SLIDE 8

Proposed interface.. Done!

slide-9
SLIDE 9

Approach

slide-10
SLIDE 10

Constraints

  • Reach as many diverse groups of people as

possible

  • We only have two software developers...
  • No resources to support distributed self-installed

applications (e.g. Microsoft Office)

slide-11
SLIDE 11

The Web!

  • No installation required
  • Rapid iterative development cycles
  • Virtually every device has a Web browser these

days...

slide-12
SLIDE 12

It should..

  • Be Intuitive
  • Be “Discoverable”
  • Be in a familiar language
  • Not Be intimidating
  • Not Require knowledge of the data model
  • Not Require knowledge of the data
slide-13
SLIDE 13

Typical Interface...

slide-14
SLIDE 14

Our Interface...

slide-15
SLIDE 15

Demo

slide-16
SLIDE 16

Harvest

slide-17
SLIDE 17

The Stack

  • ModelTree - generates and executes Django

QuerySets at runtime

  • Avocado - wraps ModelTree with additional

metadata and abstractions

  • Serrano - REST API exposing core parts of

Avocado

  • Cilantro - web app with Concept “query views”
slide-18
SLIDE 18

ModelTree

  • https://github.com/cbmi/modeltree
slide-19
SLIDE 19

Avocado

  • Definition - represents a single data field
  • Concept - one or more definitions represented

together in a domain-specific way

  • Domain - collection of Concepts
