AIA-The Atmospheric Imagine Assembly Measuring the Suns Surface, Chromosphere, Transition Region, and Corona using visible and extreme Ultra-violet light. Alan Title PI Representing the Lockheed Martin Advanced Technology Center Instrument

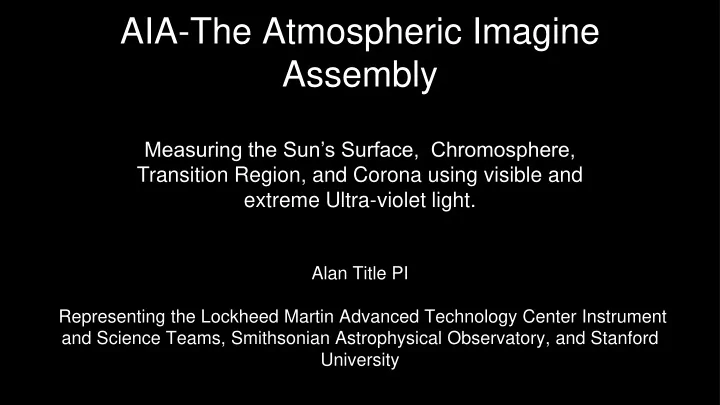

SLIDE 1

AIA-The Atmospheric Imagine Assembly

Alan Title PI Representing the Lockheed Martin Advanced Technology Center Instrument and Science Teams, Smithsonian Astrophysical Observatory, and Stanford University

Measuring the Sun’s Surface, Chromosphere, Transition Region, and Corona using visible and extreme Ultra-violet light.

SLIDE 2

Briefly

What is AIA?
What does it do?
What should we learn?
Where is the data?

SLIDE 3

AIA is a Full Sun Imager

The Field of View (indicated by

the orange circle)is 41 arc minutes or to about 120,000 miles above the Solar surface.

This allows observation of 96%
f the x-Ray radiance.
AIA will observe ~98% of the

emission in EVE’s field of view.

Each AIA image will covers 25

times more of the Sun than TRACE.

SLIDE 4

Four Dual Temperature Telescopes

50,000 K 6,000,000 K 2,500,000 K 2,000,000 K 6,000 K 600,000 K 1,250,000 K 15,000,000 K

AIA takes Full Disk Solar Images with all telescopes every ten seconds

SLIDE 5

SLIDE 6

AIA and HMI Together Provide Data from the Solar Interior to the Heliosphere

Tricolor: 171 Å 195 Å Yohkoh

SLIDE 7

From Sunlight to Science

Aperture Selector PM + 2M Entrance filters Filter Wheel

Shutter

CCD SDO MOC DDS JSOC

Science Investigation

Computers

Science team, Solar Physics Community, NASA, Taxpayers

Data Archive
