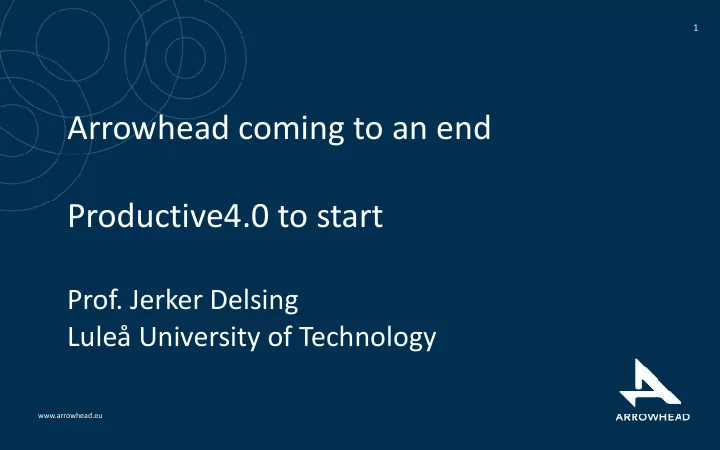

Arrowhead coming to an end Productive4.0 to start

• Prof. Jerker Delsing

Luleå University of Technology

1

www.arrowhead.eu

2

Arrowhead

78 partners, +300 people 68M€

RESULTS

www.arrowhead.eu jerker.delsing@ltu.se

ARTEMIS Industry Association The association for R&D actors in embedded systems

www.arrowhead.eu

Major achievements

• 26 Industrial demos
• 6 Keynotes at IEEE conferences
• Arrowhead Framework open source project released
• +15 products using Arrowhead technology
• 4 start up companies
• +145 papers published
• 9+ EU projects using Arrowhead Framework

3

www.arrowhead.eu

4

Specific achievement

• Arrowhead results used in business cases between Noda and

Abelko

• Economic impact (qualitative evaluation):
• New business in the order of 5-10 million Euro
• Commercialisation of gateways for intermediation between building

systems, heat grid systems and the cloud

www.arrowhead.eu

Key feature of Arrowhead Framework

Reduction of application development time by 65-80% Proven by companies in commercial projects. Abelko and BNearIT; 4 projects.
 Supported by qualitative analysis comparing ISA95 and Arrowhead local cloud engineering Oscar Carlsson, Jerker Delsing, Engineering of Service-oriented IoT Automation Systems, IEEE System journal


DIGITISING EUROPEAN INDUSTRY
 European Commission proposal

16

www.arrowhead.eu

So what have we done

7

8

Arrowhead Grand challenges

Enabling the interoperability of services provided by almost any device.
 Enabling the integrability of services provided by almost any device.

www.arrowhead.eu

From enterprise to multi stakeholder operation

Stakeholder collaboration domain Lifecycle
 domain Supply chain
 domain Shop floor Business Design Support Suppliers Customers

www.arrowhead.eu

10

The automation technology transition

Automation Digitalisation

www.arrowhead.eu

11

Digitisation and Automation system requirements

Real-time performance System safety Internt of Thing, IoT, interoperability IT security and associated system safety Engineering simplicity to reduce, design- and run-time change, costs Scalability to very large system of systems (> 106 IoT’s) System evolvability over time and technology generations

www.arrowhead.eu

12

Local cloud meeting automation requirements

Automation is local Local clouds shall provide A protective fence Against external communication Inter cloud service exchange Thus protecting sensitive automation operations as Real time closed control loops Safety critical operations

www.arrowhead.eu 13

Locations Core Local Cloud Fog & Edge Local clouds

www.arrowhead.eu

14

Arrowhead Framework

https://forge.soa4d.org/plugins/mediawiki/wiki/arrowhead-f/ index.php/Main_Page

15

Arrowhead book

CRCPress, Feb 6 https:// www.crcpress.com/ Arrowhead- Framework-IoT- Automation-Devices- and-Maintenance/ Delsing/p/book/ 9781498756754

IoT Automation

ARROWHEAD FRAMEW O R K

EDITED BY

Jerker Delsing

Final Conclusion

You can be very proud of the achievements

• f the project. You have done an excellent

work.

Congratulations to everybody that participated in the project!!!!

The project receives grants from the European H2020 research and innovation programme, ECSEL Joint Undertaking, and National Funding Authorities from 19 involved countries under grant agreement no. GAP-737459 - 999978918.

Optimised supply chain management covering the entire product lifecycle

Base line architecture is: Arrowhead Framework 3.0 First year target is Arrowhead Framework v4.0 specifications and reference implementation

Productive4.0

From enterprise to multi stakeholder operation

18

Stakeholder collaboration domain Lifecycle
 domain Supply chain
 domain Shop floor Business Design Support Suppliers Customers

▪ Arrowhead follow up project ▪ Started May 2017 ▪ 107 partners ▪ 100M€ budget ▪ Swedish partners ▪ Volvo, SEB, Ericsson, Combitech, Midroc, BnearIT , LTU ▪ Swedish budget ∼75MSEK

Productive4.0

19

▪ security support ▪ Gatekeeper and Gateway services ▪ Inter cloud secure service negotiation and data transport ▪ Self adaptability ▪ Security management adaptation to anomalies ▪ Anomaly detection ▪ Autonomy support ▪ Semantics translation ▪ Machine learning approach ▪ On-demand code generation for service consumption

Productive4.0 services - security and autonomy support

20

▪ SafetyManager ▪ Emergency handling ▪ Smart Service Contract ▪ Ledger/block chain for stakeholder agreements along supply chain and product life cycle ▪ Configuration, IoT ▪ PlantDescription, SoS ▪ Nano transaction services ▪ Analytics for product life cycle management ▪ Virtual twins for supply chain management ▪ 15+ Industrial production demonstration using Arrowhead Framework, planed

Productive4.0 services - Production support

21

▪ Engineering tool for legacy adapters ▪ Interfacing to legacy communication technology ▪ Interfacing of legacy engineering tool data to PlantDescription/Configuration ▪ Test tools - interoperability ▪ Management tools, ▪ Interfacing to SOA and legacy protocols ▪ REST , CoAP , MQTT (existing) ▪ OPC-UA (prototypes) ▪ Modbus TCP (in preparation) ▪ IEC 61499 (existing) ▪ IEC 61131 (planed)

Productive4.0 services - engineering support

22

www.arrowhead.eu

Arrowhead Framework Currently the leading IoT Automation Framework

23
