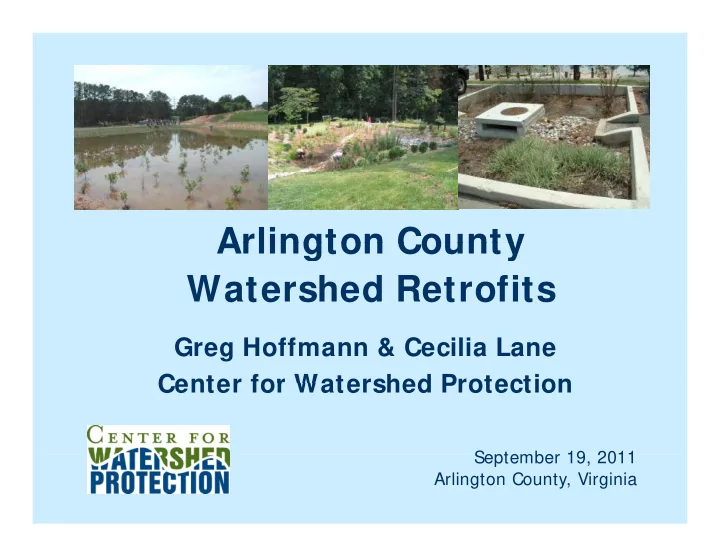

SLIDE 1 Arlington County Arlington County Watershed Retrofits
Greg Hoffmann & Cecilia Lane Center for Watershed Protection Center for Watershed Protection
Septembe 19 2011 September 19, 2011 Arlington County, Virginia
SLIDE 2 What Are Stormwater Retrofits?
Stormwater retrofits are
stormwater management practices in locations h t t where stormwater controls did not previously exist or previously exist or were ineffective
Rolling Stone Retrofit Montgomery Co., MD
SLIDE 3
SLIDE 4
Bioretention in Action Bioretention in Action
SLIDE 5
Retrofitting Philosophy Retrofitting Philosophy
Retrofitting urban watersheds is involves the A t f O t it Art of Opportunity
SLIDE 6
Retrofitting Philosophy Retrofitting Philosophy
Retrofitting urban watersheds is not about drastic Retrofitting urban watersheds is not about drastic changes to the surface and subsurface landscape.
SLIDE 7 What Did We Do?
Purpose
Desktop Analysis
– Rapidly search for and identify potential retrofit sites across the subwatershed across the subwatershed – Save time in the field
464 potential locations identified:
Doctor’s Branch: 141 Lubber Run: 147 Spout Run: 124 Windy Run: 52
SLIDE 8
Retrofit Reconnaissance I nventory (RRI ) Reconnaissance I nventory (RRI )
SLIDE 9
DOCTOR’S BRANCH RETROFITS
Site DB-130: Arlington Hall Park
SLIDE 10
DOCTOR’S BRANCH RETROFITS
Site DB-130: Arlington Hall Park
Bioretention Cell
SLIDE 11
LUBBER RUN RETROFITS
Site LR-114: Lubber Run Community Center
SLIDE 12
LUBBER RUN RETROFITS
Site LR-114: Lubber Run Community Center
Bioretention Cell
SLIDE 13
H did d ? How did we do?
SLIDE 14 Results
Doctor’s Branch
- 76 viable sites
- 76 viable sites
- 73.48 acres treated
- 36.15 acres of impervious cover treated
- 8% of the watershed treated
- 12% of impervious area treated
- 35 10 lbs of Phosphorus removal per year
- 35.10 lbs of Phosphorus removal per year
- 288.73 lbs of Nitrogen removal per year.
SLIDE 15 Results
Lubber Run
- 141 viable sites
- 141 viable sites
- 129.67 acres treated
- 64.51 acres of impervious cover treated
- 13% of the watershed treated
- 17% of impervious area treated
- 49 36 lbs of Phosphorus removal per year
- 49.36 lbs of Phosphorus removal per year
- 396.98 lbs of Nitrogen removal per year.
SLIDE 16 Results
Spout Run
- 70 viable sites
- 70 viable sites
- 53.46 acres treated
- 28.03 acres of impervious cover treated
- 5% of the watershed treated
- 7% of impervious area treated
- 22 18 lbs of Phosphorus removal per year
- 22.18 lbs of Phosphorus removal per year
- 180.92 lbs of Nitrogen removal per year.
SLIDE 17 Results
Windy Run
- 23 viable sites
- 23 viable sites
- 30.28 acres treated
- 12.07 acres of impervious cover treated
- 10% of the watershed treated
- 18% of impervious area treated
- 8 45 lbs of Phosphorus removal per year
- 8.45 lbs of Phosphorus removal per year
- 70.35 lbs of Nitrogen removal per year.
SLIDE 18
Next Steps
SLIDE 19
SLIDE 20
SLIDE 21
Arlington County Constructed Retrofits
SLIDE 22
McKinley School
SLIDE 23
Marymount University
SLIDE 24
Patrick Henry Drive
SLIDE 25
SLIDE 26
DOCTOR’S BRANCH RETROFITS
Site DB-101: North Quincy Street/Mosaic Park
SLIDE 27
DOCTOR’S BRANCH RETROFITS
Site DB-101: North Quincy Street/Mosaic Park
Bioretention Cell Bioretention Cell
