ARCLib Development of Open Source Solution for Long-term Preservation Martin Lhotk Library of the Czech Academy of Sciences 11. 6. 2019 Open Repositories, Hamburg ARCLib Complex Solution for Long Term Archiving of (Library)

SLIDE 1

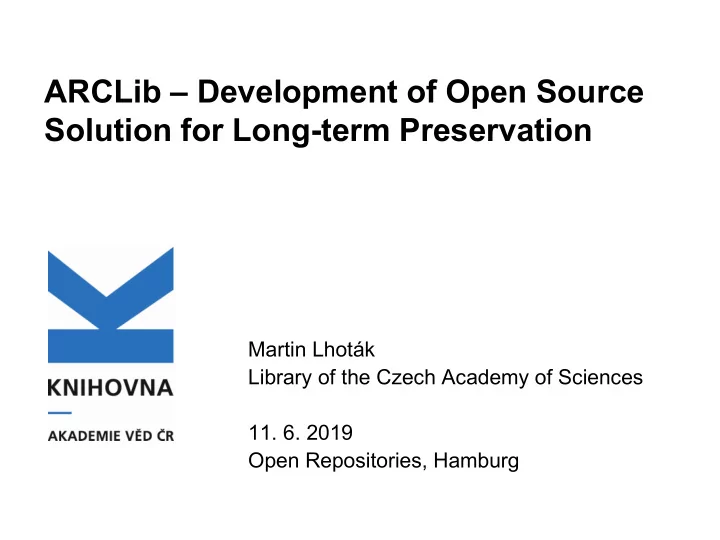

ARCLib – Development of Open Source Solution for Long-term Preservation

Martin Lhoták Library of the Czech Academy of Sciences

11. 6. 2019

Open Repositories, Hamburg

SLIDE 2

ARCLib

Complex Solution for Long Term Archiving of

(Library) Digital Collections

Applied research grant from Ministry of Culture of CR
Technologies and methodologies for preservation of

culture heritage

2016-2020
850k Euro

SLIDE 3

ARCLib

Goals:

Development of complex OS LTP system

using Archivematica as 1 of its components

Logical preservation methodology for Czech

institutions

Bit level preservation methodology

SLIDE 4

ARCLib

State of archiving in CZ libraries

simple file system with TAR or ZIP packages, backups
uploads to cloud services (mostly just backups)
central (commercial) solution in National Digital Library project (for

the NL mainly)

no reasonable alternative (40 libraries with Kramerius, 15

DSpace,...)

master copies, access copies, several generation of metadata

standards, some metadata without standards

central registry of digitization, but no registry of archival packages

SLIDE 5

ARCLib – inspiration

Systems

Archivematica
RODA
Commercial solutions

(Rosetta, Preservica,...)

Custom made solutions

(NDK, NDA SVK)

Projects

CESNET LTP Pilot (testing
f Archivematica)
NDK – National Digital

Library

Czech National Archive

(Archivematica)

Foreign projects (Finland,

Germany)

SLIDE 6

ARCLib – inspiration

Archivematica

pen source software
rapid development
too big and too general ... (Finland experience)
dependency, uncertainty
it could be probably more simple (we don’t need universal

product, we need system for defined environment and type of data)

inspiring approaches – microservices, the way of management
f ingest

SLIDE 7

ARCLib – standards

Data and metadata standards

ISO 14721 (OAIS)
ISO 16363 (Audit a certification)
Data Seal of Approval
NDK (National Digital Library) standard
Kramerius and Dspace formats
Export from ProArc production system (NDK or wider)

SLIDE 8

ARCLib – tools

Available open tools

format identification, validation, technical metadata extraction
DROID, FIDO, JHOVE, JPYLYZER, etc.

SLIDE 9

ARCLib – functional requirements

SLIDE 10

ARCLib AIP

AIP consist of two parts:

provided SIP + metadata partly extracted from SIP

BibMD – DC + MODS
TechMD – type of scanner, date of scannig, operator, data from

JHOVE, etc. and partly generated by ARCLib on ingest AdmMD – data provider, workflow, validation log, validation profile, format identification, date, etc.

SLIDE 11

ARCLib Ingest

Creation of AIP packages from SIP packages

antivirus and MD5 controls
validation according to validation profiles
extraction of metadata from XML of SIP
identification of formats in SIP
creation of ARCLib AIP and transfer to persistent storage

SLIDE 12

ARCLib Data Management

Database of AIP packages (location, BibMD, TechMD, AdmMD)

indexation of ARCLib AIP XML
indexation of complete content of SIP
editation of ARCLib AIP XML
export of DIP
API

SLIDE 13

ARCLib Archival Storage

Archival Storage is complex service for bit-level

preservation enabling replication of data in more geographical localities using advanced technologies to store data

SLIDE 14

ARCLib Archival Storage

SLIDE 15

ARCLib Administration

Workflow configuration
Infrastructure control
Registry of users, their roles, profiles o SIPs, data

providers, validation profiles and storage locations

Communication with database
Control of storage capacity
Administration of jobs

SLIDE 16

ARCLib Access

ARCLib is backend aplication not given for end users
ARCLib doesn’t solve any access politics
export from AIP to DIP is 1 : 1

SLIDE 17

ARCLib Preservation Planning

format database – registry of used formats
registry of profiles / workflows
events in archive

SLIDE 18

ARCLib

ARCLib is a solution for logical and bit-level

preservation/protection of digital data.

ARCLib doesn’t have pre-ingest or deposit module –

it doesn’t involve conversion to SIP.

ARCLib is system for management of archival

packages.

ARCLib is dark archive. It is not repository for end

users.

SLIDE 19

ARCLib release harmonogram

2018-2019

prototype testing

2020

full final version

https://arclib.cz/

SLIDE 20

Thank you for attention

Martin Lhoták Lhotak@knav.cz http://www.knav.cz
