1200 Seat Gym Dome Size: 144'x124'x18' Stem Wall: 24'-8" 16,525 s.f. Main Floor 3,870 s.f. Upper Floor Main Floor: -High School size court. -Two cross volleyball courts. -Collapsible Seating. -Locker rooms. -Public restrooms. -Lobby

slide-1
SLIDE 1

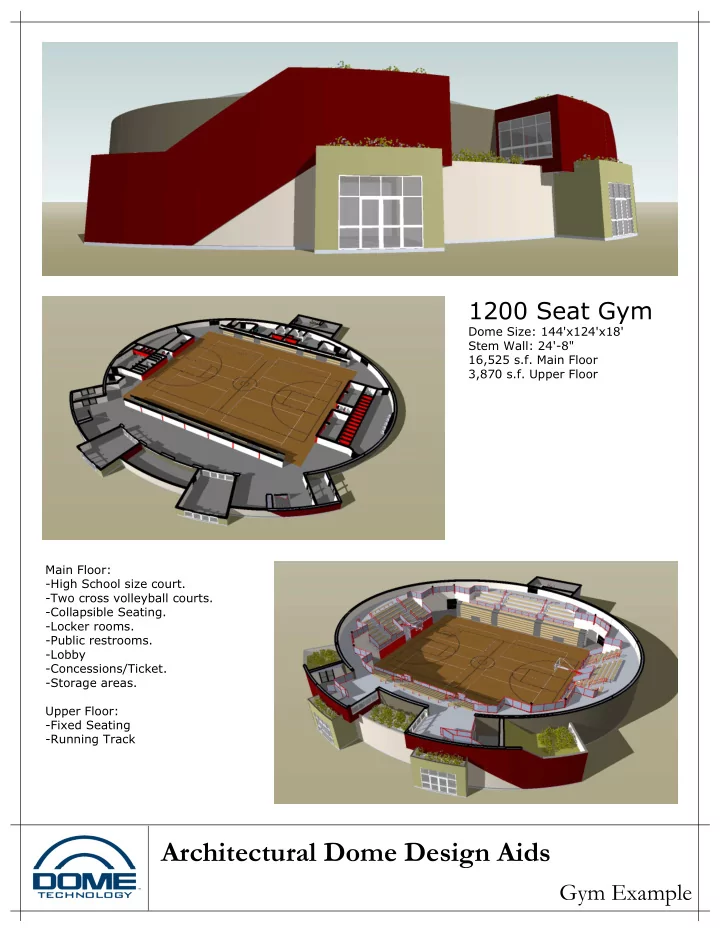

Architectural Dome Design Aids

1200 Seat Gym

Dome Size: 144'x124'x18' Stem Wall: 24'-8" 16,525 s.f. Main Floor 3,870 s.f. Upper Floor Main Floor:

  • High School size court.
  • Two cross volleyball courts.
  • Collapsible Seating.
  • Locker rooms.
  • Public restrooms.
  • Lobby
  • Concessions/Ticket.
  • Storage areas.

Upper Floor:

  • Fixed Seating
  • Running Track

Gym Example

slide-2
SLIDE 2

Architectural Dome Design Aids

Conceptual Plans

slide-3
SLIDE 3

Architectural Dome Design Aids

Conceptual Gym Plans

slide-4
SLIDE 4

Architectural Dome Design Aids

ICF Stemwall Section with Parapet

1 2 3 4 5 6 7 8 9 10 11 12

  • 1. Airform & Foam
  • 2. Membrane Flashing
  • 3. Parapet Assembly
  • 4. Concrete Thin Shell
  • 5. Ring Beam
  • 6. ICF Wall Assembly
  • 7. Exterior Finish
  • 8. Interior Finish
  • 9. Deocrative Block
  • 10. Block
  • 11. Concrete Slab
  • 12. Footing
  • 13. Grout Bed

13

slide-5
SLIDE 5

Architectural Dome Design Aids

Level Roof Transition

1 2 4 5 6 7 8 9

  • 1. Airform & Foam
  • 2. Membrane Flashing
  • 3. Framed Roof Assembly
  • 4. Concrete Thin Shell
  • 5. Ring Beam
  • 6. ICF Wall Assembly
  • 7. Interior Finish
  • 8. Concrete Slab
  • 9. Footing

3

slide-6
SLIDE 6

Architectural Dome Design Aids

Low Roof Transition

1 4 5 6 7 8 9

  • 1. Airform & Foam
  • 2. Membrane Flashing
  • 3. Framed Roof Assembly
  • 4. Concrete Thin Shell
  • 5. Ring Beam
  • 6. ICF Wall Assembly
  • 7. Interior Finish
  • 8. Concrete Slab
  • 9. Footing

3 2

slide-7
SLIDE 7

Architectural Dome Design Aids

Over Build on Ring Bean & Dome Shell

4 5 6 7 8 9

  • 1. Airform & Foam
  • 2. Membrane Flashing
  • 3. Framed Roof Assembly
  • 4. Concrete Thin Shell
  • 5. Ring Beam
  • 6. ICF Wall Assembly
  • 7. Interior Finish
  • 8. Concrete Slab
  • 9. Footing
  • 10. Framed Wall Assembly
  • 11. Grout Bed
  • 12. Exterior Finish

1 2 11 10 3 10 12

slide-8
SLIDE 8

Architectural Dome Design Aids

Dome on Block Wall (Non Post Tensioned)

  • 1. Airform & Foam
  • 2. Membrane Flashing
  • 3. Grout Bed
  • 4. Parapet Assembly
  • 5. Concrete Shell
  • 6. Block Wall Assembly
  • 7. Concrete Slab
  • 8. Footing

1 2 3 4 5 6 7 8

slide-9
SLIDE 9

Architectural Dome Design Aids

Drainage Options

Pass-Thru In-Wall
