Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

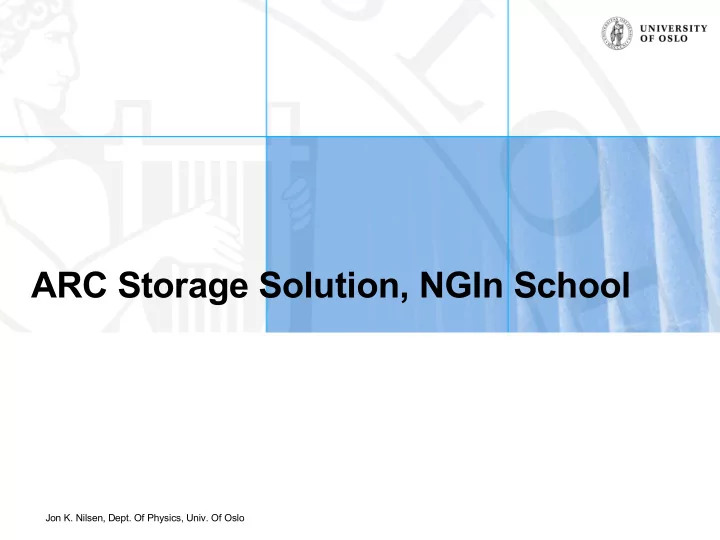

ARC Storage Solution, NGIn School

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Outline

• KnowARC storage solution

– Current ARC Data Management – pros and cons – Requirements for KnowARC solution – Storage solution by KnowARC

• NGIn School

– Program – Experiences – Summary

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Grid Data Management Services

• What services do we need?

– Storage Manager – Storage Elements – Indexing services – File transfer services

• Internal and external communication through web

services

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Current ARC – pros and cons

• Good

– Easy to install and configure – Multi-OS, multi back-end, non-intrusive – Stable, high performance services – Good error handling

• Bad

– Non Service Oriented Architecture – No native indexing service – No consistent data management solution – Limited data management user interface – No native file transfer service

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Required capabilities

(from KnowARC design document)

• Scalable, reliable indexing service capable of operating
• n collections
• Indexing service should not appear as a single point of

failure

• Metadata should be extendable to have application-

specific information

• Must have standard interfaces and API
• Must be aware of VO-specific storage solutions, and

use them for storage

– E.g., WLCG has SRM as standard solution, so ARC needs to support SRM

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Required Capabilities (cont'd)

• Must handle bulk data manipulation
• Must be aware of physical file replicas and use this

information to optimize file transfer

• Must support secondary storage facilities and flexible

data staging

• User should see single access point to data (ref.

Google)

• Should provide simple (POSIX-like) access to data for

applications

• Easy to install
• Easy to use

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

KnowARC storage design

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Catalog

• Maintains all metadata

– GUID – Logical -> physical filename – Is it replicated – Is it marked for deletion – Access control list

• Metadata stored in a

Distributed Hash Table

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Catalog

• Interface

– New file – New collection – Get metadata – Remove – Change metadata – Traverse logical name

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Storage Elements

• Where the physical files

are stored

• With possibility to mount

third-party storage

• Interface

– Get file – Put file – Delete file – Copy file to a URL

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Storage Manager

• Provides high-level

interface to user

• Communicates with

catalog to get metadata and create new files and collections

• Communicates with

Storage Elements to initiate transfers

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Storage Manager

• Interface

– Put file – Get file – Delete file – Make new collection – List collection – Move file or collection – Modify metadata – Stat (get metadata)

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Download

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

LFN, PFN, GUID, Source URL, Transfer URL

• Logical file name: some/filename
• Physical file name:

a.nice.site:4242/tmp/some/filename

• Global Unique Identifier: 63047220-2dd5-11d9-9669-

0800200c9a66

• Source URL:

srm://a.nice.site:4242/tmp/some/filename

• Transfer URL:

gridftp://a.nice.site:4242/tmp/some/filename or

gridftp://yet.another.site:4242/MyDocuments/tuid

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

ARC Storage Discussions

• Builds on an already working solution

– Grid Underground Storage System – Deployed in Hungary – with one catalog, one storage element and

• ne manager (but no problem to expand it)
• The distributed hash catalog is the key element

– One promising algorithm (Etna) is being considered – No suitable implementations of it yet

• What is the intended use of this system?

– One ring (of catalogs) to rule them all? – Or yet another dCache solution?

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

NGIn School

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

NGIn School

• NGin: Innovative tools and services for NorduGrid
• Project funded by the NorduNet3 program
• Goal is twofold

– Extend existing Grid middleware – Train new Grid experts, securing future technology development

• Training program includes Grid PhD positions and a

Nordic Grid School, the NGIn School

• First Grid School at NorduGrid07

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

NGIn School program

• Day 1 (General Grid Introduction)

– Intro to Grid – Intro to ARC – First steps with ARC (tutorials)

• Day 2 (Specialized tutorials)

– HEP distributed analysis – ARC in bioinformatics, ARC in medical imaging – ARC-gLite interoperability – Grid Job Manager – Dynamic Runtime Environments

• Day 3 (ARC Development)

– Sys-admin and developer training

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

Experiences

• Day 1

– ~20 participants – Interesting introductions to Grid and ARC middleware – Very general topics

• Day 2

– ~8 active participants – Quite specific topics -> more fluctuating participants –

• Day 3

– Merged into NorduGrid parallel session – Training consisted of Ferenc writing an ARC service on the beamer

dN participants/dt0

Jon K. Nilsen, Dept. Of Physics, Univ. Of Oslo

NGIn School Summary

• A very nice school for newcomers
• From newbie to specialized user in two days
• Maybe not so useful for NGIn PhDs
• Could have been more emphasis on developer training
• Who was the audience of the school?

– Recruiting new Grid users? – Training NGIn PhDs? – Both?
