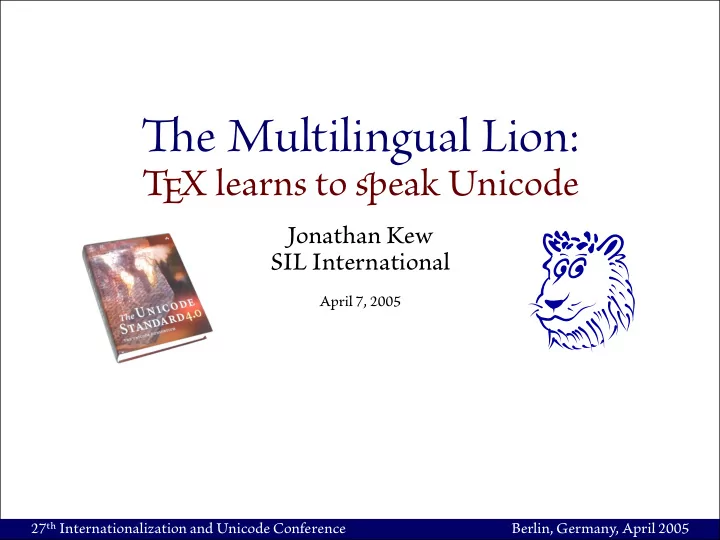

e Multilingual Lion:

T EX learns to seak Unicode

Jonathan Kew SIL International

April 7, 2005 A 27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Background

• T

EX: free typeseting system with a 25-year history

• stable, reliable, flexible, widely implemented
• experienced user community
• rich collection of supporting tools
• Originally designed for English typeseting
• support for accents and other European characers
• language support extended via custom fonts, macros, and

preprocessors

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Traditional T EX input conventions

• Input text is ASCII (or 8-bit codepage)

Source text Typeset output Notes

\'{a}

á

typical accent command

\c{c}

ç

\aa

å

• —

ligature in typical T EX fonts

$\alpha$

α

math mode symbol

{\dnacchaa}

अछा

using custom preprocessor

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Multilingual typeseting with T EX

• Text input
• Escape sequences for non-ASCII characers
• Multiple 8-bit codepages
• Preprocessors for complex scripts
• Font support
• Fonts limited to 256 glyphs
• Custom-encoded fonts with secific glyph sets
• All tied together via complex T

EX macros

• Difficult to understand and extend
• Difficult to integrate with other packages

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Towards a cleaner solution

• Unicode: all required characers directly represented
• no need for “escape sequences” to access characers not

included in the current codepage

• no need to switch between codepages according to the

language/script being typeset

• characers rendered via standard access codes
• Characer/glyph model and modern font rendering

technologies

• complex script handling moved out of the domain of the

text data stream

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Typeseting Unicode text with X E T EX

• Accented characers

\halign{#\hfil\quad& #\hfil\cr dan&dan\cr dubok&dubok\cr džabe&ak\cr džin&džabe\cr Džin&džin\cr ak&Džin\cr Evropa&Evropa\cr}

dan dan dubok dubok džabe đak džin džabe Džin džin đak Džin Evropa Evropa

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Typeseting Unicode text with X E T EX

• CJK ideographs

\font\han="STSong"at16pt \font\rom="Gentium"at8pt \def\hc#1#2{\vtop{\hbox{\han#1} \hbox{\kern10pt\rom#2}}} \vtop{\hc{書く}{ka-ku} \hc{最も}{motto-mo} \hc{最後}{sai-go} \hc{働く}{hatara-ku} \hc{海}{umi}}

書く

ka-ku

最も

motto-mo

最後

sai-go

働く

hatara-ku

海

umi

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Typeseting Unicode text with X E T EX

• Complex scripts

\c1 \s \p \v1 . \v2 .

• \v3”

.“.

ﺶﺋﺍﺪﻴﭘ ﻲﺟ ﺎﻴﻧﺩ

نآ ۽ ز ا ۾ تو١۱۽ ​ ز و نا٢. ا وا و وا . ناو ا ن ۽ ڍ ن ڏ ا ٣ ا حور . ور “. ور”

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Key changes from T EX to X E T EX

• Unicode as the text encoding
• directly use Unicode input text, Unicode-encoded fonts
• Fonts and rendering technologies
• use any fonts available in the host computer
• use existing smart-font rendering systems
• Additional features for multilingual typeseting
• optional font features
• line breaking for Asian scripts
• Backward compatibility issues
• support for legacy T

EX fonts and documents

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

From 8 to 16 bits…

• Characer type in T

EX code was 8-bit value

• one option: process text as UTF-8
• Characer codes used to index a number of tables
• characer category, case pairs, etc.
• Decision to use 16-bit characer codes
• all 256-element tables enlarged to 65,536 elements to

match the extended characer set

• extended T

EX commands that refer to characer codes

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

From 8 to 16 bits… and beyond?

• Unicode does not fit in 16 bits either!
• X

E T EX handles non-BMP characers as UTF-16 surrogate pairs

• properties of individual characers cannot be set
• unlikely to mater for typeseting usage: all surrogate codes

can be treated as simple printable characers

• keeps size of internal tables moderate, without extensive

restructuring

• Using UTF-16 happens to match the font rendering

APIs that X E T EX uses

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Implementing the characer/glyph model

• Required for support of complex scripts in Unicode
• Significant change from traditional T

EX model

• T

EX regards “a secific characer code in a secific font” as the fundamental unit of text to be typeset

• assumes such a characer has known, fixed dimensions
• provision for ligatures by characer substitutions
• a paragraph consists of sequence of “characer” nodes, to be

precisely placed, and intervening “glue” nodes

• A Unicode characer may not map to a single,

known glyph

• many scripts require contextual selection of glyphs
• must measure characers in context, not in isolation

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Implementing the characer/glyph model

• Initial implementation using ATSUI on Mac OS X
• typeseting process collects runs of characers (words)
• calls ATSUI text layout APIs to measure width
• a X

E T EX paragraph consists of sequence of “word” nodes separated by “glue”

• Typeseting engine positions words, not glyphs
• this is the job of the font rendering engine

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Implementing the characer/glyph model

Nodes in a T EX paragraph Corresponding nodes in X E T EX

!"#$%!&'()!*+,-$ !"#$%!&'()!*+,-$ !"#$%!&'()!*+,-$

• .,(%!/
• .,(%!.
• .,(%!$
• .,(%!0
• .,(%!#
• .,(%!1
• .,(%!-
• .,(%!2
• .,(%!3
• .,(%!'
• .,(%!4

!"#$%!&'()!*+,-$ !"#$%!&'()!*+,-$ !"#$%!&'()!*+,-$ &'()%!.'/ &'()%!0#1-2 &'()%!34$

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Implementing the characer/glyph model

• OpenType Layout support using ICU library
• alternative font layout engine
• provides support for OpenType features in Latin fonts
• supports a number of complex (Indic/Asian) scripts
• X

E T EX uses either ATSUI or ICU according to layout tables found in fonts

• overall typeseting process is independent of font

technology in use

• distinction required only at lowest level of measuring a run
• f text in a given font
• documents may freely mix AAT and OT fonts

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Implementing the characer/glyph model

• ATSUI APIs used in typeseting
• ATSUCreateStyle, ATSUSetAttributes
• ATSUCreateTextLayout, ATSUSetTextPointerLocation,

ATSUSetRunStyle

• ATSUGetUnjustifiedBounds, ATSUDrawText
• ICU APIs used in typeseting
• ubidi_open, ubidi_close, ubidi_setPara,

ubidi_getDirection, ubidi_countRuns, ubidi_getVisualRun

• LayoutEngine::layoutChars, getGlyphs,

getGlyphPositions

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Hyphenation support

• Paragraphs formed of lists of “word boxes”
• treated as indivisible units in the token list
• allows T

EX to remain unaware of low-level details

• If acceptable line breaks not found, hyphenation

required

• extract text characers from word nodes
• find hyphen positions using T

EX’s algorithm

• repackage words as word fragments and discretionary

break nodes

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Hyphenation support

• Modifying the node list to allow hyphenation

!"# $%&' ()**'+',- *#.'/ $%&' !"# $%&' ()* *'+ ',- *#.'/ $%&' 0120',3 0120',3

• Problem: unused hyphen points break rendering

!"# $%&' ()* *'+ ',- *#.'/ $%&'

Two differ- ent foxes

• Need to re-merge word nodes afer choosing breaks

!"# $%&' ()**'+, '-. *#/'0 $%&'

Two differ- ent foxes

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Advanced font features

• OpenType language systems

\font\Doulos="DoulosSIL/ICU" \font\DoulosViet="DoulosSIL/ICU:language=VIT"

Unicode cung cấp một con số duy nhất cho mỗi ký tự Unicode cung cp một con s duy nht cho mi ký tự

\font\Brioso="BriosoPro" \font\BriosoTrk="BriosoPro:language=TRK"

… gelen firmaları … tarafından … … gelen firmaları … tarafından …

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Advanced font features

• Custom AAT features

\font\Doulos="DoulosSIL/AAT" \font\DoulosAlt="DoulosSIL/AAT: Alternateforms=Literacyalternates,

• Smallv-hookstraightstyle;

UppercaseEngalternates=CapitalNwithtail"

Xɔsee na Mose ɖo Ŋutitotoŋkeke la anyi, eye wòna wohlẽ ʋu ɖe ʋɔtrutiwo ŋu bene dɔla si atsr ŋgɔgbeviwo la nagawɔ nuvevi Israel viwo ya o. Xɔsee n Mose ɖo utitotoŋkeke l nyi, eye wòn wohlẽ u ɖe ɔtrutiwo ŋu bene dɔl si tsr ŋɔbeviwo l nwɔ nuvevi Isrel viwo y o.

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

East Asian languages

• Line breaking without word spaces
• T

EX normally breaks lines at “glue” arising from spaces

• Chinese, Japanese, Tai, etc. do not use word spaces
• โดยพื้นฐานแลว, คอมพิวเตอรจะเกี่ยวของกับเรื่องของตัวเลข. คอมพิวเตอรจัดเก็บตัว

โดยการกำหนดหมายเลขใหสำหรับแตละตัว. กอนหนาที่๊ Unicode จะถูกสรางขึ้น, ไดมีระบบ encoding อยูหลายรอยระบบสำหรับการกำหนดหมายเลขเหลานี้.

• Use ICU line-break: \XeTeXlinebreaklocale"th"
• โดยพื้นฐานแลว, คอมพิวเตอรจะเกี่ยวของกับเรื่องของตัวเลข. คอมพิวเตอรจัด

เก็บตัวอักษรและอักขระอื่นๆ โดยการกำหนดหมายเลขใหสำหรับแตละตัว. กอนหนาที่๊ Unicode จะถูกสรางขึ้น, ไดมีระบบ encoding อยูหลายรอย ระบบสำหรับการกำหนดหมายเลขเหลานี้.

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Backward compatibility

• Legacy T

EX fonts, esecially for math mode

• supported via T

EX font metrics and Type 1 font files

• allow many existing T

EX documents to work

• not Unicode-compliant!

∞

−∞

e−x2 dx 2 = ∞

−∞

∞

−∞

e−(x2+y2) dx dy = 2π ∞ e−r2r dr dθ = 2π

• −e−r2

2

• r=∞

r=0

• dθ

= π.

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Backward compatibility

• Non-Unicode input text
• by default, input read as Unicode (UTF-8 or UTF-16)
• legacy codepages supported via ICU converters
• set codepage of current input file:

\XeTeXinputencoding"charset-name"

• set initial codepage for newly-opened input files:

\XeTeXdefaultencoding"charset-name"

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

Backward compatibility

• Support for legacy keying pracices
• typical input:

``\TeX''---atypesettingsystem

• generates: ``T

EX''---a typeseting system

• Font mapping for compatibility

;TECkitmappingforTeXinputconventions U+002DU+002D<>U+2013;--->endash U+002DU+002DU+002D<>U+2014;---->emdash U+0027<>U+2019;'->rightsinglequote U+0027U+0027<>U+201D;''->rightdoublequote U+0022>U+201D;"->rightdoublequote

• generates: “T

EX”—a typeseting system

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

More fun with font mappings

\def\SampleText{Unicode- этоуникальный коддлялюбогосимвола,\\ независимоотплатформы,\\ независимоотпрограммы,\\ независимоотязыка.} \font\gen="Gentium" \gen\SampleText \bigskip \font\gentrans="Gentium: mapping=cyr-lat-iso9" \gentrans\SampleText

Unicode - это уникальный код для любого символа, независимо от платформы, независимо от программы, независимо от языка. Unicode - èto unikal'nyj kod dlâ lûbogo simvola, nezavisimo ot platformy, nezavisimo ot programmy, nezavisimo ot âzyka.

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

X E T EX and other T EX extensions

• T

EX G X

• a direct ancesor of X

E T EX, but now obsolete

• e-T

EX

• basis of current X

E T EX implementation

• provides a number of features, esecially bidi support
• Omega, Aleph
• ambitious project to extend T

EX to all scripts

• complex configuration, no direct smart-font support
• pdfT

EX

• widely-used extension providing rich PDF support
• no native Unicode or smart-font support

27th Internationalization and Unicode Conference Berlin, Germany, April 2005

Te Multilingual Lion: T EX learns to seak Unicode

For more information

• X

E T EX web site and mailing list

• http://scripts.sil.org/xetex
• http://tug.org/mailman/listinfo/xetex
• Contact information
• mailto:jonathan_kew@sil.org
• Questions… and answers?

A

?؟"ﺩﻮﻜِﻧﻮﻳ" ﺓﺪﺣﻮﳌﺍ ﺓﺮﻔﺸﻟﺍ ﻲﻫ ﺎﻣ 什麽是Unicode (統一碼/標準萬國碼)? Što je Unicode? ? Τί εἶναι τὸ Unicode; ?דוקינוי הז המ‏ यूिनकोड ा है? Hvað er Unicode? ユニコードとは何か？ 유니코드에대해?؟ﺖﺴﻴﭼ ﺪُﻛﯽﻧﻮﻳ Что такое Unicode? Unicode คืออะไร? ?

27th Internationalization and Unicode Conference Berlin, Germany, April 2005
