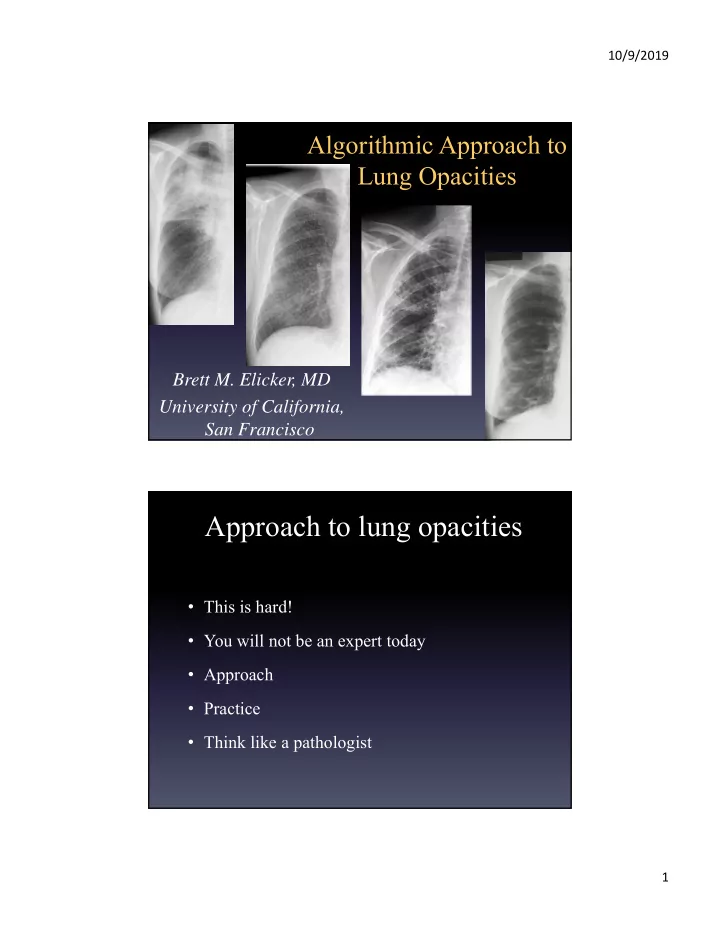

10/9/2019 Algorithmic Approach to Lung Opacities Brett M. Elicker, MD University of California, San Francisco Approach to lung opacities This is hard! You will not be an expert today Approach Practice Think like a

slide-1
SLIDE 1

10/9/2019 1

Algorithmic Approach to Lung Opacities

Brett M. Elicker, MD University of California, San Francisco

Approach to lung opacities

  • This is hard!
  • You will not be an expert today
  • Approach
  • Practice
  • Think like a pathologist
slide-2
SLIDE 2

10/9/2019 2

Categories of lung opacities

  • 1. Consolidation
  • 2. Interstitial
  • 3. Airways
  • 4. Other
slide-3
SLIDE 3

10/9/2019 3

Alveolar

Interstitial

slide-4
SLIDE 4

10/9/2019 4

Airways

Not applicable

slide-5
SLIDE 5

10/9/2019 5

Consolidation

  • Confluent opacity
  • Fluffy around periphery
  • Air bronchograms
  • Lack of volume loss

Confluent opacity, no volume loss

slide-6
SLIDE 6

10/9/2019 6

Air bronchograms

Consolidation

  • Acute vs. chronic symptoms
  • Distribution
  • Acuity of changes
  • Differential diagnosis in acute setting

– Edema – Acute lung injury – Infection

slide-7
SLIDE 7

10/9/2019 7

2 month f/u baseline

Invasive mucinous adenocarcinoma

slide-8
SLIDE 8

10/9/2019 8

Comparison Signs of atelectasis: volume loss

Fissure displacement Elevated diaphragm Deviation of mediastinal structures

slide-9
SLIDE 9

10/9/2019 9

Nodules Lines

Interstitial opacities

slide-10
SLIDE 10

10/9/2019 10

Nodules: diff dx

  • Hematogenous spread

– Miliary tuberculosis – Miliary fungal infection (e.g. cocci) – Metastases

  • Lymphatic spread

– Sarcoidosis – Lymphangitic spread of tumor – Pneumoconioses (e.g. silica)

Histoplasmosis

slide-11
SLIDE 11

10/9/2019 11

Miliary tuberculosis Interstitial: lines

slide-12
SLIDE 12

10/9/2019 12

Causes of interstitial lines

  • Edema
  • Malignancy
  • Fibrotic lung diseases (this

is a long list)

Kerley-b lines may be present These lines are typically thick, wavy and irregular

Linear opacities

slide-13
SLIDE 13

10/9/2019 13

Pulmonary edema (kerley-b lines)

Edema: alveolar + interstitial

slide-14
SLIDE 14

10/9/2019 14

Reticular opacities (distribution)

  • Mid-lower lobe predominant

– Idiopathic pulmonary fibrosis – Connective tissue disease – Drugs – Asbestosis – Hypersensitivity pneumonitis

  • Upper lobe predominant

– Sarcoidosis – Prior TB/fungus – Pneumoconioses

slide-15
SLIDE 15

10/9/2019 15

Idiopathic pulmonary fibrosis Hypersensitivity pneumonitis

slide-16
SLIDE 16

10/9/2019 16

Tuberculosis

slide-17
SLIDE 17

10/9/2019 17

Airways disease

  • Circular
  • Tubular
slide-18
SLIDE 18

10/9/2019 18

Differential diagnosis of airways disease

  • Mild:

– Asthma – Viral infection – Chronic bronchitis – Etc.

  • Severe:

– Bronchiolitis obliterans – Immunodeficiency – Ciliary dyskinesia – Cystic fibrosis – ABPA – Tuberculosis – Cartilage diseases

Cystic fibrosis

slide-19
SLIDE 19

10/9/2019 19

Which compartment of lung is affected?

Solitary pulmonary nodule: differential diagnosis

  • Granuloma
  • Hamartoma
  • Primary bronchogenic carcinoma
  • Metastasis
  • Lots of others
slide-20
SLIDE 20

10/9/2019 20

Nodules: benign vs. malignant

Benign Malignant Small size Large size Smooth border Spiculated border Diffuse calcification No or irregular calcification Stability over time Growth over time

Nodule: size

slide-21
SLIDE 21

10/9/2019 21

Nodule: calcification Nodule borders

slide-22
SLIDE 22

10/9/2019 22

So you see a nodule on CXR…

  • 1. Is it actually a nodule?

? nodule

slide-23
SLIDE 23

10/9/2019 23

Shallow obliques ? nodule

slide-24
SLIDE 24

10/9/2019 24

Apical lordotic So you see a nodule on CXR…

  • 1. Is it actually a nodule?
  • 2. Look for prior films?
  • 3. Is diffuse calcification present?
slide-25
SLIDE 25

10/9/2019 25

Dual energy subtraction x-ray So you see a nodule on CXR…

  • 1. Is it actually a nodule?
  • 2. Look for prior films?
  • 3. Is diffuse calcification present?
  • 4. Get a CT scan or a follow-up CXR
slide-26
SLIDE 26

10/9/2019 26

Category Subcategory CXR features Common causes Alveolar

  • Confluent opacities
  • Air bronchograms
  • Fluffy edges
  • Edema
  • Acute lung injury
  • Infection

Interstitial Nodules

  • Small, well‐defined nodules
  • Opacities not confluent
  • Normal lung between nodules
  • Tuberculosis
  • Fungal infection
  • Metastases
  • Sarcoidosis

Lines (kerley‐b)

  • Thin, fine, delicate lines
  • Lines at periphery of lung

(kerley‐b)

  • Pulmonary edema
  • Cancer

Lines (reticular)

  • Thick, wavy, irregular lines
  • Fibrotic lung

disease Airways

  • Circular or tubular
  • Thin or thick walled
  • Numerous causes

Not in a single compartment

  • One or a few nodules (≤3 cm) or

masses (>3 cm)

  • Lung cancer
  • Metastasis
  • Granuloma
  • Hamartoma

Not all cases are straightforward

slide-27
SLIDE 27

10/9/2019 27

Well-defined: interstitial Ill-defined: alveolar

Extensive nodules: interstitial

slide-28
SLIDE 28

10/9/2019 28

Peribronchial cuffing: interstitial Airways: circles and tubes

slide-29
SLIDE 29

10/9/2019 29

Algorithmic Approach to Lung Opacities

Brett M. Elicker, MD University of California, San Francisco
