Applying Thermal Imaging Tim Gilbert Sal DiSalvo Highway Tech - PowerPoint PPT Presentation

Dec 18, 2022 •547 likes •836 views

Applying Thermal Imaging Tim Gilbert Sal DiSalvo Highway Tech FLIR Systems, Inc. PH: (207) 576-1637 PH: (201) 755-0557 Tim@HighwayTech.com sal.disalvo@flir.com The Worlds Largest Thermal Imaging Company Commercial Systems Government

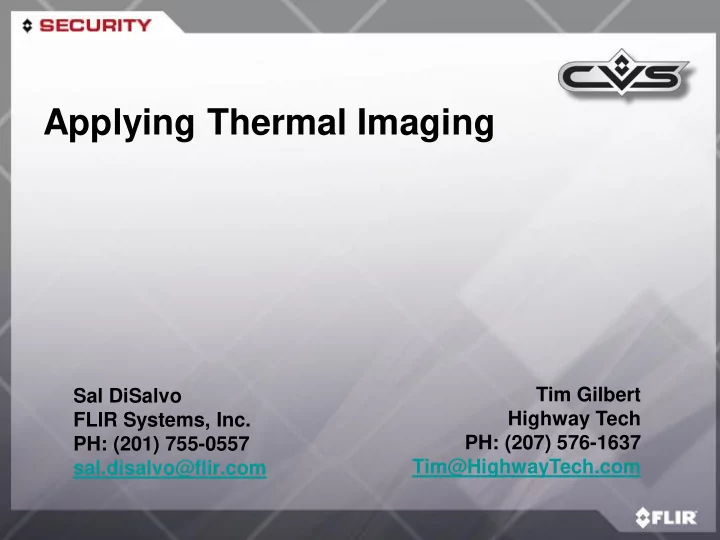

  1. Applying Thermal Imaging Tim Gilbert Sal DiSalvo Highway Tech FLIR Systems, Inc. PH: (207) 576-1637 PH: (201) 755-0557 Tim@HighwayTech.com sal.disalvo@flir.com

  2. The Worlds Largest Thermal Imaging Company Commercial Systems Government Systems 3,000+ employees at 4 major sites around the world Revenue $1.4 Billion

  3. When did you first see FLIR at work? 1987

  5. What Makes FLIR Thermal Imaging Unique? FLIR Thermal Imaging is NOT Infra Red (IR) Illumination Cooled Thermal Imagers Uncooled Thermal Imagers

  6. The Thermal Advantage A True 24 hour solution Night time Partial illumination Turns night into day…

  7. The Thermal Advantage • Thermal requires no light • Night time capabilities are not compromised!

  8. The Thermal Advantage Immune to Bright Lights & Countermeasures Night time Image Intensifier then thermal Impervious to bright lights…

  9. Can you see the difference? Visible CCTV Thermal

  10. Blinded by the Lights No Effect Visible CCTV Thermal

  11. • Surveillance in Adverse Conditions • Smoke • Haze • Dust • Rain, Snow, Fog

  12. Heavy Snow

  13. Traficon

  14. Autoscope

  15. Iteris

  16. Quick & Easy Retrofit

  17. Fixed Thermal Imager SR-Series

  18. Leverage Existing Infrastructure

  19. ITS Applications Thermal/Visible Sensor Integration Detect Complementary technologies Identify

  20. D-Series - Compact High Performance • Multi-Sensor – Thermal – 4 lens options – 36X day/night zoom CCD • IP 66 environmental rating • Precision motion – 0.44°/sec slow motion – 360° continuous azimuth • Network Control • Quad streaming network video – 2 streams each visual & thermal: – H.264 – MPEG-4 – M-JPEG • Serial control – Pelco D & Bosch • Dual composite video output • Simple system integration – convenient connections

  21. PT Series- High Performance Imaging System Precision Motion: • 0.1° to 100°/sec • Continuous 360° pan • 0.1° degree repeatability The only Network-Ready thermal with 640x480, 320x240 & 160x120 resolutions Interchangeable sensor cassettes

  22. Installation of Thermal Imagers • Video – 1 volt p-p – NTSC/PAL – Analog or IP • Power – Passive technology – Low power consumption • Control – RS422/Pelco D protocol – IP/NEXUS • Transmission – Fiber, coax, UTP, wireless

  23. Thermal Imaging Trend

  26. Resources • www.flir.com/traffic • MTU / On-site demos Available in New England - Spring 2012 • Highway Tech • Alien Vision: Exploring the Electromagnetic Spectrum with Imaging Technology

  27. Thank You Sal DiSalvo FLIR Systems, Inc. Security & Surveillance Solutions sal.disalvo@flir.com PH: (201) 755-0557
