150 E AST E ND A VENUE : F RONT F AADE W INDOW R EPLACEMENT Current Block Panoramic W INDOW R EPLACEMENT 150 E AST E ND A VENUE , N EW Y ORK 1 Window Replacement Summary Windows on 1 st , 2 nd and 3 rd Floor to be replaced (no changes to

slide-1
SLIDE 1

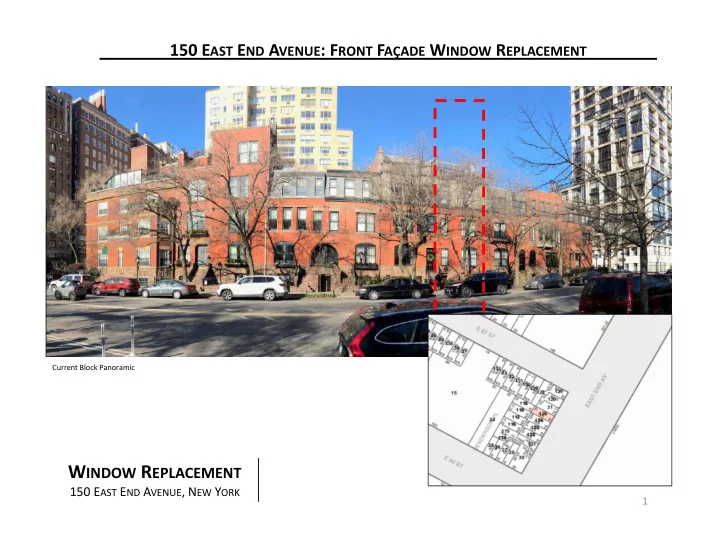

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK

Current Block Panoramic

150 EAST END AVENUE: FRONT FAÇADE WINDOW REPLACEMENT

1

slide-2
SLIDE 2

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window Replacement Summary

Existing Photo: Front (Front Elevation)

  • Windows on 1st, 2nd and 3rd Floor to be replaced

(no changes to ground floor)

  • No change to the existing brick opening
  • In all cases existing storm windows will be

removed and discarded.

  • Color will be matched to existing (black)
  • New windows will be wood construction to match

existing

  • New wood brick mold casing will be matched to

historic brick mold casing for Queen Ann style row

  • house. Third floor wood brick molding will remain

in place.

  • Windows 1A, 1B, 2A and 2B will match existing in

color, design and opening method.

  • Windows 3A and 3B will match in color, but

design and opening method will be matched to 6

  • ver 6 double hung in 1A, 1B, 2A and 2B. This

will remove the transom to be consistent not

  • nly with the other windows on the front façade

but also with the neighboring buildings.

1A 1B 2A 2B 3A 3B

2

slide-3
SLIDE 3

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Existing and Proposed (Windows in white for ease of review)

EXISTING PROPOSED

3

slide-4
SLIDE 4

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Brick Molding Detail for Window 1A, 1B, 2A and 2B

  • The building currently has a variety of different brick moldings which are not necessarily historic.
  • In accordance with NYC Landmarks guidance, all brick-molding on windows 1A, 1B, 2A and 2B will be replaced to match the 1.5’’

brick molding below. (The existing brick molding for window 3A and 3B will remain)

Window 1A: Close up of existing 2 inch brick mold Window 1B: Close up of existing 1 inch brick mold Window 2A: Close up of existing 2 inch brick mold

Window 2B: Close up of existing 1.5’’ quarter round 4

slide-5
SLIDE 5

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Historic Tax Photo (s)

1940S 1980S

5

slide-6
SLIDE 6

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Historical Photos

EAST END AVENUE (BETWEEN 86TH AND 87TH STREET: AUGUST 2ND, 1927)

6

slide-7
SLIDE 7

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK

Existing Streetscape

7

slide-8
SLIDE 8

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Adjacent Building Comparison

148 EAST END 150 EAST END 152 EAST END

8

slide-9
SLIDE 9

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK

Existing Brick Molding to Remain

Window 3A & 3B : Third Floor Front

  • Existing sill, header and casing to remain
  • Window color will match existing (see color samples appendix)
  • New Windows will match existing wood
  • Transom windows will be replaced with standard 6 over 6 double hung to

match windows below and adjacent buildings

Brick Molding to Remain

9

slide-10
SLIDE 10

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3A: Third Floor Front (Single)

29 1/8’’ 39 3/8’’ 66 3/8’’ 77’’ EXISTING REPLACEMENT 29’’ 65 7/16’’ 77’’ 39 3/8’’ 31 1/2’’ 31 1/2’’ 23 7/8’’ 23 7/8’’ 9 3/4’’

Existing Casement to Remain

10

slide-11
SLIDE 11

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3A & 3B : Third Floor Front (View from East Side of East End Avenue) Winter

11

slide-12
SLIDE 12

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Top Floor Comparison: 148 and 152 (Adjacent Buildings)

148 EAST END 152 EAST END

12

slide-13
SLIDE 13

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Close Up Exterior Elevation Photos: 1st Floor

Window 1A Window 1B

13

slide-14
SLIDE 14

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Close Up Exterior Elevation Photos: 2nd Floor

Window 2A Window 2B

14

slide-15
SLIDE 15

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK

APPENDIX: SUPPORTING MATERIALS:

THE FOLLOWING WILL NOT BE PRINTED, BUT WILL BE SUBMITTED TO STAFF IN SUPPORT OF APPLICATION

15

slide-16
SLIDE 16

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK

EXISTING CONDITION: DETAILED PHOTOS

16

slide-17
SLIDE 17

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK First Floor Interior Condition

WINDOW 1A WINDOW 1B

17

slide-18
SLIDE 18

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Second Floor Interior Condition

WINDOW 2A WINDOW 2B

18

slide-19
SLIDE 19

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Third Floor Interior Condition

WINDOW 3A WINDOW 3B

19

slide-20
SLIDE 20

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK

SCHEMATICS & MEASUREMENTS

20

slide-21
SLIDE 21

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 1A: First Floor Front (Single)

27 ½ ’’ 36 ¼ ’’ 62 7/8’’ 73 ½ ’’ EXISTING REPLACEMENT 28 ¾ ’’ 36 ¼ ’’ 63 9/16 ’’ 73 ½ ’’ 30 ½ ’’ 30 ½ ’’ 30 ¾ ’’ 30 ¾ ’’

21

slide-22
SLIDE 22

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 1A: First Floor Front (Single)

EXISTING WINDOW SECTION AND JAMB DETAIL PROPOSED WINDOW SECTION AND JAMB DETAIL 5 1/4’’ 2’’ 1 3/8’’ 3 7/8’’ 5 3/8’’ 6 3/4’’ 4 3/32’’ 1.5 ’’ 2 11/32’’ 3 9/16’’ 5 27/32’’ 6 3/4’’

22

slide-23
SLIDE 23

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 1A: First Floor Front (Single)

EXISTING WINDOW HORIZONTAL PROFILE PROPOSED WINDOW HORIZONTAL PROFILE 1.5’’ 3 ¾ ’’

Existing Masonry Wood Casing

2’’ 4 3/8’’

Existing Masonry

23

slide-24
SLIDE 24

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 1B: First Floor Front (Double)

78’’ 65 3/8’’ 73.5’’ 30 1/4’’ 10 3/8’’ 29 3/4’’ EXISTING REPLACEMENT 78’’ 63 9/16 ’’ 73.5’’ 30 1/16’’ 10 3/8’’ 30 1/16’’ 32 1/2’’ 31 1/2’’ 30 5/8 ’’ 30 5/8 ’’

24

slide-25
SLIDE 25

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 1B: First Floor Front (Double)

EXISTING WINDOW SECTION AND JAMB DETAIL PROPOSED WINDOW SECTION AND JAMB DETAIL 2 3/4’’ 1’’ 1 3/8’’ 3 7/8’’ 5 3/8’’ 6 3/4’’ 4 3/32’’ 1.5 ’’ 2 11/32’’ 3 9/16’’ 5 27/32’’ 6 3/4’’

25

slide-26
SLIDE 26

1 ½ ’’ 3 ¾ ’’

Existing Masonry

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 1B: First Floor Front (Double)

EXISTING WINDOW HORIZONTAL PROFILE PROPOSED WINDOW HORIZONTAL PROFILE 1’’ 3 4 /5’’

Existing Masonry

26

slide-27
SLIDE 27

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 2A: Second Floor Front (Single)

28.0’’ 36 1/8’’ MO 63 3/8’’ 71 3/4’’ EXISTING REPLACEMENT 28 5/8’’ 36 1/8’’ MO 61 7/8 ’’ 71 3/4’’ 31’’ 31’’ 29 ¾ ’’ 29 ¾ ’’

27

slide-28
SLIDE 28

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 2A: Second Floor Front (Single)

EXISTING WINDOW SECTION AND JAMB DETAIL PROPOSED WINDOW SECTION AND JAMB DETAIL 3 5/8’’ 2’’ 1 3/8’’ 3 1/2’’ 4 3/4’’ 5 1/4’’ 4 1/8’’ 1 ½ ’’ 2 11/32’’ 3 9/16’’ 5 27/32’’ 5 1/4’’

28

slide-29
SLIDE 29

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 2A: Second Floor Front (Single)

EXISTING WINDOW HORIZONTAL PROFILE PROPOSED WINDOW HORIZONTAL PROFILE 1 ½ ‘’ 3 3/4’’

Existing Masonry Wood Casing

2’’ 4 1/16’’

Existing Masonry

29

slide-30
SLIDE 30

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 2B: Second Floor Front (Double)

70’’ 62 1/2’’ 73 ¼ ’’ EXISTING REPLACEMENT 70’’ 63 5/16’’ 73 ¼ ’’ 26 ¼’’ 10 1/8’’Gap 26 ¾ ’’ 26 3/16 ’’ 10 1/8’’Gap 26 3/16’’ 30 ¾ ’’ 30 3/8 ’’ 30 ½ ’’ 30 ½ ’’

30

slide-31
SLIDE 31

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 2B: First Floor Front (Double)

EXISTING WINDOW SECTION AND JAMB DETAIL PROPOSED WINDOW SECTION AND JAMB DETAIL 5 3/8 ’’

1 ½ ’’

1 3/8’’ 3 7/8’’ 5 3/8’’ 5 ¼ ’’ 4 3/32’’

1 ½ ‘’

2 11/32’’ 3 9/16’’ 5 27/32’’ 5 ¼ ’’

31

slide-32
SLIDE 32

1 ½ ’’

3 ¾ ’’

Existing Masonry

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 2B: First Floor Front (Double)

EXISTING WINDOW HORIZONTAL PROFILE PROPOSED WINDOW HORIZONTAL PROFILE

1 ½ ’’

3 ½ ’’

Existing Masonry

32

slide-33
SLIDE 33

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3A: Third Floor Front (Single)

29 1/8’’ 39 3/8’’ 66 3/8’’ 77’’ EXISTING REPLACEMENT 29’’ 65 7/16’’ 77’’ 39 3/8’’ 31 1/2’’ 31 1/2’’ 23 7/8’’ 23 7/8’’ 9 3/4’’

Existing Casement to Remain

33

slide-34
SLIDE 34

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3A: Third Floor Front (Single)

EXISTING WINDOW SECTION AND JAMB DETAIL PROPOSED WINDOW SECTION AND JAMB DETAIL 5 5/7’’

2 7/8 ’’

2 11/32’’ 3 9/16’’ 5 27/32’’ 5’’ 7 ½ ’’ 1 3/8’’ 3 7/8’’ 4 3/8’’ 5’’ 5 1/4’’

2 7/8’’

34

slide-35
SLIDE 35

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3A: Third Floor Front (Single)

EXISTING WINDOW HORIZONTAL PROFILE PROPOSED WINDOW HORIZONTAL PROFILE 2 7/8’’ 5 3/8’’

Existing Masonry

2 7/8’’ 5 1/3’’

Existing Masonry

35

slide-36
SLIDE 36

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3B: Third Floor Front (Single)

36 1/8’’ 46 1/4’’ 66 3/8’’ 77’’ EXISTING REPLACEMENT 35 1/2’’ 65 7/16’’ 77’’ 46 1/4’’ 31 1/2’’ 31 1/2’’ 23 7/8’’ 23 7/8’’ 9 3/4’’

Existing Casement to Remain

36

slide-37
SLIDE 37

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3B: Third Floor Front (Single)

EXISTING WINDOW SECTION AND JAMB DETAIL PROPOSED WINDOW SECTION AND JAMB DETAIL 5 5/7’’

2 7/8 ’’

2 11/32’’ 3 9/16’’ 5 27/32’’ 5’’ 7 ½ ’’ 1 3/8’’ 3 7/8’’ 4 3/8’’ 5’’ 5 1/4’’

2 7/8’’

37

slide-38
SLIDE 38

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Window 3B: Third Floor Front (Single)

EXISTING WINDOW HORIZONTAL PROFILE PROPOSED WINDOW HORIZONTAL PROFILE 2 7/8’’ 5 3/8’’

Existing Masonry

2 7/8’’ 5 1/3’’

Existing Masonry

38

slide-39
SLIDE 39

WINDOW REPLACEMENT

150 EAST END AVENUE, NEW YORK Muntons (Existing and Proposed): All Windows

EXISTING PROPOSED

39
