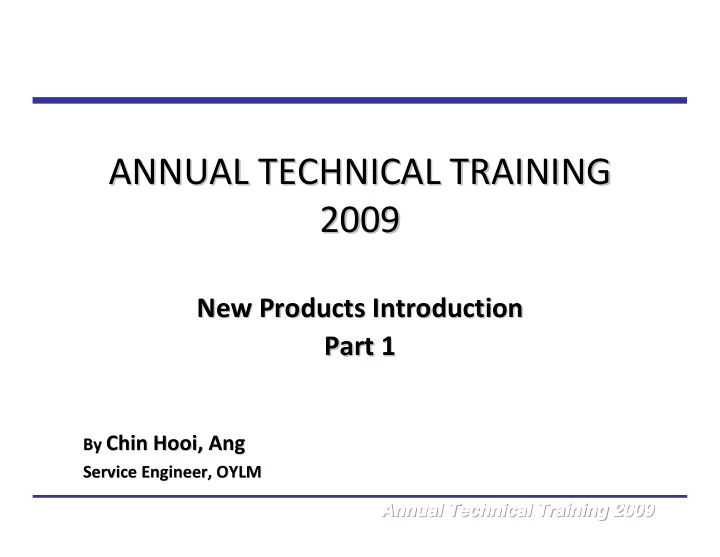

ANNUAL TECHNICAL TRAINING ANNUAL TECHNICAL TRAINING 2009 2009 New - - PowerPoint PPT Presentation

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

ANNUAL TECHNICAL TRAINING ANNUAL TECHNICAL TRAINING 2009 2009

New Products Introduction New Products Introduction Part 1 Part 1

By By Chin Hooi, Ang

Chin Hooi, Ang

Service Engineer, OYLM Service Engineer, OYLM

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

New Products in 2009- 2010

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

New Products Introduction Part I- Agenda

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction to Ceiling Concealed Split System C Series (High Ambient Series)

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Product range: 4hp ~ 6hp

CC40/50/60C

Specially developed for High Outdoor Ambient Condition (Middle East) Introduction to Ceiling Concealed (High Ambient Series)

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 OPTIMIZATION of performance at ambient temperature of 46oC Able to operate up to ambient temperature of 52oC

Introduction to Ceiling Concealed (High Ambient Series)

Ceiling concealed split system C series (high ambient series) is designed with:

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

High sensible heat ratio (>0.8) at 46oC ambient temperature

High air flow rate External static pressure of 50Pa

Introduction to Ceiling Concealed (High Ambient Series)

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Concealed Split System C Series (High Ambient Series)

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Concealed (High Ambient Series)

Microprocessor controlled

• Offer comfortable room conditions according to the needs of the user
• Provide protection to components of the air conditioning unit against any

fault through its control algorithm

Optional duct accessories

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 Double protection drainage system

• Primary drain pan: high thermal insulation material and molded in gradient

for better condensate water drainage

• Secondary drain pan: “built in” to standard unit offers extra protection against

possible water leaking problems Features of Ceiling Concealed (High Ambient Series)

Auto random restart

• Automatically restart according to the last state setting condition when

power resumed

• Option is provided to cancel this features

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 Choices of wired and wireless controller

• Standard unit come with simple and user friendly SLM3
• Optional specification of CC-C series also available with Netware III
• An innovative and compact wireless controller, AC-5300 provides wireless

command to the SLM3 & Netware III Features of Ceiling Concealed (High Ambient Series)

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction of Ceiling Cassette Split System E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction of Ceiling Cassette E Series

Product range: 2hp ~ 5hp

CK20/25/28/40/50E/ER

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction of Ceiling Cassette E Series CK CK-

• A

A CK CK-

• C

C

Unit Height: 350mm Unit Height: 350mm Unit Width & Depth: 820mm X 820 mm Unit Width & Depth: 820mm X 820 mm Unit Height: 275mm Unit Height: 275mm Unit Width & Depth: 570mm X 570 mm Unit Width & Depth: 570mm X 570 mm

CK CK-

• E

E

Unit Height (20 Unit Height (20-

• 28): 290mm

28): 290mm Unit Height (40/50): 325mm Unit Height (40/50): 325mm Unit Width & Depth: 820mm X 820 mm Unit Width & Depth: 820mm X 820 mm

CK-A, CK-C and CK-E dimension

New

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Cassette Split System E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

• Improve Sound Level
• New CK-E series is equipped with a newly-developed turbo fan,

which has improved the sound pressure level of the unit significantly.

• 4 selected fan speeds
• By selecting the Quiet mode, the sound pressure level can be as

low as 27dBA. Features of Ceiling Cassette E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

• Multi comfort- 3 air swing pattern control
• 3 selected air swing pattern to suit different requirements

Features of Ceiling Cassette E Series Swing mode selection method through wireless handset:

• Press SWING button for 4 seconds to enter field setting mode. While in field setting mode, show
• nly SETTING MODE
• Press temperature + or – button to select SWING MODE rotation from SWING MODE 1 to SWING

MODE 3

• If no mode changes within 4 seconds, unit will operate according to the selected SWING MODE

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

• Optimum Air Discharge
• Combining 4 ways air discharge and large discharge area on

each side

• Additional of the automatic air swing help to further to evenly

distribute conditioned air to every corner of the install area. Features of Ceiling Cassette E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

• Modern & Elegant Panel Design
• Unique “Round” side contour
• Side LED light location
• Promote Uniform Installation
• Same dimension (all capacity)
• Rotate able intake grill

Allow 90° ° ° °Rotation

Features of Ceiling Cassette E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Lower Height model

• 2 uniform height base on different capacity

Small fan motor Compact body design

A B C

Features of Ceiling Cassette E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 Built-In high head drain pump

• Built-in high head drain pump 700mm head.
• A safety float is incorporated in the drain pump to monitor its water level

Features of Ceiling Cassette E Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction to Ceiling Convertible Split System E Series II

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction to Ceiling Convertible E series II

Product range: 3.5hp ~ 5hp

CM35/40/50E

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Convertible Split System E Series II

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Convertible E series II

Ceiling and floor installation option

• To install below the ceiling
• To mount at low wall position

Ceiling installation type Standing installation type

Easy Serviceability

• Control box, motor and blower can

be access easily by just pulling down the filter rail.

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 Negative ion generator

• To increase the amount of

negative ion in the air conditioning area, creating more refreshing environment

Automatic air swing

• The motorized louver enables the air flow to be evenly distributed.
• At the same time, negative ion will be released to provide quality air

Features of Ceiling Convertible E series II

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Convertible E series II

Flexible installation

• Unit is designed to work with high pressure head drain pump (optional).
• To offer flexibility for installation on condensate drain pipe
• Drain pump comes with a high head and is incorporate with the float switch

as safety protection

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of Ceiling Convertible E series II

Fresh air option

• The unit is designed to draw in fresh air from outdoor. A fresh air knocked
• ut holes is designed within the unit itself to provide better ventilation.

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 Choices of wired and wireless controller

• Standard unit come with simple and user friendly wireless handset
• Optional specification of CM-E series also available with SLM3
• An innovative and compact wireless controller, AC-5300 provides wireless

command to the SLM3 Features of Ceiling Convertible E series II

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction to R410A Rooftop B Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Introduction to R410A Rooftop B series

Product range: 9hp ~ 18hp

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of R410A Rooftop B Series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of R410A Rooftop B series

Extended operating range

Cooling Heating Come as std Std unit

Improve to 52°C Extended down to 0°C

Improve to -15°C

Remark: 5RT90/120/150/180BR is confirmed able to operate down to 0⁰C (cooling) & -15⁰C (heating) by using 2 speed condenser fan motor.

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of R410A Rooftop B series

Convertible supply and return air

• R410A rooftop B series can be easily converted from horizontal to vertical

(downward) supply and return air duct configuration by simply repositioning the panels and supply air fan mounting. The standard configuration is horizontal supply and return air.

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of R410A Rooftop B series

New control panel

• A new control panel has been designed for the R410A series and offer

improve specifications.

• This new control panel includes all starting, operating and safety controls

setting.

• Control length up to 100m.
• The main features are:
• Cool/ Heat/ Auto/ fan mode
• 7 days programmable timer (3 ON/OFF

timer per day)

• Display alarms and warnings
• Memory backup for panel’s last state

settings

• Password protection

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Features of R410A Rooftop B series

Economizer

• Field installed economizer is supplied from factory as an accessory. It is also

designed to cater for horizontal or vertical down throw air discharge

• rientation.
• Control

Actuator

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009 3rd party thermostat Basic BMS dry contact

• For application that requires uniform thermostat outlook with other electrical
• appliances. 3rd Party thermostat can be connected to the factory supplied

module via the dry contact available on PCB board.

• Unit’s standard PCB board provides dry contact for basic BMS connection.

Input signal will go to dry contact ON/OFF, COOL/HEAT, and 4 to 20 mA temperature adjuster while output signal will come from ON/OFF, COOL/HEAT, ALARM and DEFROST dry contact. Features of R410A Rooftop B series

Annual Technical Training 2009 Annual Technical Training 2009 Annual Technical Training 2009

Thank you
