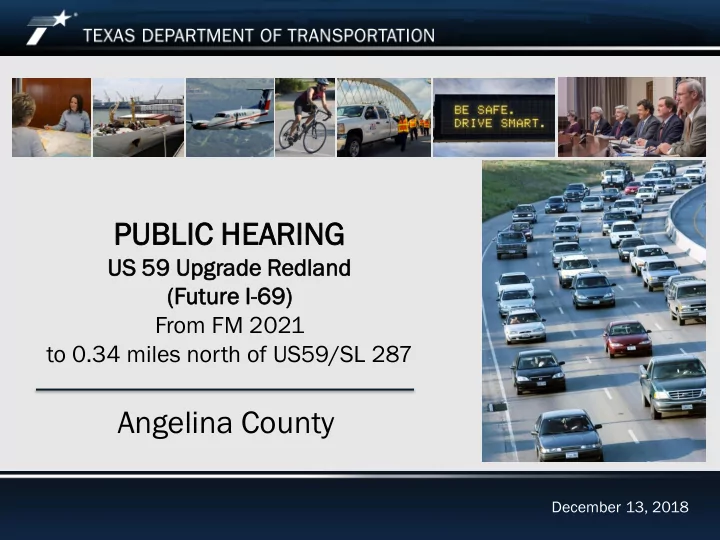

PU PUBL BLIC IC HEAR EARIN ING US 59 Up Upgra grade de Redlan land (Futu uture re I-69) 69) From FM 2021 to 0.34 miles north of US59/SL 287 Angelina County December 13, 2018 Introductions Elected Officials 2 US 59 Upgrade de

slide-1
SLIDE 1

December 13, 2018

PU PUBL BLIC IC HEAR EARIN ING

US 59 Up Upgra grade de Redlan land (Futu uture re I-69) 69) From FM 2021 to 0.34 miles north of US59/SL 287

Angelina County

slide-2
SLIDE 2

Introductions

Elected Officials

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 2

slide-3
SLIDE 3

The environmental review, consultation, and

  • ther actions required by applicable Federal

environmental laws for this project are being, or have been, carried-out by TxDOT pursuant to 23 U.S.C. 327 and a Memorandum of Understanding dated December 16, 2014, and executed by FHWA and TxDOT.

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 3

slide-4
SLIDE 4

Public Hearing Notice Advertisement

  • TxDOT Website – Online Notice: Nov. 15, 2017
  • http

tp:// //www www.tx txdo dot. t.gov/ v/in inside ide-tx txdo dot/ t/get-in involv lved/abou ed/about/heari t/hearings ngs- meetin etings/lu lufk fkin/ n/12 121318. 8.html tml

  • Lufkin Daily News: November 28, 2018
  • Nacogdoches Daily Sentinel: November 28, 2018
  • La Lengua: November 28, 2018
  • Letters (adjacent properties) – November 28, 2018
  • Twitter – November 28, 2018

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 4

slide-5
SLIDE 5

Agenda for Tonight’s Public Hearing

  • Exhibit Viewing and Registration
  • Public Hearing Presentation
  • Public Comment Session
  • Adjourn Public Hearing

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 5

slide-6
SLIDE 6

Proposed Project Location

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 6

slide-7
SLIDE 7

Project Need and Purpose

Existing US 59 within the project area does not meet criteria for an Interstate. The criteria includes:

  • Controlled access – access to main lanes allowed via ramps
  • Minimum design speeds: 60 mph (main lanes) and 45 mph (frontage

roads)

  • 30-foot horizontal clear zone requirements.

Project

  • ject Need

eed Pr Project

  • ject Pu

Purpo pose se

Bring US 59 in the Redland area up to current interstate design standards providing system connectivity, enhanced safety, increased mobility and a more efficient hurricane evacuation route.

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 7

slide-8
SLIDE 8

Proposed Project Overview

  • Major Design Features
  • Controlled access US 59 northbound and southbound main lanes

with center barrier

  • Two-lane northbound and southbound frontage roads with sidewalks
  • Turnaround at Union Pacific Railroad
  • Anticipated Right of Way
  • Proposed right-of-way (ROW) width varies from 350 feet to 650 feet
  • Approximately 70 acres from 59 parcels
  • Total project cost, including ROW and construction, is estimated at

$46 million

US US 59 Upg Upgrade rade Redlan dland Projec

  • ject

t

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 8

slide-9
SLIDE 9

Pro ropose

  • sed

d Typical al Section

  • n
  • Four 12-foot wide main lanes (two in each direction) with center barrier,

10-foot wide inside shoulders and 12-foot wide outside shoulders

  • Northbound and southbound frontage roads with two 12-foot wide lanes,

four-foot inside shoulder, eight-foot outside shoulder, curb and six-foot sidewalks

  • Typical right-of-way width varies from 350 feet to 650 feet

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 9

slide-10
SLIDE 10

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 10 10

slide-11
SLIDE 11

Environmental Considerations

  • Land Use
  • Farmlands
  • Comm

mmuni unity ty Impa pacts cts

  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 11 11

slide-12
SLIDE 12

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • No

Noise se

  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 12 12

slide-13
SLIDE 13

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Veg

egetation etation and nd Wildlif dlife

  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 13 13

slide-14
SLIDE 14

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality and Permits
  • Vegetation and Wildlife
  • Floodplains
  • Water

ers s of th the U e U.S.

  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Non-

Archeological Properties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 14 14

slide-15
SLIDE 15

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Arch

cheological eological Res esou

  • urces

ces

  • Historical Properties
  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 15 15

slide-16
SLIDE 16

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Hist

storical

  • rical Proper
  • perties

ties

  • Section 4(f)/6(f)

Properties

  • Hazardous Materials
  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 16 16

slide-17
SLIDE 17

Environmental Considerations

  • Land Use
  • Farmlands
  • Community Impacts
  • Pedestrian and Bicycle
  • Air Quality
  • Noise
  • Water Quality
  • Vegetation and Wildlife
  • Floodplains
  • Waters of the U.S.
  • Threatened and

Endangered Species

  • Archeological Resources
  • Historical Properties
  • Section 4(f)/6(f)

Properties

  • Hazar

zardous dous Materials erials

  • Indirect and Cumulative

Effects

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 17 17

slide-18
SLIDE 18

Right of Way Acquisition and Relocation

Han andouts douts for Right ht of Way Acq cqui uisition sition an and Relocation location:

  • State Purchase of Right of Way - information about the right
  • f way acquisition process
  • Relocation Assistance - information about the relocation

assistance program for residences, tenants, businesses and personal property relocations

  • Landowner’s Bill of Rights - information prepared by the

Office of the Attorney General explaining a property owner’s rights in the State of Texas

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 18 18

slide-19
SLIDE 19

Project Development Schedule*

  • Dec 2018 – Early 2019: Compile and consider public input from

tonight’s hearing and the public comment period and finalize schematic and environmental documentation.

  • December 2018 - Spring 2021: Prepare right of way (ROW) map

and parcel descriptions, obtain ROW appraisals, acquire ROW and conduct relocations.

  • Spring 2020 – Spring 2022: Begin detailed engineering plans,

relocate utilities and obtain necessary environmental permits.

  • Summer 2022 – Summer 2025: Take bids on the proposed project

and begin construction. Construction is anticipated to take approximately 3 years.

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 19 19 *Subject to change.

slide-20
SLIDE 20

Public Hearing Comments

All commen ments ts must st be submi mitt tted ed by Decemb ember er 31, 1, 2018 18

Comments may be provided tonight at this Public Hearing, by mail, or by email. 1. 1. Provi vide de verbal comments ts duri ring ng formal mal comment nt period: d:

  • Fill out a speaker registration card or raise your hand if you need one
  • Once you’ve completed a speaker registration card – hand to a staff member or raise your

hand if you need assistance

  • When your name is called, proceed to the microphone to speak your comment or raise your

hand if you need assistance

  • Please speak your name clearly for the court reporter
  • Comments will be limited to 3 minutes

2. Leave writt tten en comment nt forms s in comment nt boxes or give to TxDOT staff f tonight ht

  • 3. Mail writt

tten n comments nts to: TxDOT Lufkin District Attn: Jennifer H. Adams 1805 N. Timberland Dr. Lufkin, Texas 75901

  • 4. Submit electr

troni nic c comments nts online ne usi sing ng the email link nk at: https://www.txdot.gov/inside-txdot/get-involved/about/hearings-meetings/lufkin/121318.html US 59 Upgrade de Redlan and d (Future ture I-69) 69) 20

slide-21
SLIDE 21

El Elect ected ed Official icials s Comment mment Ses ession sion

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 21 21

slide-22
SLIDE 22 Footer Text

3:00 2:59 2:58 2:57 2:56 2:55 2:54 2:53 2:52 2:51 2:50 2:49 2:48 2:47 2:46 2:45 2:44 2:43 2:42 2:41 2:40 2:39 2:38 2:37 2:36 2:35 2:34 2:33 2:32 2:31 2:30 2:29 2:28 2:27 2:26 2:25 2:24 2:23 2:22 2:21 2:20 2:19 2:18 2:17 2:16 2:15 2:14 2:13 2:12 2:11 2:10 2:09 2:08 2:07 2:06 2:05 2:04 2:03 2:02 2:01 2:00 1:59 1:58 1:57 1:56 1:55 1:54 1:53 1:52 1:51 1:50 1:49 1:48 1:47 1:46 1:45 1:44 1:43 1:42 1:41 1:40 1:39 1:38 1:37 1:36 1:35 1:34 1:33 1:32 1:31 1:30 1:29 1:28 1:27 1:26 1:25 1:24 1:23 1:22 1:21 1:20 1:19 1:18 1:17 1:16 1:15 1:14 1:13 1:12 1:11 1:10 1:09 1:08 1:07 1:06 1:05 1:04 1:03 1:02 1:01 1:00 0:59 0:58 0:57 0:56 0:55 0:54 0:53 0:52 0:51 0:50 0:49 0:48 0:47 0:46 0:45 0:44 0:43 0:42 0:41 0:40 0:39 0:38 0:37 0:36 0:35 0:34 0:33 0:32 0:31 0:30 0:29 0:28 0:27 0:26 0:25 0:24 0:23 0:22 0:21 0:20 0:19 0:18 0:17 0:16 0:15 0:14 0:13 0:12 0:11 0:10 0:09 0:08 0:07 0:06 0:05 0:04 0:03 0:02 0:01 0:00

  • Submit a Speaker Registration

Card

  • Limit your comments to 3

minutes

  • Use microphone and face court

reporter

  • State your name and whom you

represent (if applicable)

  • Unused time may not be given to

another speaker

Pu Publ blic ic Comment mment Session sion

US 59 Upgrade Redland (Future I-69) 22

slide-23
SLIDE 23

Th Thank Y ank You

  • u

US 59 Upgrade de Redlan and d (Future ture I-69) 69) 23 23
