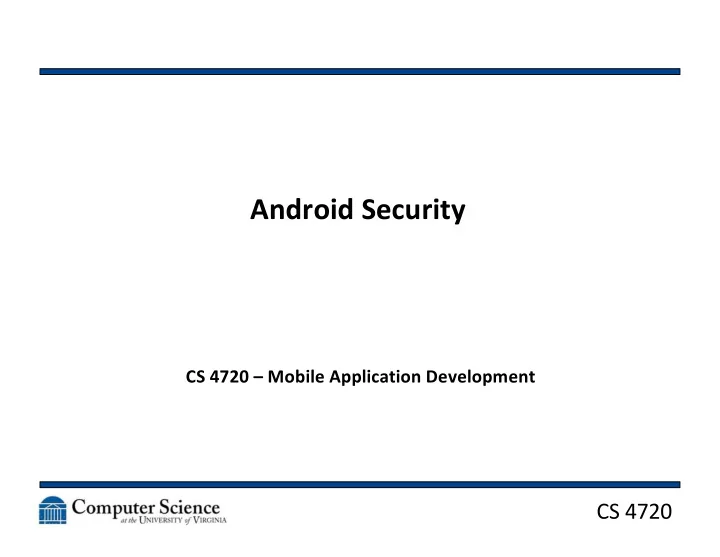

Android Security CS 4720 Mobile Application Development CS 4720 - - PowerPoint PPT Presentation

CS 4720

Android Security

CS 4720 – Mobile Application Development

CS 4720

Security through Obscurity

• It used to be that phones had so little

connectivity to devices other than the phone network that security wasn't a huge deal

• Phone number stealing did occur
• But nothing compared to what can happen

with today's smartphones!

2

CS 4720

Encrypting Credentials

• Create a configuration file for use of logging

into a web service or DB or whatever

• Then encrypt that file with a

username/password combo that isn't stored anywhere on the device

• For multiple users, add another layer – encrypt

a master password with a username/password combo that can unlock the configuration files

3

CS 4720

Other “Good Things”

4

• Encryption of data
• SSL for connections
• Input validation
• Power-on password for the device
• Everything else we discussed

CS 4720

Mobile Remote Management

5

• With an “always on” (theoretically) network

like a cellular network, remote enterprise management is an option

• Can force:

– Policies (power on password, etc) – Password changes – Removal of all data through remote wipe

CS 4720

Application Signing

• Under “normal circumstances,” to run code on

a mobile device the following must be true:

– The executable files are “signed” – The signature is valid – The signature matches a recognized certificate on the device

• Code signing ensures two things: the code

hasn't been modified and the owner is known

6

CS 4720

Application Signing

7

• Works similarly to public/private key signing

– On a compile, the code is hashed and encrypted with the private key of the author – The author's public key and info is attached to the code as a resource – At runtime, the mobile device gets the public key and decrypts the hash – Then it hashes the code and does a comparison – Finally, the public key is verified against the trust authorities certificate store

CS 4720

Mobile Security Policy

8

• Applications can be:

– Privileged: signed and verified in the cert store – Unprivileged : verified as unprivileged in the cert store – Unsigned: app not signed

• And these apps can run:

– Trusted: consider this as running as root (almost) – Normal: API and Registry is severely restricted

CS 4720

Changing Security Configurations

• This is why you have to call

Verizon/Sprint/AT&T to get an “unlock code” for some phones

• Some aspects are locked to the provider, even

if you own the phone!

9

CS 4720

Android Security

• “No application, by default, has permission to

perform any operations that would adversely impact other applications, the operating system, or the user.”

• “This includes reading or writing the user's

private data (such as contacts or e-mails), reading or writing another application's files, performing network access, keeping the device awake, etc.”

10

CS 4720

Android Security

• Sandbox model
• All apps run in their own sandbox
• All potential permissions needed to exit the

sandbox must be statically declared at app install time

11

CS 4720

Android Manifest Permissions

• Network communication: view Wi-Fi state,

create Bluetooth connections, full Internet access, view network state

• Your location: access extra location provider

commands, fine (GPS) location, mock location sources for testing, coarse (network-based) location

• Services that cost you money: send SMS

messages, directly call phone numbers

12

CS 4720

Android Application Signing

• All .apk's (Android packages) must be signed by

the developer's private key stored on the local machine

• A “default” keyset is generated when you

install the Android SDK

– It can be found in your .android directory – This can be used for development

• When you publish your app, you must create

your own public key

13

CS 4720

Android Application Signing

• Google provides detailed steps on how to

create your own key

• MAJOR POINT – Google / Android does NOT

require that your certificate / private key is verified by a certificate authority

• This is called a “self-signed certificate”

14

CS 4720

Self-Signing

• What does it mean to have a self-signed

certificate?

• How it affects apache / https
• What are the potential risks to having a self-

signed certificate:

– For a server? – For an Android application?

• This is very different than Apple's stance

15
