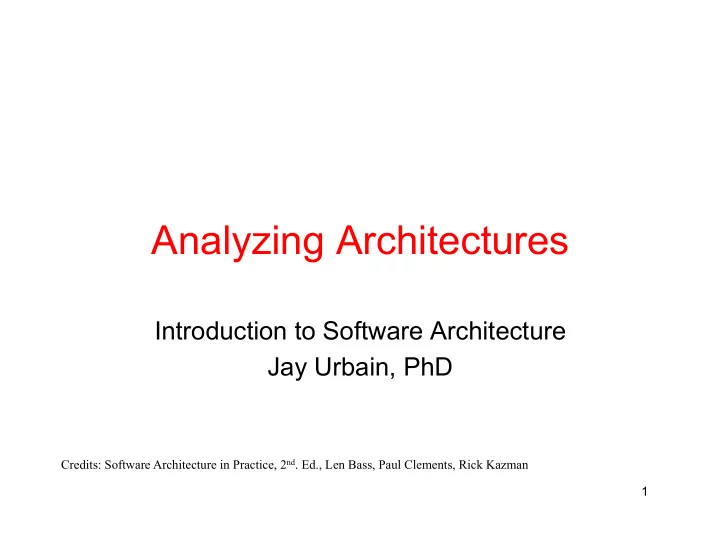

Analyzing Architectures

Introduction to Software Architecture Jay Urbain, PhD

Credits: Software Architecture in Practice, 2nd. Ed., Len Bass, Paul Clements, Rick Kazman

2

ATAM

• Architecture Tradeoff Analysis Method
• A thorough and comprehensive way to evaluate a

software architecture

• This is hard:

– Large systems are very complicated. – Evaluation needs to compare business goals and technical decisions. – Careful management of an evaluation process is needed to consider multiple stakeholders in a review format. Focus on RISK!!!

3

Participants in the ATAM

• Three basic groups/perspectives:

– The evaluation team ~ 3-5 people – Project decision makers ~ Project manager, customer, architect – Architecture stakeholders ~ varies

4

Outputs

• Concise presentation of the architecture
• Clearly defined/refined business goals
• Quality requirements via a collection of scenarios
• Mapping of architectural decisions to quality

requirements

– Tactics and patterns used to satisfy qualities

• A set of risks and non-risks
• A set of risk themes

5

Phases

• Phase 0: partnership and preparation
• Phase 1 and 2: evaluation

– Phase 1 has 6 steps – Phase 2 has 3 steps with all stakeholders

• Phase 3: follow-up via written report

6

Phase 0: Partnership and Preparation

Participants:

• Evaluation team
• Project decision makers
• Architecture stakeholders

Preparation:

• Team leadership and key project decision makers meet informally to

work out the details of the exercise.

• Project representatives brief evaluators about the project so the team

can be supplemented by people who possess the necessary expertise.

• Work out logistics
• Identify stakeholders
• Define what's expected for Phase I

7

Phase 1: Evaluation

Activity:

• Evaluation

Participants:

• Evaluation team and key project decision makers

Duration:

• Varies, ~1 day for large projects, followed by hiatus (~1

to 2 weeks)

8

Phase 1

1. Present the ATAM process 2. Present the business drivers 3. Present the architecture 4. Identify architectural approaches 5. Generate quality attribute tree (table) 6. Analyze the architectural approaches

9

Present the ATAM process

• Evaluation leader presents the ATAM process to project

representatives. – Explain process – Answer questions – Set context and expectations – Modifies as necessary

10

Present the business drivers

• Everyone involved needs to understand the context of

the system, and the primary business drivers motivating development.

• Should describe:

– System's most important functions – Relevant technical, managerial, economic, political constraints – Business goals as they relate to project – Major stakeholders – Architectural drivers

11

Present the architecture

• Presented by lead architect
• "Appropriate" level of detail
• Cover architectural constraints:

– OS, HW, middle-ware, language, framework, etc.

• Architectural approaches:

– Tactics (and patterns) used to meet architectural requirements

12

Architecture Presentation

• Description: elevator pitch
• System context
• UC’s: list, trace through 1 or 2 most important UC's
• Key qualities (business drivers) that affect the structure of the system
• Key quality attribute scenarios with quantitative response
• Tactics
• High-level design
• Layers, common application framework
• Key design patterns for each layer
• Key class diagrams
• Sequence diagrams (one for each use case)
• Skeletal system: thread through system, focus on risk and validating

qualities

13

Identify architectural approaches

• Analyze architecture by analyzing approaches
• Common application architectures and patterns
• Known ways in which each pattern/approach affects

particular quality attributes.

• Example:

– Layered pattern tends to bring portability, maintainability, and distributability to a system, possibly at the expense of performance. – Data centric architecture at the cost of distributability. – Consequences of service layer???

• Evaluation team should catalog patterns and approaches.

14

Generate Quality Attribute Utility Tree/Table

• Architecture’s suitability to deliver quality attributes to

the system.

• High-performance system may be totally wrong for a

system in which performance is not nearly as important as security.

• Articulate quality attribute goals Identify, prioritize, and refine

the system's most important quality attribute goals which are expressed as scenarios.

15

QA Utility Tree/table

Quality Attribute Attribute Refinement Scenarios

(Importance, Difficulty)

Performance Throughput

At peak load, the system is able to complete 150 normalized transactions per second. (M,M)

Usability Proficiency training

A user in a particular context asks for help, and the system provides help for that context. (H,L)

Availability

The system supports 7/24 Web-based account access by patients. (L,L)

16

Analyze Architectural Approaches

• Rank scenarios one at a time
• Probe architectural approaches used to carry out the

scenario.

• Document relevant architectural decisions and identify

risk, non-risk, sensitivity points, and tradeoffs.

– Example: number of simultaneous database clients will affect the number of transactions that can be processed per second.

17

Phase 2

• 1. Brainstorm and prioritize scenarios
• 2. Analyze the architectural approaches
• 3. Present results

18

Brainstormed Scenarios

Number Scenario

1 Previously public data is made private, and access is adjusted accordingly. 6 Decide to support German. 9 A user requests a new field for asynchronous queries. 21 Introduce a new workflow process for patient check-in and check-out. 29 A fire in the data center forces the information hub to be moved to a new location. 33 George quites

19

Analyze Architectural Approaches

• Eval team guides architect in the process of carrying out

the highest ranked scenarios identified during brainstorming.

• Architect provides explanation of how scenarios are

addressed.

20

Present Results

• Summarize and present ATAM results

– Architectural approaches documented – Set of scenarios and their prioritization from the brainstorming – Utility Table or similar – Risks discovered – Non-risks documented – Sensitivity points and tradeoff points found

21

ATAM Summary

• Not an evaluation of requirements
• Not a code evaluation
• Does not include actual system testing
• Not precise, but identifies possible risk areas within the

architecture

• Actual practice: amazement that so many risks can be

found in such a short time.

22

The CBAM

• The biggest tradeoffs in large, complex systems usually

have to do with economics.

• How should an organization invest its resources to

maximize gain and minimize risk?

• Economics includes cost to build, but also the benefits

that an architecture delivers.

23

Decision-Making Context

• Begins with the ATAM results
• Add in costs and benefits associated with the

architectural decisions

• The stakeholders decide if they should:

– Use redundant hardware; failover; load balance – Save cost on this project, invest in another

• Provides a framework for making decisions
• Helps clarify ROI – the ratio of benefit to cost

24

Utility

• Definition: the benefit gained by system stakeholders
• Variation: set of ATAM scenarios by varying the value of

the responses, which gives a utility-response curve

25

Utility Response Curves

• Start with collection of scenarios
• For each scenario, see how they differ in their quality

attribute responses.

• Assign utility based on importance of these values.

– Best-case (0.1 sec RT is instantaneous to a person, so .03 doesn’t matter) = 100 – Worst-case (minimum requirement) = 0 – Current (relative to Best & Worst) = x% – Desired (relative to Best & Worst) = y%

• Generate curves for all scenarios across architectural

strategies.

26

Utility Response Curves

• Determine quality attribute levels for best-case and

worst-case situations.

• Best case - no value added above best case
• Worst case - min acceptable threshod the system must

perform

• Must determine current and desired levels

27

Architectural Strategies

• Determine architectural strategies to move from current

quality attribute response to desired or best-case level.

• Calculate utility of expected value by interpolating from

four values already ploted

• Affect of architectural strategy, cost

28

Utility Response Curves

• Determine benefit and normalize
• Calculate overall utility of an architectural strategy

across scenarios from utility response curves by summing utility from each utility curve.

• Bi=Sumj(bi,J * wj) // wj normalized
• bi,J = Uexpected - Ucurrent
• ROI: Ri = Bi/Ci

29

Architectural Strategies

• How do you move from the current quality attribute

response level to the desired or best-case level?

• What would be a strategy for

– increasing system response time? – Increasing capacity?

• Fifth data point: derive expected value of the new

response; utility is interpolation of original 4 values

• Watch out for side effects

30

Exercise for lab: ATAM Introduction

• Easy architecture review!

– Evaluation team: 4 class teams (1 customer, rest stakeholders) XX is PM and architect – Documents from a real system (architectural document) – Outputs: next slide – Process:

• Skim through the documentation, looking for

information that provides the expected Outputs

31

Exercise: Outputs

• A concise presentation of the architecture
• Defined business goals
• Quality requirements via a collection of scenarios
• Mapping of architectural decisions to quality

requirements

• A set of risks and non-risks

Design Review

Design Review: 20 min., 10 min. Q/A

• Description: elevator pitch
• System context
• UC’s: list
• Key qualities (business drivers) that affect the structure of the

system

• Key quality attribute scenarios with quantitative response
• High-level design
• Layers, common application framework
• Key design patterns for each layer
• Key class diagrams
• Sequence diagrams (one for each use case)
• Skeletal system: thread through system, focus on risk and validating

qualities
