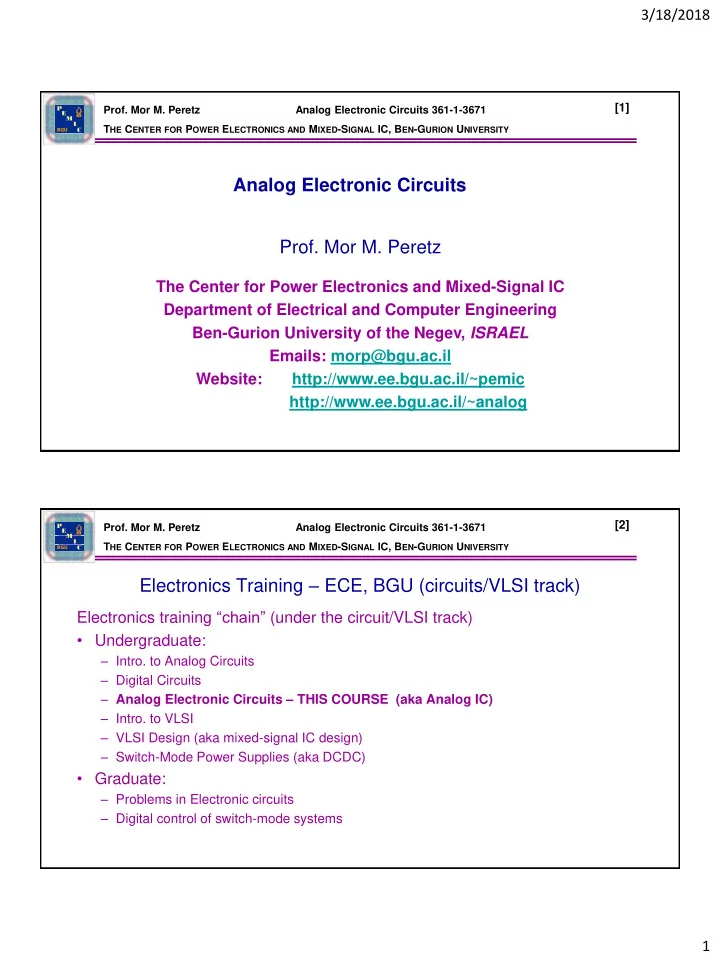

3/18/2018 [1] PE Prof. Mor M. Peretz Analog Electronic Circuits 361-1-3671 M I T HE C ENTER FOR P OWER E LECTRONICS AND M IXED -S IGNAL IC, B EN -G URION U NIVERSITY C BGU Analog Electronic Circuits Prof. Mor M. Peretz The Center for

slide-1
SLIDE 1

3/18/2018 1

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[1]

PE M I C

BGU

Analog Electronic Circuits

  • Prof. Mor M. Peretz

The Center for Power Electronics and Mixed-Signal IC Department of Electrical and Computer Engineering Ben-Gurion University of the Negev, ISRAEL Emails: morp@bgu.ac.il Website: http://www.ee.bgu.ac.il/~pemic http://www.ee.bgu.ac.il/~analog

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[2]

PE M I C

BGU

Electronics Training – ECE, BGU (circuits/VLSI track)

Electronics training “chain” (under the circuit/VLSI track)

  • Undergraduate:

– Intro. to Analog Circuits – Digital Circuits – Analog Electronic Circuits – THIS COURSE (aka Analog IC) – Intro. to VLSI – VLSI Design (aka mixed-signal IC design) – Switch-Mode Power Supplies (aka DCDC)

  • Graduate:

– Problems in Electronic circuits – Digital control of switch-mode systems

slide-2
SLIDE 2

3/18/2018 2

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[3]

PE M I C

BGU

Logistics

  • Lecturer: Prof. Mor M. Peretz
  • Course hours: Sundays, 14-17
  • Office hours:

– PEMIC Center, Building 64, Rm. 4 (ground level) – Wednesdays 14-15

  • Course website:

– http://www.ee.bgu.ac.il/~analog – Slides will be updated before class – Videos will be uploaded during the semester

  • Grading:

– 100% final Exam ***Attendance is not mandatory but highly recommended

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[4]

PE M I C

BGU

Analog Electronic Circuits Course background and motivation

  • Analog (continuous-time) signals

– Continuous flow of information – Data derived from signals parameters: shape, amplitude, frequency – In Digital the info is discrete and finite

truscottjewellers.co.uk sapling-inc.com

slide-3
SLIDE 3

3/18/2018 3

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[5]

PE M I C

BGU

Analog Electronic Circuits Course background and motivation

  • We live in an ANALOG world (still…)
  • The digital Revolution:

– Simple designs, compact, scalable, upgradable, communication, fast time- to-market

  • Any link to the “real world” needs interface

– Computers, Mobile, Audio, Video, Communication

  • $$$ The bottom line $$$

– Electronics hardware engineers, in particular mixed-signal (analog) are top earners with longest prospect across the board of hi-tech industry

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[6]

PE M I C

BGU

Integrated vs discrete circuits

slide-4
SLIDE 4

3/18/2018 4

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[7]

PE M I C

BGU

Integrated vs discrete circuits

2mm 2.2mm

(b) (a)

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[8]

PE M I C

BGU

Recommended literature

  • Course slides
  • Sergio Franco, “Design With Operational Amplifiers And Analog Integrated

Circuits” (any addition)

  • Ramakant A. Gayakwad, “Op-amps and linear integrated circuit technology:
  • David A. Johns, Ken Martin, “Analog Integrated Circuit Design”
  • Hans Camenzind, “Designing Analog Chips”
  • Analog IC Design - http://www.aicdesign.org/
  • Analog Electronic circuits - http://www.ee.bgu.ac.il/~angcirc
slide-5
SLIDE 5

3/18/2018 5

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[9]

PE M I C

BGU

Lesson #1 Outline

  • Review of basic transistor circuits

– Current mirrors – Voltage reference (Bandgap) – Differential pair

  • The operational amplifier (opamp)

– Basic internal (transistor) circuit – Ideal amplifier – Characteristics of the ideal opamp

  • Basic circuits

– Inverting amp, Non-inverting amp – Summing, difference, integrator, differentiator

  • Additional applications

– Voltage reference, current source

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[10]

PE M I C

BGU

Current Mirror

Q1 I1 I2

slide-6
SLIDE 6

3/18/2018 6

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[11]

PE M I C

BGU

Voltage Reference (Bandgap)

R1 R2 R3 R1 R2 R3

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[12]

PE M I C

BGU

Differential Pair

→ → →

slide-7
SLIDE 7

3/18/2018 7

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[13]

PE M I C

BGU

Differential Pair

Q1 VEE Q2 VCC OUT IN- IN+

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[14]

PE M I C

BGU

Differential Pair Two stages

slide-8
SLIDE 8

3/18/2018 8

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[15]

PE M I C

BGU

Three stages diff. pair – The Operational Amplifier

OUT VEE VCC IN- IN+

+

  • A1

A2 1

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[16]

PE M I C

BGU

OpAmp characteristics

+ (V+ - V-) A

VOUT V+ V-

+

  • Ideal OpAmp primary features:
  • Differential inputs
  • Output product as function inputs (V+ - V-) A

A=A1A2A3

  • Infinite gain A→∞
  • Infinite Bandwidth BW→∞
  • Infinite input resistance Rin→∞
  • Zero output resistance Rout→ 0

+

  • A1

A2 1

slide-9
SLIDE 9

3/18/2018 9

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[17]

PE M I C

BGU

Inverting Amp Virtual Ground

  • Zero potential between inputs

+

  • Vin

VOUT Z2 Z1 VƐ

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[18]

PE M I C

BGU

Non-inverting Amp

+

  • Vin

VOUT Z2 Z1 VƐ Vf

slide-10
SLIDE 10

3/18/2018 10

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[19]

PE M I C

BGU

Summing Amp

+

  • V1

VOUT Zin1 Z1 VƐ Zin2 V2

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[20]

PE M I C

BGU

Difference Amp

+

  • V1

VOUT R2 R1 VƐ V2 R3 R4

slide-11
SLIDE 11

3/18/2018 11

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[21]

PE M I C

BGU

Integrator Amp

+

  • Vin

VOUT R C VƐ

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[22]

PE M I C

BGU

Differentiator Amp

+

  • Vin

VOUT R C VƐ

slide-12
SLIDE 12

3/18/2018 12

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[23]

PE M I C

BGU

Voltage reference by OpAmp (Bandgap)

  • Prof. Mor M. Peretz

Analog Electronic Circuits 361-1-3671 THE CENTER FOR POWER ELECTRONICS AND MIXED-SIGNAL IC, BEN-GURION UNIVERSITY

[24]

PE M I C

BGU

Current source by OpAmp +

  • Vref

R Iout
