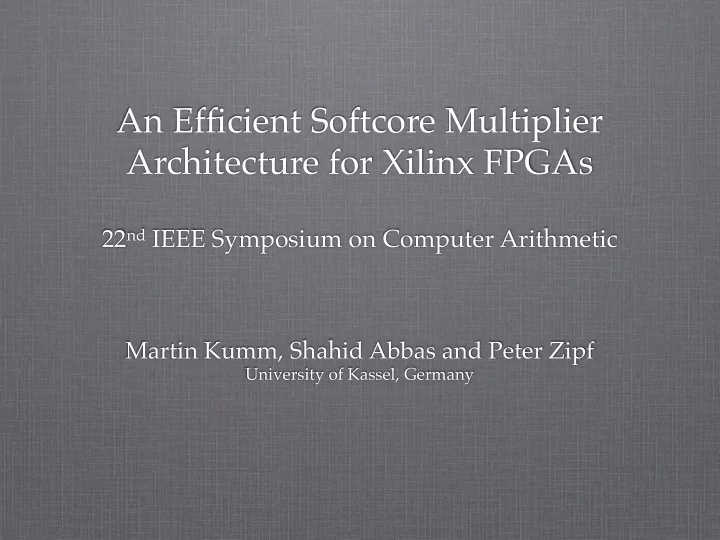

An Efficient Softcore Multiplier Architecture for Xilinx FPGAs
22nd IEEE Symposium on Computer Arithmetic
Martin Kumm, Shahid Abbas and Peter Zipf
University of Kassel, Germany
2
An Efficient Softcore Multiplier Architecture for Xilinx FPGAs 22 nd - - PowerPoint PPT Presentation
An Efficient Softcore Multiplier Architecture for Xilinx FPGAs 22 nd - - PowerPoint PPT Presentation
An Efficient Softcore Multiplier Architecture for Xilinx FPGAs 22 nd IEEE Symposium on Computer Arithmetic Martin Kumm, Shahid Abbas and Peter Zipf University of Kassel, Germany CONTENTS 1. State-of-the-art 2. Proposed multiplier 3.
SLIDE 2
SLIDE 3
WHY FPGA SOFTCORE MULTIPLIERS?
The need for efficient multipliers forced FPGA vendors to embed hard multiplier blocks FPGA softcore multipliers are still required: Small word sizes (worse mapping for embedded mults) Large word sizes ("fill gaps") Replace embedded mults on small/low-cost FPGAs
3
SLIDE 4
Research for efficient multipliers is an ongoing process nearly since >50 years Efficient multipliers in terms of gates may not be efficient
- n FPGAs
FPGA optimized structures are relatively rare
WHY THEY ARE DIFFERENT?
4
SLIDE 5
WHY THEY ARE DIFFERENT?
5
Xilinx slice 6/7 series
SLIDE 6
PREVIOUS WORK
1 1 1
Carry Logic
1
LUT LUT LUT LUT
A Baugh-Wooley like multiplier was proposed in [Parandeh-Afshar 2011] Two partial products are generated and added using carry chain Compression tree of already reduced PP's necessary
6
SLIDE 7
PREVIOUS WORK
1 1 1
Carry Logic
1
LUT LUT LUT LUT
A Baugh-Wooley like multiplier was proposed in [Parandeh-Afshar 2011] Two partial products are generated and added using carry chain Compression tree of already reduced PP's necessary
full adder
6
SLIDE 8
PREVIOUS WORK
Another idea was discussed in [Brunie 2013]: Decompose multiplication into small multipliers that fit into single LUTs, e. g., 3x3, 2x3, 1x4 Use a compression tree to add partial results
p =M1 + 23M2 + 26M3 + . . . . . . + 23M4 + 26M5 + 29M6 + . . . . . . + 26M7 + 29M8 + 212M9
7
SLIDE 9
BOOTH RECODING
a · b =
M
X
m=0 m even
a · BEm2m
bm+1 bm bm−1 BEm zm cm sm 1 1 1 1 1 1 1 2 1 1
- 2
1 1 1 1
- 1
1 1 1
- 1
1 1 1 1 1
8
SLIDE 10
9
BOOTH MULTIPLIER
c6 c6 c4 c4 c4 c4 c2 c2 c2 c2 c2 c2 c0 c0 c0 c0 c0 c0 c0 c0
LSB MSB
b + =
SLIDE 11
10
BOOTH MULTIPLIER
c6 c6 c4 c4 1 c2 c2 1 c0 c0 1 1
LSB MSB
b + =
SLIDE 12
PROPOSED ARCHITECTURE
1 1
Carry Logic
1 0 1 0 1 0 1
LUT LUT LUT
0 1 0 1 0 1
LUT
1
11
SLIDE 13
PROPOSED ARCHITECTURE
1 1
Carry Logic
1 0 1 0 1 0 1
LUT LUT LUT
0 1 0 1 0 1
LUT
1
11
full adder
SLIDE 14
PROPOSED ARCHITECTURE
12
SLIDE 15
RESULTS
The number of slices can be precisely predicted: Design was implemented as generic VHDL A pipelined multiplier can be obtained by using the (otherwise unused) slice FFs without much additional cost Reference circuits (Parandeh-Afshar & LUT-based) were designed with the FloPoCo library [de Dinechin 2012] Xilinx Coregen was used as a commercial reference
#slices(M, N) = dN/4 + 1e | {z }
slices per row
· bM/2 + 1c | {z }
no of rows
13
SLIDE 16
RESULTS VIRTEX 6 COMBINATORIAL, SLICES
8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 200 400 600 800 1,000 1,200 1,400 1,600 1,800 2,000 Input word size (N) #Slices 1x4 LUT Multiplier 3x2 LUT Multiplier 3x3 LUT Multiplier Parandeh-Afshar Multiplier Coregen (area) Coregen (speed) proposed
14
SLIDE 17
8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 20 40 60 80 Input word size (N) Slice reduction (%) 1x4 LUT Multiplier 3x2 LUT Multiplier 3x3 LUT Multiplier Parandeh-Afshar Multiplier Coregen (area) Coregen (speed)
RESULTS VIRTEX 6 COMBINATORIAL, SLICE RED.
15
SLIDE 18
RESULTS VIRTEX 6 COMBINATORIAL, FREQ.
8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 100 200 300 400 500 600 700 Input word size (N) Frequency [MHz] 1x4 LUT Multiplier 3x2 LUT Multiplier 3x3 LUT Multiplier Parandeh-Afshar Multiplier Coregen (area) Coregen (speed) proposed
16
SLIDE 19
RESULTS VIRTEX 6 PIPELINED, SLICES
8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 200 400 600 800 1,000 1,200 1,400 1,600 1,800 2,000 Input word size (N) #Slices 1x4 LUT Multiplier 3x2 LUT Multiplier 3x3 LUT Multiplier Parandeh-Afshar Multiplier Coregen (area) Coregen (speed) proposed
17
SLIDE 20
RESULTS VIRTEX 6 PIPELINED, SLICE RED.
18
8 12 16 20 24 28 32 36 40 44 48 52 56 60 −10 10 20 30 40 50 60 70 80 Input word size (N) Slice reduction (%) 1x4 LUT Multiplier 3x2 LUT Multiplier 3x3 LUT Multiplier Parandeh-Afshar Multiplier Coregen (area) Coregen (speed)
SLIDE 21
RESULTS VIRTEX 6 PIPELINED, FREQ.
8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 100 200 300 400 500 600 700 Input word size (N) Frequency [MHz] 1x4 LUT Multiplier 3x2 LUT Multiplier 3x3 LUT Multiplier Parandeh-Afshar Multiplier Coregen (area) Coregen (speed) proposed
19
SLIDE 22
UNFORTUNATELY NOT POSSIBLE ON ALTERA FPGAS
20
Altera ALM
SLIDE 23
MAYBE POSSIBLE NEXT?
21
SLIDE 24
CONCLUSION
Compared to the best known design, up to 50% slices can be saved for the combinatorial multiplier 30% slices can be saved for the pipelined multiplier Portable to FPGAs providing a 5-input LUT at one full adder input "Free addition" supports multiply-accumulate (MAC) operation
22
SLIDE 25
LITERATURE
[Parandeh-Afshar 2011]: Parandeh-Afshar & Ienne Measuring and Reducing the Performance Gap between Embedded and Soft Multipliers on FPGAs, FPL 2011 [Brunie 2013]: Brunie, de Dinechin, Istoan, Sergent, Illyes & Popa Arithmetic Core Generation Using Bit Heaps, FPL 2013 [de Dinechin 2012]: de Dinechin & Pasca Designing Custom Arithmetic Data Paths with FloPoCo IEEE Design & Test of Computers 2012
THANK YOU!
23
SLIDE 26
SLIDE 27
BOOTH RECODING
b =bM−12M−1 + . . . + b222 + b121 + b0 =bM−12M−1 + . . . + b222 + 2b121 + −b121 + b0 | {z }
BE0=−2b1+b0
=bM−12M−1 + . . . . . . + 2b323 −b323 + b222 + 2b121 | {z }
BE2=(−2b3+b2+b1)22
+BE0 =
M
X
m=0 m even
BEm2m with BEm = −2bm+1 + bm + bm−1
25
SLIDE 28
WHY THEY ARE DIFFERENT?
26
Altera ALM
SLIDE 29
WHY THEY ARE DIFFERENT?
D FF/LAT INIT1 INIT0 SRHI SRLO SR CE CK D6:1 CE Q CK SR Q SRHI SRLO INIT1 INIT0
