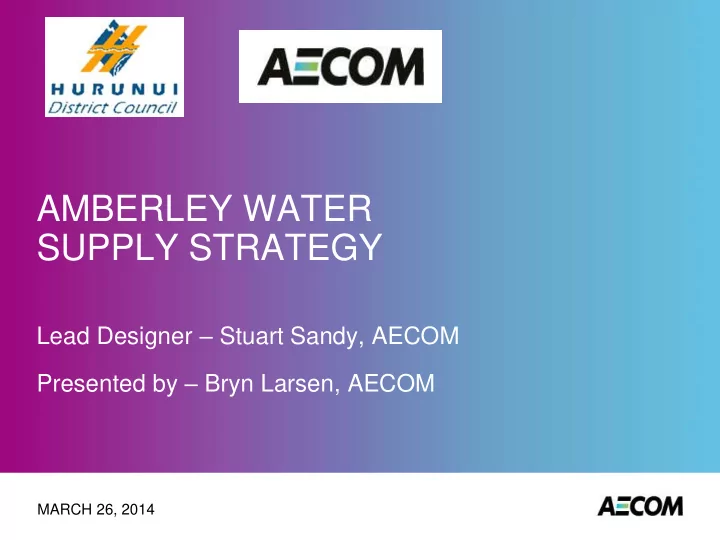

AMBERLEY WATER SUPPLY STRATEGY

Lead Designer – Stuart Sandy, AECOM Presented by – Bryn Larsen, AECOM

MARCH 26, 2014

AMBERLEY WATER STRATEGY

PROJECT OVERVIEW

PROJECT DRIVERS

• Already close to restrictions being imposed at peak times
• Population growth and development
• Decline in water quality with regard to Iron content
• Over-reliance on the single source currently owned by

Amberley – lack of supply resilience

AMBERLEY WATER STRATEGY Page 3 April 7, 2014

WATER SOURCES

4/7/2014 Presentation Title Page 4

1956 – Reticulation network and Domain source established 1966 – State Highway 1 source established 1972 – SH1 becomes primary source for Amberley 2009 - Domain source abandoned due to deepening of Kowai River bed Other current & potential sources

AMBERLEY RESERVOIR RACECOURSE ROAD SOURCE KOWAI RIVER ROAD SOURCE MAYS WELL SOURCE AMBERLEY DOMAIN SOURCE (ABANDONED) LEITHFIELD BEACH SOURCE LEITHFIELD AMBERLEY TOWNSHIP AMBERLEY BEACH STATE HIGHWAY 1 SOURCE

FORECAST WATER DEMAND (AMBERLEY)

April 7, 2014 AMBERLEY WATER STRATEGY Page 5

WATER AVAILABLE

April 7, 2014 AMBERLEY WATER STRATEGY Page 6

AMBERLEY WATER STRATEGY

PROPOSED OPTIONS

OPTION 1

• Ongoing operation

and maintenance costs

• Lack of investment

in the network will result in a failure to meet present and future needs as a statutory authority

April 7, 2014 Page 8

Do Nothing Approximate cost of network investment - $0

LEITHFIELD BEACH DEMAND 4.5 L/S LEITHFIELD BEACH SOURCE CURRENT 9 L/S CONSENT 30 L/S STATE HIGHWAY 1 SOURCE CURRENT 13.8 L/S CONSENT 20 L/S KOWAI RIVER ROAD SOURCE CURRENT 5.3 L/S CONSENT 15 L/S AMBERLEY BEACH DEMAND 2.4 L/S NORTHERN ASHLEY RURAL WATER LEITHFIELD TOWNSHIP EXISTING 150mm PVC RETICULATION AMBERLEY RESERVOIR CLUSTER CAPACITY 720 M3 AMBERLEY TOWNSHIP DEMAND 17.8 L/S MAYS WELL SOURCE BACKUP SUPPLY FROM RACECOURSE ROAD SOURCE

• MAX. 5.5 L/S

OPTION 2

4/7/2014 Page 9

• 3600m of new

200mm water main

• Water mixing

facility

• New pumps at

Leithfield Beach and upgrade at Kowai

• New 5000m3

reservoir on Domain site

• Purchase of the

Kowai bore and 150mm PVC reticulation

Supply from Leithfield Beach, SH1 and Kowai including storage

Approximate cost - $3.57M + Kowai assets

LEITHFIELD BEACH DEMAND 4.5 L/S LEITHFIELD BEACH SOURCE PROPOSED 21 L/S CONSENT 30 L/S STATE HIGHWAY 1 SOURCE PROPOSED 13.8 L/S KOWAI RIVER ROAD SOURCE PROPOSED 5.3 L/S AMBERLEY BEACH DEMAND 2.4 L/S NORTHERN ASHLEY RURAL WATER LEITHFIELD TOWNSHIP NEW WATER MIXING FACILITY & PUMPING STATION AT KOWAI RIVER ROAD EXISTING 150mm PVC RETICULATION AMBERLEY RESERVOIR CLUSTER CAPACITY 720 M3 AMBERLEY TOWNSHIP DEMAND 17.8 L/S MAYS WELL SOURCE NEW 5000 M3 RESERVOIR ON DOMAIN SITE

OPTION 3

4/7/2014 Page 10

Increased supply from SH1 and Kowai including treatment

Approximate cost - $800k + cost of Kowai assets

• 600m of new

150mm water main at Kowai River Road

• Purchase of

the Kowai bore and 150mm PVC reticulation

• New

treatment facility at Kowai River

• Pump

upgrade at Kowai River

BACKUP SUPPLY FROM RACECOURSE ROAD SOURCE

• MAX. 5.5 L/S

LEITHFIELD BEACH SOURCE CURRENT 9 L/S CONSENT 30 L/S STATE HIGHWAY 1 SOURCE CURRENT 13.8 L/S PROPOSED 20 L/S KOWAI RIVER ROAD SOURCE CURRENT 5.3 L/S PROPOSED 15 L/S AMBERLEY BEACH DEMAND 2.4 L/S NORTHERN ASHLEY RURAL WATER LEITHFIELD TOWNSHIP NEW TREATMENT FACILITY & PUMPING STATION AT KOWAI RIVER ROAD EXISTING 150mm PVC RETICULATION AMBERLEY RESERVOIR CLUSTER CAPACITY 720 M3 AMBERLEY TOWNSHIP DEMAND 17.8 L/S MAYS WELL SOURCE

OPTION 4

4/7/2014 Page 11

Increased supply from SH1 and Kowai including treatment – Leithfield Beach supply for Ashley

Approximate cost - $1.2M

• New treatment

facility at Kowai River Road

• New 200mm

main from Kowai site to new connection

• n SH1 150mm

main.

• New 2000m x

200mm from Leithfield Beach to Leithfield Township

• New 800m x

150mm Old Main North Rd

• New 500m x

150mm Mays Rd

BACKUP SUPPLY FROM RACECOURSE ROAD SOURCE

• MAX. 5.5 L/S

LEITHFIELD BEACH SOURCE CURRENT 9 L/S PROPOSED 24 L/S CONSENT 30 L/S

STATE HIGHWAY 1 SOURCE CURRENT 13.8 L/S PROPOSED 20 L/S

KOWAI RIVER ROAD SOURCE CURRENT 5.3 L/S PROPOSED 15 L/S AMBERLEY BEACH DEMAND 2.4 L/S NORTHERN ASHLEY RURAL WATER LEITHFIELD TOWNSHIP NEW TREATMENT FACILITY & PUMPING STATION AT KOWAI RIVER ROAD EXISTING 150mm PVC RETICULATION AMBERLEY RESERVOIR CLUSTER CAPACITY 720 M3 AMBERLEY TOWNSHIP DEMAND 17.8 L/S NEW 200mm WATER MAIN PROVIDING 15 L/S TO ASHLEY WATER SCHEME MAYS WELL SOURCE

CONCLUSIONS OPTION 4 GIVES

• SECURITY OF SUPPLY/ NETWORK RESILIENCE
• INCREASE IN WATER QUALITY
• CAPACITY FOR GROWTH
• BENEFITS BOTH ARWS AND AMBERLEY NETWORKS

4/7/2014 Presentation Title Page 12

Risks

Operational Lack of above ground storage. Political Ongoing negotiation between Amberley and Ashley water systems could prevent any of the options proceeding (i.e. risk of doing nothing)

4/7/2014 Presentation Title Page 13

Lessons learned

• Best engineering solution not always best for situation
• Water schemes managed by committees
• Differences in system and operation - UK predominately fed by gravity

systems

• Question

Is a committee led water scheme the best form of management, and if so how could this be improved?
