Alternative Transportation Study to the Back Bay National Wildlife Refuge CIP 4 521 (PWCN 13 0147) August 7, 2014 1 Alternative Transportation Study to the Back Bay National Wildlife Refuge Wayne Wilcox, PLA City Parks and

slide-1
SLIDE 1

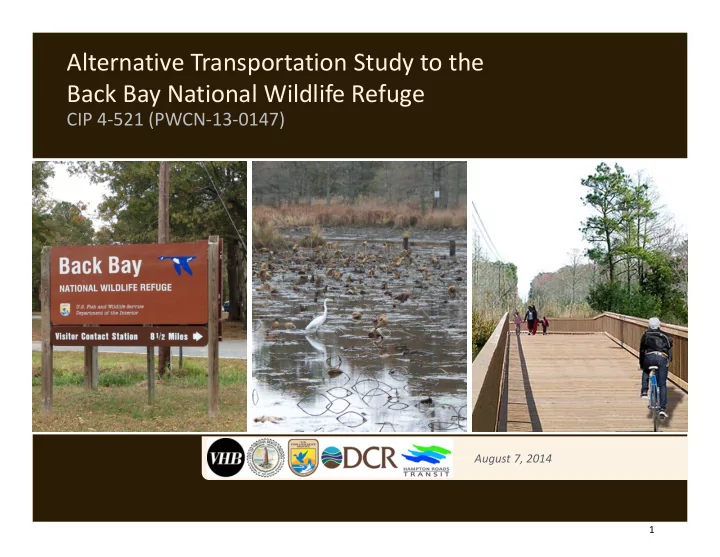

Alternative Transportation Study to the Back Bay National Wildlife Refuge

CIP 4‐521 (PWCN‐13‐0147)

August 7, 2014

1

slide-2
SLIDE 2

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • Wayne Wilcox, PLA ‐ City Parks and Recreation
  • Margaret Kubilins, PE ‐ VHB Sr. Project Manager

2

slide-3
SLIDE 3

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Purpose of the Meeting

  • Provide Information on the Study
  • Present Identified Transportation Alternatives
  • Solicit Ideas on Additional Alternatives
  • Rank the Selection Criteria

3

slide-4
SLIDE 4

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Study Objectives

  • Improve Safety
  • Reduce Congestion
  • Enhance Access
  • Protect Resources

4

slide-5
SLIDE 5

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Study Purpose

  • Identify ideas for enhancing environmentally‐

friendly visitor access to Back Bay National Wildlife Refuge and False Cape State Park.

  • Evaluate these ideas as a comprehensive program

for visitors to access and experience Back Bay and False Cape without using private motor vehicles.

So why do we want to enhance access…

5

slide-6
SLIDE 6

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Visitor Experience

6

slide-7
SLIDE 7

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Visitor Experience

7

slide-8
SLIDE 8

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Visitor Experience

8

slide-9
SLIDE 9

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Visitor Experience

9

slide-10
SLIDE 10

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Study Process

  • 1. Identify Alternatives
  • 2. Screen and Select

Alternatives

  • 3. Evaluate Alternatives
  • 4. Report Results

10

slide-11
SLIDE 11

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 1. Identify Alternatives

Alternatives to Date

  • Extend Tram Service
  • Build the Back Bay

Refuge Trail

  • Improve Water Access
  • No Build

11

slide-12
SLIDE 12

Extended Tram Service

Some ATS Options

Tram

12

slide-13
SLIDE 13

Build the Back Bay Refuge Trail

Some ATS Options

Trail

13

slide-14
SLIDE 14

Improve Water Access

Some ATS Options

Canoe launch

14

slide-15
SLIDE 15

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 1. Identify Alternatives

Submit your ideas on Additional Transportation Alternatives

  • 1. Hardcopy Comment Form
  • Handout tonight
  • Print from www.VBgov.com/BackBayGrant
  • 2. Online at www.VBgov.com/BackBayGrant
  • Virtual Town Hall

15

slide-16
SLIDE 16

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 2. Screen and Select the Alternatives

Screening Criteria

  • 1. Reduce traffic congestion
  • 2. Enhance visitor mobility, accessibility, and safety
  • 3. Improve visitor education, recreation, and health
  • 4. Protect sensitive natural, cultural, and historical resources
  • 5. Reduce pollution

16

slide-17
SLIDE 17

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 2. Screen and Select the Alternatives

Submit your level of Importance of the Screening Criteria

  • 1. Hardcopy Comment Form
  • Dot Exercise on the Boards
  • Handout tonight
  • Print from www.VBgov.com/BackBayGrant
  • 2. Online at www.VBgov.com/BackBayGrant
  • Virtual Town Hall

17

slide-18
SLIDE 18

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 2. Screen and Select the Alternatives

Scoring System: 0 = Does not Meet Criteria, 1 = Slightly Meets Criteria, 2 = Mostly Meets Criteria, 3 = Completely Meets Criteria

Concept Visitor Mobility Environmental Benefits Score Reduce Traffic Congestion Enhanced Visitor Mobility, Accessbility and Safety Improve Visitor Education, Recreation and Health Benefits Protection of Sensitve Natural, Cultural and Historical Resources Reduced Pollution Weight = 100% ‐ ‐ ‐ ‐ ‐ 0% Extend Tram Service ‐ ‐ ‐ ‐ ‐ 0.00 Build Back Bay Refuge Trail ‐ ‐ ‐ ‐ ‐ 0.00 Enhance Canoe/Kayak Launch ‐ ‐ ‐ ‐ ‐ 0.00 18

slide-19
SLIDE 19

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 2. Screen and Select the Alternatives

Scoring System: 0 = Does not Meet Criteria, 1 = Slightly Meets Criteria, 2 = Mostly Meets Criteria, 3 = Completely Meets Criteria

Concept Visitor Mobility Environmental Benefits Score Reduce Traffic Congestion Enhanced Visitor Mobility, Accessbility and Safety Improve Visitor Education, Recreation and Health Benefits Protection of Sensitve Natural, Cultural and Historical Resources Reduced Pollution Weight = 100% ‐ ‐ ‐ ‐ ‐ 0% Extend Tram Service ‐ ‐ ‐ ‐ ‐ 0.00 Build Back Bay Refuge Trail ‐ ‐ ‐ ‐ ‐ 0.00 Enhance Canoe/Kayak Launch ‐ ‐ ‐ ‐ ‐ 0.00 19

slide-20
SLIDE 20

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 3. Study the Alternatives
  • Data Gathering
  • Planning ‐ Conceptualize Operation and/or Schematic Design
  • Cost Estimate
  • Benefit Analysis
  • Reporting

20

slide-21
SLIDE 21

Alternative Transportation Study to the Back Bay National Wildlife Refuge

  • 4. Report the Results
  • Document the Process
  • Evaluate Alternatives
  • Analyze Impacts
  • Select Projects
  • Preliminary Design

21

slide-22
SLIDE 22

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Schedule

22

slide-23
SLIDE 23

Alternative Transportation Study to the Back Bay National Wildlife Refuge

Stay Informed www.VBgov.com/BackBayGrant

  • Sign up for email regarding updates and study progress
  • Connect to the Virtual Town Hall
  • Attend the next meeting which will be in about a year

23
