1

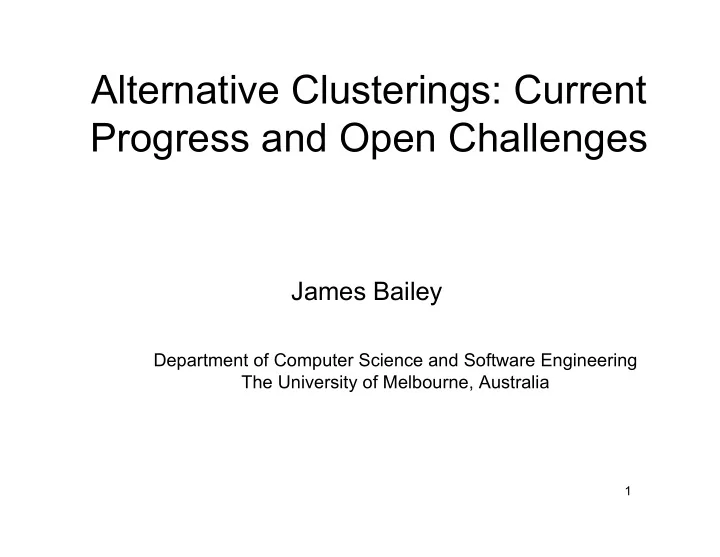

Alternative Clusterings: Current Progress and Open Challenges

James Bailey

Department of Computer Science and Software Engineering The University of Melbourne, Australia

Introduction

• Cluster analysis: group “similar”
• bjects into clusters
• No single solution

=> Equally important, different views or hypotheses regarding the data

Cluster by pose or individual ?

Motivations

• Multiple explanations of the data

– user doesn’t initially know what they want, needs

• ptions

– different viewpoints of users – may be aiming to verify that multiple explanations do not exist (hypothesis verification, or for benchmarking clustering algorithms)

• Contrast with consensus clustering
• ‘’Every clustering should be accompanied by at least
• ne alternative clustering’’ !?

Alternative Clustering: Is it new ?

• From one perspective, alternative clustering is not so new
• Generation of clusterings often goes like

– Generate and assess a clustering with 2 clusters – Generate and assess a clustering with 3 clusters – … – Generate and assess a clustering with k clusters

• We now have k-1 alternative clusterings ….

– But some of them may be very similar

Alternative Clustering Algorithms

• Growing number of approaches

ADFT, CAMI, COALA, Condens, Convolutional EM, Decorrelated k-means, MAXIMUS, Meta clustering, Multiview orthogonal clustering, NACI, Non redundant clustering,….

• Papers have appeared at

– KDD10, ICML10, SDM10, KDD09, SDM09,ICDM08,ICDM07,ICDM06,KDD05, ICDM04, …,DMKD, KAIS, …

How do these approaches differ ?

• Task formulation:

– Number of alternatives to generate – Sequential or Simultaneous Generation

• Mathematical basis

– Linear algebra – Information theory – Other objective functions

Sequential Alternative Clustering Generation

• Task: Given input clusterings {C1,..Cn}, generate an

alternative clustering C’, such that C’ is of high quality and C’ is different from {C1…Cn}

• Important special case: n=1

C1 C2 … Cn

• ----->

C’

generate

Alternative Existing

Simultaneous Alternative Clustering Generation

• Task: Simultaneously generate n clusterings

{C1,…Cn}, such that each Ci is of high quality and each pair (Ci,Cj) is different from one another

• Important special case: n=2
• --------->

C1 C2 … Cn

generate Alternatives

Sequential vs. Simultaneous

• Sequential (greedy)

– Semi-supervised – For i=2 to n

• {generate the optimal alternative clustering with

respect to the previous i clusterings} – Locally optimal at each step

• Simultaneous (non-greedy)

– Unsupervised – In parallel, generate optimal set of n clusterings – Globally optimal clustering collection

• but might miss some strong clusterings which would

be generated by a sequential technique

• More difficult optimisation problem

Style of Algorithm

• Projection based

– Project the data into an orthogonal subspace and then re-cluster – Appealing linear algebra formulation – Relatively efficient – Orthogonality may be too strict

• More complex objective function

– Generate the alternative clustering, trading off dissimilarity and quality in the objective function – More flexible – May require parameter choices

Simple Example

Most existing techniques seem to work well (a canonical example)

Circle of Gaussians

• Techniques which trade off dissimilarity and quality

more likely to produce the second clustering

• Orthogonal projection doesn’t work so well here

Other issues

• Evaluation: Measuring quality/dissimilarity of alternatives
• Clustering setting:

– Desired shape of clusters: spherical versus elongated, linear versus non linear separation – low versus high dimensionality data – continuous versus discrete features – soft versus hard clusters – EM versus K-means versus hierarchical versus constraint based – Number of clusters desired in each clustering

Alternative Clustering Evaluation

• Measuring dissimilarity: Mathematical measures - Rand

index, Jaccard index, normalised mutual information …

• Measuring quality:

– Internal validation measures: Dunn index, David Bouldin index, silhouette width – External validation: Synthetic examples

• Combine dissimilarity and quality into a single number, or

present separately ?

• Are these numbers useful ?

Where are we ?

• Good existing algorithms for generation of one or two

alternatives – Sequential generation – Simultaneous generation

• Not yet deployed on very large datasets
• Validated using assorted benchmark datasets and

internal metrics

Open Issues

• What’s the killer application ?

– Deployment of alternative clusterings – Need convincing use cases where consensus clustering is limited

• Objective function and performance measures
• How many alternatives is enough ?
• How many clusters should be in an alternative

clustering ? – the same number as the original clustering ?

Open Issues cont.

• How to find alternative subspace clusters (rather than

clusterings) ?

• Visualisation of alternative clusterings
• More focused alternatives

– ``Give me another clustering which is similar in these respects and different in these other respects to the previous clustering’’

Moving Forward

• Central repository of code and canonical examples

(synthetic and real)

• Make alternative clusterings algorithms accessible
• Identify cases in the literature of ‘’missing’’ alternative

clusterings

Bibliography

• E. Bae, J. Bailey and G. Dong. A Clustering Comparison Measure Using Density Profiles and its

Application to the Discovery of Alternate Clusterings. To appear in Data Mining and Knowledge Discovery.

• D. Niu, J. G. Dy, and M. I. Jordan, Multiple non-redundant spectral clustering views, in Proc. of

ICML 10, 2010.

• X. H. Dang and J. Bailey. A Hierarchical Information Theoretic Technique for the Discovery of Non

Linear Alternative Clusterings. Proc. of KDD 2010.

• X. H. Dang and J. Bailey. Generation of alternative clusterings using the CAMI approach. Proc. of

SDM 2010.

• Z. Qi and I. Davidson, A principled and flexible framework for finding alternative clusterings, Proc.
• f KDD 2009.
• P. Jain, R. Meka, and I. S. Dhillon. Simultaneous unsupervised learning of disparate clusterings.
• Proc. of SDM 2008.
• I. Davidson and Z. Qi. Finding alternative clusterings using constraints. Proc. of ICDM 2008.
• Y. Cui, X. Z. Fern, and J. G. Dy, Non-redundant multi-view clustering via orthogonalization. Proc.
• f ICDM 2007.
• E. Bae and J. Bailey. COALA: A novel approach for the extraction of an alternate clustering of high

quality and high dissimilarity. Proc. of ICDM 2006.

• R. Caruana, M. Elhawary, N. Nguyen, and C. Smith. Meta clustering. In ICDM Conference, 2006.
• D. Gondek and T. Hofmann. Non-redundant clustering with conditional ensembles. Proc. of KDD

2005.

• Gondek, D., Hofmann, T. Non-redundant data clustering. Proc. of ICDM 2004.
