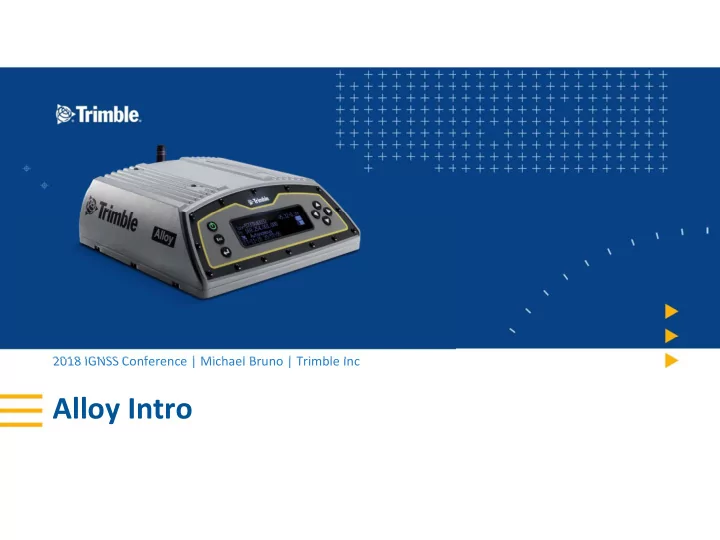

2018 IGNSS Conference | Michael Bruno | Trimble Inc Alloy Intro Trimble & Authorized Trimble Dealer Only Trimble RTN Overview RTN Software Trimble Pivot Platform RTN Hardware Trimble Alloy GNSS Receiver Zephyr 3 Antennas GNSS Field Users

SLIDE 1

Trimble & Authorized Trimble Dealer Only

Alloy Intro

2018 IGNSS Conference | Michael Bruno | Trimble Inc

SLIDE 2

Trimble & Authorized Trimble Dealer Only

Trimble RTN Overview

RTN Hardware

Trimble Alloy GNSS Receiver Zephyr 3 Antennas RTN Software Trimble Pivot Platform

GNSS Field Users

Surveyors Mapping and GIS Construction Agriculture

SLIDE 3

Trimble & Authorized Trimble Dealer Only

SLIDE 4

Trimble & Authorized Trimble Dealer Only

Why did we do it?

Break the mold of the NetRX Series, change the paradigm Reset the standard in a CORS Receiver

SLIDE 5

Trimble & Authorized Trimble Dealer Only

Growth in Constellations

SLIDE 6

Trimble & Authorized Trimble Dealer Only

Problems we set out to solve

The growing and evolving

GNSS constellation

Efficiently logging all the

available GNSS data

CORS installation,

configuration, and maintenance Issues

SLIDE 7

Trimble & Authorized Trimble Dealer Only

New Dual MaxwellTM 7 GNSS Chipset

▪ Capable of tracking all current signals, and designed to be compatible with what the future may bring

– GPS: L1 C/A, L2E (L2P), L2C, L5 – GLONASS: L1 C/A2 and unencrypted P code, L2 C/A and unencrypted P code, L3 CDMA – Galileo: L1 CBOC, E5A, E5B & E5AltBOC, E6 – BeiDou: B1, B2, B3 – QZSS: L1 C/A, L1C, L1 SAIF, L1S3 , L2C, L5, LEX/L64 – IRNSS: L5, S‐Band – SBAS: L1 C/A (EGNOS/MSAS), L1 C/A and L5 (WAAS) – L‐Band: OmniSTAR VBS, HP and XP

SLIDE 8

Trimble & Authorized Trimble Dealer Only

Next Generation Processing Power

▪ Log data at up to 100hz ▪ 12 concurrent sessions ▪ Max combined sessions data rate +180hz ▪ Up to 24GB internal memory ▪ 1TB external memory

SLIDE 9

Trimble & Authorized Trimble Dealer Only

Intelligent Design

▪ Tilted 4 line OLED display ▪ Multiple power input

ptions

▪ Dual hot swappable batteries ▪ Flexible I/O connections ▪ Trimble Sentry w/ Trimble RTX

SLIDE 10

Trimble & Authorized Trimble Dealer Only

Conclusion

All new, improved design ‐ most versatile, ergonomic CORS

receiver on the market

Industry leading GNSS tracking with dual Maxwell 7 chipsets
Powerful processor enables high data rates
Trimble RTX capable
