ALBA Synchrotron Data analysis IT infrastructure status report IT Systems - Computing 23/05/2017 Antoni Prez ALBA DA / DaaS infrastructue Overview HPC Infrastructure DaaS 1 st use case: BL01 MIRAS Xen Desktop Windows VDI with OPUS

slide-1
SLIDE 1

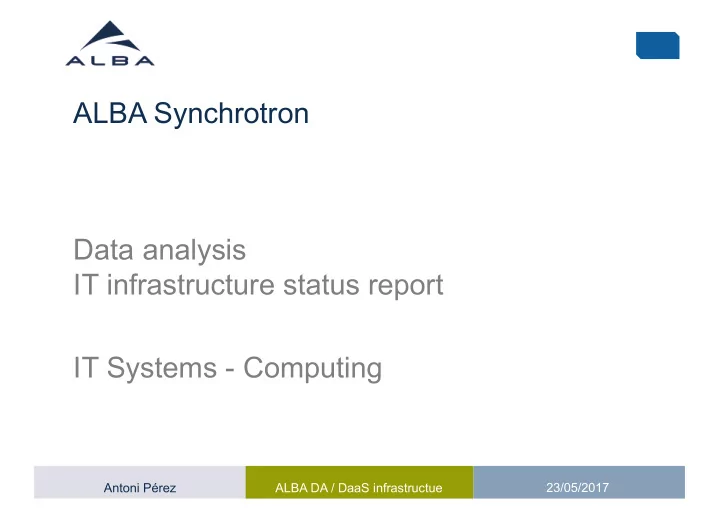

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

Data analysis IT infrastructure status report IT Systems - Computing ALBA Synchrotron

slide-2
SLIDE 2

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

Overview

  • HPC Infrastructure
  • DaaS 1st use case: BL01 MIRAS

Xen Desktop Windows VDI with OPUS 7.5 & Unscrambler X10.3

  • Pilot containers use:

Kubernetes for Controls Continuous Integration,KPI Dashboards apache

  • Géant Cloud Framework
  • Configuration Management with “Salt Stack”
  • Orchestrators
slide-3
SLIDE 3

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

HPC infrastructure

slide-4
SLIDE 4

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

HPC infrastructure

12 nodes w/ CentOS 7 - managing jobs with Slurm

  • 11 nodes CPU - 1 node GPU (NVIDIA Tesla P100 16GB)
  • 2,4 Tflops of computing capacity
  • 216 CPU cores with 1408 GB RAM
  • 1 Gbps and 10 Gbps Ethernet connections
  • MPI 3.0
  • 40TB distributed BeeGFS scratch space in 2 nodes.
  • CLAs ( CLuster Access VMs )

– Dedicated VMs by users group – HPC isolated management network with HPC nodes and CLAs (through VyOS virtual router)

slide-5
SLIDE 5

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

HPC infrastructure

Remarks

  • Using Spack package management tool for

installing software w/ packages above installed distro Next steps:

  • Study to offer Remote access to CLAs as DaaS
  • Renew and increase nodes infrastructure capacity
  • Identify useful use cases for Docker containers vs Spack
  • Evaluate use of rCUDA

(remote CUDA - http://www.rcuda.net/ - Universitat de València)

– Runs same CUDA code. GPU nodes share on Slurm w/ 2-10% loss – Remote GPUs can be concurrently assigned to several VMs

  • Evaluate possible FPGA use in processing acceleration for last Deep Learning

BL requests to come

slide-6
SLIDE 6

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

DaaS: BL01 MIRAS

slide-7
SLIDE 7

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

DaaS: BL01 MIRAS

First case of DaaS at ALBA offering remote access to re/process acquired data using Windows Virtual Desktops (Citrix XenDesktop VDI)

  • Remotelly available
  • Application licenses per country embargo restrictions managed by groups in VMs
slide-8
SLIDE 8

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

DaaS: BL01 MIRAS

Xen Desktop VDI technology advantages for remote DaaS:

  • Single GPU partitioning for several VM
  • Compressed traffic (Default HDX 3D graphics encoder H.264)
  • Low latency, adaptative encoding, even over Mobile networks
  • Netscaler firewalled access portal: https://beamlinesvdi.cells.es
  • Site licensing: Per 78 maximum concurrent users (XenApp & XenDesktop)

Next steps:

  • Adding Linux Xen Dekstop VDI Machines – technology supported 3y ago
  • Evaluate possible connection to Calipso+ access portal
  • Compare Xen Desktop performance vs alternatives like Guacamole for remote

access Other VDI technology use case:

  • Windows CAD design VMs with shared GPUs Nvidia K2
  • Thin Clients with local GPU HDX 3D decoding (Dell Wyse 3040, < 300 EUR)
slide-9
SLIDE 9

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

Kubernetes containers pilot

Pilot use cases:

  • Controls software Continuous

Integration

  • Hosting ELK KPI dashboards

portal Next steps:

  • Evaluating design of future

production environment:

  • Securized: Multi-tenant
  • HA strategies
  • Proper VLAN

execution

  • Repositories
  • ...
slide-10
SLIDE 10

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

Configuration Management w/ “Saltstack”

  • "Saltstack” recipes as main CM tool, to store

and distribute software configs. ( recipes )

– In use:

  • Installing machines with Cobbler via PXE
  • Configuring all Debian CR/BLs linux workstations
  • Configuring CentOS HPC cluster nodes & CLAs

git pull; salt -E 'cla*|slurm*|hpcnode0*' -b 1000 state.highstate saltenv=staging

– Being introduced progressively on new Control & infrastructure servers

slide-11
SLIDE 11

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

Géant Cloud Framework

  • ALBA: Framework contract under last Legal review steps

with AWS through Sparkle:

– Remote archive on Glacier as 1st foreseen pilot project

  • Géant Cloud Framework: https://clouds.geant.org/

– Already operative & joinable by Géant network members. – Framwork ends 31 December 2020 – New edition on preparation – Géant Edugain authentication through Géant National ORGs – Each country represented by Géant National ORGs (Rediris in Spain) – Country & EU data regulations & restrictions already faced – Independent contracts to sign with a company awarded in a country and the selected cloud service (Azure, AWS, other proprietary)

  • Each company offers diferent control tools for groups & limits
  • Monthly invoicing with anual order límits
  • Different hosting discounts among reselling companies and Cloud providers
slide-12
SLIDE 12

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

VMs Orchestrators

  • Existing “Inhouse cloud” based on Citrix Xen

Desktop and Xen App

  • Still no relevant experience at ALBA with
  • ther VMs orchestrators like OpenStack,

Open Nebula,…

– Waiting to sync with Intl’ DaaS collaborations blueprints and common architecture use cases

slide-13
SLIDE 13

Antoni Pérez ALBA DA / DaaS infrastructue 23/05/2017

Open Questions

Thank you
