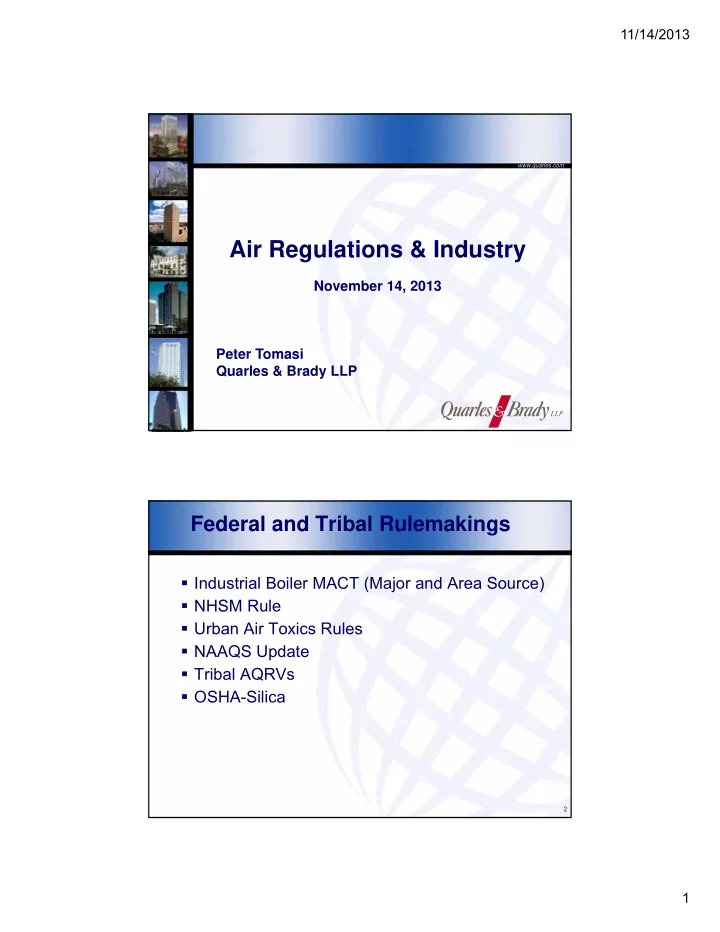

Air Regulations & Industry

November 14, 2013 Peter Tomasi Quarles & Brady LLP

Federal and Tribal Rulemakings

• Industrial Boiler MACT (Major and Area Source)
• NHSM Rule
• Urban Air Toxics Rules
• NAAQS Update
• Tribal AQRVs
• OSHA-Silica

2

11/14/2013 2

Strange Days

• Ambient air quality standards

usually are the primary driver for air regulations

• HAP requirements, Class I

protection, and seldom-used existing source standards are now significant drivers

• OSHA silica rule—potential broad

application

3

CAA Section 112--Air Toxics

• 1990 Clean Air Act Amendments listed 187 Hazardous

Air Pollutants (HAP), i.e., chemicals known or suspected to cause cancer or other serious health effects

• Maximum Achievable Control Technology (MACT)

Regulations Required for source categories (i.e., pharmaceutical manufacturers)

• EPA has completed over 90 MACT regulations covering
• ver 170 industry categories for major sources

11/14/2013 3

Major and Area Sources

• Major sources—HAP

emissions greater than 10 tons individual HAP, 25 tons total HAP

• Area sources—HAP

emissions less than 10 tons individual, 25 tons total

5

Industrial, Commercial, and Institutional (ICI) Boiler MACT

6

11/14/2013 4

Industrial/Commercial/Institutional (ICI) Boilers

• In 2004: EPA promulgated Subpart DDDDD,

establishing MACT for ICI Boilers – 69 Fed. Reg. 55,218 (Sept. 13, 2004).

• Applied to: boilers, hot water heaters, process heaters,

if located at a major source of HAPs, with two exemptions:

– New or reconstructed small gas-fired Boilers (< 10 MMBtu/hr) – Existing small boilers (<10 MMBtu/hr) solid fuel, liquid, & gas- fired

• In 2007: U.S. Court of Appeals vacated and remanded

Subpart DDDDD. NRDC v. EPA, 489 F.3d 1250 (D.C.

• Cir. 2007).
• Chapter NR 462, Wis. Admin. Code adopted, no longer

in effect.

7

Reasons Rule Vacated

• Did not impose emission limits for all HAPs emitted by

boilers.

• Rule allowed alternatives to standard emission limits

and compliance tests, such as risk assessments for HCl emissions.

• Finally, court concerned regarding whether C&D

waste, sludge, or manure a fuel subject to Section 112, or incineration of a solid waste, subject to CAA Section 129 (boilers versus CISWIs).

• Court remanded rules for industrial boilers and for

CISWIs to address Section 112/129 overlap.

8

11/14/2013 5

Revised Boiler MACT & CISWI Rules

• EPA issues four rulemakings to address 2007

remand:

– Standards for new and existing major ICI boilers (MACT) – 78 Fed. Reg. 7186 (Jan. 31, 2013) – Standards for new and existing minor ICI boilers (i.e., area sources) (MACT/GACT) – 78 Fed. Reg. 7812 (Feb. 1, 2013) – Non-hazardous "Secondary Materials" considered subject to Section 112 – 78 Fed. Reg. 9112 (Feb. 7, 2013) – NSPS Standards under Section 129 for CISWIs – 78 Fed. Reg. 9112 (Feb. 7, 2013)

9

Final Major Source Boiler MACT Rule

• On January 31, 2013, EPA finalized rules for Major

Sources – 78 Fed. Reg. 7186 (Jan. 31, 2013).

– Established numeric emission limits for all other new/existing boilers and process heaters at major sources – Huge regulatory driver for industry

• Revised numeric emission limits for mercury, dioxin,

PM (surrogate for non-Hg metals), HCl (surrogate for acid gases), and CO (surrogate for non-dioxin organic air toxics).

• Required combination of monitoring to assure

compliance with limits, and energy assessment.

10

11/14/2013 6

Revised Boiler MACT (Major)

• Compliance date: 3 years from publication (Jan. 31,

2016)

• Particulate matter (PM) emission limits for biomass

fueled boilers set by subcategory

• New carbon monoxide limits to address variability (CO

CEMS-based limits for most subcategories, CO limits for several subcategories revised to reflect a threshold level (130 ppm@ 3%O2)

• Allows metals emission limits as an alternative to using

PM limit as a surrogate for metallic air toxics

• Dioxin limit replaced with work practice standards

11

Major Source Boiler MACT

• August 2013: EPA announces reconsideration
• n following issues:

– Startup and shutdown definitions, and applicable work practice standards – Applicable carbon monoxide (CO) limits – Parametric monitoring requirements and implications

• f exceeding required parameter

12

11/14/2013 7

Area Source Boiler MACT

• On February 1, 2013, EPA finalized Boiler MACT rules for Area Sources

78 Fed. Reg. 7812 (Feb. 1, 2013).

– Established standards addressing Hg, PM (surrogate for non-mercury metals), and CO (surrogate for organic air toxics).

• Initial notification deadline for existing area source boilers: no later

than January 20, 2014.

• Existing area source boilers will have until March 21, 2014 to

comply with these standards.

• August 5, 2013 issues subject to reconsideration:

– Startup and shutdown – Limited use boiler subcategory – Elimination of certain PM performance testing

13

Compliance Options

• Billion dollar compliance question

for industry: install advanced controls on solid fuel boilers, or convert to natural gas?

• Complicated where solid fuel

boilers major, but once on gas an area source

• Huge impacts to industry, no

consensus on “right path”

14

11/14/2013 8

Non-Hazardous Secondary Materials (NHSM) Rule

• 78 Fed. Reg. 9112 (Feb. 7, 2013)
• Issued under Subtitle D of Resource

Conservation & Recovery Act (RCRA)

• Determines whether sources are subject

to the industrial boiler MACT (CAA s. 112) or CISWI NSPS (CAA s. 129)

15

RCRA Subpart D

• Solid Waste Under RCRA:

– Subpart C “cradle to grave” coverage for hazardous solid waste – Subpart D less restrictive requirements for non-hazardous solid wastes

• Subpart C detailed definition under Subpart C

(40 CFR s. 261.2) (proposed revisions at 76

• Fed. Reg. 44094 (July 22, 2011))
• NHSM rule EPA’s first detailed guidance

defining solid waste under Subpart D

16

11/14/2013 9

Need for NHSM

• For decades, industry has burned

secondary materials

– Biomass (shredded pallets) – Scrap tires – Waste plastics – Paper mill sludge

• Lower energy cost, lower tipping

fees

17

Fuel vs. Waste

• If materials considered fuel, then s.

112 boiler MACT governs

• If materials are waste, then s. 129

standards apply

– CISWI standards more restrictive, difficult to comply with – Who wants to be an incinerator?

18

11/14/2013 10

Avoiding CISWI Status

• Materials determined to be treated as a fuel:
• Traditional fuels-40 CFR § 242.1

– Historically managed as fuel – Alternate fuels developed from virgin materials (coal waste, cellulosic biomass)

• Categorically determined non-waste

– Scrap tires (not discarded) – Resinated Wood – Coal refuse – Dewatered pulp and paper sludges (what if previously disposed of as waste)

• Prior practice?

19

Other materials as fuel

• “Within control of the generator”

– Generated and combusted at facilities under common control

• Legitimacy criteria 40 CFR s.

241.3(d)(1)(i-iii)

– Valuable commodity (how stored, how long stored, how contained?) – Meaningful heating value (5,000 Btu/lb guideline) – Contaminates at comparable level to traditional fuels

20

11/14/2013 11

Implications for Industry

• If relying on second option, must

document how determined (40 CFR ss. 60.2175, 60.2740)

• Failure to do so may make unit a

CISWI (40 CFR ss. 60.2265, 60.2875)

21

Urban Air Toxics

22

11/14/2013 12

Urban Air Toxics Strategy

• July 19, 1999 Urban Air Toxics Strategy

– EPA required to list 30 Hazardous Air Pollutants (HAPs) from area sources which pose the greatest potential public health threat in urban areas – EPA must regulate area sources categories accounting for 90 percent of the emissions of 30 listed HAPs – EPA developed rules for 68 area source categories (including Area Source Boiler Rule)

• Not limited to metropolitan areas

2 3

Area Source Categories Include . . .

24

Autobody Refinishing Institutional/Commercial Boilers Chromium Electroplating (decorative and hard) Miscellaneous Coatings Dry Cleaning Facilities

• Misc. Organic Chemical Manufacturing

(MON) Fabricated Metal Products (9 types) Pharmaceutical Production Foundries (Aluminum, Copper, Iron, Steel, Nonferrous) Plating & Polishing Gasoline Distribution Stage I Publicly Owned Treatment Works Industrial Boilers Stationary Internal Combustion Engines Industrial Chemical Manufacturing Wood Preserving

11/14/2013 13

Build it and they will come . . .

• EPA significantly increasingly

enforcement under area source NESHAPs

• Minor recordkeeping violations without

any emissions; exceedance still result in penalty

• Most resolved through CAFOs

25

Area Source NESHAPs

• Impact to industry:

– Small and medium-size facilities at greatest risk of enforcement – Lean manufacturing-limited manpower to ensure recordkeeping always completed – No limit to size of source (one chrome or nickel tank triggers MACT applicability)

• Green Tier status irrelevant to EPA

26

11/14/2013 14

NAAQS Reviews

27

NAAQS Review Timeline

28

Pollutant

Final NAAQS Date (or Projection)

Infrastructure SIP Due Designations Effective Attainment Demonstration Due Attainment Date PM2.5 (2006) Oct 2006 Oct 2009 Dec 2009 Dec 2012 Dec 2014/2019 Pb Oct 2008 Oct 2011 Dec 2010/2011 June 2012/2013 Dec 2015/2016 NO2 (primary) Jan 2010 Jan 2013 Feb 2012 none none SO2 (primary) June 2010 June 2013 TBD TBD TBD Ozone (2008) Mar 2008 Mar 2011 July 2012 2015 2015/2032 PM

(current review)

Dec 2012 Dec 2015 Early 2015 2018 2020/2025 Ozone

(current review)

2014 2017 2016 2019 2019/2036

Credit: EPA September 2012.

11/14/2013 15

Final Revised PM2.5 Standards

• D.C. Circuit remanded 2006 PM2.5

standard to EPA in American Farm Bureau Federation v. EPA, 559 F. 3d

• 512. (D.C. Cir. 2009)
• EPA revised to address this remand in
• January. (78 Fed. Reg. 3086 (Jan. 15,

2013))

– Annual – 12 ug/m3 – 24-hour – 35 ug/m3

• Most areas attain new annual standard.

29

PM2.5 Implementation

• PM2.5 implementation rules remanded in

NRDC v. EPA, No. 08-1250 (Jan. 4, 2013)

• PM2.5 SIL and SMC remanded Sierra Club
• v. EPA, No. 10-1413 (Jan. 22, 2013)
• We read § 165(e)(2) of the Act as an

“extraordinarily rigid” mandate that a PSD permit applicant undertake preconstruction monitoring.

• Do all PSD sources need to conduct 1

year of monitoring before applying for a permit?

30

11/14/2013 16

1 hour SO2

• New 1-hr SO2 NAAQS finalized on June 3,

2010, at 75 ppb on a 1-hour average.

• Compliance determined through a 3-year

average of the 99th percentile of daily maximum 1-hour average concentrations at each monitor.

• EPA initially proposed modeling to determine

compliance with standard: now preparing guidance to consider monitoring.

• Industry challenge rejected: still awaiting EPA

guidance.

31

1 hour NO2

• In 2010, primary NO2 NAAQS revised to 100

ppb on a 1-hour average (was 53 ppb annual average).

• Primary focus on roadways: urban areas with

a population greater than 500,000 must install monitors.

• Entire country unclassifiable/attainment.

Industry challenges not successful. Pursuant to March 31, 2013 rule, monitors will be phased in between 2014 and 2017.

32

11/14/2013 17

Tribal Air Quality Related Values

33

Tribal Class I Air Quality Regions

• Tribes and states can request

redesignation to Class I status, under CAA Section 164.

• In addition to compliance with the NAAQS

and visibility, Class I areas protected from impacts to "air quality-related values" (AQRVs).

• AQRVs are resources that the Class I area

manager wishes to protect and that may be impacted by air emissions.

11/14/2013 18

AQRVs

• AQRVs can include limits designed to protect visibility,

standards for acid deposition or airborne concentrations, protection of vegetation, or other standards determined by a land manager to be protective of an area.

• New Source Review Workshop Manual page E.12,

"When a proposed major source's or major modification's modeled emissions may affect a Class I area, the applicant analyzes the source's anticipated impact on visibility and provides the information needed to determine its effect on the area's other AQRVs."

36

FCPC Class I Area

• Forest County Potawatomi Community (FCPC)

entered into agreements with WDNR in 1999 and 2010.

– In 1999, FCPC adopted Water Quality and Aquatic Systems as AQRVs. – In 2010, FCPC and WDNR agreed that FCPC could update the 1999 AQRVs. – In 2012, developed Threshold Exposure Levels (TELs) for the 1999 AQRVs, and two new AQRVs – Vegetation and Visibility.

• Bad River Community currently seeking its own

Class I authority.

11/14/2013 19

37

FCPC AQRV

• The new AQRVs and TELs became effective at the end
• f the review period, without need for DNR or EPA

approval.

• While the AQRV/TEL development documentation does

not describe the practical impacts of the standards, development documents suggest that current deposition levels may exceed TELs.

• Reach of review unclear under NR 405.19(1), Wis.
• Admin. Code.

OSHA--Revised Silica Standard

38

11/14/2013 20

OSHA Proposed Silica Rule

• Occupational Safety and Health

Administration (OSHA) establishes limits for worker exposure to airborne substances.

• OSHA has proposed a revised

Personal Exposure Limit (PEL) for silica for the first time since 1974.

39

What is silica?

• SiO2 is the most abundant mineral on

earth.

• Regulated by U.S. EPA and DNR as a

component of PM10 and PM2.5.

• Most likely sources of occupational

exposure:

– Construction – Aggregate/nonmetallic processing – Foundry operations

40

11/14/2013 21

What would the proposed rule require?

• PEL of 50 μg/m3, averaged over an 8-hour

day.

• The proposed rule also includes:

– Framework for measurements of worker exposure, – access limitations to areas above PEL, – required controls to minimize silica exposure, – medical exams for workers with high silica exposures, and – hazard training.

41

Impacts of Rule

• Foundries, construction facilities, and

nonmetallic transfer facilities face significant challenges to meet rule

• Nonmetallic mines likely not impacted

– MHSA has exclusive jurisdiction within active mine areas, not OSHA. – Fugitive controls already required by air permits.

42

11/14/2013 22

Status of Rulemaking

• At request of industry, comment period

extended to January 27.

• Deadline for filing a request to appear at

“informal hearing” on rule extended to December 16.

• Small foundries, construction workers

highest initial impacts from rule.

• Potential significant new source of

enforcement going forward.

43

Questions?

Peter Tomasi Quarles & Brady LLP peter.tomasi@quarles.com 414-232-8911

44
