AIR PROPPY RD-039 Artful shape ,easy hold Rotate nozzle,clean - - PowerPoint PPT Presentation

AIR PROPPY RD-039 Artful shape ,easy hold Rotate nozzle,clean thoroughly3-point spray,better clean result Usage: Powder and pipeline connections: two hole, four-hole-type powder box, powder box directly to the phone lines into the rear port


slide-1
SLIDE 1

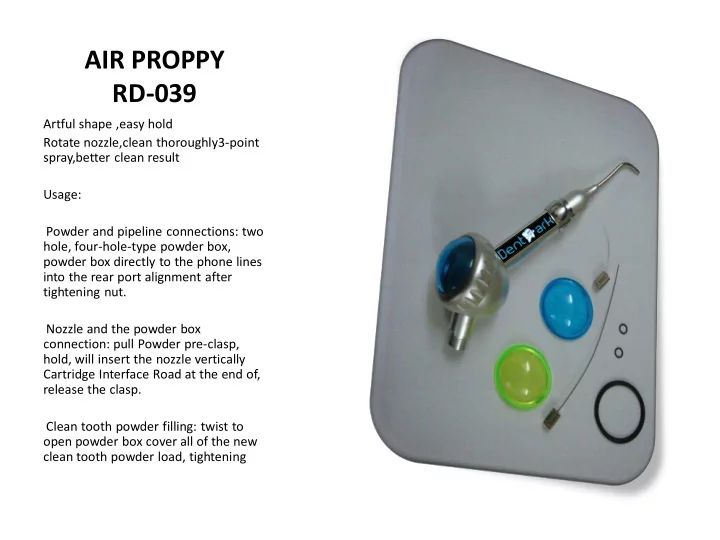

AIR PROPPY RD-039

Artful shape ,easy hold Rotate nozzle,clean thoroughly3-point spray,better clean result Usage: Powder and pipeline connections: two hole, four-hole-type powder box, powder box directly to the phone lines into the rear port alignment after tightening nut. Nozzle and the powder box connection: pull Powder pre-clasp, hold, will insert the nozzle vertically Cartridge Interface Road at the end of, release the clasp. Clean tooth powder filling: twist to

  • pen powder box cover all of the new

clean tooth powder load, tightening

slide-2
SLIDE 2

CLEANING POWDER

slide-3
SLIDE 3

AIR PROPPY RD-039

Artful shape ,easy hold Rotate nozzle,clean thoroughly3-point spray,better clean result Usage: Powder and pipeline connections: two hole, four-hole-type powder box, powder box directly to the phone lines into the rear port alignment after tightening nut. Nozzle and the powder box connection: pull Powder pre-clasp, hold, will insert the nozzle vertically Cartridge Interface Road at the end of, release the clasp. Clean tooth powder filling: twist to

  • pen powder box cover all of the new

clean tooth powder load, tightening

slide-4
SLIDE 4

APEX LOCATOR C-ROOT III

Instruction of Apex Locator: 1.Adopt the III dual-frequency measure technology, display with large LCD. 2.Measuring will not be effected by environment, no matter the root is dry or full of electrolyte(blood, or normal saline), it can measure precisely. 3.Manify the apex zone, display with 11 scales, precision can reach 0.1mm. 4.Number and scales display the detecting position synchronously. 5.With sonar alarm when it’s in narrow zone, and the sonar volume can by regulated. 6.Auto-check when starts up, calibrate the data previously, remain the operation precision. 7.The narrow zone of apex can be regulated by the doctor if it’s needed. 8.Long power consumption design, super long using time, power supplied by No.7 battery, with 7 scales battery indication. 9.The accessories can be sterilized with high temperature, prevent the patients from cross infection.

slide-5
SLIDE 5

APEC LOCATOR CV CV-6

The characteristic of six frequency Apex locator

  • 1. Free from the conditions of root canal:

Dryness, electrolytes, blood or physiological brines will not affect the measuring result. Dry and wet condition are also availale for accurate reading. 2. The narrow area(apical constriction) of the apex in the following figure if root canal can be adjusted by the dentists if necessary.

  • 3. Autoclavable accessories to avoid cross

infection.

  • 4. Equipped with self-check circuit to

guarantee the accuracy.

  • 5. Compact, stable, ergogomic design for

easy handing.

  • 6. Colored lCD screen and sound alarm.
  • 7. Lithium battery-operated.
  • 8. Auto power shut-off.

Specification: <Voltage;DC7.5V, Current:<500mA Power: <0.04W N.W:about 500g Size:130*102*34mm Battery-powered:5*1.5V

slide-6
SLIDE 6

APEX LOCATOR & PULP TESTER C-ROOT V

Feature Root canal apex finder and Pulp vital measurement Wide color LCD screen, operation simple and friendly interface Fifth generation multi-frequency design for wet or dry accuracy, adjustment-free Accurate current-stabilized generate technology, exact result

  • f pulp vitality testing

Progressive audio signal combined with on-screen graphics Rechargeable Li-ion battery and charger Charge/working status intelligent switch to avoid EMI

slide-7
SLIDE 7

APEX LOCATOR & PULP TESTER C-ROOT VI

Feature

  • 1. Root canal apex finder and pulp

vital measurement

  • 2. Color LCD screen display,and

can adjust the angle you need

  • 3. Multi-frequency design,exact

accurate

  • 4. Accurate current-stabilized

generate technology,exact result

  • f pulp 5. vitality testing
  • 6. Self-test function in Apex

locator

  • 7. The narrow zone of the apex

can be adjust if the doctor need

  • 8. Sound prompt for the apex in

the narrow zone or the pulp vital

  • 9. Rechargeable Li-ion battery and

charger

slide-8
SLIDE 8

APEX LOCATOR WITH PULP TESTER TIE APEX

  • 1. Patented design in tie type.

The unit can be tied to the hand of dentist or to the holder of dental chair to contribute to the convenience of checking the changing data on the LCD.

  • 2. Compact and stylishly thin in

shape design. The dimension is only 120*79*22mm

  • 3. Special detachable design in

structural component to make sure that the function of apex locating and pulp testing are accurate.

  • 4. It is equipped with rechargeable

battery.

  • 5. The accessories can be

autoclaved to avoid cross infection.

  • 6. Colored LCD display, adjustable

volume of alarm.

slide-9
SLIDE 9

ENDONTIC TREATMENT C-SMART

Feature:

  • 1. Original Switzerland electro-motor
  • 2. Folding color wide LCD screen
  • 3. Drive-1:1 contra angle is available
  • 4. Auto reverse to protect the file
  • 5. High capacity Li-ion chargeable

battery and can work with battery or adaptor

  • 6. Fault detection and alarm
  • 7. Auto power off

Technical:

  • 1. Adaptor working voltage:AC100-

240V, 50-60HZ

  • 2. 9settings for adjustable rotational

speed, ranging from 125 to 625rpm

  • 3. Adjustable torque, range:0.3-

5.2N.cm(3-40mN.m)

slide-10
SLIDE 10

PULP TESTER

Features:

  • 1. Preset speed mode (high-mid-low speed).

A gentle, pulsed stimulus begins to increase at a rate

  • 2. Specifically designed for patient comfort.

If the patient indicates perception, simply release the button. The stimulus stops immediately, but the numbers remain frozen on the face for about 3 minutes.

  • 3. Convenient to operate

Maximum stimulus-- -80.Between 0-40, the patient feels ache and anesthesia, alive teeth nerve Between 40-80, with above-mentioned reaction, part of teeth nerve dead 80, no above- mentioned reaction, dead teeth nerve

  • 4. The device turns itself off in three minutes

after operation (No wasted batteries.)

  • 5. Battery-operated, Standard 9-Volt batteries,

Extremely economical

  • 6. Fully guaranteed for two year

Specifications

  • a. INPUT: DC 9.0V
  • b. OUTPUT: 80V (MAXIMUM)
  • c. CURRENT: 90mA?
  • d. VOLTAGE RANGE: DC 6.0-10.0V
  • e. SIZE: 186*38*24mm
slide-11
SLIDE 11

C-SMART 1 ENDO MACHINE + APEX LOCATOR

Feature:

  • 1. Original Switzerland electro-motor
  • 2. Color wide LCD screen
  • 3. Drive-1:1 contra angle is available
  • 4. Rotation speed and torque can be

programmed to 9 settings

  • 5. Auto torque reverse
  • 6. Dual-frequency apex locator
  • 7. 5 working modes
  • 8. Auto apical reverse
  • 9. Auto apical slow down
  • 10. Auto start and stop
  • 11. High capacity Li-ion chargeable

battery

  • 12. Auto power off and memory function

Technical:

  • 1. Adaptor working voltage:AC100-240V,

50-60HZ

  • 2. 5 settings for adjustable rotational

speed, ranging from 125 to 625rpm

  • 3. Adjustable torque, range:0.3-

5.2N.cm(3-52mN.m)

slide-12
SLIDE 12

Endo machine with apex locator

Main Features: 1.Brushless electric motor 1:1 contra angle Speed range 100-650 r/min. Adjustable torque range 0.6-5.6 N*cm 2.Apex locator included.

  • 3. Adjustable LCD to make operation

easier. 4.In the process of root canal treatment, when the file reaches apex, the unit will stop working automatically.

  • 5. Saving function: Ten groups of program

for speed and torque can be saved.

  • 6. Auto reverse function. When torque

exceeds the pre-set value, the file will reverse automatically to avoid the perforation and break-off.

SAFENDO

slide-13
SLIDE 13

MAGNIFYING GLASS

Head Wearing Magnifying Lamp:

  • 1. There are four multiplets for the

lens 1.7X,2X,2.5X,3.5X. It is very convenient for exchange the lens. 2.Two bright LED lamps, can adjust the height and angle.the adjustable head wearing belt. 3.Adjustable lens,wide view, the material of lens is made of PMMA from Japan. 4.Light weight is about:100g 5.The material : ABS; PMMA,PP,PTR,ect. special 2 LED lamps, high bright and saving power. 6.Length of head belt:about 50-60cm.

slide-14
SLIDE 14

LOOPS 2.5X , 3.5X

Features:

  • Razor-sharp, edge-to-edge clarity
  • Extremely high resolution optics
  • Lightweight design
  • Multi-coated for: anti-glare, anti-fog

and scratch-resistance Light weight, Galilean type binocular

  • loupes. Maximum ease of use,

combined with multi-functional

  • capabilities. Available in a variety of

working distances for your maximum comfort .Multi-coated precision lenses for superb clarity and reduced

  • reflection. Ultra light-weight body and

frame for maximum comfort. Fully adjustable viewing angle, pupil distance and flip-up function. Titanium frames is lighter and stronger than Ni- alloy frames. All lenses are standard with .75 Pb Lead Equivalency, High-Lite Transmission Lenses with 20% More Visible Light, 1.80 High Index Lenses.

slide-15
SLIDE 15

DENTAL LOOPS WITH LIGHT

Mainly technical specification: 1.high intensity>15,000--30,000 2.Continuous run time: Headlight>8 hours 3.the power of the LED bulb: 1W 4.The lifetime of the bulb:10,000 hour 5.color temperature:6000K 6.Very small volume and weight:light head weight:9g, Battery pack weight:200g 7.Charge voltage: AC110/220/50-60HZ 8.Using the rechargeable lithium battery, light weight, longevity and the more comfortable carry, it is suitable for all kinds of surgical operation.

slide-16
SLIDE 16

AIR SCALER

Product Description We are one of the leading Suppliers of Air Scaler, which is used in various clinical applications. Our range of Air Scaler is known for its high quality and performance among the dentists and has been placing repeated orders. Features :

  • Economic choice as an alternative to

piezo scaler or ultrasonic scaler

  • User friendly
  • Effective water spray
  • Longer working life
  • Oscillation frequency of 6,100 – 6,600

Hz . It comes with 3 scaling tips

slide-17
SLIDE 17

SCALER DENTMARK A1 (FIXED HAND PC)

Name: A1 Description: Main features:

  • Sealed handpiece
  • PC control
  • Automatic Frequency

Tracking System

  • Power Feedback System
  • 6 tips

attached:G1*2,G2,G4,P1,E 1

  • Scaling function, Perio &

Endo function

  • Main unit color:Green,

Blue, Black

slide-18
SLIDE 18

SCALER DENTMARK A5 (DETACHABLE HP)

Name: A5 (EMS BASED) Main features:

  • Detachable

handpiece,135℃ sterilizable

  • PC control
  • Automatic Frequency

Tracking System

  • Power Feedback System
  • 6 tips

attached:G1*2,G2,G4,P1,E 1

  • Scaling, Perio & Endo

function

  • Main unit color:Green or

Blue

slide-19
SLIDE 19

SCALER M3

GREATSTAR Scalerwith detachable hand pc 5 tips, Ems design,

slide-20
SLIDE 20

ULTRASONIC CLEANER 2.5L

Detailed Product Description

Lengthended tank Heater function Stronger transducer Three phase separable wires

Applications:

  • 1. Jewelry factory
  • 2. Chemical Lab.
  • 3. Dental clinic
  • 4. Family
  • 5. Restaurant
  • 6. Repair shop

Specifications: 1) Model: CD-4820 2) Power supply: 170W 220-240V, 50/60Hz 3 )Ultrasound frequency: 42kHz 4) Tank capactiy: 2400ml MAX line: 2100ml Min line: 600ml 5) Heater temperature:65 centidegree 6) 5-circle digital timer: 180s, 280s, 380s, 480s, 90s

slide-21
SLIDE 21

ALGINATE MIXER

Feature 1 Streamline modelling, perfect design, smart construction 2 2 electric lock and motor brake gear ensure operational security 3 high-power and high-speed motor, fine viscosity and perfect mixture 4 4 easy to operation,harmonious, no bubbles 5 3 programs setting for memory the mixing time (Install setting: 8, 10, 12 seconds) 6 Overall size:(W)240*(D)280*(H)300 mm Net weight:Approx. 16kgs Technical data 6 Voltage:AC110V 50/60HZ; AC220V 50/60HZ 7 7 Consumer power:350-400W 8 Timer:1-16seconds 9 Revolution:2900-3600 R.P.M.

slide-22
SLIDE 22

AMALGAMATOR

1.This kind of amalgamator, controlled by a microprocessor, ensures a precise, controlled, consistent mix. 2.With the width of the oscillating range, the mixing frequency, and your selected time(1-99S). 3.It's revolve according to "8" model. 4.For mercury-based fillings. trust the performance of SYG200 amalgamator. Together, it provides the clinical perfection you need with the ease-of- use you want. 5.For safe operation, the SYG200 deactivates when you open the front cover to access the capsule. 6.Its ergonomic design is easy to use, stable, extremely quiet and easy to clean and maintain FEATURES Controlled, consistent mix Noiseless, stable operation electrical safety standards met Ergonomic design Easy maintenance TECHNICAL DATA Programmable mixing time 1-99 sec Dimensions 25 x21 x 13 CM NET weight 3.5 Kg

slide-23
SLIDE 23

X-RAY READER

  • 1. It can make common X-ray become

digital X-ray immediately, and save them into computer 2.It can zoom the X-ray about 50 times

  • n the monitor, dentist can

communicate with their patients more convenient

  • 3. Dentists don't need to setup driver,

it can be used in any time Specification: Voltage: DC 5V ( support by computer) Power: 300 mA Signal output: USB 2.0 Volume: 70mm*84mm*80mm Weight: 430g Accessories: X-ray salver,image software, USB connect cable

slide-24
SLIDE 24

WIRELESS INTRAORAL CAMERA + XRAY READER+XRAY VIEW

Multifunctional X-Ray film reader with SD card and 5 inch LCD with intraoral camera * Contain 5 inch LCD monitor, X- ray reader and intraoral camera together.

  • Video, USB and VGA output,

high resolution, high quality. * Built-in over-voltage and reverse voltage protection circuit. * Light size, easy to operate. * Built-in SD card can save 500 pieces of pictures. * Support X-ray image and intraoral camera image together. * 5 inch LCD monitor can adjust brightness, contrast, and color and so on. * Offer PAL and NTSC option.

slide-25
SLIDE 25

INTRAORAL CAMERA (USB) MD-770

Mini dental intra-oral Camera Specifications: 1.3 M PIXEL Signal Output: USB2.0 Magnification: 50 Times Image Sensor: 1/4" CMOS Lamp: 6 pcs white LED(5600K) Consumption Current: 80mA (Max.) Focus Range: 13-16mm Software Program: USB PC Camera Plus

slide-26
SLIDE 26

INTRAORAL CAMERA 3 IN 1

Product Description

  • 1. Resolution: 480 lines
  • 2. Sensor: 1/4 inch SONY CCD
  • 3. Light source: 6 LED
  • 4. Adjustment: automatic

Product Feature

  • 1. VGA data output: connect to PC

monitor

  • 2. AV data output: connect to AV LCD

monitor or TV

  • 3. USB data output: connect to

Personal Computer for Permanent Storage.

  • 4. Display: one picture or 4 at the

same time

  • 5. With External IR receiver, IR remote

control, Pedal control PACKAGE:

  • 1. Hand lever
  • 2. Positioning devise
  • 3. Pedal switch
  • 4. Adapter
  • 5. Holder of hand lever
  • 6. Remote control
  • 7. Data line(s)
  • 8. Manual
  • 9. 100pcs of plastic covers
slide-27
SLIDE 27

INTRAORAL CAMERA

TV TYPE MODEL

  • FREEZE FUNCTION

USB TYPE(COMPUTER TYPE)

  • CAN SAVE PICS IN COMPUTER
slide-28
SLIDE 28

LED LIGHT CURE (WIRELESS)

Feature:

  • 1. High power LED,purely dental blue

light.

  • 2. High articulation optical fiber.
  • 3. Digital display, Clear and intuitive
  • peration
  • 4. Three working modes: strong,

gradually strong, flashing.

  • 5. optional working time : 5sec, 10sec,

15 sec, 20 sec…40 sec.

  • 6. Automatic inactive, automatic

power off.

  • 7. Low battery detection.
  • 8. Super capacity battery.
  • 9. Membrane pushbutton, soft feel.

Application: Solidify any brands of resin materials. Technical:

  • 1. Charger (adaptor) working voltage:

AC100-240V, 50-60Hz.

  • 2. Wavelength: 450-480nm.
  • 3. Light power: more than

1500mw/cm2.

  • 4. Solidification time and depth:

5s3mm

slide-29
SLIDE 29

LIGHT CURE (WIRED)

Feature:

  • 1. High power LED,purely dental blue

light.

  • 2. High articulation optical fiber.
  • 3. Digital display, Clear and intuitive
  • peration
  • 4. Three working modes: strong,

gradually strong, flashing.

  • 5. optional working time : 5sec, 10sec,

15 sec, 20 sec…40 sec.

  • 6. Automatic inactive, automatic

power off. Application: Solidify any brands of resin materials. Technical:

  • 1. Charger (adaptor) working voltage:

AC100-240V, 50-60Hz.

  • 2. Wavelength: 450-480nm.
  • 3. Light power: more than

1500mw/cm2.

  • 4. Solidification time and depth:

5s3mm

slide-30
SLIDE 30

LIGHT CURE + TEETH WHITENING

Feature:

  • 1. High power LED,purely dental

blue light. 2 MODES LIGHT CURE & BLEECHING MODE

  • 2. High articulation optical fiber.
  • 3. Digital display, Clear and intuitive
  • peration
  • 4. FIVE working modes: strong,

gradually strong, flashing.

  • 5. optional working time : 5sec, 10sec,

15 sec, 20 sec…60 sec.

  • 6. Automatic inactive, automatic

power off.

  • 7. Low battery detection.
  • 8. Super capacity battery.
  • 9. Membrane pushbutton, soft feel.

Application: Solidify any brands of resin materials. Technical:

  • 1. Charger (adaptor) working voltage:

AC100-240V, 50-60Hz.

  • 2. Wavelength: 450-480nm.
  • 3. Light power: more than

1500mw/cm2.

  • 4. Solidification time and depth:

5s3mm

slide-31
SLIDE 31

TEETH WHITENING C-SMART-b

The characteristic of Teeth whitening accelerator:C-Smart-b 1.6 powerful LED tubes emit a high intensive cold blue light with an

  • utput at 6000MW/CM2

2.With Teeth Health Checking Light: 2pc 5 watts white light can check client’s teeth health status before whitening treatment 3.With Temperature inspect and High temperature alarms 4.Be fixed on the dental chair 5.With Large digital LCD 6.Power can be adjusted according to the medical needs.LCD screen shows all the information for better communication between the dentist and the patient. 7.It can oxidize 16 or more teeth. 8.With an average of 10 shades, you can finish the full teeth whitening at

  • ne time.
slide-32
SLIDE 32

TEETH WHITENING C-SMART

The characteristic of Teeth whitening accelerator:-C-Smart 1. 6 powerful LED tubes emit a high intensive cold blue light with an

  • utput at 6000MW/CM2

2. With Teeth Health Checking Light: 2pc 5 watts white light can check client’s teeth health status before whitening treatment 3. With Temperature inspect and High temperature alarms 4. With Large digital LCD 5. Power can be adjusted according to the medical needs.LCD screen shows all the information for better communication between the dentist and the patient. 6. It can oxidize 16 or more teeth. 7. With an average of 10 shades, you can finish the full teeth whitening at one time.

slide-33
SLIDE 33

LIGHT CURE (HALOGEN)

Detailed Product Description Curing light Good quality and competitive price Curing light Quality guarantee Technical Parameter: Input voltage: External: AC110V/220±10% 50/60Hz Internal: AC12V Output power: 75W Wavelength: 400-500nm Light power: 800-1000mW/cm2 Solidification time and depth: 20s/3mm

slide-34
SLIDE 34

AIR TURBINE

1 3-WAY + 1 AIR ROTOR POINT+WATER BOTTLE + FOOT CONTROL 1 3-WAY+ 1 AIR ROTOR POINT+ WATER BOTTLE+ FOOT CONTROL
