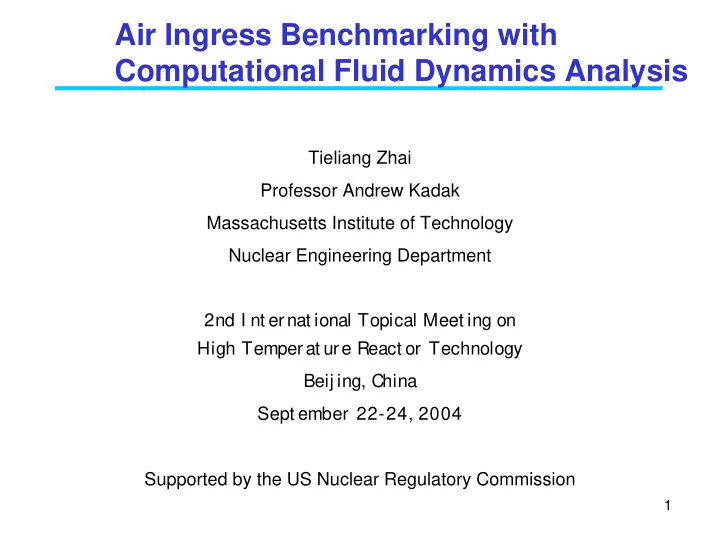

Air Ingress Benchmarking with Computational Fluid Dynamics Analysis

Tieliang Zhai Professor Andrew Kadak Massachusetts Institute of Technology Nuclear Engineering Department 2nd I nt ernat ional Topical Meet ing on High Temperat ure React or Technology Beij ing, China Sept ember 22-24, 2004 Supported by the US Nuclear Regulatory Commission

2

Air Ingress Accident

• Objectives and Overall Strategy
• Theoretical Study
• Verification of Japan’s Experiments
• Verification of NACOK experiments
• Proposals for Real PBMR analysis
• Future work and Conclusions

3

Characteristics of the Accident

• 3 Stages:

Depresurization Pure Diffusion Natural Convection

• Challenging:

Natural convection Multi-component Diffusion (air and graphite reactions) Multiple Dynamic Chemical Reactions Complicated geometry

4

Overall Strategy

• 1. Theoretical Study (Aided by HEATING-7)
• To understand the dominant physical processes qualitatively
• 2. Verification of Japan’s Experiments (CFD)
• Isothermal Experiment: Pure Diffusion
• Thermal Experiment: Natural Convection
• Multi-component: Chemical Reaction
• 3. Verification of Germany’s NACOK experiments (CFD)
• Natural Convection Experiment: Flow in Pebble Bed
• Chemical Reaction Experiment: Chemical Reactions in Porous

Media

• 4. Model the real MPBR (CFD)

5

Theoretical Study

Vary Choke Flow

Bottom Reflector Air In Air/COx out

• HEATING-7 and MathCad Code
• The gas temperature is assumed

to follow the temperature of the solid structures 5-minute time step

• The reaction rate is proportional

to the partial pressure of the

• xygen
• There is enough fresh air supply

and the inlet air temperature is 20 °C.

Figure 14: Open-Cylinder Model

6

Operative Equations

• Chemical Reaction: C + O2 ---> CO2 ( H = -393.51 KJ/mole)
• R=K1*exp(-E1/T)(PO2/20900)

When T<1273K: K1=0.2475, E1=5710; When 1273K<T<2073K, K1=0.0156, E1=2260;

• Buoyancy:
• Pressure drop in Pebble Bed [3]

gh P

h c b

) ( ρ ρ − =

2 3

2 1 u d H p ρ ε ε ψ − = ∆

1 .

) 1 Re ( 6 1 Re 320 ε ε ψ − + − =

7

Theoretical Study (Cont.)

0.00 0.02 0.04 0.06 0.08 0.10 500 1000 1500 2000 2500 3000 the Average Temp. of the Gases (C) Air Inlet Velocity (m/s) 800 1000 1200 1400 1600 1800

100 200 300 400

time(hr) Core Hot-Point Temperature (C)

0.02 0.024 0.028 0.032 0.036 0.04 100 200 300 400 Time(hr) Air Inlet Velocity (m/second) 0.05 0.1 0.15 0.2 0.25

• 5.25
• 4.95
• 4.65
• 4.35
• 4.05
• 3.75

Z(m) Mole Fraction of Oxygen in the Bottom Reflector

Figure 15: Results of the Open-Cylinder Model

8

Theoretical Study (Cont.)

PBR_SIM Results with Chemical Reaction (By Hee Cheon No)

• Considering only exothermic C + O2 reactions
• Without chemical reaction - peak temperature 1560 C @ 80 hrs;With

chemical reaction - peak temperature 1617 C @ 92 hrs

• Most of the chemical reaction occurs in the lower reflector
• As temperatures increase chemical reactions change; As a function of

height, chemical reactions change

• Surface diffusion of Oxygen is important in chemical reactions

9

Theoretical Study (Cont.)

Preliminary Conclusions for an open cylinder of pebbles:

• Inlet air velocity will not exceed 0.08 m/s.

Viscosity increases with the increase of the temperature Pressure loss in the pebble region increases rapidly with the increase of the velocity

• The negative feedback: the Air inlet velocity is not always

increase when the core is heated.

• No meltdown for the core peak temperature is lower than 1650

C even with the conservative assumptions

10

Verification of JAERI’s Experiments

• Solver used: FLUENT6.0
• GAMBIT for the mesh generation
• Subroutines(UDF) for special problems

11

JAERI Experiments

Diffusion - Isothermal Natural Circulation - Thermal Thermal with graphite and air - Multi-

component

12

Experimental Apparatus - Japanese

C4 2 7

Nitrogen Helium Valves

C3 C1 C2 H4 H3 H2 H1

Figure 16: Apparatus for Isothermal and Non-Isothermal experiments Figure 17: Structured mesh

13

Isothermal Experiment

Pure Helium in top pipe, pure Nitrogen in the bottom tank Only Diffusion Process and no Natural convection Taylor Expansion to convert diffusion coefficients into the following form:

2 3 / 1 3 / 1 75 . 1 7

) ( ] / ) [( 10

B A B A B A B A

P M M M M T D Σ + Σ + =

− −

4 4 3 3 2 2 1 1

T A T A T A T A A D

B A

+ + + + ≈

−

14

Isothermal Experiment

0.00 0.20 0.40 0.60 0.80 50 100 150 200 250 300 Time (min) Mole fraction

H-1 & C-1(Calculation) H-2 & C2 (Calculation) H-3 & C3 (Calculation) H-4 & C4 (Calculation) H-1 & C-1(Experiment) H-2 & C2 (Experiment) H-3 & C3 (Experiment) H-4 & C4 (Experiment)

Figure 18: Mole fraction of N2 for the isothermal experiment

15

Thermal Experiment

Figure 19: The contour of the temperature bound4ary condition

• Pure Helium in top pipe, pure

Nitrogen in the bottom tank

• N2 Mole fractions are monitored in

8 points

• Hot leg heated
• Diffusion Coefficients as a

function of temperature

16

Additional Dynamic Force Analysis

Diffusion Buoyancy Pressure drop Natural Circulation

17

CFD Initial Conditions and Assumptions

Subroutine to define the wall temperature

distribution and the initial gas mole fraction

Structured Mesh Grid Adaptation Time step times: from 0.0001 second to 3

seconds

18

Thermal Experiment

0.2 0.4 0.6 0.8 1 50 100 150 200 Time (min) Mole fraction of N2

H-1(FLUENT) C-1(FLUENT) H-1(Experiment) C-1(Experiment)

Figure 20: Comparison of mole fraction of N2 at Positions H-1 and C-1

0.2 0.4 0.6 0.8 1 50 100 150 200 Time(min) Mole Fraction

H2(Experiment) C2(Experiment) H-2(FLUENT) C-2(FLUENT)

Figure 21: Comparison of mole fraction

• f N2 at Positions H-2 and C-2

19

Thermal Experiment (Cont.)

0.2 0.4 0.6 0.8 1

50 100 150 200 250

Time(min) Mole Fraction of N2 H4(Exp) C4(Exp) H-4(Calc) C-4(Calc)

Figure 22: Comparison of mole fraction

• f N2 at Positions H-1 and C-1
• 0.15
• 0.10
• 0.05

0.00 0.05 0.10 0.15 0.20 0.25 2 4 6 Time (Second) Velocity (m/second)

Figure 23: The vibration after the

• pening of the valves.

20

Nitrogen

Helium

Figure 24: Nitrogen Contour: T=0.00 min

Thermal Experiment (Cont.)

Figure 25: Nitrogen Contour: T=1.60 min

21

Thermal Experiment (Cont.)

Figure 26: Nitrogen Contour: T=75.50 min Figure 27: Nitrogen Contour: T=123.00 min

22

Thermal Experiment (Cont.)

Figure 28: Nitrogen Contour: T=220.43 min Figure 29: Nitrogen Contour: T=222.55 min

23

Thermal Experiment (Cont.)

Figure 30: Nitrogen Contour: T=223.03 min Figure 31: Nitrogen Contour: T=223.20 min

24

Thermal Experiment (Cont.)

Figure 32: Nitrogen Contour: T=223.28 min Figure 33: Nitrogen Contour: T=224.00 min

25

Multi-Component Experiment

2 1 3 4

Heated Graphite Air Helium

• Graphite Inserted
• Multiple gases: O2, CO,

CO2, N2, He, H2O

• Mole fraction at 3 points

are measured

• Much higher calculation

requirements

• Diffusion Coefficients

2 3 / 1 3 / 1 75 . 1 7

) ( ] / ) [( 10

B A B A B A B A

P M M M M T D Σ + Σ + =

− −

Figure 34: Apparatus for multi- Component experiment of JAERI

26

Multi-Component Experiment(Cont.)

• Chemical Reactions

1 surface reaction:

C + O2 = x CO + y CO2 (+ Heat)

2 volume Reactions:

2 CO + O2 = 2CO2 ( + Heat) 2 CO2 = 2 CO + O2 (- Heat)

n

• c

p RT E K r

2

) exp( − =

−

Figure 35: The temperature boundary conditions for the multi-component experiment

27

Multi-Component Experiment(Cont.)

0.00 0.03 0.06 0.09 0.12 0.15 0.18 0.21 20 40 60 80 100 120 140 Time(min) Mole Fraction O2(Experiment) O2(Calculation) CO(Experiment) CO(Calculation) CO2(Experiment) CO2(Calculation) Figure 36: Mole Fraction at Point-1 (80% Diffusion Coff.)

28

Multi-Component Experiment(Cont.)

Figure 37: Mole Fraction at Point-3

0.00 0.04 0.08 0.12 0.16 0.20 0.24 20 40 60 80 100 120 140 Time(min) Mole Fraction

O2(Experiment) O2(Calculation) CO(Experiment) CO(Calculation) CO2(Experiment) CO2(Calculation)

29

Multi-Component Experiment(Cont.)

Figure 38: Mole Fraction at Point-4

0.00 0.05 0.10 0.15 0.20 0.25 20 40 60 80 100 120 140 Time (min) Mole Fraction O2(Experiment) O2(Calculation) CO(Experiment) CO(Calculation) CO2(Experiment) CO2(Calculation)

30

NACOK Natural Convection Experiments no cont.

Figure 39: NACOK Experiment

31

NACOK Natural Convection Experiments

• Square column on pebble side with pipe on cold leg
• Actual Size (6 cm) Ceramic Pebbles in a 5x5 Array
• Four Series of Tests

Hot and Cold Legs Maintained at Constant Wall Temperature Cold Leg temperature at 200 °C, 400 °C , 600 °C and 800 °C . The hot leg temperatures are higher than the cold leg by 50 °C,

100 °C, 150 °C etc., and the highest hot leg temperature is 1000 °C.

Output Measurements: Mass Flow Rate of Air

• Steady State Calculation

32

Mesh Applied

Figure 40: Meshes for the NACOK Experiment

33

Pressure Drop in Pebble Bed Using UDF

Porous media to model the pebble bed

1 .

)) 1 (Re/( 1 . ) 1 Re/( 205 ε ε − − − − = ∆p

Convert the pressure drop into: UDF to calculate the pressure drop Modifications made on the laminar pressure drop proposed by NACOK experiment Density, conductivity, specific heat, viscosity are defined using 12 points respectively.

9 . 1 1 . 9 . 5

* * * 3 . 10 * * 10 7 . 1

z z

u u P η ρ η − ∗ − = ∆

34

Boundary Conditions

Figure 41: Temperature Profile for one experiment

35

The Mass Flow Rates

Figure 42: Mass Flow Rates for the NACOK Experiment 0.0E+00 1.0E-03 2.0E-03 3.0E-03 4.0E-03 5.0E-03 100 300 500 700 900 1100 Temperature of the Pebble Bed (C) Mass Flow Rate (kg/s)

T_R=200 DC(Exp.) T_R=400 DC(Exp.) T_R=600 DC(Exp.) T_R=800 DC(Exp.) T_R=200 DC(FLUENT) T_R=400 DC(FLUENT) T_R=600 DC(FLUENT) T_R=800 DC(FLUENT)

36

Future Work

• Benchmark Chemical Corrosion Tests and other upcoming

NACOK Tests

• Develop PBMR model using FLUENT 6.1 to consider corrosion
• f graphite (loss of material in lower reflector)
• Integrate with systems analysis codes (RELAP-ATHENA)
• Conduct PBMR analysis showing slow corrosion - low inlet air

velocity and no burning.

37

Future Work (Cont.)

Figure 43: The proposed models to study the chemical reactions in pebble bed

38

Future Work (Cont.)

Figure 44: The models to study the chemical reactions in pebble bed

39

The Detailed Model of PBMR

Figure 46: The geometry of the bottom reflector Figure 45: The detailed model for PBMR

40

30 Degree Model

Figure 47: 3-D 30-degree Model

41

Summary

• Hope is that there is a long diffusion stage and the air inlet velocity

after the natural circulation will be low enough not to support active burning but only slow corrosion.

• Need to expand the boundary conditions to assess the availability of

air - incorporate systems code.

• Need to develop mitigation strategies for ultimate cessation of air

ingress and reactor cool down post LOCA break spectrum.

• The surface reaction rate and the immediate products at the graphite

surface are important information for the air ingress accident study.

• The methodology developed in this work using FLUENT 6 appears to

be able to handle these challenges.
