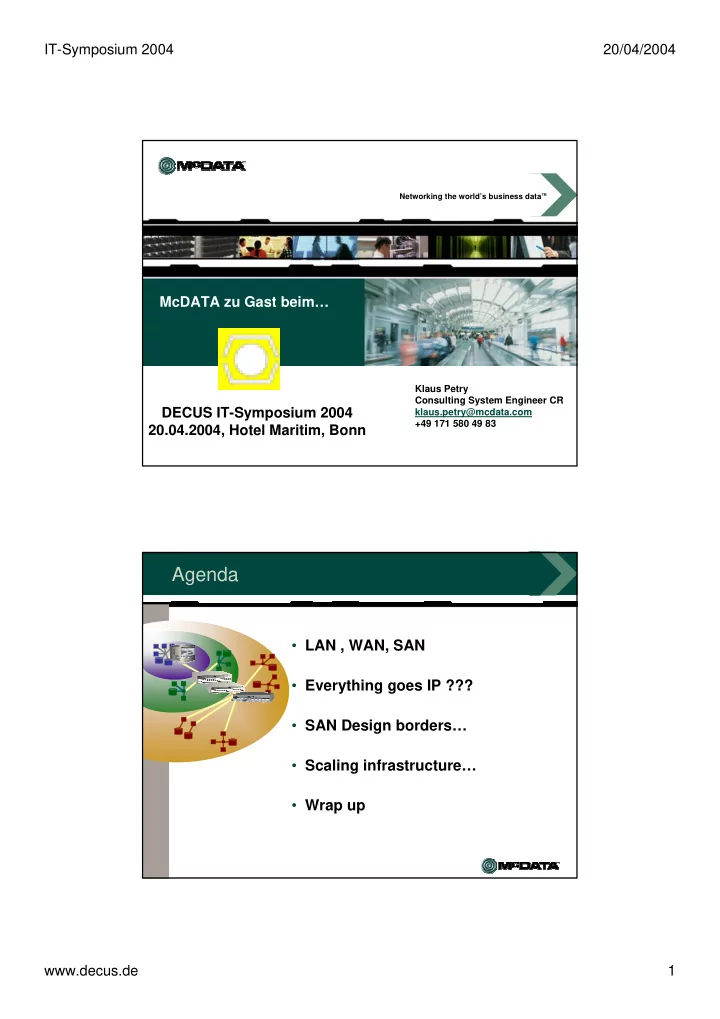

IT-Symposium 2004 20/04/2004 Networking the worlds business data McDATA zu Gast beim Klaus Petry Consulting System Engineer CR DECUS IT-Symposium 2004 klaus.petry@mcdata.com +49 171 580 49 83 20.04.2004, Hotel Maritim, Bonn Agenda

slide-1
SLIDE 1

IT-Symposium 2004 20/04/2004 www.decus.de 1

Networking the world’s business data™

McDATA zu Gast beim…

Klaus Petry Consulting System Engineer CR klaus.petry@mcdata.com +49 171 580 49 83

DECUS IT-Symposium 2004 20.04.2004, Hotel Maritim, Bonn

McDATA confidencial information

  • LAN , WAN, SAN
  • Everything goes IP ???
  • SAN Design borders…
  • Scaling infrastructure…
  • Wrap up

Agenda

slide-2
SLIDE 2

IT-Symposium 2004 20/04/2004 www.decus.de 2

McDATA confidencial information

LAN, WAN

Router PC‘s, Laptops, etc. Switch

WAN

Kupferkabel CAT5, etc. Glasfaserkabel GigE, FDDI, etc.

DB Server Mail Server

Dienste für die Übertragung über weite Entfernungen

File Server

Router Bridge

File Server DB Server

McDATA confidencial information

WAN DB Server Mail Server File Server WAN DB Server Mail Server File Server WAN DB Server Mail Server File Server FC Switch or Director

SAN

slide-3
SLIDE 3

IT-Symposium 2004 20/04/2004 www.decus.de 3

McDATA confidencial information

LAN / SAN Unterschiede

LAN (Ethernet / IP) SAN (Fibre Channel) standardisiertes Protokoll Kupfer oder Glasfaser 10Mb/s bis 1Gb/s Punkt-zu-Multi-Punkt sehr weit verbreitet Prozessor – Intensiv unbegrenzte Reichweite Know-how überall verfügbar standardisiertes Protokoll Glasfaser (selten Kupfer) 1Gb/s bis 2Gb/s Punkt-zu-Punkt nur für Speichernetzwerke Einfache Umsetzung SCSI / Fibre Channel Begrenzte Kabellängen Spezialistenwissen

McDATA confidencial information

Fibre Channel vs. IP

Fibre Channel IP Data Data

Absender Empfänger Typ Protokoll Straße Hausnummer PLZ Ort Absender Empfänger Typ

slide-4
SLIDE 4

IT-Symposium 2004 20/04/2004 www.decus.de 4

McDATA confidencial information

Everything goes IP?

Für jedes Problem ein Spezialist

SAN LAN LAN

McDATA confidencial information

Everything goes IP?

SAN3 Standort C SAN2 Standort B SAN1 Standort A

slide-5
SLIDE 5

IT-Symposium 2004 20/04/2004 www.decus.de 5

McDATA confidencial information

Everything goes IP?

Direkte Fibre Channel Verbindungen Multiplexer (xWDM Systeme) SAN1 SAN2

McDATA confidencial information

Everything goes IP?

SAN1 SAN2 IP Netzwerk

slide-6
SLIDE 6

IT-Symposium 2004 20/04/2004 www.decus.de 6

McDATA confidencial information

Fibre Channel over IP

using FCIP

IP

Fibre Channel SCSI

IP

Fibre Channel SCSI Fibre Channel SCSI Fibre Channel SCSI

using iFCP

Fibre Channel SCSI Fibre Channel SCSI

IP IP

SCSI SCSI

McDATA confidencial information

Fibre Channel over IP

FC Servers Disks

FC-Fabric High Availability Applications

Tape Drive FC Servers Disks

FC-Fabric High Availability Applications

Tape Drive FC Servers Disks

FC-Fabric High Availability Applications

Tape Drive

Using FCIP

IP Network

  • Tunnelling between the Fabrics
  • The fabrics merge
  • The zones merge
  • The Domain IDs have to be unique

in the whole fabric

  • A config error have consequences in

the whole Fabric

slide-7
SLIDE 7

IT-Symposium 2004 20/04/2004 www.decus.de 7

McDATA confidencial information

Fibre Channel over IP

Using iFCP

FC Servers Disks

FC-Fabric High Availability Applications

Tape Drive FC Servers Disks

FC-Fabric High Availability Applications

Tape Drive

IP Network

  • No merge of Fabrics
  • No merge of zoning
  • The Fabrics stay autonomous
  • Errors in one Fabric have no infuence

to the other Fabrics

FC Servers Disks

FC-Fabric High Availability Applications

Tape Drive

McDATA confidencial information

FCIP tunneling Fibre Channel / DWDM iFCP fault isolation and SAN Routing

stretched E_Port stretched E_Port terminated E_Port terminated E_Port terminated E_Port

SAN routing over IP

slide-8
SLIDE 8

IT-Symposium 2004 20/04/2004 www.decus.de 8

McDATA confidencial information

Host based Replication Application

IP Network

Any Fabric Any Fabric

  • Business Continuance

– Cost effective solution for regional offices, remote sites – Solution qualified with major replication applications (SRDF, SAN Copy, MirrorView, TrueCopy, DRM, REDI-SANlinks, RVM)

  • Reliability: fault isolation across IP Network
  • Higher throughput and lower telecom costs: compression, Fast Write

Storage Based Replication

IP Network

Any Fabric Any Fabric

Data replication

McDATA confidencial information

iSCSI Integration Cost effective SAN connectivity for low-end servers Leverage IP network for connectivity outside data center

IP Network

Distance Solutions Cost effective DR/BC solution for regional offices, remote sites Branch site consolidation: centralized backup and management Reliability: fault isolation across IP Network IP Network

Fibre Channel Gigabit Ethernet / IP

SAN Routing Interconnects multi-vendor SAN islands Fault isolation, security & management of independent islands Remote site Data Center

Planned iSCSI hosts

Fibre Channel over IP Summary

slide-9
SLIDE 9

IT-Symposium 2004 20/04/2004 www.decus.de 9

McDATA confidencial information

SAN Design

McDATA confidencial information

SAN Design

slide-10
SLIDE 10

IT-Symposium 2004 20/04/2004 www.decus.de 10

McDATA confidencial information

  • 10 x 140 = 1400
  • ISL ports = 288

1112

SAN Design

McDATA confidencial information

Hosts 6 Storage 12 Storage 11 Hosts 5 5 Director Director 4 ES-3032 Director / Switch Director / Switch Director / Switch Director / Switch ES-3016 Director / Switch Director / Switch Director / Switch Director / Switch Director / Switch Director / Switch Director / Switch Director / Switch 6 6 6 6 5 5 6 6 6 6 6 2 2 1 1 Note: The exact number of ISLs between the core and edge switches depends on the fan-
  • ut requirements for the application. ES-
3016s typically require 2 ISLs while ES- 3032s usually have 4 ISLs per switch. H
  • sts
S to ra ge S to ra g e D ire cto r D irecto r D ire cto r D irecto r D ire cto r / S w itch D ire ctor / S w itch D irector / S w itch D irecto r / S w itch D irecto r / S w itch D ire cto r / S w itch S to rag e S to ra ge H
  • s
ts D ire cto r / S w itch D ire cto r / S w itch D ire cto r / S w itch D ire ctor / S w itch D ire cto r / S w itch D ire ctor / S w itch D irector / S w itch D irecto r / S w itch D irecto r / S w itch D ire cto r / S w itch D ire cto r / S w itch D ire cto r / S w itch D ire cto r / S w itch D ire ctor / S w itch

Multiple Independent Fabrics

1024 ports 2048 ports x 1,000’s ports

Larger Individual Fabrics Individual Fabrics

H
  • s
ts S tora ge Sto rag e Dir ec tor D ire ctor Dir ec tor D ire ctor D irec tor / Sw itc h Dir ec tor / Sw itch D ire ctor / Sw itch D ire ctor / S w itc h D irec tor / S w itc h D irec tor / Sw itc h S tora ge Sto ra ge H
  • s
ts D irec to r / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch Direc tor / Sw itch D irec tor / Sw itc h Dir ec tor / Sw itch D ire ctor / Sw itch D ire ctor / S w itc h D irec tor / S w itc h D irec tor / Sw itc h D irec to r / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch Direc tor / Sw itch H
  • sts
Sto rag e St
  • ra
ge D irec tor D irec tor D irec tor D irec tor D irec tor / S w itc h D ire ctor / S w itc h D irec tor / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch D ire ctor / S w itch Sto rag e S tora ge H
  • sts
D irec to r / Sw itc h D irec tor / Sw itc h D ir ector / Sw itch Direc tor / Sw itch D irec tor / S w itc h D ire ctor / S w itc h D irec tor / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch D ire ctor / S w itch D irec to r / Sw itc h D irec tor / Sw itc h D ir ector / Sw itch Direc tor / Sw itch H
  • s
ts S tora ge Sto rag e Dir ec tor D ire ctor Dir ec tor D ire ctor D irec tor / Sw itc h Dir ec tor / Sw itch D ire ctor / Sw itch D ire ctor / S w itc h D irec tor / S w itc h D irec tor / Sw itc h S tora ge Sto ra ge H
  • s
ts D irec to r / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch Direc tor / Sw itch D irec tor / Sw itc h Dir ec tor / Sw itch D ire ctor / Sw itch D ire ctor / S w itc h D irec tor / S w itc h D irec tor / Sw itc h D irec to r / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch Direc tor / Sw itch H
  • s
ts S tora ge Sto rag e Dir ec tor D ire ctor Dir ec tor D ire ctor D irec tor / Sw itc h Dir ec tor / Sw itch D ire ctor / Sw itch D ire ctor / S w itc h D irec tor / S w itc h D irec tor / Sw itc h S tora ge Sto ra ge H
  • s
ts D irec to r / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch Direc tor / Sw itch D irec tor / Sw itc h Dir ec tor / Sw itch D ire ctor / Sw itch D ire ctor / S w itc h D irec tor / S w itc h D irec tor / Sw itc h D irec to r / Sw itc h D irec to r / Sw itc h Direc to r / Sw itch Direc tor / Sw itch

SAN Routing

SAN Konsolidierung

slide-11
SLIDE 11

IT-Symposium 2004 20/04/2004 www.decus.de 11

McDATA confidencial information

ERP SAN Internet SAN Engineering SAN Financial SAN

  • Reliable Scaling of the Infrastructure
  • Reduces SAN Complexity and Costs

Securely Consolidates SAN Islands on the Same Platform

  • Benefits of Network Consolidation

Simple design and management Datacenter reliability Non-disruptive scalability

  • Advantages of Small Fabric Control

Protection from user error Firewalled application security Independent software upgradeability

SAN Konsolidierung mit intelligenten Komponenten

McDATA confidencial information

Wrap up

Fibre Channel ist die richtige Technik um Speichernetzwerke aufzubauen. iSCSI dient zur Anbindung von einfachen Servern an bestehende Fibre Channel

  • Speicher. Es wird Fibre Channel nicht ablösen, es wird Fibre Channel ergänzen.

iFCP ist die bessere Technik zum Verbinden von Speichernetzen und bietet viele Vorteile gegenüber herkömmlichen Verfahren. FCIP ist weit verbreitet, hat aber Nachteile, weil das FC Protokoll nur „gebridged“

  • wird. Das FC Paket bleibt erhalten.

Mit iFCP ist es möglich Speichernetze verschiedener Hersteller miteinander zu verbinden ohne das die verschiedenen SANs miteinander „verschmelzen“. Die Nutzung von bestehenden IP Verbindungen für Speichernetzwerke ist möglich, es gilt aber Rücksicht zu nehmen auf beschränkte Bandbreiten im IP Netzwerk.

slide-12
SLIDE 12

IT-Symposium 2004 20/04/2004 www.decus.de 12

McDATA confidencial information

Auf Wiedersehen!
