Advancing Fusion Science with CGYRO using GPU-Based Leadership Systems by J. Candy 1 , I. Sfiligoi 2 and E. Belli 1 . 1 General Atomics, San Diego, CA 2 San Diego Supercomputer Center, San Diego CA Presented at GTC 2019 San Jose, CA 18-21

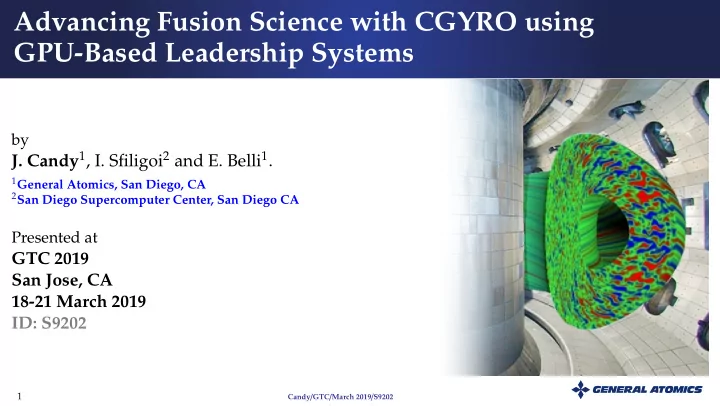

slide-1
SLIDE 1

Advancing Fusion Science with CGYRO using GPU-Based Leadership Systems

by

  • J. Candy1, I. Sfiligoi2 and E. Belli1.

1General Atomics, San Diego, CA 2San Diego Supercomputer Center, San Diego CA

Presented at

GTC 2019 San Jose, CA 18-21 March 2019 ID: S9202

1

Candy/GTC/March 2019/S9202

slide-2
SLIDE 2

Sincere thanks to

  • Chris Holland (UCSD)
  • Orso Meneghini, Sterling Smith, Ron Waltz, Gary Staebler (GA)
  • Nathan Howard, Alessandro Marinoni (MIT)
  • Walter Guttenfelder, Brian Grierson (PPPL)
  • George Fann (ORNL)
  • Klaus Hallatschek (IPP, Germany)

2

Candy/GTC/March 2019/S9202

slide-3
SLIDE 3

OUTLINE

1 Who is General Atomics?

3

Candy/GTC/March 2019/S9202

slide-4
SLIDE 4

OUTLINE

1 Who is General Atomics? 2 The case for fusion energy

4

Candy/GTC/March 2019/S9202

slide-5
SLIDE 5

OUTLINE

1 Who is General Atomics? 2 The case for fusion energy 3 Mathematical formulation and GPU-based numerical solution

5

Candy/GTC/March 2019/S9202

slide-6
SLIDE 6

OUTLINE

1 Who is General Atomics? 2 The case for fusion energy 3 Mathematical formulation and GPU-based numerical solution 4 Simulation of turbulent energy loss in a tokamak plasma

6

Candy/GTC/March 2019/S9202

slide-7
SLIDE 7

OUTLINE

1 Who is General Atomics? 2 The case for fusion energy 3 Mathematical formulation and GPU-based numerical solution 4 Simulation of turbulent energy loss in a tokamak plasma 5 GPU performance: development and results

7

Candy/GTC/March 2019/S9202

slide-8
SLIDE 8

Who is General Atomics?

8

Candy/GTC/March 2019/S9202

slide-9
SLIDE 9

Who is General Atomics?

1 General Atomics (GA) is a private contractor in San Diego

9

Candy/GTC/March 2019/S9202

slide-10
SLIDE 10

Who is General Atomics?

1 General Atomics (GA) is a private contractor in San Diego 2 The GA Magnetic Fusion division does DOE-funded research

10

Candy/GTC/March 2019/S9202

slide-11
SLIDE 11

Who is General Atomics?

1 General Atomics (GA) is a private contractor in San Diego 2 The GA Magnetic Fusion division does DOE-funded research 3 Hosts DIII-D National Fusion Facility

11

Candy/GTC/March 2019/S9202

slide-12
SLIDE 12

Founded on July 18, 1955 (photo 1957)

The General Atomic Division of General Dynamics

12

Candy/GTC/March 2019/S9202

slide-13
SLIDE 13

Laboratory formally dedicated on June 25th, 1959

John Jay Hopkins Laboratory for Pure and Applied Science

13

Candy/GTC/March 2019/S9202

slide-14
SLIDE 14

Present-day Campus (2019)

Retains feel of early architecture

14

Candy/GTC/March 2019/S9202

slide-15
SLIDE 15

Doublet III (1974)

15

Candy/GTC/March 2019/S9202

slide-16
SLIDE 16

DIII-D (Present day)

16

Candy/GTC/March 2019/S9202

slide-17
SLIDE 17

The case for fusion energy

17

Candy/GTC/March 2019/S9202

slide-18
SLIDE 18

Energy Use by Technology and Year

energy.mit.edu/news/limiting-global-warming-aggressive-measures-needed

18

Candy/GTC/March 2019/S9202

slide-19
SLIDE 19

Surface Temperature Anomaly

energy.mit.edu/news/limiting-global-warming-aggressive-measures-needed

19

Candy/GTC/March 2019/S9202

slide-20
SLIDE 20

Plasma theory in closed fieldline region well-understood

20

Candy/GTC/March 2019/S9202

slide-21
SLIDE 21

Helical field perfectly confines plasma (almost)

21

Candy/GTC/March 2019/S9202

slide-22
SLIDE 22

There is a small amount of radial energy/particle loss

  • Collisions (1970s): Γcollision
  • Turbulence (1980s): Γturbulence
  • Both exhibit gyroBohm scaling

flux Γ ∼ v(ρ/a)2 confinement time τ = a Γ ∼ a3 vρ2

  • a = torus radius
  • ρ = particle orbit size
  • v = particle velocity

22

Candy/GTC/March 2019/S9202

slide-23
SLIDE 23

Tokamak physics spans multiple space/timescales

Core-edge-SOL (CESOL) region coupling Ψ Profile

Core Edge SOL

CESOL

23

Candy/GTC/March 2019/S9202

slide-24
SLIDE 24

Tokamak confinement improves with LARGE PLASMA VOLUME

24

Candy/GTC/March 2019/S9202

slide-25
SLIDE 25

ITER Facility (35 nations) under construction in France

GOAL: Simulate turbulent plasma in core (magenta) region

25

Candy/GTC/March 2019/S9202

slide-26
SLIDE 26

Mathematical formulation and GPU-based numerical solution

26

Candy/GTC/March 2019/S9202

slide-27
SLIDE 27

Gyrokinetic Theory for Magnetized Plasma

The Cooper/Kripke Inversion

27

Candy/GTC/March 2019/S9202

slide-28
SLIDE 28

Gyrokinetic equation for plasma species a

Typically: a = (deuterium, carbon, electron)

∂ ha ∂τ − iΩsX ha − i (Ωθ + Ωξ + Ωd) Ha − iΩ∗ Ψa + ΩNL( ha , Ψa ) = Ca Symbol definitions particles

  • Ha =

ha + zaTe Ta

  • Ψa

28

Candy/GTC/March 2019/S9202

slide-29
SLIDE 29

Gyrokinetic equation for plasma species a

Typically: a = (deuterium, carbon, electron)

∂ ha ∂τ − iΩsX ha − i (Ωθ + Ωξ + Ωd) Ha − iΩ∗ Ψa + ΩNL( ha , Ψa ) = Ca Symbol definitions particles

  • Ha =

ha + zaTe Ta

  • Ψa

fields

  • Ψa = J0(γa)
  • δ

φ − v c δ A

  • + v2

⊥

Ωcac J1(γa) γa δ B

29

Candy/GTC/March 2019/S9202

slide-30
SLIDE 30

Electromagnetic GK-Maxwell Equations

Coupling to fields is a MAJOR complication!

  • k2

⊥λ2 D +

  • a

z2

a

Te Ta

  • d3v f0a

ne

  • δ

φ =

  • a

za

  • d3v f0a

ne J0(γa) Ha 2 βe,unit k2

⊥ρ2 s δ

A =

  • a

za

  • d3v f0a

ne v cs J0(γa) Ha − 2 βe,unit B Bunit δ B =

  • a
  • d3v f0a

ne mav2

⊥

Te J1 (γa) γa

  • Ha

30

Candy/GTC/March 2019/S9202

slide-31
SLIDE 31

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − i ΩsX ha − i (Ωθ + Ωξ + Ωd) Ha − iΩ∗ Ψa + ΩNL( ha, Ψa) = Ca E×B flow −iΩs = −i kθL 2π a cs γE

31

Candy/GTC/March 2019/S9202

slide-32
SLIDE 32

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − iΩsX ha − i

  • Ωθ + Ωξ + Ωd
  • Ha − iΩ∗

Ψa + ΩNL( ha, Ψa) = Ca Streaming −iΩθ = v ws ∂ ∂θ

32

Candy/GTC/March 2019/S9202

slide-33
SLIDE 33

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − iΩsX ha − i

  • Ωθ + Ωξ + Ωd
  • Ha − iΩ∗

Ψa + ΩNL( ha, Ψa) = Ca Trapping −iΩξ = − vta ws ua √ 2

  • 1 − ξ2 ∂ ln B

∂θ ∂ ∂ξ − 1 2ua ∂λa ∂θ

  • v

ws ∂ ∂ua + √ 2vta ws

  • 1 − ξ2 ∂

∂ξ

  • 33

Candy/GTC/March 2019/S9202

slide-34
SLIDE 34

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − iΩsX ha − i

  • Ωθ + Ωξ + Ωd
  • Ha − iΩ∗

Ψa + ΩNL( ha, Ψa) = Ca Drift motion −iΩd = avta cs b ×

  • u2

a

  • 1 + ξ2 ∇B

B + u2

aξ2 8π

B2 (∇p)eff

  • · ik⊥ρa

+ Ma 2av csR0 b × R JψB ∂R ∂θ ∇ϕ − Bt B ∇R

  • · ik⊥ρa

+ a cs b ×

  • −vta

Ta Fc + c B∇Φ∗

  • · ik⊥ρa

34

Candy/GTC/March 2019/S9202

slide-35
SLIDE 35

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − iΩsX ha − i (Ωθ + Ωξ + Ωd) Ha − i Ω∗ Ψa + ΩNL( ha, Ψa) = Ca Gradient drive −iΩ∗ = a Lna + a LTa

  • u2

a − 3

2

  • + γpv

a v2

ta

RBt R0B

  • ikθρs

+ a LTa zae Ta Φ∗ − M2

a

2R2

  • R2 − R(θ0)2

+M2

a

aR(θ0) R2 dR(θ0) dr + Maγp a vtaR2

  • R2 − R(θ0)2

ikθρs

35

Candy/GTC/March 2019/S9202

slide-36
SLIDE 36

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − iΩsX ha − i (Ωθ + Ωξ + Ωd) Ha − iΩ∗ Ψa + ΩNL( ha, Ψa) = Ca Nonlinearity ΩNL( ha, Ψa) = acs ΩcD

  • k′

⊥+k′′ ⊥=k⊥

  • b · k′

⊥ × k′′ ⊥

Ψa(k′

⊥)

ha(k′′

⊥)

36

Candy/GTC/March 2019/S9202

slide-37
SLIDE 37

Gyrokinetic equation for plasma species a

Typically, deuterium, some carbon, and electrons

∂ ha ∂τ − iΩsX ha − i (Ωθ + Ωξ + Ωd) Ha − iΩ∗ Ψa + ΩNL( ha, Ψa) = Ca Cross-species collision operator Ca =

  • b

CL

ab

  • Ha,

Hb

  • CL

ab(

Ha, Hb) = νD

ab

2 ∂ ∂ξ

  • 1 − ξ2 ∂

Ha ∂ξ + 1 v2 ∂ ∂v

  • ν

ab

2

  • v4 ∂

Ha ∂v + ma Tb v5 Ha

  • −

Hak2

⊥ρ2 a

v2 4v2

ta

  • νD

ab

  • 1 + ξ2

+ ν

ab

  • 1 − ξ2

+ Rmom( Hb) + Rene( Hb)

37

Candy/GTC/March 2019/S9202

slide-38
SLIDE 38

Sonic Transport Fluxes

These are inputs to an independent TRANSPORT CODE

particle flux Γa =

  • k⊥
  • d3v

H∗

a c1a

Ψa

  • energy flux Qa =
  • k⊥
  • d3v

H∗

a c2a

Ψa

  • momentum flux Πa =
  • k⊥
  • d3v

H∗

a c3a

Ψa

  • 38

Candy/GTC/March 2019/S9202

slide-39
SLIDE 39

What do we solve for

5-dimensional distribution for every plasma species

Six-dimensional array (mapped into internal 2D array in CGYRO) Ha(kx, ky, θ, ξ, v

  • 5D mesh

, t) The spatial coordinates are kx −→ radial wavenumbers ky −→ binormal wavenumbers θ −→ field-line coordinate The velocity-space coordinates are ξ = v/v −→ cosine of the pitch angle ∈ [−1, 1] v −→ speed ∈ [0, ∞] .

39

Candy/GTC/March 2019/S9202

slide-40
SLIDE 40

Visual representation of computational mesh

k0

x 1024

ky

256

θ

32 k0

x 128

ky

32

deuterium (a = 1) carbon (a = 2) electron (a = 3) ξ

24

v

8 velocity-space mesh ion-scale mesh multiscale mesh

40

Candy/GTC/March 2019/S9202

slide-41
SLIDE 41

CGYRO optimized for challenging multiscale turbulence

COMPLETE REDESIGN of world-renowned GYRO code

41

Candy/GTC/March 2019/S9202

slide-42
SLIDE 42

Simulation of turbulent energy loss in a tokamak plasma

42

Candy/GTC/March 2019/S9202

slide-43
SLIDE 43

CGYRO computes the turbulent flux

DIII-D Tokamak at General Atomics in San Diego, CA

43

Candy/GTC/March 2019/S9202

slide-44
SLIDE 44

CGYRO computes the turbulent flux

DIII-D Tokamak at General Atomics in San Diego, CA

44

Candy/GTC/March 2019/S9202

slide-45
SLIDE 45

Multiscale DIII-D Simulation at r/a = 0.92

ITER baseline discharge (Haskey, Grierson) 164988

5 10 15 20 25 30 kyρs 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 Fractional Qe

long-wavelength (global, full-F , etc) regime

Resolution kxρs 124.0 , kyρs 31.8 Time 9 hrs on 32K cores Qi/QGB Qe/QGB pwrbal 2.5 8.2 NEO 2.7 0.0 CGYRO 0.0 8.0

45

Candy/GTC/March 2019/S9202

slide-46
SLIDE 46

Simulation underway on Titan (NCCS)

4986 nodes = 4986 Tesla K20X GPUs

46

Candy/GTC/March 2019/S9202

slide-47
SLIDE 47

Important locations for CGYRO

Source code github.com/gafusion/gacode DOI www.osti.gov/doecode/biblio/20298 User Documentation gafusion.github.io/doc Documentary Video (for GYRO) www.youtube.com/watch?v=RLI6QW2x4Lg

47

Candy/GTC/March 2019/S9202

slide-48
SLIDE 48

Fidelity Hierarchy (Pyramid)

Range of models all the way up to leadership codes

Leadership-class computing highest fidelity simulations

Calibrate

Reduced models for validation Machine-learning models for

  • ptimization & real-time control

Train

One-off heroic simulation

Inform Inform Physics Validation Physics Application Physics Development

48

Candy/GTC/March 2019/S9202

slide-49
SLIDE 49

Create TGLF-NN neural net from TGLF reduced model

  • 23 inputs → 4 outputs
  • Each dataset has 500K cases from 2300 multi-machine discharges
  • Trained with TENSORFLOW
  • Must be retrained as TGLF model is updated
  • TGLF itself derived from HPC CGYRO simulation

ExB

49

Candy/GTC/March 2019/S9202

slide-50
SLIDE 50

GPU performance: development and results

50

Candy/GTC/March 2019/S9202

slide-51
SLIDE 51

CGYRO: Roadmap for efficient GPU implementation

1 Numerical algorithms selected to allow intensive threading/acceleration

− Nonlinearity (nl) = FFT − Collisions (coll) = Matrix-vector multiply 51

Candy/GTC/March 2019/S9202

slide-52
SLIDE 52

CGYRO: Roadmap for efficient GPU implementation

1 Numerical algorithms selected to allow intensive threading/acceleration

− Nonlinearity (nl) = FFT − Collisions (coll) = Matrix-vector multiply

2 Key kernels have threaded (default) and accelerated variations

− Smart loop order and good memory management keeps kernels similar 52

Candy/GTC/March 2019/S9202

slide-53
SLIDE 53

CGYRO: Roadmap for efficient GPU implementation

1 Numerical algorithms selected to allow intensive threading/acceleration

− Nonlinearity (nl) = FFT − Collisions (coll) = Matrix-vector multiply

2 Key kernels have threaded (default) and accelerated variations

− Smart loop order and good memory management keeps kernels similar

3 Implemented GPU-aware MPI (utilizes GPUDirect and GPU-Infiniband RDMA)

53

Candy/GTC/March 2019/S9202

slide-54
SLIDE 54

Initial thought was that nonlinearity (nl) would dominate

54

Candy/GTC/March 2019/S9202

slide-55
SLIDE 55

Acceleration of nl exposed cost of other kernels

Titan K20 GPU too small to store collision matrix

55

Candy/GTC/March 2019/S9202

slide-56
SLIDE 56

CGYRO: Roadmap for efficient GPU implementation

1 Numerical algorithms selected to allow intensive threading/acceleration

− Nonlinearity (nl) = FFT − Collisions (coll) = Matrix-vector multiply

2 Key kernels have threaded (default) and accelerated variations

− Smart loop order and good memory management keeps kernels similar

3 Implemented GPU-aware MPI (utilizes GPUDirect and GPU-Infiniband RDMA)

56

Candy/GTC/March 2019/S9202

slide-57
SLIDE 57

CGYRO: Roadmap for efficient GPU implementation

!$acc loop seq do ivp=1,nv cvec_re = real(cvec(ivp)) cvec_im = aimag(cvec(ivp)) !$acc loop vector do iv=1,nv cval = cmat(iv,ivp,ic_loc) bvec(iv) = bvec(iv) + cmplx(cval*cvec_re,cval*cvec_im) enddo enddo

57

Candy/GTC/March 2019/S9202

slide-58
SLIDE 58

CGYRO: Roadmap for efficient GPU implementation

#ifdef DISABLE_GPUDIRECT_MPI !$acc update host(fsendr) #else !$acc host_data use_device(fsendr,f) #endif call MPI_ALLTOALL(fsendr,nsend,MPI_DOUBLE_COMPLEX, & f, nsend,MPI_DOUBLE_COMPLEX,lib_comm,ierr) #ifdef DISABLE_GPUDIRECT_MPI !$acc update device(f) #else !$acc end host_data #endif

58

Candy/GTC/March 2019/S9202

slide-59
SLIDE 59

Power9 (CPU) versus Power9 + 4X V100 (GPU)

59

Candy/GTC/March 2019/S9202

slide-60
SLIDE 60

CPU systems versus 4X V100

60

Candy/GTC/March 2019/S9202

slide-61
SLIDE 61

GPU type comparison

Stampede2, GA, Piz Daint, Titan

61

Candy/GTC/March 2019/S9202

slide-62
SLIDE 62

Google Cloud Partition Comparison

Santa Fe (last week)

62

Candy/GTC/March 2019/S9202

slide-63
SLIDE 63

Cloud V100 compared to Summit and Cori

63

Candy/GTC/March 2019/S9202

slide-64
SLIDE 64

OUTLINE

1 History of General Atomics? 2 The case for fusion energy 3 Mathematical formulation and GPU-based numerical solution 4 Simulation of turbulent energy loss in a tokamak plasma 5 GPU performance: development and results
