Admixtures CIVL 3137 1 Admixtures admixture ( n .) any material other than water, aggregates, hydraulic cement and fiber reinforcement, used as an ingredient of concrete or mortar, and added to the batch immediately before or during mixing.

slide-1
SLIDE 1

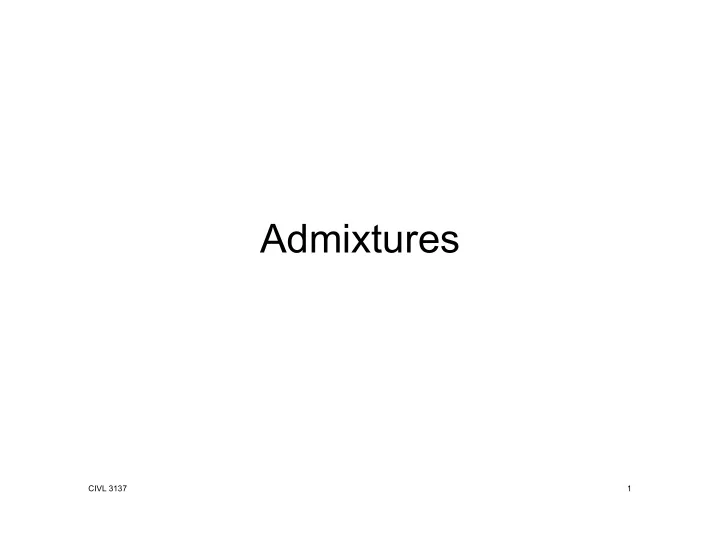

Admixtures

CIVL 3137 1

slide-2
SLIDE 2

CIVL 3137 2

Admixtures

admixture (n.) any material other than water, aggregates, hydraulic cement and fiber reinforcement, used as an ingredient

  • f concrete or mortar, and added to the

batch immediately before or during mixing.

slide-3
SLIDE 3

CIVL 3137 3

Types of Admixtures

  • 1. Air-entraining admixtures

added to improve freeze-thaw durability

  • 2. Chemical admixtures

water-soluble compounds used to improve the properties of the fresh concrete

  • 3. Mineral admixtures

finely divided solids usually added to improve the strength of the hardened concrete

slide-4
SLIDE 4
slide-5
SLIDE 5

CIVL 3137 5

Air Entrainment Goals

tiny air bubbles, uniform in size uniform dispersion in cement paste air content = 9% of mortar volume

  • ne billion bubbles per cubic yard
slide-6
SLIDE 6

CIVL 3137 7

Air Entrainment

In Roman times, ox blood was used to improve durability (though I’m not sure they knew why). Rediscovery in modern times due to accidental

  • bservation that freeze-thaw resistant sections
  • f some roads had been made with cement that

had been contaminated with beef tallow added as a grinding aid

slide-7
SLIDE 7

CIVL 3137 8

Air Entrainment

hydrophilic group(s) hydrophobic component

slide-8
SLIDE 8

CIVL 3137 9

Air Entrainment

Repulsion between negative surface charges prevents coalescence

slide-9
SLIDE 9

CIVL 3137 10

Air Entrainment

slide-10
SLIDE 10

CIVL 3137 11

Air Entrainment

slide-11
SLIDE 11

CIVL 3137 12

Chemical Admixtures

set accelerators set retarders water reducers stabilizers

slide-12
SLIDE 12
slide-13
SLIDE 13

Chemical Admixtures

  • Type A – water reducing
  • Type B – retarding
  • Type C – accelerating
  • Type D – water reducing and retarding
  • Type E – water reducing and accelerating
  • Type F – high-range water reducing (HRWR)
  • Type G – HRWR and retarding
  • Type S – specific performance admixtures

CIVL 3137 14

slide-14
SLIDE 14

CIVL 3137 15

Set Accelerators

Typically used in cold weather to reduce setting and curing times; also used to speed removal of formwork Salts (calcium chloride, sodium chloride) are cheap set accelerators but can corrode rebar and reduce resistance to sulfate attack Nitrates and nitrites are less effective and more expensive but are also non-corrosive

slide-15
SLIDE 15

CIVL 3137 16

Set Retarders

Typically used in hot weather to slow setting and curing so concrete can be finished; also used in mass pours to eliminate cold joints Sugars, starches, and cellulose derivatives are absorbed onto the surface of cement particles to delay hydration of the calcium silicates As little as 0.05% by mass will delay setting for four hours; 1% prevents setting completely

slide-16
SLIDE 16

CIVL 3137 17

Stabilizers

Lets leftover concrete be returned to plant and reused the next day Forms protective barrier around cement grains to prevent hydration of both calcium silicates and calcium aluminates for up to 72 hours Activator dissolves the protective barrier and lets setting proceed in a normal manner with no harm to the concrete

slide-17
SLIDE 17

CIVL 3137 18

Water Reducers

low-range (5-10% reduction) mid-range (10-15% reduction) high-range (15-30% reduction) “superplasticizers”

slide-18
SLIDE 18

CIVL 3137 19

How Water Reducers Work

slide-19
SLIDE 19

CIVL 3137 20

Using Superplasticizers

slide-20
SLIDE 20

CIVL 3137 21

Drawback: Slump Loss

with super without super Slump - in

slide-21
SLIDE 21

Supplementary Cementitious Materials

(Mineral Admixtures)

CIVL 3137 22

slide-22
SLIDE 22

CIVL 3137 23

Mineral Admixtures

Natural Pozzalans volcanic ash diatomaceous earth rice husk ash calcined clays Artificial Pozzalans fly ash silica fume blast furnace slag

(metakaolin)

slide-23
SLIDE 23

CIVL 3137 25

Pozzalans

pozzalan (n.) siliceous materials which by themselves have little or no cementitious value but will, in finely divided form and in the presence of moisture, chemically react with calcium hydroxide (CH) at ordinary temperatures to form compounds (CSH) that have cementing properties.

slide-24
SLIDE 24

CIVL 3137 26

Hydration Chemistry

     CS H CSH CH heat

calcium silicate water calcium silicate hydrate gel calcium hydroxide crystals

slide-25
SLIDE 25

CIVL 3137 27

True Pozzalans

silicates high specific surface usually glassy usually spherical

(high in SiO2) (fine powder) (no crystals)

slide-26
SLIDE 26

Natural Pozzolans

CIVL 3137 28

volcanic ash rice husk ash diatomaceous earth calcined clay (metakaolin)

slide-27
SLIDE 27

Fly Ash

CIVL 3137 29

slide-28
SLIDE 28

Silica Fume

CIVL 3137 30

slide-29
SLIDE 29

CIVL 3137 31

Uses of Pozzalans

Save money by replacing expensive cement Lower heat of hydration due to slow strength gain Increase sulfate resistance if low in alumina Improve workability due to spherical shape Increase strength by converting CH to CSH

slide-30
SLIDE 30

CIVL 3137 32

Effects on Strength

slide-31
SLIDE 31

CIVL 3137 35

Fly Ash

Tiny spheres of glassy silica and alumina that are electrostatically precipitated from exhaust gases given off by coal-fired power plants Anthracite = Class F fly ash Lignite = Class C fly ash

slide-32
SLIDE 32

CIVL 3137 36

Blast Furnace Slag

Formed when iron ore, coke and a flux (either limestone or dolomite) are melted together in a blast furnace to produce molten iron Air cooled slag Pelletized slag Granulated slag

slide-33
SLIDE 33

CIVL 3137 37

Blast Furnaces

slide-34
SLIDE 34

Air Cooled Slag

CIVL 3137 38

Blast furnace slag is allowed to slowly cool in air then processed through a screening and crushing plant into many sizes for use primarily as a construction aggregate. Common uses are in ready-mix concrete, precast concrete, hot mix asphalt, septic drain fields and pipe trench backfill.

http://www.nationalslag.org/blast-furnace-slag

slide-35
SLIDE 35

Air-Cooled Slag

CIVL 3137 39

slide-36
SLIDE 36

Granulated Slag

CIVL 3137 40

Granulated slag is rapidly cooled by large quantities of water to produce a sand-like granule that is primarily ground into a cement known as Ground Granulated Blast Furnace Slag (GGBS), or Type S slag cement. It is also mixed with Portland cement clinker to make a blended Type 1S cement.

http://www.nationalslag.org/blast-furnace-slag

slide-37
SLIDE 37

CIVL 3137 41

Granulated Blast Furnace Slag

slide-38
SLIDE 38

GGBFS

CIVL 3137 42

slide-39
SLIDE 39

Pelletized Slag

CIVL 3137 43

Pelletized slag is quickly cooled using water or steam to produce a lightweight

  • aggregate. Due to its reduced weight, it is

used to make lightweight concrete and as lightweight fill over marginal soils.

http://www.nationalslag.org/blast-furnace-slag

slide-40
SLIDE 40

CIVL 3137 44

Pelletized Slag

slide-41
SLIDE 41

CIVL 3137 45

Silica Fume

Tiny spheres of glassy silica electrostatically precipitated from exhaust gases given off by electric arc furnaces used to make silicon Carbon-free = white silica fume Carbonaceous = black silica fume

slide-42
SLIDE 42

CIVL 3137 46

RAW MATERIAL HANDLING AND TRANSPORT CHARGE FEED ELECTRODES RECOVERED ENERGY SILICA FUME

1

TAPPING AND REFINING

3

SOLIDIFICATION

4

CRUSHING AND SIZING OF PRODUCT

5

OFF‐GAS

2

ELECTRIC ARC FURNACE SILICON C Si02

slide-43
SLIDE 43

CIVL 3137 47

Silica Fume

4000 8000 12000 16000 10 20 30 40 50 60 Age (days) S trength (psi)

705 lb/yd3 cement 102 lb/yd3 silica fume 705 lb/yd3 cement

slide-44
SLIDE 44

CIVL 3137 48
