TrapperKeeper: The Case for Using Virtualization to Add Type Awareness to File Systems Daniel Peek Jason Flinn Facebook University of Michgan Trapper Keeper Need access to type-specific metadata Searching, Organization, Presentation

slide-1
SLIDE 1

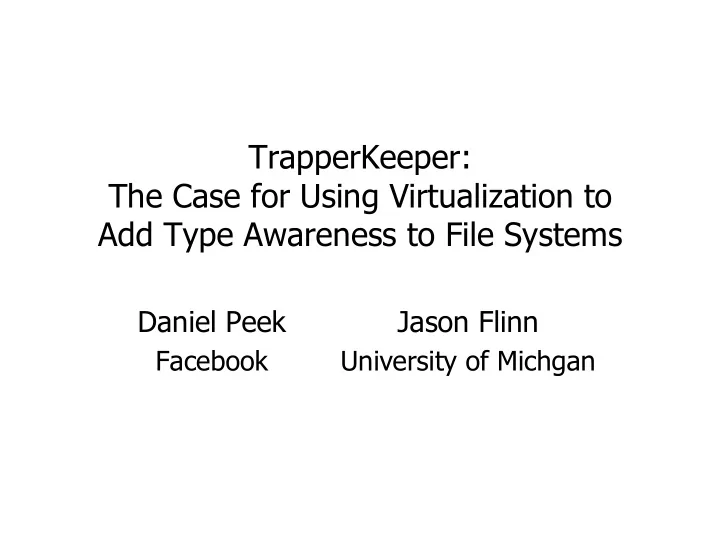

TrapperKeeper: The Case for Using Virtualization to Add Type Awareness to File Systems

Daniel Peek

Facebook

Jason Flinn

University of Michgan

slide-2
SLIDE 2

University of Michigan 2

Trapper Keeper

  • Need access to type-specific metadata

– Searching, Organization, Presentation

  • Extracting metadata is hard

– Lots of file types out there – Custom code required for each type

  • A better way to get metadata
slide-3
SLIDE 3

University of Michigan 3

The Plug-in Solution

  • Developers make plug-ins for each type

Metadata Engine JPEG Plug-in MP3 Plug-in … Metadata-Using Application Query: MP3s with Composer = Mozart

slide-4
SLIDE 4

University of Michigan 4

The Plug-in Solution

  • Lots of work for developers

Mac OS X Spotlight Metadata Preview

slide-5
SLIDE 5

University of Michigan 5

The Long Tail

  • How big is this problem?
  • Big (Agrawal et al.)
  • Uneconomical to support all types
slide-6
SLIDE 6

University of Michigan 6

The TrapperKeeper Solution

  • Already have apps that parse these files

– Apps expose information through GUI

Date Time Original = 2007:11:22 19:21:14

slide-7
SLIDE 7

University of Michigan 7

  • Once Per Application

– Trap the application

  • Once Per File

– Use trapped application to parse the file – Capture displayed output

The TrapperKeeper Process

file metadata preview …

slide-8
SLIDE 8

University of Michigan 8

Trapping Applications

  • Run app inside a VM

– Contains app effects

  • Make app open a dummy file
  • Snapshot at moment of open()

– About to execute file parsing behavior

Dummy

slide-9
SLIDE 9

University of Michigan 9

Parsing with Trapped Apps

  • Restart VM
  • Switch files

Dummy File To Parse

slide-10
SLIDE 10

University of Michigan 10

Accessibility

Window Tab Pane … Text Label: “Date Time Original” Text: “2007:11:22 19:21:14” …

slide-11
SLIDE 11

University of Michigan 11

Accessibility

Window Tab Pane … Text Label: “Date Time Original” Text: “2007:11:22 19:21:14” …

slide-12
SLIDE 12

University of Michigan 12

Guided Extraction

slide-13
SLIDE 13

University of Michigan 13

Guided Extraction

slide-14
SLIDE 14

University of Michigan 14

Guided Extraction

slide-15
SLIDE 15

University of Michigan 15

Execute Features

  • Snapshot window in VM

metadata Preview Metadata System

slide-16
SLIDE 16

University of Michigan 16

TrapperKeeper Results

  • Makes it easy to extract metadata

– No development skill – No source code – Just be able to use the application

  • Successful use

– All GUI apps in Ubuntu 7.10 in a day – Parses over 100 file types – Rate of 318 files/hour

slide-17
SLIDE 17

University of Michigan 17

Tricky Situations

  • Application has no accessibility support
  • Application does not expose metadata
  • Application needs external info to parse

– Configuration files – License servers – Internet connections

slide-18
SLIDE 18

University of Michigan 18

Tricky Situations

  • Performance: a sudden influx of files

– Fresh installation – Download from digital camera

  • Which metadata is the right metadata?
slide-19
SLIDE 19

University of Michigan 19

Questions
