ACLCA SA NEPM Asbestos Andrew Winters Background Asbestos is - - PowerPoint PPT Presentation

Jan 18, 2023 240 likes •433 views

ACLCA SA NEPM Asbestos Andrew Winters Background Asbestos is derived from the Greek word meaning unquenchable There are many types of naturally occurring asbestos minerals The serpentine group produces white asbestos

slide-1

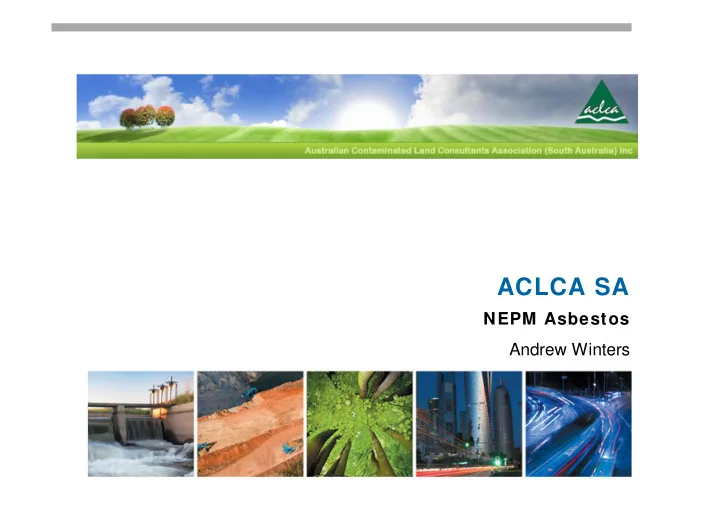

SLIDE 1

ACLCA SA

NEPM Asbestos Andrew Winters

slide-2
SLIDE 2
  • Asbestos is derived from the Greek word

meaning ‘unquenchable’

  • There are many types of naturally occurring

asbestos minerals

  • The serpentine group produces white

asbestos

  • The amphibole group produces brown and

blue asbestos

  • All three were in widespread use

throughout Australia

Background

slide-3
SLIDE 3

Background

slide-4
SLIDE 4

Literally thousands of ACM products, including:

  • asbestos cement products (1-15% w/ w)
  • vinyl tiles and backings
  • pipe and vessel insulations
  • sound insulation
  • fire rating products for ship and building structures

(fire walls, fire doors, bulkheads, etc).

Background

slide-5
SLIDE 5

One Fibre Theory not recognised by the scientific/ medical community:

  • the majority of people living in urban area, not occupationally

exposed to asbestos, can have large numbers (millions) of asbestos fibres in their lungs, yet only about 1 person per million per annum

  • f these are diagnosed with mesothelioma.
  • most mesotheliomas can be related back to at least moderate

asbestos exposures, eg. housewives washing their husbands asbestos contaminated overalls, spouses and children living in the same house as an asbestos worker, living close to an asbestos factory or shipyard, home renovations etc.

Background

slide-6
SLIDE 6
slide-7
SLIDE 7
  • ACM (bonded ACM ) bonded/ non-friable >7mm
  • Asbestos Fines (AF) non-bonded/ friable <7mm
  • Fibrous Asbestos (FA) free fibre/ bundles – may not be visible

Three Asbestos Categories

slide-8
SLIDE 8
slide-9
SLIDE 9
  • Important

OHS Framework

slide-10
SLIDE 10
slide-11
SLIDE 11

%w/ w asbestos in soil = % asbestos content x bonded ACM (kg) / soil volume (L) x soil density (kg/ L) % asbestos content (within bonded ACM ) = 15% soil density (for sandy soils) = 1.65 kg/ L

% Calculation

slide-12
SLIDE 12
  • 0.01% w/ w asbestos in soil for ACM (being asbestos in bonded ACM ) to

residential sites equivalent to land use setting HIL A. Additional criteria are provided for other land uses based on the default exposure ratios of the NEPM (1999) (0.05% industrial)

  • 0.001% w/ w asbestos in soil for FA and AF for all site uses
  • + no visible asbestos for surface soil (10cm)

Criteria

slide-13
SLIDE 13
slide-14
SLIDE 14
  • Walkover
  • Limited Sampling
  • Detailed Sampling

Field Observations and Sampling

slide-15
SLIDE 15
slide-16
SLIDE 16
  • Identifiability
  • Accountability
  • Productivity

Concluding Comments

slide-17
SLIDE 17

www.ghd.com
