ACHD Transportation-Land Use Integration Plan (Draft Findings)

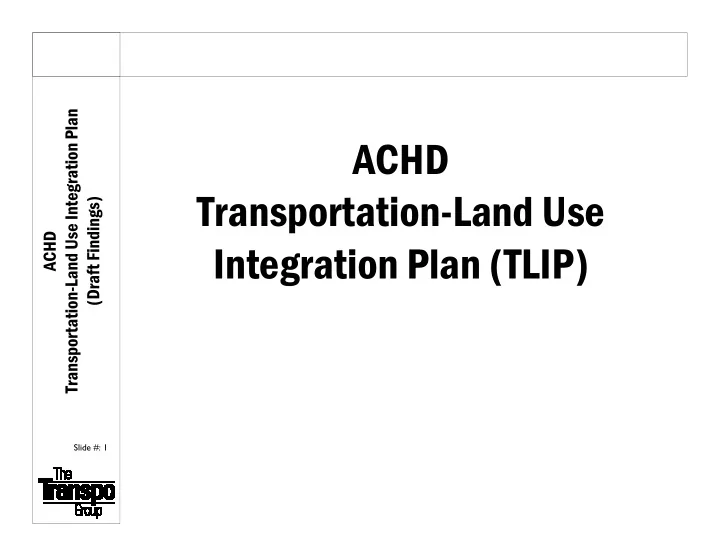

ACHD Transportation-Land Use Integration Plan (TLIP)

Variable LOS

Slide #: 2

ACHD Transportation-Land Use Integration Plan (Draft Findings)

LOS Background

The first effort by ACHD for variable LOS occurred when the impact fee program was established in the early 1990s. At that time various roadways showed the need for additional capacity in the future but a decision was made by ACHD to not alter certain roadways to accommodate capacity (accept congestion) within the Capital Improvements Plan (CIP). Examples of these were: Harrison Blvd, 6th Street, 16th Street and Jefferson Street. ACHD, with the passage of the CIP update in 2006, identified more roadways that would remain in their current configuration despite projected congestion. These were 36th Street from State to Hill and Hill Road. Additional roadways were identified as preservation only, indicating that impacts fees for widening would be collected only for corridor preservation, not construction. These were Overland Road and Franklin Road (which showed the need for 7 lanes), and Ustick from Cole to Curtis (which showed the need for 5 lanes).

Variable LOS

Slide #: 3

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Defining “Constrained” Corridors Physically Contextually Planned Downtown

Variable LOS

Slide #: 4

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Physically Constrained

Meaning there is no more room to build because of various factors (limited right-of-way, developed land use, topography).

Cartwright

from Bogus Basin to Dry Creek

36th Street

from State to Hill Rd

Variable LOS

Slide #: 5

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Contextual Constraint

Meaning the character of the area would be significantly compromised.

Harrison Boulevard Warm Springs

from Broadway to future Parkcenter crossing

Variable LOS

Slide #: 6

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Downtown Constraint

Meaning that the system is complete in a downtown area and expansion would compromise development potential and erode pedestrian level of service.

State Street

Through downtown Eagle Through downtown Meridian – Split Corridor proposed alternative

State St – Glenwood to Downtown Main & Idaho - Downtown

Front/Myrtle constructed as alternative

Variable LOS

Slide #: 7

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Planned Constraint

Purposely planned for and negotiated by appropriate parties for reasons of feasibility, economic development, land use goals, etc.

McMillan in North Meridian

to accommodate goals for neighborhood centers along the corridor to accommodate goals for neighborhood centers along the corridor

State St – Glenwood to Downtown

Bown Way

to accommodate innovative development

Variable LOS

Slide #: 8

ACHD Transportation-Land Use Integration Plan (Draft Findings)

ACHD / CIP Performance Measure Policy

Arterial Streets

Ada County Street Capacity Guidelines

Arterial Class Lanes C D E

ACHD Principal Arterials

No Left-Turn lane 1 *** 550 690 Continuous Center Left-Turn Lane 1 270 750 880 2 590 1600 1770 3 890 2440 2660 Median Control, Channelized Left-Turn Lanes @ Major Intersections 1 280 790 920 2 620 1680 1860 3 930 2560 2790

ACHD Minor Arterials

No Left-Turn lane 1 *** 550 690 Unrestricted Median, Continuous Center Left-Turn Lane 1 270 720 880 2 590 1540 1770 3 890 2370 2660 Median Control, Channelized Left-Turn Lanes @ Major Intersections 1 280 760 920 2 620 1620 1860 3 930 2490 2790 Level of Service HOURLY VOLUME - PEAK

Variable LOS

Slide #: 9

ACHD Transportation-Land Use Integration Plan (Draft Findings)

ACHD / CIP Performance Measure Policy

Intersections

Table C-5: Intersection Capacity and Analysis Methods

Defined Parameters1 Policy Threshold Sat. Flow. (vphpl) Cycle Length (sec) Min. Left (sec) Lost Time (sec) PHF Capacity: LOS “D” = V/C .90 LOS “E” = 1.00 Method: Intersection v/c = 0.90; AND Lane Group v/c = 1.00 1,900 150 20 3 0.90 Defined parameters are: saturation flow-rate; signal cycle length, minimum left-turn phasing, lost time per phase, and peak hour factor.

Variable LOS

Slide #: 10

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Blueprint Tiers (working finding ?)

C D E

Variable LOS

Slide #: 11

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Example: Regional Performance Measures

MOTOR VEHICLE PERFORMANCE MEASURES

Peak Period (one- or two-hour) Level Of Service (LOS) Volume-to-Capacity (V/C)

Jurisdiction

Wilsonville Policy (TSP)

D Possible Exceptions E Lake Oswego

E .90 -.99 Tigard

E .90 -.99 Tualatin Town Center / 2040

F

E Other

E

E Washington County

Main Streets

E 0.99

E 0.99

D 0.90

E 0.99 Urban area

D 0.90

E 0.99

D 0.90

D 0.90 METRO RTP - Town Center Mid-Day

C

E 2-Hour AM or PM Peak Period

E

E

F

E ODOT (1999 OHP)

0.90

Motor Vehicle Performance Measures are a technical expresion of the jurisdiction's policy on livability.

Variable LOS

Slide #: 12

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Defining Level-Of-Service

Roadway Level of Service. This is a measure of roadway congestion ranging from… LOS A--least congested -- to LOS F--most congested. LOS is one of the most common terms used to describe how "good" or how "bad" traffic is projected to be. LOS serves as a benchmark to determine whether new development will comply with an existing LOS or if it will exceed the preferred or adopted LOS. Typical Policy Threshold: LOS D

Variable LOS

Slide #: 13

ACHD Transportation-Land Use Integration Plan (Draft Findings)

MOTOR VEHICLE PERFORMANCE MEASURES

Peak Period (one- or two-hour) Level Of Service (LOS) Volume-to-Capacity (V/C)

Jurisdiction

Wilsonville Policy (TSP)

1-Hour Period

D Possible Exceptions E Lake Oswego

1-Hour Period

E .90 -.99 Tigard

1-Hour Period

E .90 -.99 Tualatin Town Center / 2040

1st Hr

F

2nd Hr

E Other

1st Hr

E

2nd Hr

E Washington County

(AM or PM peak period)

Main Streets

2- Hour Period 1st Hr Target

E 0.99

Acceptable

E 0.99

2nd Hr Target

D 0.90

Acceptable

E 0.99 Urban area

2- Hour Period 1st Hr Target

D 0.90

Acceptable

E 0.99

2nd Hr Target

D 0.90

Acceptable

D 0.90 METRO RTP - Town Center Mid-Day

Preferred

C

Acceptable

E 2-Hour AM or PM Peak Period

Preffered 1st Hr

E

2nd Hr

E

Acceptable 1st Hr

F

2nd Hr

E ODOT (1999 OHP)

Freeway (ramps) 2-Hour

0.90

Boones Ferry Rd, Elligsen Rd & Wilsonville Road (Boones Ferry - Town Center Loop W)

Example: Regional Performance Measures

Variable LOS

Slide #: 14

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Example: Minor Arterials in Portland UGA

Variable LOS

Slide #: 15

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Examples from Portland / Metro

Variable LOS

Slide #: 16

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Traffic Volumes

Variable LOS

Slide #: 17

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Bridgeport Road: Minor Arterial – Urban Street

Variable LOS

Slide #: 18

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Nyberg Road: Minor Arterial – Regional Boulevard

Variable LOS

Slide #: 19

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Wilsonville Road: Minor Arterial – Regional Street

Variable LOS

Slide #: 20

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Wilsonville Road: Minor Arterial – Regional Street

Variable LOS

Slide #: 21

ACHD Transportation-Land Use Integration Plan (Draft Findings)

Expected TLIP Products

Street Funct. Classification Policy w/ Map Livable Street Standards w/ Typology Revised LOS Policy & Thresholds Corridor Preservation Plan & Map Access Management Policy & Plan Blueprint for Good Growth

Local Adoption through

Variable LOS

Slide #: 22

ACHD Transportation-Land Use Integration Plan (Draft Findings)

TLIP / Blueprint Coordination

Tasks

Street Functional Classification & Livable Street Workshops Future Land Use Plans & Policies - Growth Tier System Testing Collector Street Connectivity Impacts on Arterial Streets

City & Impact Area Tiers Regional and Community Activity Centers

Testing Street Level of Service/Performance Measures

Transit Corridors

Products Revised Long-Range Streets Plan

Non-Arterial Street Needs & Costs Revised Street Functional Classification Map & Policy w/ Typologies Revised "Livable" Street Standards* Local Plans & Polcies Corridor Preservation and Access Management Plan Transit-Oriented Design Standards Revised Neighborhood Traffic Management Plan & Policies Local Land Use Plan Refinement Revised LOS Policy and Threshold(s)* (map & table) Adequate Public Facilities Standard - Concurrency Requirements
