Accurate Methods for Computing High Mach Number Reactive Flow - PowerPoint PPT Presentation

Mar 02, 2023 •302 likes •1.43k views

Accurate Methods for Computing High Mach Number Reactive Flow Matthew J. Zahr and Joseph M. Powers Department of Aerospace and Mechanical Engineering University of Notre Dame, USA Lawrence Livermore National Laboratory Livermore, California

  1. Reaction zone structure normal to shock 3 ρ (kg/ m ) λ 1 4 0.8 a) 3 b) 0.6 2 0.4 1 0.2 X (m) 4 X (m) 0.0 0 -1 0 1 2 3 4 -1 0 1 2 3 T(K) MX 600 3 500 c) 2 d) 400 1 300 X (m) X (m) 200 0 -1 0 1 2 3 4 -1 0 1 2 3 4 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 18 / 62

  2. Exact solution: streamlines y (m) straight oblique 4 shock, β = π / 4 3 Curved streamlines identical to wedge contour. 2 9 . 0 ~ λ Streamline curvature approaches zero as reaction 1 curved completes. wedge 0 x (m) 0 1 2 3 4 Powers and Aslam, AIAA Journal , 2006. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 19 / 62

  3. Reaction zone structure normal to shock 3 ρ (kg/ m ) λ 1 4 0.8 a) 3 b) 0.6 2 0.4 1 0.2 X (m) 4 X (m) 0.0 0 -1 0 1 2 3 4 -1 0 1 2 3 T(K) MX 600 3 500 c) 2 d) 400 1 300 X (m) X (m) 200 0 -1 0 1 2 3 4 -1 0 1 2 3 4 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 20 / 62

  4. Verification of WENO shock capturing Algorithm of Xu, Aslam, and Stewart, 1997, CTM . Uniform Cartesian grid. Embedded internal boundary with level set representation. Nominally fifth order weighted essentially non-oscillatory (WENO) discretization. Non-decomposition based Lax-Friedrichs solver. Third order Runge-Kutta time integration. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 21 / 62

  5. Exact versus WENO solution y (m) 2.0 ρ = 2.9 kg/m 3 exact ρ = 2.6 kg/m 3 1.5 numerical ρ = 2.3 kg/m 3 256 × 256 uniform numerical grid. 1.0 ρ = 2.0 kg/m 3 good agreement in picture 0.5 norm. 0.0 x (m) numerical solution stable. 0.0 0.5 1.0 1.5 Powers and Aslam, AIAA Journal , 2006. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 22 / 62

  6. Iterative convergence to steady state: various grids L (kg/m) 1 10 64 x 64 Coarse grids relax quickly; fine 128 x 128 256 x 256 1 512 x 512 grids relax slowly. 1024 x 1024 All grids iteratively converge 0.1 to steady state. Iterative convergence is 0.01 t (s) 0 0.002 0.004 0.006 0.008 0.01 distinct from grid convergence. Powers and Aslam, AIAA Journal , 2006. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 23 / 62

  7. Grid convergence L (kg/m) 1 1 ∆ x 0 . 779 � � Convergence rate: O . 0.1 Both shock capturing and embedded boundary induce the low convergence rate. 0.01 ∆ x (m) 0.001 0.01 0.1 Powers and Aslam, AIAA Journal , 2006. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 24 / 62

  8. Conclusions Modeling flows with thin zones and surfaces of discontinuity is challenging. Most common shock-capturing methods converge at less than first order. Heroic measures are often needed to achieve high order convergence Implicit shock tracking...... LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 25 / 62

  9. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  10. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  11. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  12. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  13. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  14. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  15. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  16. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  17. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  18. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  19. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  20. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  21. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  22. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  23. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  24. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  25. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  26. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  27. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  28. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  29. High-order implicit tracking: reacting inviscid flow Original mesh: 100 triangular elements (unstructured) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 26 / 62

  30. Reacting inviscid flow: density ( ρ ) p = q = 1 p = q = 2 p = q = 3 p : polynomial degree of solution q : polynomial degree of mesh LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 27 / 62

  31. Reacting inviscid flow: density ( ρ ) p = q = 1 p = q = 2 p = q = 3 p : polynomial degree of solution q : polynomial degree of mesh LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 27 / 62

  32. Reacting inviscid flow: reaction progress ( λ ) p = q = 1 p = q = 2 p = q = 3 p : polynomial degree of solution q : polynomial degree of mesh LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 28 / 62

  33. Isolines of density indicate excellent agreement with analytical solution on coarse ( 100 element) mesh for p > 1 2 shock ρ = 2 . 9 Analytical ( ) ρ = 2 . 6 p = 1 ( ) ρ = 2 . 3 1 . 5 p = 2 ( ) p = 3 ( ) x 2 ρ = 2 1 0 . 5 0 − 0 . 20 0 . 5 1 1 . 5 1 . 9 x 1 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 29 / 62

  34. Implicit shock tracking recovers optimal O ( h p +1 ) convergence rates; compares favorably to WENO 10 − 1 L 1 error ( ρ ) 10 − 2 10 − 3 10 − 4 10 − 2 10 − 1 mesh size parameter ( h ) WENO ( ), p = 1 ( ), p = 2 ( ), p = 3 ( ) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 30 / 62

  35. Implicit shock tracking Goal: Align element faces with (unknown) discontinuities to perfectly capture them and approximate smooth regions to high-order DG discretization: inter-element jumps, high-order Discontinuity-aligned mesh is the solution of an optimization problem constrained by the discrete PDE = ⇒ implicit tracking Simultaneously converge solution and mesh to ensure solution of PDE never required on non-aligned mesh LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 31 / 62

  36. Implicit shock tracking Goal: Align element faces with (unknown) discontinuities to perfectly capture them and approximate smooth regions to high-order DG discretization: inter-element jumps, high-order Discontinuity-aligned mesh is the solution of an optimization problem constrained by the discrete PDE = ⇒ implicit tracking Simultaneously converge solution and mesh to ensure solution of PDE never required on non-aligned mesh LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 31 / 62

  37. Discontinuous Galerkin discretization of conservation law Inviscid conservation law: ∇ · F ( U ) = 0 in Ω Test V h,p ′ and trial V h,p spaces, where h is the mesh size and p/p ′ is the polynomial degree, to define the finite-dimensional DG residual: � � ψ + h,p ′ · H ( U + r K h,p , U − h,p ′ ( U h,p ) := F ( U h,p ) : ∇ ψ h,p ′ dV h,p , n ) dS − ∂K K Introduce basis for polynomial spaces to obtain discrete residuals ( p ′ = p ) , ( p ′ = p + 1) , r ( u , x ) R ( u , x ) where u is the discrete state vector and x are the coordinates of the mesh nodes. The “standard” DG equations are: r ( u , x ) = 0 . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 32 / 62

  38. Discontinuous Galerkin discretization of conservation law Inviscid conservation law: ∇ · F ( U ) = 0 in Ω Test V h,p ′ and trial V h,p spaces, where h is the mesh size and p/p ′ is the polynomial degree, to define the finite-dimensional DG residual: � � ψ + h,p ′ · H ( U + r K h,p , U − h,p ′ ( U h,p ) := F ( U h,p ) : ∇ ψ h,p ′ dV h,p , n ) dS − ∂K K Introduce basis for polynomial spaces to obtain discrete residuals ( p ′ = p ) , ( p ′ = p + 1) , r ( u , x ) R ( u , x ) where u is the discrete state vector and x are the coordinates of the mesh nodes. The “standard” DG equations are: r ( u , x ) = 0 . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 32 / 62

  39. Discontinuous Galerkin discretization of conservation law Inviscid conservation law: ∇ · F ( U ) = 0 in Ω Test V h,p ′ and trial V h,p spaces, where h is the mesh size and p/p ′ is the polynomial degree, to define the finite-dimensional DG residual: � � ψ + h,p ′ · H ( U + r K h,p , U − h,p ′ ( U h,p ) := F ( U h,p ) : ∇ ψ h,p ′ dV h,p , n ) dS − ∂K K Introduce basis for polynomial spaces to obtain discrete residuals ( p ′ = p ) , ( p ′ = p + 1) , r ( u , x ) R ( u , x ) where u is the discrete state vector and x are the coordinates of the mesh nodes. The “standard” DG equations are: r ( u , x ) = 0 . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 32 / 62

  40. Implicit shock tracking: constrained optimization We formulate the problem of tracking discontinuities with the mesh as the solution of an optimization problem constrained by the discrete PDE (DG discretization) minimize f ( u , x ) u , x subject to r ( u , x ) = 0 . We propose an objective function that balances the tracking objective with maintaining a high-quality mesh 2 R ( u , x ) T R ( u , x ) + κ 2 f ( u , x ) = 1 2 R msh ( x ) T R msh ( x ) . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 33 / 62

  41. Implicit shock tracking: constrained optimization We formulate the problem of tracking discontinuities with the mesh as the solution of an optimization problem constrained by the discrete PDE (DG discretization) minimize f ( u , x ) u , x subject to r ( u , x ) = 0 . We propose an objective function that balances the tracking objective with maintaining a high-quality mesh 2 R ( u , x ) T R ( u , x ) + κ 2 f ( u , x ) = 1 2 R msh ( x ) T R msh ( x ) . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 33 / 62

  42. Implicit shock tracking: SQP solver Define z = ( u , x ) and use interchangeably. To solve the optimization problem, we define a sequence { z k } updated as z k +1 = z k + α k ∆ z k . The step direction ∆ z k is defined as the solution of the quadratic program (QP) approximation of the tracking problem centered at z k g z ( z k ) T ∆ z + 1 2∆ z T B ( z k , ˆ minimize λ ( z k ))∆ z ∆ z ∈ R N z subject to r ( z k ) + J z ( z k )∆ z = 0 , where B z ( z , λ ) ≈ ∂ 2 L g z ( z ) = ∂f J z ( z ) = ∂ r ∂ z ( z ) T , ∂ z ( z ) , ∂ z ∂ z ( z , λ ) , λ ( z ) = ∂ r ∂ u ( z ) − T ∂f L ( z , λ ) = f ( z ) − λ T r ( z ) , ∂ u ( z ) T . ˆ LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 34 / 62

  43. Implicit shock tracking: SQP solver Define z = ( u , x ) and use interchangeably. To solve the optimization problem, we define a sequence { z k } updated as z k +1 = z k + α k ∆ z k . The step direction ∆ z k is defined as the solution of the quadratic program (QP) approximation of the tracking problem centered at z k g z ( z k ) T ∆ z + 1 2∆ z T B ( z k , ˆ minimize λ ( z k ))∆ z ∆ z ∈ R N z subject to r ( z k ) + J z ( z k )∆ z = 0 , where B z ( z , λ ) ≈ ∂ 2 L g z ( z ) = ∂f J z ( z ) = ∂ r ∂ z ( z ) T , ∂ z ( z ) , ∂ z ∂ z ( z , λ ) , λ ( z ) = ∂ r ∂ u ( z ) − T ∂f L ( z , λ ) = f ( z ) − λ T r ( z ) , ∂ u ( z ) T . ˆ LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 34 / 62

  44. Practical considerations: element collapse Despite measures to keep mesh well-conditioned, best option may be to remove element from the mesh: tag elements for removal based on volume, collapse shortest edge, trivial DG solution transfer Only meshing operation required by implicit shock tracking Simplices: arbitrary dimensions, arbitrary polynomial degree LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 35 / 62

  45. Practical considerations: element collapse Despite measures to keep mesh well-conditioned, best option may be to remove element from the mesh: tag elements for removal based on volume, collapse shortest edge, trivial DG solution transfer Only meshing operation required by implicit shock tracking Simplices: arbitrary dimensions, arbitrary polynomial degree LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 35 / 62

  46. Linear advection, straight shock p = 0 space for solution, q = 1 space for mesh L 1 error = 3 . 84 × 10 − 11 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 36 / 62

  47. Newton-like convergence when solution lies in DG space Linear advection with straight shock 10 0 Solver convergence 10 − 4 10 − 8 10 − 12 10 − 16 0 2 4 6 8 10 Iteration � � � ∇ x L ( z , ˆ � r ( z ) � ( ), � R ( z ) � ( ), λ ( z )) � ( ) � � LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 37 / 62

  48. Linear advection, trigonometric shock p = 0 space for solution, q = 2 space for mesh L 1 error = 1 . 15 × 10 − 3 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 38 / 62

  49. Linear advection, trigonometric shock, 3D LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 39 / 62

  50. Linear advection, trigonometric shock, 3D LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 39 / 62

  51. Inviscid Burgers’ equation: space-time formulation p = 0 space for solution, q = 3 space for mesh LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 40 / 62

  52. Temporal snapshots show discontinuity perfectly represented, smooth solution well-approximated elsewhere 2 1 . 5 U ( x, t ) 1 0 . 5 0 − 1 − 0 . 8 − 0 . 6 − 0 . 4 − 0 . 2 0 0 . 2 0 . 4 0 . 6 0 . 8 1 x Temporal snapshots of inviscid Burgers’ equation from p = 4 implicit tracking simulation LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 41 / 62

  53. Supersonic flow past NACA0012 airfoil ( M = 1 . 5 ) Initialization p = 1 tracking p = 2 tracking e H = 1 . 30 × 10 − 3 e H = 6 . 73 × 10 − 5 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 42 / 62

  54. Supersonic flow past NACA0012 airfoil ( M = 1 . 5 ) Initialization p = 1 tracking p = 2 tracking e H = 1 . 30 × 10 − 3 e H = 6 . 73 × 10 − 5 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 42 / 62

  55. Spatial slices show both discontinuities are tracked and solution well-approximated elsewhere 2 . 5 1 . 6 2 1 . 4 2 M 1 . 5 ρ P 1 . 2 1 . 5 1 1 1 0 . 8 − 0 . 5 0 0 . 5 1 1 . 5 − 0 . 5 0 0 . 5 1 1 . 5 − 0 . 5 0 0 . 5 1 1 . 5 x x x Spatial slice of supersonic flow past NACA0012 airfoil ( M = 1 . 5 ) from p = 3 implicit tracking simulation LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 43 / 62

  56. High-order, implicit shock tracking Primary benefit : highly accurate solutions on coarse meshes, recover optimal convergence rates Traditional barrier to tracking (explicitly meshing unknown discontinuity surface) replaced with solving constrained optimization problem Future extensions: 3D, viscous, time-dependent, model reduction , hypersonics Zahr, Shi, Persson, Journal of Computational Physics , 2020. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 44 / 62

  57. Implicit shock tracking for hypersonics applications Strong local features : shock waves and contact discontinuities Improved solver robustness (time-stepping, vanishing viscosity) Viscous effects : thin boundary layer, critical to predict heating Extension to viscous problems straightforward Expect r -adaptivity near boundary layer to improve approximation Interacting features : shock/shock and shock/boundary layer Handled by optimization formulation and element collapse Unsteady : prediction of combustion stability Slab-based space-time formulation (moving features) Method-of-lines-based formulation (stationary features) Multi-scale/physics : turbulence, ablation, conjugate heat transfer Clip objective function to avoid tracking all turbulent features Integrate in partitioned multiphysics setting LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 45 / 62

  58. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  59. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  60. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  61. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  62. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) Proposed solution apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  63. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) Proposed solution apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  64. Reduction of parametrized discontinuities Fundamental issue: linear subspace approximation ill-suited for advection- dominated features (slowly decay Kolmogorov n -width) Proposed solution apply parameter-dependent domain mapping to align features use linear subspace in reference domain to reduce dimension push forward to physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 46 / 62

  65. Numerical experiment: parametrized linear advection The governing parametrized conservation law is in Ω := (0 , 1) 2 ∇ · ( β µ U ) + σ µ U = f µ U = ˆ U µ on Γ i := { x ∈ ∂ Ω | β µ · n < 0 } µ 1 : shock angle ( β µ ) µ 2 : magnitude of source term ( σ µ ) µ 3 : magnitude of boundary condition ( ˆ U µ ) LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 47 / 62

  66. Optimization-based alignment of discontinuities in reference domain (similar to implicit shock tracking) Snapshot 1 Physical domain Reference domain The blue line indicates the true orientation of the discontinuity in the physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 48 / 62

  67. Optimization-based alignment of discontinuities in reference domain (similar to implicit shock tracking) Snapshot 5 Physical domain Reference domain The blue line indicates the true orientation of the discontinuity in the physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 48 / 62

  68. Optimization-based alignment of discontinuities in reference domain (similar to implicit shock tracking) Snapshot 6 Physical domain Reference domain The blue line indicates the true orientation of the discontinuity in the physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 48 / 62

  69. With feature alignment, POD modes do not have to resolve moving discontinuity since it is (mostly) fixed Mode 1 Mode 2 Mode 3 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 49 / 62

  70. Without feature alignment, POD modes must resolve moving discontinuity, which leads to slowly decaying Kolmogorov n -width Mode 1 Mode 2 Mode 3 LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 50 / 62

  71. Alignment framework leads to reduction in error for discontinuities not encountered during training Test point 96 (discontinuity not in training) ROM (aligned) ROM (non-aligned) HDM The blue line indicates the true orientation of the discontinuity in the physical domain LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 51 / 62

  72. Alignment framework leads to reduction in error for discontinuities not encountered during training Testing set Maximum error Mean error discontinuity in training 0.92% 0.45% discontinuity not in training 26.5% 19.5% Classical minimum-residual model reduction Testing set Maximum error Mean error discontinuity in training 2.61% 1.22% discontinuity not in training 4.18% 3.31% Minimum-residual model reduction with feature alignment Parameters: 12 training, 125 testing LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 52 / 62

  73. Appendix LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 53 / 62

  74. Implicit shock tracking: SQP solver The solution of the QP leads to the following linear system B uu ( z k , ˆ B ux ( z k , ˆ J u ( z k ) T       λ ( z k )) λ ( z k )) ∆ u k g u ( z k ) B ux ( z k , ˆ B xx ( z k , ˆ  = −  , λ ( z k )) T J x ( z k ) T ∆ x k g x ( z k ) λ ( z k ))     η k r ( z k ) J u ( z k ) J x ( z k ) 0 where g � ( z ) = ∂f J � ( z ) = ∂ r ∂ � ( z ) T , ∂ � ( z ) , the approximate Hessian of the Lagrangian is partitioned as ∂ 2 L B � △ ( z , λ ) ≈ ∂ � ∂ △ ( z , λ ) , and η k are the Lagrange multipliers of the QP. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 54 / 62

  75. SQP solver: Levenberg-Marquardt Hessian approximation The proposed objective function takes the form of a residual norm � � f ( z ) = 1 R ( z ) 2 � F ( z ) � 2 2 , F ( z ) = κ R msh ( x ) and therefore the Hessian of the Lagrangian has the special structure ∂ z ( z ) + F i ( z ) ∂ 2 F i ∂ 2 r i H ( z , λ ) = ∂ F ∂ z ( z ) T ∂ F ∂ z ∂ z ( z ) − λ i ∂ z ∂ z ( z ) The last two terms are dropped: they are difficult to compute and neg- ligible if the � F � and � λ � are small (Gauss-Newton approximation) H ( z , λ ) ≈ ∂ F ∂ z ( z ) T ∂ F ∂ z ( z ) To guard against ill-conditioning, a regularization matrix is added T ∂ F T ∂ F T ∂ F B uu = ∂ F B ux = ∂ F B xx = ∂ F ∂ u , ∂ x , ∂ x + γ D . ∂ u ∂ u ∂ x LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 55 / 62

  76. SQP solver: Levenberg-Marquardt Hessian approximation The proposed objective function takes the form of a residual norm � � f ( z ) = 1 R ( z ) 2 � F ( z ) � 2 2 , F ( z ) = κ R msh ( x ) and therefore the Hessian of the Lagrangian has the special structure ∂ z ( z ) + F i ( z ) ∂ 2 F i ∂ 2 r i H ( z , λ ) = ∂ F ∂ z ( z ) T ∂ F ∂ z ∂ z ( z ) − λ i ∂ z ∂ z ( z ) The last two terms are dropped: they are difficult to compute and neg- ligible if the � F � and � λ � are small (Gauss-Newton approximation) H ( z , λ ) ≈ ∂ F ∂ z ( z ) T ∂ F ∂ z ( z ) To guard against ill-conditioning, a regularization matrix is added T ∂ F T ∂ F T ∂ F B uu = ∂ F B ux = ∂ F B xx = ∂ F ∂ u , ∂ x , ∂ x + γ D . ∂ u ∂ u ∂ x LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 55 / 62

  77. SQP solver: Levenberg-Marquardt Hessian approximation The proposed objective function takes the form of a residual norm � � f ( z ) = 1 R ( z ) 2 � F ( z ) � 2 2 , F ( z ) = κ R msh ( x ) and therefore the Hessian of the Lagrangian has the special structure ∂ z ( z ) + F i ( z ) ∂ 2 F i ∂ 2 r i H ( z , λ ) = ∂ F ∂ z ( z ) T ∂ F ∂ z ∂ z ( z ) − λ i ∂ z ∂ z ( z ) The last two terms are dropped: they are difficult to compute and neg- ligible if the � F � and � λ � are small (Gauss-Newton approximation) H ( z , λ ) ≈ ∂ F ∂ z ( z ) T ∂ F ∂ z ( z ) To guard against ill-conditioning, a regularization matrix is added T ∂ F T ∂ F T ∂ F B uu = ∂ F B ux = ∂ F B xx = ∂ F ∂ u , ∂ x , ∂ x + γ D . ∂ u ∂ u ∂ x LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 55 / 62

  78. Practical considerations: regularization matrix D The mesh regularization matrix D is taken as the stiffness matrix of the linear elliptic PDE ∇ · ( k ∇ v i ) = 0 in Ω for i = 1 , . . . , d . The coefficient is constant over each element and in- versely proportional to the element volume | K ′ | min K ′ ∈E h,q k ( x ) = , x ∈ K | K | for each element K in the mesh T : critical to maintain well-conditioned search directions for meshes where element size varies significantly. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 56 / 62

  79. Practical considerations: regularization matrix D The mesh regularization matrix D is taken as the stiffness matrix of the linear elliptic PDE ∇ · ( k ∇ v i ) = 0 in Ω for i = 1 , . . . , d . The coefficient is constant over each element and in- versely proportional to the element volume | K ′ | min K ′ ∈E h,q k ( x ) = , x ∈ K | K | for each element K in the mesh T : critical to maintain well-conditioned search directions for meshes where element size varies significantly. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 56 / 62

  80. SQP solver: step length ( α k ) The step length, α k ∈ (0 , 1] , is selected using a backtracking line search to ensure sufficient decrease of a merit function ϕ k : R → R ϕ k ( α k ) ≤ ϕ k (0) + cα k ϕ ′ k (0) , c ∈ (0 , 1) . We use the ℓ 1 merit function ϕ k ( α ) := f ( z k + α ∆ z k ) + µ � r ( z k + α ∆ z k ) � 1 � � � ˆ where µ > λ ( z k ) ∞ because it is “exact”, i.e., any minimizer of the � � � original optimization problem is a minimizer of ϕ k . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 57 / 62

  81. SQP solver: step length ( α k ) The step length, α k ∈ (0 , 1] , is selected using a backtracking line search to ensure sufficient decrease of a merit function ϕ k : R → R ϕ k ( α k ) ≤ ϕ k (0) + cα k ϕ ′ k (0) , c ∈ (0 , 1) . We use the ℓ 1 merit function ϕ k ( α ) := f ( z k + α ∆ z k ) + µ � r ( z k + α ∆ z k ) � 1 � � � ˆ where µ > λ ( z k ) ∞ because it is “exact”, i.e., any minimizer of the � � � original optimization problem is a minimizer of ϕ k . LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 57 / 62

  82. Practical considerations: termination criteria The termination criteria for the solver is based on the Karush-Kuhn- Tucker (KKT) conditions: z ⋆ is a solution if there exist Lagrange multi- pliers λ ⋆ such that ∇ u L ( z ⋆ , λ ⋆ ) = 0 , ∇ x L ( z ⋆ , λ ⋆ ) = 0 , r ( z ⋆ ) = 0 Our choice for the Lagrange multiplier estimate ˆ λ ( z ) ensures ∇ u L ( z , ˆ λ ( z )) = 0 and therefore termination is based on the remaining KKT conditions � � � ∇ x L ( z , ˆ λ ( z )) � < ǫ 1 , � r ( z ) � < ǫ 2 , � � where ǫ 1 , ǫ 2 > 0 are convergence tolerances. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 58 / 62

  83. Practical considerations: termination criteria The termination criteria for the solver is based on the Karush-Kuhn- Tucker (KKT) conditions: z ⋆ is a solution if there exist Lagrange multi- pliers λ ⋆ such that ∇ u L ( z ⋆ , λ ⋆ ) = 0 , ∇ x L ( z ⋆ , λ ⋆ ) = 0 , r ( z ⋆ ) = 0 Our choice for the Lagrange multiplier estimate ˆ λ ( z ) ensures ∇ u L ( z , ˆ λ ( z )) = 0 and therefore termination is based on the remaining KKT conditions � � � ∇ x L ( z , ˆ λ ( z )) � < ǫ 1 , � r ( z ) � < ǫ 2 , � � where ǫ 1 , ǫ 2 > 0 are convergence tolerances. LLNL Virtual Seminar Accurate CFD for Shocks 24 June 2020 58 / 62

Download Presentation
Download Policy: The content available on the website is offered to you 'AS IS' for your personal information and use only. It cannot be commercialized, licensed, or distributed on other websites without prior consent from the author. To download a presentation, simply click this link. If you encounter any difficulties during the download process, it's possible that the publisher has removed the file from their server.

Recommend

On Godunov type schemes accurate at any Mach number ephane Dellacherie 1 , 3 St In

On Godunov type schemes accurate at any Mach number ephane Dellacherie 1 , 3 St In

CANUM 2011, Guidel, France . On Godunov type schemes accurate at any Mach number ephane Dellacherie 1 , 3 St In collaboration with P. Omnes 1 , 3 and P.A. Raviart 2 , 3 1 CEA-Saclay 2 Universit e Paris 6 3 LRC-Manon, LJLL, Paris 6 May 25

738 views • 36 slides
Asymptotically accurate high-order space and time schemes for the Euler system in the low Mach

Asymptotically accurate high-order space and time schemes for the Euler system in the low Mach

Asymptotically accurate high-order space and time schemes for the Euler system in the low Mach regime Victor Michel-Dansac SHARK-FV, 15-19 May 2017 Giacomo Dimarco, Univ. of Ferrara, Italy Raphal Loubre, Univ. of Bordeaux, CNRS, France

523 views • 29 slides
A Quick Look At Low Mach Number Methodology Ann Almgren Center for Computational Sciences and

A Quick Look At Low Mach Number Methodology Ann Almgren Center for Computational Sciences and

A Quick Look At Low Mach Number Methodology Ann Almgren Center for Computational Sciences and Engineering Lawrence Berkeley National Laboratory asalmgren@lbl.gov July 26, 2011 lab-logo Almgren, LBNL Low Mach Number Low Mach Number: Why?

168 views • 6 slides
Surfing and Drift Acceleration of Surfing and Drift Acceleration of Electrons at High Mach Number

Surfing and Drift Acceleration of Surfing and Drift Acceleration of Electrons at High Mach Number

Surfing and Drift Acceleration of Surfing and Drift Acceleration of Electrons at High Mach Number Quasi- Electrons at High Mach Number Quasi- Perpendicular Shocks Perpendicular Shocks T. Amano [1] , M. Hoshino [2] [1] STEL, Nagoya University

305 views • 14 slides
Accurate Methods for the Statistics of Surprise and Coincidence Ted Dunning Computing Research

Accurate Methods for the Statistics of Surprise and Coincidence Ted Dunning Computing Research

Accurate Methods for the Statistics of Surprise and Coincidence Ted Dunning Computing Research Laboratory New Mexico State University Las Cruces, NM 88003-0001 ABSTRACT Much work has been done on the statistical analysis of text. In some

472 views • 18 slides
Low Mach number limit for the compressible viscous MHD equations Fucai LI Nanjing University

Low Mach number limit for the compressible viscous MHD equations Fucai LI Nanjing University

Low Mach number limit for the compressible viscous MHD equations Fucai LI Nanjing University Based on joint works with S. Jiang, Q.-C. Ju, and Z.-P. Xin 25-6-2012 1 / 37 The goal of Low Mach number limit: derive incompressible (slightly

542 views • 37 slides
A Reproducible Accurate Summation Algorithm for High-Performance Computing Sylvain Collange 1 ,

A Reproducible Accurate Summation Algorithm for High-Performance Computing Sylvain Collange 1 ,

A Reproducible Accurate Summation Algorithm for High-Performance Computing Sylvain Collange 1 , David Defour 2 , Stef Graillat 4 , and Roman Iakymchuk 3 , 4 1 INRIA Centre de recherche Rennes Bretagne Atlantique 2 DALILIRMM, Universit

708 views • 33 slides
1 Mach Overview Mach Overview Mach Mach Mach is more general than NT in that objects named by

1 Mach Overview Mach Overview Mach Mach Mach is more general than NT in that objects named by

Reconsidering the Kernel Interface Reconsidering the Kernel Interface Mach and NT are representative of systems that seek to provide richer, more general kernel interfaces than Unix. decouple elements of process abstraction OS Structure and

256 views • 4 slides
.,. .- ticles these small black dots which makes the microstructure appear grey In this

.,. .- ticles these small black dots which makes the microstructure appear grey In this

~ ~ ~ , HIGH T!MPERATURE MATERIAI.B '&quot; The problems associated with the achievement of high mach number flight are ... being discussed t~ in several of the exhibits. I would like to consider on of these problema, the materials problem.

676 views • 9 slides
ESTIMATION OF CRITICAL MACH NUMBER AE-705 Introduction to Flight Tutorial-05 Consider the NACA

ESTIMATION OF CRITICAL MACH NUMBER AE-705 Introduction to Flight Tutorial-05 Consider the NACA

Question No 1 ESTIMATION OF CRITICAL MACH NUMBER AE-705 Introduction to Flight Tutorial-05 Consider the NACA 0012 airfoil and its C p distribution @ AoA = 0 These are low-speed values measured in a wind tunnel at Re = 3.65 million Estimate M

120 views • 11 slides
On a low Mach number limit for Supernovae Donatella Donatelli joint work with E. Feireisl (

On a low Mach number limit for Supernovae Donatella Donatelli joint work with E. Feireisl (

On a low Mach number limit for Supernovae Donatella Donatelli joint work with E. Feireisl ( arXiv:1604.05860, [math.AP] ) Dipartimento di Ingegneria e Scienze dellInformazione e Matematica Universit` a degli Studi dellAquila 67100

1.31k views • 97 slides
R Modules for Accurate and Bugs Inaccuracies Reliable Statistical Computing Too little

R Modules for Accurate and Bugs Inaccuracies Reliable Statistical Computing Too little

Accurate Statistical Computing Why be concerned with accuracy? R Modules for Accurate and Bugs Inaccuracies Reliable Statistical Computing Too little entropy All optimization is local What can be done? Numerical

261 views • 6 slides
Unit 14: The Mach Operating System 14.2. Threads and Scheduling in Mach AP 9/01 Threads

Unit 14: The Mach Operating System 14.2. Threads and Scheduling in Mach AP 9/01 Threads

Unit 14: The Mach Operating System 14.2. Threads and Scheduling in Mach AP 9/01 Threads Active entities in Mach are threads Mach threads are managed by the kernel The C-Threads package provides a simpler interface to kernel

507 views • 11 slides
Low Mach Number Modeling of Stratified Astrophysical Flows Ann Almgren Center for Computational

Low Mach Number Modeling of Stratified Astrophysical Flows Ann Almgren Center for Computational

Low Mach Number Modeling of Stratified Astrophysical Flows Ann Almgren Center for Computational Sciences and Engineering Lawrence Berkeley National Laboratory Workshop on Low Velocity Flows November 5-6, 2015 Almgren CCSE Examples of

246 views • 22 slides
Study on Mach Reflection and Mach Configuration CHEN Shuxing Hyp-2008, Maryland Outline

Study on Mach Reflection and Mach Configuration CHEN Shuxing Hyp-2008, Maryland Outline

Study on Mach Reflection and Mach Configuration CHEN Shuxing Hyp-2008, Maryland Outline Physical phenomena Some crucial issues Stability of Mach configuration von Neumann paradox Other irregular configurations Global wave pattern

1.01k views • 65 slides
Accurate image segmentation via a high-order scheme for level-set equations Silvia Tozza joint

Accurate image segmentation via a high-order scheme for level-set equations Silvia Tozza joint

Accurate image segmentation via a high-order scheme for level-set equations Silvia Tozza joint work with Maurizio Falcone and Giulio Paolucci INdAM/Dept. of Mathematics, SAPIENZA Workshop CMIPI - Computational Methods for Inverse Problems in

625 views • 39 slides
Comparative Advantage and Risk Premia in Labor Markets German Cubas 1 Pedro Silos 2 1 Central Bank

Comparative Advantage and Risk Premia in Labor Markets German Cubas 1 Pedro Silos 2 1 Central Bank

Comparative Advantage and Risk Premia in Labor Markets German Cubas 1 Pedro Silos 2 1 Central Bank of Uruguay and FCS-UDELAR (From Fall13 U. of Houston) 2 Atlanta Fed QSPS, Utah State University, May 2013 Intro This paper is about the

1.28k views • 93 slides

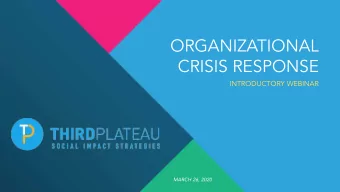

ORGANIZATIONAL CRISIS RESPONSE INTRODUCTORY WEBINAR MARCH 26, 2020 WHAT TODAYS WEBINAR WILL

ORGANIZATIONAL CRISIS RESPONSE INTRODUCTORY WEBINAR MARCH 26, 2020 WHAT TODAYS WEBINAR WILL

ORGANIZATIONAL CRISIS RESPONSE INTRODUCTORY WEBINAR MARCH 26, 2020 WHAT TODAYS WEBINAR WILL COVER 1. The what and how of disaster cycle management 2. Navigating the COVID-19 pandemic and its impact on your organization, programming, and

529 views • 26 slides
Foreign Shocks as Granular Fluctuations Julian di Giovanni 1 Andrei A. Levchenko 2 Isabelle Mejean

Foreign Shocks as Granular Fluctuations Julian di Giovanni 1 Andrei A. Levchenko 2 Isabelle Mejean

Foreign Shocks as Granular Fluctuations Julian di Giovanni 1 Andrei A. Levchenko 2 Isabelle Mejean 3 1 FRBNY, ICREA-UPF, BGSE, CREI and CEPR 2 University of Michigan, NBER, CEPR 3 CREST-Ecole Polytechnique and CEPR September, 2019 International

586 views • 39 slides

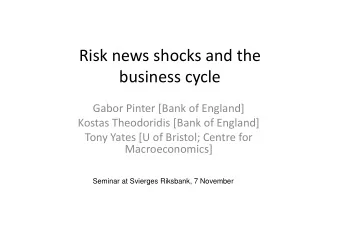

Risk news shocks and the business cycle Gabor Pinter [Bank of England] Kostas Theodoridis [Bank

Risk news shocks and the business cycle Gabor Pinter [Bank of England] Kostas Theodoridis [Bank

Risk news shocks and the business cycle Gabor Pinter [Bank of England] Kostas Theodoridis [Bank of England] Kostas Theodoridis [Bank of England] Tony Yates [U of Bristol; Centre for Macroeconomics] Seminar at Svierges Riksbank, 7 November

904 views • 46 slides
The Effects of Monetary Policy Shocks on Inequality in Japan Masayuki Inui Nao Sudo Tomoaki

The Effects of Monetary Policy Shocks on Inequality in Japan Masayuki Inui Nao Sudo Tomoaki

Motivation Data &amp; Estimation Model Results Conclusion The Effects of Monetary Policy Shocks on Inequality in Japan Masayuki Inui Nao Sudo Tomoaki Yamada 10 November, 2017@Gerzensee The views expressed are those of authors and do

475 views • 45 slides
Relativistic Collisionless Shocks Anatoly Spitkovsky (Princeton) Collaborators: Jon Arons, Phil

Relativistic Collisionless Shocks Anatoly Spitkovsky (Princeton) Collaborators: Jon Arons, Phil

Relativistic Collisionless Shocks Anatoly Spitkovsky (Princeton) Collaborators: Jon Arons, Phil Chang, Boaz Katz, Uri Keshet, Mario Riquelme, Lorenzo Sironi, Eli Waxman Shocking astrophysics Astrophysical shocks are collisionless (mean free

408 views • 37 slides
Outline Notes: Scalar nonlinear conservation laws Traffic flow Shocks and rarefaction

Outline Notes: Scalar nonlinear conservation laws Traffic flow Shocks and rarefaction

Outline Notes: Scalar nonlinear conservation laws Traffic flow Shocks and rarefaction waves Burgers equation Rankine-Hugoniot conditions Importance of conservation form Weak solutions Reading: Chapter 11, 12 R.J.

493 views • 10 slides
Shocks and surprises Ed Corrigan Department of Mathematical Sciences, Durham University Galileo

Shocks and surprises Ed Corrigan Department of Mathematical Sciences, Durham University Galileo

Shocks and surprises Ed Corrigan Department of Mathematical Sciences, Durham University Galileo Galilei Institute, Florence September 2008 Based on work with Peter Bowcock and Cristina Zambon: P . Bowcock, EC, C. Zambon, IJMPA 19 (Suppl)

1.85k views • 150 slides

More recommend
