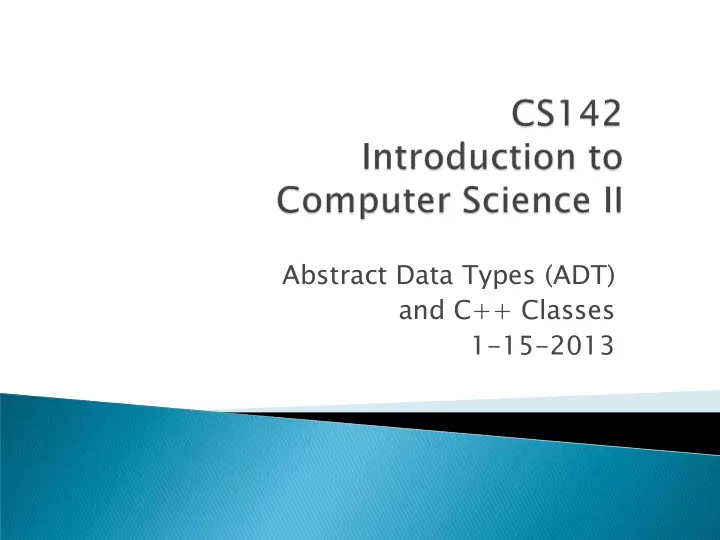

Abstract Data Types (ADT) and C++ Classes 1-15-2013

 Abstract Data Types (ADT) & UML  C++ Class definition & implementation

 constructors, accessors & modifiers  overloading operators  friend functions

HW#1 posted – due: Tuesday, 1/22 Quiz Thursday, 1/24

 FAQ 5.14 What is an abstraction and why is it important?  FAQ 5.15 Should abstractions be user-centric or developer-centric? An abstraction is a simplified vew of an object in the user’s own vocabulary. In OO and C++, an abstraction is the simplest interface to an

• bject that provides all the features and

services the intended users expect. User-centric. Focus on the user’s point of view.

 Computes what each employee should be paid for a day of work. Reads a file containing start and stop times for each employee. Then calculates and saves the pay amounts to another file. int runPayCalculator (const char csInputFileName[], const char csOutputFileName[]) Sample input: 510 + 24601 990 - 24601 Sample output 24601 96

int runPayCalculator (const char csInputFileName[], const char csOutputFileName[]) Algorithm: call computeHours and then computeAndWritePay Data structure: The number of hours worked by each employee is stored in an array indexed by the possible employee

• numbers. This array is of size MAX_EMPLOYEE_NUMBER

+ 1, where MAX_EMPLOYEE_NUMBER is a global constant

In a well-designed modular program, software components should satisfy the following two properties:

• 1. Each component performs one well

ll-def defined ned task

• sk. (i.e. “cohesion”)
• 2. Each component is as indep

ndependen ndent as possible from the others. (i.e. loosely coupled”)

• 1. Easier to understand; little redundant code.
• 2. Facilitates software reuse.
• 3. Easier to implement.
• 4. Easier to test.
• 5. Easier to modify.

 Independence of modules is typically achieved by “information hiding” (which can be achieved by “encapsulation”).  Procedural Abstraction

 Use of a function depends on its purpose (what it

does) but not on its implementation (how it does it).

 FAQ 5.18 What’s the value of separating interface from implementation? It’s a key to eliminating the ripple effect when a change is made.

 Class designer/implementer

• designs & implements a class

vs.  Client programmer

• uses a class for an application

vs.  End-user

• uses the application

 Procedural Abstraction (Algorithm)  Data Abstraction (Data)

 An Abstract stract Data ta Type (ADT) is a specification of a set of data and a set of operations that can be performed on the data. examples: String Circle List Dice Dictionary Song Student Telephone Directory Time Complex number

 In C++, a class represents an ADT.  An “instance” of a class is a specific object which is created, and the data members are filled in with values (possibly default values). Objects are created with a specialized member function called a “constructor”.  An instance of a class is destroyed (recycled) with a specialized member function called a “destructor”

Circle

constructor(s): Circle(int,int), Circle(float,int,int); float computeArea(); float getRadius(); void setRadius(float); // etc.

Type name Public interface

 An ADT is a contract between

 The interface designer and ...  The coder of a class that implements the

interface

 Prec econ

• ndition:

dition: any assumption/constraint on the method data before the method begins execution  Postcond tcondition: ition: describes result of executing the method

 A C++ program is a collection of functions and classes.  A class represents a set of objects that have common properties.  A class is a template for creating objects.  A class represents a type.

 Type determines the set of values an object may

have.

 Type determines the operations that can be

performed on those values.

 In C++ there are two kinds of types:

 Primitive or build-in types  User Defined or class types

 A class consists of members

 Data members – also called data fields or

attributes

 Member functions – also called operators,

functions or methods

 Data members are also sometimes called instance variables because each object (instance of a class) contains them.  Data members may be either primitive or class types.

private instance variables: private float radius; private Point center; public methods: constructor(s) accessor methods (get) mutator methods (set) float computeArea() … etc.

Represent a 2D “point” Data: (x , y) coordinates, integer values Methods: create a point with coordinates (0,0) create a point with coordinates (x,y), get the x coordinate of a point, get the y coordinate of a point, draw a point erase a point move a point etc.

 Unified Modeling Language (UML) is a standard diagram notation for describing a class

Instance

• f Person

Field values Class name Field signatures: type and name Method signatures: name, argument types, result type

Point

constructor(s): Point(int,int), Point(); // default (0,0) int getX(); int getY(); // etc.

Type name Public interface

private instance variables: private int xCoordinate private int yCoordinate public methods: constructor(s) accessor methods (get) mutator methods (set) … etc.

 Class members that are declared in the public section of a class definition are accessible to all functions (inside or outside) the class.  Class members that are declared in the private section of a class definition are accessible only to functions that are members of the class.  Generally we want the operators (member functions) visible to the users of the class.

 Thus they are declared public.

 Generally we want to keep the implementation details (data members) hidden from the users of the class

 Thus they are declared private.

 A constructor is a member function that initializes the data members of an object when the object is

cr crea eate ted. d.

 Note the use of

initializat ialization ion lists (more re effici cien ent than assignmen nment t statement ments) s)

cl class s Point int { public: lic: Point( nt(int nt i, , int j) : x( x(i), y( y(j) { } } Point() nt() : x(0) 0), y(0) 0) { } } private vate: int x; x; int y; y; }

 A modifier function provides the ability to modify the value of a private data member vo void d setX tX(in int newX wX) ) { x = = newX wX; ; }  An accessor function provides the ability to read the value of a private data member, without changing it (note use of “const”)

in int ge getX() () co const { return n x; }

class Point { public: Point(int i, int j) : x(i), y(j) { } Point() : x(0), y(0) { } int getX() const { return x; } private: int x; int y; } Client programmer can write: Point p1(10,30); Point p2; int i = p1.getX();

message receiver (this) call the method Point::getX() class of the receiver no args

 A member function definition (implementation) may be included in the class definition.  The compiler can insert the code for the function body where the function is called.

 This is known as an inline function.

 Use of inline member function is recommended

• nly for the following:

 Functions whose body is very small (one or two

lines)

• Constructors
• Accessors
• Modifiers

How would you compare two points, p1 and p2.  Define a method to compare their x and y coordinates.p

 p1.lessThan(p2)

 Overload the operator <

 p1 < p2

bool Point: int::operator

• perator< (const

nst Point int& & other) er) const st { { return eturn (x < < other.x er.x) ) || ((x == == other.x er.x) ) && (y < < other. her.y)); )); }

class Point { public: Point(int i, int j) : x(i), y(j) { } Point() : x(0), y(0) { } int getX() const { return x; } bool operator<(const Point& other) const; private: int x; int y; } bool Point::operator< (const Point& other) const { return // you fill in... }

Client programmer can write: Point p1; cin>>i; cin>>j; Point p2(i,j); if (p2 < p1) then cout << “lol”;

class Point { public: // other methods as before std::ostream& operator<<( std::ostream& os, const Point& p); private: // as before }

• stream& operator<<(
• stream& os,

const Point& p) {

• s << //... you fill in

return os; }

Point p1(10,30); cout << p1;

message receiver (this) problem: The receiver is type ostream arg solution: Make this function a “friend”

class Point { public: // other methods as before friend std::ostream&

• perator<<(

std::ostream& os, const Point& p); private: // as before }

• stream& operator<<(
• stream& os,

const Point& p) {

• s << //... you fill in

return os; }

Point p1 = new Point(10,30); cout << p1;

solution: Make this function a “friend” Gives permission for this function to have complete access to the data members, even though they are private to the class

 A friend is an external function or class that is given the same access to the members of a class as if it were a member.  We declare the ostream insertion operator to be a friend

 So it can access the data members and insert

their string representation into the output stream.

 Because this operator’s left-hand operand is an

• stream object, thus it cannot be defined as a

member of the Point class.

class Point { public: // other methods as before friend std::ostream&

• perator<<(

std::ostream& os, const Point& p); private: // as before }

• stream& operator<<(
• stream& os,

const Point& p) {

• s << //... you fill in

return os; } /* how do these differ? */ Point p1 = new Point(10,30); Point p2(10,30); /* how do these differ? */ cout << p1.getX() << endl; cout << p1; /* additional examples were done in class */

class Point { public: // other methods as before bool operator==(const Point& other) const; private: // as before } bool Point::operator== (const Point& other) const { return // you fill in... }

Point p3 = new Point(10,30); if (p2 == p3) cout << “equal points” << endl;

Now that we have implemented operators == and <, what about <= ? Reuse code!

• 1. Point.h

header file (declarations & inline code)

• 2. Point.cpp

implementation file (code)

• 3. main.cpp

test driver g++ *.cpp

% g++ -c *.cpp % g++ *.o –o testPt testPt: main.o Point.o g++ main.o Point.o –o testPt main.o: main.cpp Point.h Point.o g++ -c main.cpp –o main.o Point.o: Point.h Point.cpp g++ -c Point.cpp –o Point.o clean: rm –f *.o testPoint Makefile Could type this:

• r

% make % ./testPt % make clean

 For Thursday, read Chapter 2, sections 2.6 – 2.9

• f Maciel & Chapter 3, section 3.1

 Be prepared to write a simple class definition for Circle Quiz #1 next week, Thursday, 1/24, in class
