SLIDE 1

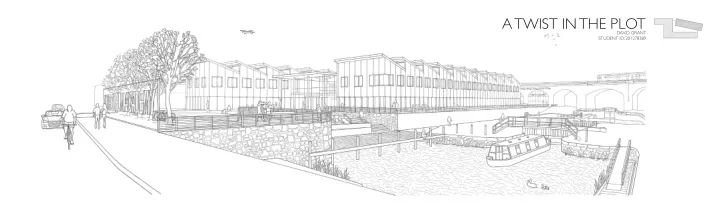

A TWIST IN THE PLOT
DAVID GRANT STUDENT ID: 201278389
A TWIST IN THE PLOT DAVID GRANT STUDENT ID: 201278389 DESIGN - - PowerPoint PPT Presentation
A TWIST IN THE PLOT DAVID GRANT STUDENT ID: 201278389 DESIGN - - PowerPoint PPT Presentation
A TWIST IN THE PLOT DAVID GRANT STUDENT ID: 201278389 DESIGN STRATEGY DRIVE IN CINEMA/FILM PLAZA SUSTAINABLE WOOD CHIP DELIVERY CANAL ACCESS (Using historic dock layout) CEREMONIAL APPROACH DELIVERY ACCESS CONTEXTUAL RESPONSE 0 30 40 10
SLIDE 2
SLIDE 3
CONTEXTUAL RESPONSE
ROOF PLAN (1:200 SCALE) SITE ISOMETRIC 1:1000 SITE MODEL
SCALE BAR (METRES) 10 20 30 40 50
SLIDE 4
SCALE BAR (METRES) 5 10 15 20 25
GROUND FLOOR PLAN (1:200 SCALE)
KEY (BUILDING):
- 1. DRAFT LOBBY
- 2. RECEPTION
- 3. RECEPTION OFFICE
- 4. MEETING ROOM
- 5. HEAD OF SCHOOL’S OFFICE
- 6. MAIN STAIR/LIFT
- 7. EXHIBITION REAL
- 8. REFECTORY
- 9. KITCHEN STORAGE
- 10. KITCHEN STORAGE
- 11. BIN STORAGE
- 12. COMPUTER SUITE
- 13. ESCAPE STAIR
- 14. MECHANICAL STORAGE
1. 2 6 7. 8 9 10 11 12 14 13 17
- 15. STORAGE ROOM
- 16. SERVICE RISER
- 17. LECTURE THEATRE
- 18. EVENTS BAR
- 19. CLOAKROOM
- 20. STUDENT LOCKERS
- 21. WORKSHOP OFFICE
- 22. WORKSHOP OFFICE STORAGE
- 23. ESCAPE STAIR
- 24. WORKSHOP
- 25. WORKSHOP STORAGE CUPBOARD
- 26. DELIVERY LOADING/WORKSHOP
STORAGE
- 27. MALE CHANGING ROOMS
- 28. FEMALE CHANGING ROOMS
16 15 10 18 20 21 22 23 3 4 5 24 26 27 28 29 25 30 31 32
- 29. GREEN ROOM
- 30. STUDIO SOUND CONTROL ROOM
- 31. STUDIO CONTROL ROOM
- 32. FILM STUDIO
- 33. OPEN PLAN OFFICE
- 34. MALE WCs
- 35. FEMALE WCs
- 36. DIABLED WC
- 37. CLEANERS STORE 1
- 38. CLEANERS STORE 2
33 34 35 36 37 38
KEY (LANDSCAPE & ARCHES):
- 39. DROP OFF/PICK UP POINT
- 40. ‘WALK OF FAME’
- 41. BICYLCE STORAGE
- 42. OUTDOOR SEATING AREA 1
- 43. STAIR AND RAMP ARRANGMENT
- 44. TIMBER JETTY DOCKING POINT
- 45. OUTDOOR SEATING AREA 2
- 46. WOOD PELLET LOADING ACCESS
- 47. SHIPPING GOODS LOADING POINT
- 48. VEHICLE DELIVERY LOADING
- 49. DRIVE IN CINEMA
- 50. TICKET COUNTER
- 51. DISABLED WC
- 52. MALE WCs
- 53. FEMALE WCs
39 40 43 44 42 41 45 47 46 48 49 55 50 56 57 52 53 51 54
- 54. CLEANERS STORE
- 55. CONCESSIONS
- 56. ‘THE LOUNGE’
- 57. ‘SPECIAL EVENTS’
KEY (LANDSCAPE HATCHING):
HARDSTANDING ZONE TIMBER DECKING GRANITE PAVING TILES GRASS
HIGH LEVEL NORTH LIGHTS
SLIDE 5
SCALE BAR (METRES) 5 10 15 20 25
FIRST FLOOR PLAN (1:200 SCALE)
KEY (BUILDING):
- 1. MAIN STAIR/LIFT
- 2. BREAK OUT SPACE
- 3. LIBARY/FILM ARCHIVE
- 4. CREATIVRE WRITTING ROOM
- 5. KITCHENETTE
- 6. CLASSROOM
- 7. ESCAPE STAIR
- 8. EQUIPMENT STORAGE ROOM
- 9. TWO PERSONS OFFICE
- 10. SINGLE PERSON OFFICE
- 11. MEETING ROOM
- 12. MALE WCs
- 13. FEMALE WCs
- 14. DIABLED WC
- 15. CLEANERS CUPBOARD 1
1. 2 6 7. 8 9 10 11 12 14 13 17
- 16. CLEANERS CUPBOARD 2
- 17. LECTURE THEATRE
- 18. SERVICE RISER
- 19. ESCAPE STAIR
- 20. LECTURE THEATRE/CINEMA LOBBY
- 21. CINEMA
- 22. MUSICAL EQUIPMENT STORE (UN
DER CINEMA SEATING)
- 23. PROJECTOR ROOM (ABOVE SOUND
RECORDING ROOM)
- 24. SOUND RECORDING ROOM 1
- 25. SOUND RECORDING ROOM 2
- 26. SOUND CONTROL ROOM 1
- 27. SOUND CONTROL ROOM 2
- 28. FILM STUDIO
16 15 18 20 21 22 23 3 4 5 24 26 28 27 25 19 41
KEY (LANDSCAPE HATCHING):
HARDSTANDING ZONE TIMBER DECKING GRANITE PAVING TILES GRASS
KEY:
- 1. PLANT ROOM
- 2. WOOD CHIP STORAGE
BACEMENT FLOOR PLAN
1 2
SLIDE 6
LONG PERSPECTIVE SECTION AA
S E C T I O N A A
SLIDE 7
FRONT ELEVATION
ELEVATIONS (1:200 SCALE)
SCALE BAR (METRES) 5 10 15 20 25
CANAL ELEVATION
SLIDE 8
WALK OF FILM
LIVERPOOL CENTRAL LIBARY - BOOK TITLES HOLLYWOOD WALK OF FAME - FILM AND TV ‘STARS’ LIVERPOOL EVERYMAN - ENGRAVING OF PEOPLE FROM LIVERPOOL PERSPECTIVE DRAWING OF THE ATRIUM CONTAINING FILM REEL EXHIBITION FILM SCHOOL ON ‘AWARDS NIGHT’ USING THE NAMES OF FILMS SET IN LIVERPOOL
CREED YESTERDAY ACROSS THE UNIVERSE DAVID COPPERFIELD FERRY ‘CROSS THE MERSEY HEAR MY SONG LET HIM HAVE IT HARRY POTTER UNDER THE SKIN CAPTAIN AMERICA SLIDE 9
DRIVE IN CINEMA/FILM PLAZA
VIEW FROM THE VIADUCT VIEW INSIDE THE CONCESSIONS ARCH
SLIDE 10
3MM DAMP PROOF MEMBRANE REINFORCED CONCRETE FOUNDATION WITH 200MM GROUND SLAB 40MM CONCRETE PAVING TILE 120MM X 80MM ACO DRAINAGE CHANNEL 150MM RIGID INSULATION 250MM x 75MM ALUMINIUM CILL 50MM CONCRETE SCREED WITH UNDERFLOOR HEATING PIPES 12MM FLOOR UNDERLAY 16MM ENGINEERED OAK FLOORING DOUBLE GLAZING UNIT (18MM ARGON FILLED CAVITY) 50MM SAND BLINDING HARDCORE 250MM x 75MM ALUMINIUM CURTAIN WALL POST PROPRIETARY WINDOW RAIN WITH GASKET 252MM X 252MM UNIVERSAL STEEL H COLUMN SECTION EARTH 30MM POLYCARBONATE SHEET CLADDING 12MM PLASTEBOARD CEILING 300MM X 90MM STEEL C SECTION 180MM DEEP STEEL Z JOIST SECTION 50MM SOUND PROOF INSULATION 150MM X 300MM UNIVERSAL STEEL I BEAM SECTION DOUBLE GLAZING UNIT (18MM ARGON CAVITY) ALUMINIUM WINDOW PROFILE 2MM ZINC CLADDING ALUMINIUM FLASHING 18MM PLYWOOD SHEETING 50MM ROCK WOOL INSULATION 200MM ROCK WOOL INSULATION 200MM x 75MM TIMBER SECTION 300MM x 125MM SECTIONS BOLDTED TOGETHER 600MM DEEP STEEL TRUSS 230MM X 250MM UNIVERSAL STEEL I BEAM SECTION
STRUCTURE & TECHNICAL DETAIL
3MM VAPOUR CONTROL LAYER 50MM x 50MM SOFTWOOD TIMBER BATTON 3MM DAMP PROOF MEMBERANE 18MM PLYWOOD SHEETING ALUMINIUM BACK BOX SECTION BB SCALE BAR (MILLIMETRES) 500 1000 1500 2000 2500
SECTION BB (1:20 SCALE) 1:50 MODEL
1:50 MODEL SHOWING THE EFFECT OF POLYCARBONATE AT NIGHT STEEL STRUCTURE EXPLORED THROUGH 1:50 MODEL STEEL STRUCTURE EXPLORED THROUGH 1:50 MODEL
SLIDE 11
1:200 FINAL MODEL
CANAL ACCESS WALK OF FILM ATRIUM SPACE CINEPLAZA
SLIDE 12
