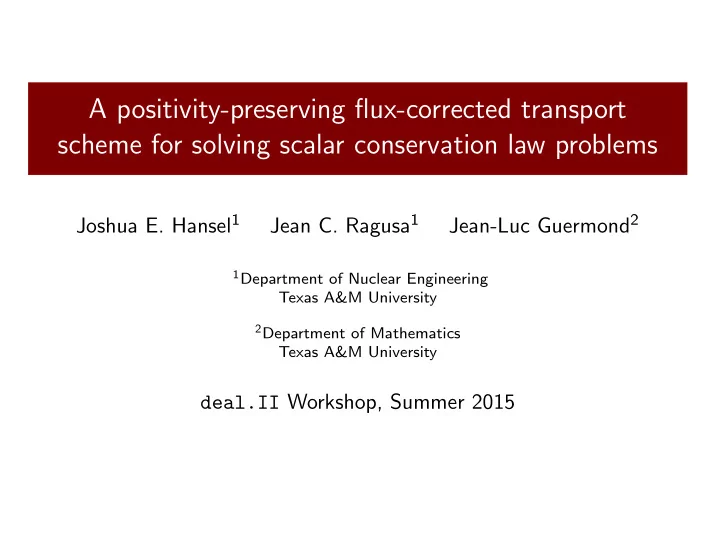

Joshua E. Hansel1 Jean C. Ragusa1 Jean-Luc Guermond2

1Department of Nuclear Engineering

Texas A&M University

2Department of Mathematics

Texas A&M University

deal.II Workshop, Summer 2015

slide-2
SLIDE 2

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

2/ 29

Motivation

Weak solutions to conservation law problems in general are not unique; thus solution via CFEM prone to unphysical oscillations:

  • 0.2

0.2 0.4 0.6 0.8 1 1.2 0.2 0.4 0.6 0.8 1 Solution x Exact Galerkin

slide-3
SLIDE 3

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

3/ 29

Objectives

The objectives of the research are the following:

Accurately solve conservation law problems using the continuous finite element method (CFEM).

Scheme to be presented is 2nd order-accurate in space (for smooth problems).

Prevent spurious oscillations.

Scheme to be presented is not proven to be completely immune to any spurious oscillations but shows good results in practice.

Prevent negativities for physically non-negative quantities.

Scheme to be presented is guaranteed to be positivity-preserving.

slide-4
SLIDE 4

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

4/ 29

Outline

Presentation of scheme for simple case

Problem formulation Monotone low-order scheme High-order entropy viscosity scheme FCT scheme

Results Conclusions

slide-5
SLIDE 5

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

5/ 29

Conservation Law Models

Guermond has addressed these objectives for general nonlinear scalar conservation laws using explicit temporal discretizations: ∂u ∂t + ∇ · f(u) = 0 Common examples: f(u) = uv Linear advection equation f(u) = 1

2u2v

Burgers equation We extend these techniques to include a reaction term and source term and to use implicit and steady-state temporal discretizations: ∂u ∂t + ∇ · f(u) + σu = q

slide-6
SLIDE 6

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

6/ 29

Problem Formulation

Scalar linear conservation law model: ∂u ∂t + ∇ · (vu(x, t)) + σ(x)u(x, t) = q(x, t) (1) σ(x) ≥ 0, q(x, t) ≥ 0 Define problem by providing initial conditions and some boundary condition, such as Dirichlet: u(x, 0) = u0(x) ∀x ∈ D (2) u(x, t) = uinc(x) ∀x ∈ ∂Dinc (3) CFEM solution: uh(x, t) =

N

  • j=1

Uj(t)ϕj(x), ϕj(x) ∈ P1

h

(4)

slide-7
SLIDE 7

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

7/ 29

Time Discretization

Simplest time discretization is forward Euler (FE), which gives the discrete system MC Un+1 − Un ∆t + AUn = bn (5) MC

i,j ≡

  • Si,j

ϕi(x)ϕj(x)dx (6) Ai,j ≡

  • Si,j

(v · ∇ϕj(x) + σ(x)ϕj(x)) ϕi(x)dx (7) bn

i ≡

  • Si

q(x, tn)ϕi(x)dx (8)

slide-8
SLIDE 8

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

8/ 29

Flux Corrected Transport (FCT) Scheme

Introduction

Initially developed in 1973 for finite difference discretizations of transport/conservation law problems and recently applied to finite element method. Works by adding conservative fluxes to satisfy physical bounds on the solution. Employs a high-order scheme and a low-order, monotone scheme. Defines a correction, or antidiffusion, flux, which when added to the low-order scheme, produces the high-order scheme solution. Limits this correction flux to enforce the physical bounds imposed.

slide-9
SLIDE 9

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

9/ 29

Low-Order Scheme

Definition

To get the low-order scheme, one does the following:

Lumps the mass matrix: MC → ML. Adds a low-order diffusion operator: A → A + DL.

This gives the following, where UL,n+1 is the low-order solution: ML UL,n+1 − Un ∆t + (A + DL)Un = bn (9) The diffusion matrix DL is assembled elementwise, where K denotes an element, using a local bilinear form bK and a local low-order viscosity νL

K:

DL

i,j =

  • K⊂Si,j

νL

KbK(ϕj, ϕi)

(10)

slide-10
SLIDE 10

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

10/ 29

Low-Order Scheme

Local Bilinear Form

The local bilinear form is defined as follows, where |K| denotes the volume of element K, I(K) is the set of indices corresponding to degrees of freedom with nonempty support on K, and nK is the cardinality of this set. bK(ϕj, ϕi) ≡    −

1 nK −1|K|

i = j, i, j ∈ I(K) |K| i = j, i, j ∈ I(K) i / ∈ I(K) | j / ∈ I(K) (11) Some properties that result from this definition:

  • j

bK(ϕj, ϕi) = 0 (12) bK(ϕi, ϕi) > 0 (13)

slide-11
SLIDE 11

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

11/ 29

Low-Order Scheme

Low-Order Viscosity

The low-order viscosity is defined as νL

K ≡

max

i=j∈I(K)

max(0, Ai,j) −

T⊂Si,j

bT(ϕj, ϕi) (14) This definition is designed to be the smallest number such that the following is guaranteed: DL

i,j ≤ −Ai,j,

j = i (15) This is used to guarantee that the low-order steady-state matrix AL = A + DL is an M-matrix, i.e., a monotone matrix: ALU ≥ 0 ⇒ U ≥ 0.

slide-12
SLIDE 12

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

12/ 29

Low-Order Scheme

Discrete Maximum Principle

In addition to guaranteeing monotonicity and positivity, the low-order viscous terms guarantee the following discrete maximum principle (DMP), where Un

max min,i = max min

j∈I(Si )Un

j :

W −

i

≤ UL,n+1

i

≤ W +

i

∀i (16) W ±

i

≡ Un

max min,i

 1 − ∆t ML

i,i

  • j

AL

i,j

  + ∆t ML

i,i

bn

i

(17) For example, when there is no reaction term or source term, this reduces to the following DMP, which implies the scheme is local extremum diminishing (LED): Un

min,i ≤ UL,n+1 i

≤ Un

max,i

∀i (18)

slide-13
SLIDE 13

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

13/ 29

Low-Order Scheme

Getting Nonzero Row Entries {Ai,j : Ai,j = 0, j = 1 . . . N}

void get_matrix_row ( const SparseMatrix <double > &matrix , const unsigned int &i, std :: vector <double > &row_values , std :: vector <unsigned int > &row_indices , unsigned int &n_col) { // get first and one -past -end iterator for row SparseMatrix <double >:: const_iterator it = matrix.begin(i); SparseMatrix <double >:: const_iterator it_end = matrix.end(i); // determine number of entries in row and resize vectors accordingly n_col = it_end - it; row_values .resize(n_col ); row_indices .resize(n_col ); // loop

  • ver

columns in row for (unsigned int k = 0; it != it_end; ++it , ++k) { row_values [k] = it ->value (); // get A(i,j) row_indices [k] = it ->column (); // get j } }

slide-14
SLIDE 14

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

14/ 29

Low-Order Scheme

Results Example

  • 0.2

0.2 0.4 0.6 0.8 1 1.2 0.2 0.4 0.6 0.8 1 Solution x Exact Galerkin Low-Order DMP-min DMP-max

slide-15
SLIDE 15

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

15/ 29

Entropy Viscosity Scheme

Introduction

The standard Galerkin CFEM weak solution is not unique. Even with FCT, it would not necessarily converge to the correct, physical weak solution, i.e., the entropy solution. To converge to the entropy solution, one must ensure that an entropy inequality is satisfied: R(u) ≡ ∂η(u) ∂t + ∇ · fη(u) ≤ 0 (19) for any convex entropy η(u) and corresponding entropy flux fη(u). This entropy residual R(u) measures entropy production; where it is positive, the inequality is violated, so the residual should be decreased somehow. To enforce the inequality, the entropy viscosity method adds viscosity in proportion to local entropy production, thus decreasing local entropy.

slide-16
SLIDE 16

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

16/ 29

Entropy Viscosity Scheme

User-defined Entropy Function in deal.II

Below is an example of using ParameterHandler and FunctionParser to let the user choose the entropy function to be η(u) = 1

2u2:

The input file, “my input”:

set Entropy function = 0.5*u*u

The code:

// create parameter handler and declare entry for entropy function ParameterHandler parameter_handler ; parameter_handler . declare_entry ("Entropy function", "u*u*u/3.0", // default Patterns :: Anything (), "String for entropy function"); // read the input file and get the entropy function parameter parameter_handler . read_input ("my_input"); std :: string entropy_string = parameter_handler .get("Entropy function"); // map of user -defined function parser constants to their values std ::map <std :: string , double > constants; // here , this is kept empty // initialize the function parser FunctionParser <dim > entropy_function ; entropy_function .initialize ("u", entropy_string , constants );

slide-17
SLIDE 17

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

17/ 29

Entropy Viscosity Scheme

Entropy Viscosity Definition

One chooses a convex entropy function η(u) such as η(u) = 1

2u2 and manipulates the conservation law

equation to get an entropy residual: R(u) = ∂η ∂t + dη du (∇ · (vu) + σu − q) (20) Viscosity is set to be proportional to a linear combination

  • f the local entropy residual RK(u) = R(u)L∞(K) and

entropy jumps JF(u) across the faces: νη

K ∝ cRRK(uh) + cJ max F∈∂K JF(uh)

(21) In practice, the entropy viscosity becomes the following, where the denominator is just a normalization constant: νη

K =

cRRK(uh) + cJ max

F∈∂K JF(uh)

η(uh) − ¯ η(uh)L∞(D) (22)

slide-18
SLIDE 18

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

18/ 29

Entropy Viscosity Scheme

High-Order Scheme

The high-order viscosity does not need to be any greater than the low-order viscosity: νH,n

K

= min(νL

K, νη,n K )

(23) For the high-order scheme, the mass matrix is not modified; the only change is the addition of the high-order diffusion operator DH,n: A → A + DH,n: MC UH,n+1 − Un ∆t + (A + DH,n)Un = bn (24) The high-order diffusion matrix is computed just as the low-order counterpart, except that νH,n

K

is used instead of νL

K:

DH,n

i,j

=

  • K⊂Si,j

νH,n

K

bK(ϕj, ϕi) (25)

slide-19
SLIDE 19

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

19/ 29

High-Order Scheme

Results Example

  • 0.2

0.2 0.4 0.6 0.8 1 1.2 0.2 0.4 0.6 0.8 1 Solution x Exact Galerkin Low-Order EV

slide-20
SLIDE 20

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

20/ 29

Flux Corrected Transport (FCT) Scheme

Correction Flux Definition

Recall that FCT defines antidiffusive correction fluxes from a low-order, monotone scheme to a high-order scheme. Calling these fluxes f, this gives ML UH,n+1 − Un ∆t + (A + DL)Un = bn + f (26) Subtracting the high-order scheme equation from this gives the definition of f: f ≡ −(MC − ML)UH,n+1 − Un ∆t + (DL − DH,n)Un (27) Decomposing f into internodal fluxes Fi,j such that fi =

j Fi,j, where ∆j,i[y] denotes yj − yi:

Fi,j = −MC

i,j∆j,i

UH,n+1 − Un ∆t

  • + (DL

i,j − DH,n i,j )∆j,i[Un]

(28)

slide-21
SLIDE 21

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

21/ 29

Flux Corrected Transport (FCT) Scheme

Implementation of Correction Fluxes

Fi,j = −MC

i,j∆j,i

UH,n+1 − Un ∆t

  • + (DL

i,j − DH,n i,j )∆j,i[Un]

for (; cell != endc; ++ cell) // loop

  • ver

lines of cell for (int line = 0; line < GeometryInfo <dim >:: lines_per_cell ; ++ line) { if (!cell ->line(line)-> user_flag_set ()) { // mark line so that the same flux isn ’t unnecessarily recomputed cell ->line(line)-> set_user_flag (); // get dof indices

  • n line

cell ->line(line)-> get_dof_indices ( line_dof_indices ); unsigned int i = line_dof_indices [0]; unsigned int j = line_dof_indices [1]; // compute correction flux F(i,j) double Fij = -MC(i,j) * (dUdt(j) - dUdt(i)) + (DL(i,j) - DH(i,j)) * (U_old(j) - U_old(i)); // store flux in global sparse matrix F.set(i, j, Fij ); F.set(j, i, -Fij ); // F(j,i) = -F(i,j) } }

slide-22
SLIDE 22

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

22/ 29

Flux Corrected Transport (FCT) Scheme

FCT Overview

Recall that the objective of FCT is to limit these antidiffusive fluxes to enforce some physical bounds. The chosen bounds take the form of the DMP satisfied by the low-order scheme: W −

i

≤ Un+1

i

≤ W +

i

∀i (29) This is achieved by applying a limiting coefficient Li,j to each internodal flux Fi,j: ML Un+1 − Un ∆t + ALUn = b + L · F (30) Each limiting coefficient is between zero and unity: 0 ≤ Li,j ≤ 1.

If all Li,j are zero, then the low-order scheme is produced. If all Li,j are one, then the high-order scheme is produced.

slide-23
SLIDE 23

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

23/ 29

Flux Corrected Transport (FCT) Scheme

Limiting Coefficients Definition

The enforced bounds can be rearranged to bound the limited flux sums with bounds which we call Q±

i :

Q−

i

  • j

Li,jFi,j ≤ Q+

i

(31) F −

i

  • j:Fi,j<0

Fi,j F +

i

  • j:Fi,j>0

Fi,j (32) L±

i ≡

1 F ±

i

= 0 min

  • 1, Q±

i

F ±

i

  • F ±

i

= 0 (33) Li,j ≡ min(L+

i , L− j )

Fi,j ≥ 0 min(L−

i , L+ j )

Fi,j < 0 (34)

slide-24
SLIDE 24

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

24/ 29

Flux Corrected Transport (FCT) Scheme

Results Example

  • 0.2

0.2 0.4 0.6 0.8 1 1.2 0.2 0.4 0.6 0.8 1 Solution x Exact Galerkin Low-Order EV EV-FCT DMP-min-EV-FCT DMP-max-EV-FCT

slide-25
SLIDE 25

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

25/ 29

Results

1-D Source Problem Results

  • 0.02

0.02 0.04 0.06 0.08 0.1 0.12 0.2 0.4 0.6 0.8 1 Angular Flux x Exact Galerkin Low-Order High-Order EV-FCT

slide-26
SLIDE 26

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

26/ 29

Results

2-D Void-to-Absorber Problem Results

(a) Exact (b) Galerkin (c) Galerkin-FCT (d) Low-order (e) EV (f) EV-FCT

slide-27
SLIDE 27

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

27/ 29

Results

1-D Smooth Problem Convergence Results (Using FE)

10-8 10-7 10-6 10-5 10-4 10-3 10-2 10-1 100 101 10-4 10-3 10-2 10-1 100 L-1 Error Mesh Size Galerkin Low-Order High-Order EV-FCT m=1.00 slope m=2.00 slope m=3.00 slope 10-8 10-7 10-6 10-5 10-4 10-3 10-2 10-1 100 101 10-4 10-3 10-2 10-1 100 L-2 Error Mesh Size Galerkin Low-Order High-Order EV-FCT m=1.00 slope m=2.00 slope m=3.00 slope

slide-28
SLIDE 28

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

28/ 29

Results

1-D Non-smooth Problem Convergence Results (Using SSPRK33)

10-3 10-2 10-1 100 10-4 10-3 10-2 10-1 100 L-1 Error Mesh Size Galerkin Low-Order High-Order EV-FCT m=0.25 slope m=0.50 slope m=0.75 slope 10-2 10-1 100 101 10-4 10-3 10-2 10-1 100 L-2 Error Mesh Size Galerkin Low-Order High-Order EV-FCT m=0.25 slope m=0.50 slope m=0.75 slope

slide-29
SLIDE 29

Introduction

Motivation Objectives Outline

Methodology

Formulation Time Discretization FCT Scheme Overview Low-Order Scheme High-Order Scheme FCT Scheme

Results Conclusions

29/ 29

Conclusions

The CFEM scheme presented for solving conservation law problems is

2nd-order-accurate Positivity-preserving Not guaranteed monotone, but rarely not Discrete-maximum-principle preserving Valid in an arbitrary number of dimensions Valid for general meshes

Results were shown for the explicit, scalar, linear case. More results are in progress. deal.II provides the elements and flexibility necessary for an algorithm based on FCT.
