A novel approach for batch production of micro holes by micro EDM Shun-Tong Chen a , Yunn-Shiuan Liao b a Dept. of Mechatronic Technology, National Taiwan Normal University, Taiwan chenst@ntnu.edu.tw b Dept. of Mechanical Engineering, National

slide-1

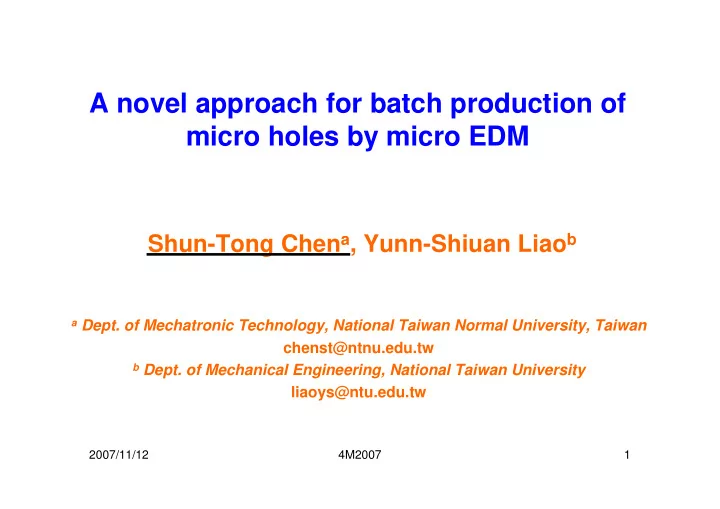

SLIDE 1

2007/11/12 4M2007 1

A novel approach for batch production of micro holes by micro EDM

Shun-Tong Chena, Yunn-Shiuan Liaob

a Dept. of Mechatronic Technology, National Taiwan Normal University, Taiwan

chenst@ntnu.edu.tw

b Dept. of Mechanical Engineering, National Taiwan University

liaoys@ntu.edu.tw

slide-2
SLIDE 2

2007/11/12 4M2007 2

Outline

Introduction (background and objective) Hardware Approach Experiment Conclusions

slide-3
SLIDE 3

2007/11/12 4M2007 3

Background

Micro holes can be applied widely to various fields such as aerostatic air bearing Ink-jet nozzle Micro-jet cooling device

slide-4
SLIDE 4

2007/11/12 4M2007 4

Background (cont.)

Various micro machining techniques have been developed to fabricate micro holes. Costly → → → → MEMS and LASER Difficult → → → → micro drilling and punching

slide-5
SLIDE 5

2007/11/12 4M2007 5

Objective

To develop an approach for batch production of micro holes by micro EDM.

slide-6
SLIDE 6

2007/11/12 4M2007 6

The multi-function tabletop machine tool

Micro Milling Micro Hi-Speed Milling Micro EDM Micro Wire-EDM Micro on-line Measurement

slide-7
SLIDE 7

2007/11/12 4M2007 7

A novel micro Wire-EDM Mechanism

Machining region

slide-8
SLIDE 8

2007/11/12 4M2007 8

Partial magnification of the micro Wire-EDM

slide-9
SLIDE 9

2007/11/12 4M2007 9

The mechanism design

  • f reverse micro Wire-EDM
slide-10
SLIDE 10

2007/11/12 4M2007 10

(Batch production of mass micro holes) Material： ： ： ：SUS304

Positioned directly

The proposed approach

slide-11
SLIDE 11

2007/11/12 4M2007 11

Finished micro electrodes array by reverse micro Wire-EDM

100 pillars 21µ µ µ µm width Over 700µ µ µ µm height More than 33 aspect ratio

Experiment

slide-12
SLIDE 12

2007/11/12 4M2007 12

The machining of the batch mode micro EDM. .

Material： ： ： ：SUS304

slide-13
SLIDE 13

2007/11/12 4M2007 13

Finished 900 micro holes array

Material： ： ： ：SUS304

slide-14
SLIDE 14

2007/11/12 4M2007 14

Finished holes array by pyramid tip electrode machining

slide-15
SLIDE 15

2007/11/12 4M2007 15

Finished holes array by flat end electrode machining

slide-16
SLIDE 16

2007/11/12 4M2007 16

Surface roughness on the hole-wall

slide-17
SLIDE 17

2007/11/12 4M2007 17

The average consumption of the electrode

Before processing： ： ： ：360µ µ µ µm After processing： ： ： ：210µ µ µ µm Have consumed→ → → →150µ µ µ µm

slide-18
SLIDE 18

2007/11/12 4M2007 18

Before processing： ： ： ：700µ µ µ µm After processing： ： ： ：160µ µ µ µm Have consumed → → → → 540µ µ µ µm

The average consumption of the electrode

slide-19
SLIDE 19

2007/11/12 4M2007 19

Machining time for single hole

Average drilling time : 66.2 (sec) for each hole.

slide-20
SLIDE 20

2007/11/12 4M2007 20

Machining time for holes array

Average drilling time : 19.5 (sec) for each hole.

slide-21
SLIDE 21

2007/11/12 4M2007 21

Conclusions

An approach for batch production of micro holes is successful developed. A good positional accuracy, dimensional accuracy, and surface roughness of the drilled holes are achieved. Compared with single hole machining, the holes array machining can be saved about two-third time.

slide-22
SLIDE 22

2007/11/12 4M2007 22

Thank you very much for your kind attention!

slide-23
SLIDE 23

2007/11/12 4M2007 23

Machining time for holes array

Average drilling time : 19.5 (sec) for each hole.

slide-24
SLIDE 24

2007/11/12 4M2007 24

Machining time for holes array

Average drilling time : 19.5 (sec) for each hole.

slide-25
SLIDE 25

2007/11/12 4M2007 25

Tension control of the micro wire

Basic idea Top view of the mechanism

(Patent pending)
