slide-1
SLIDE 1

H2 H2

KIT – The Research University in the Helmholtz Association

Institute for Micro Process Engineering

www.kit.edu

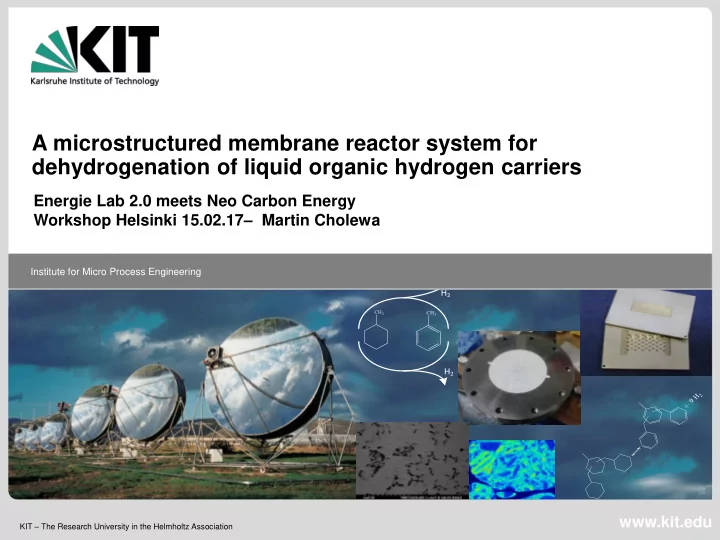

A microstructured membrane reactor system for dehydrogenation of liquid organic hydrogen carriers

Energie Lab 2.0 meets Neo Carbon Energy Workshop Helsinki 15.02.17– Martin Cholewa

slide-2
SLIDE 2

Institute for Micro Process Engineering, KIT 2 Martin Cholewa – Workshop Helsinki

Outline

Introduction of LOHC

Background Reactor concept

Results

Experiments with the membrane modules Simulation High pressure experiments

Summary and Outlook

28.02.2017

slide-3
SLIDE 3

Institute for Micro Process Engineering, KIT 3

Introduction

Martin Cholewa – Workshop Helsinki 28.02.2017

  • Storage and transport of hydrogen
  • Hydrogen used in a fuel cell or ic-

engine

Dehydrogenation

H2

Hydrogenation

H2 lean H2 rich

H2

Charge:

Hydrogenation of unloaded carrier

Storing:

Organic kept at room temperature

Discharge:

Dehydrogenation at ~ 200-400 °C

1 J. von Wild, R. Freymann and M. Zenner, Potentiale von alternativen Wasserstoffspeicherungstechnologien, VDI-Berichte: Innovative Fahrzeugantriebe, 2008, vol. 2030, pp. 273–298

Energy density of various hydrogen storage systems for mobility.1

slide-4
SLIDE 4

Institute for Micro Process Engineering, KIT 4 Martin Cholewa – Workshop Helsinki

Introduction

Liquid Organic Hydrogen Carrier + Can use the existing distribution ways + No high pressure or low temperature is needed + High energy density

ΔHR(298 K)= + 204.8 kJ/mol

Methylcyclohexane

ΔHR(298 K)= + 639 kJ/mol

Perhydro-dibenzyl-toluene1

1: Brückner, N., Obesser, K., Bösmann, A., Teichmann, D., Arlt, W., Dungs, J. and Wasserscheid, P. (2014), Evaluation of Industrially Applied Heat-Transfer Fluids as Liquid Organic Hydrogen Carrier Systems. ChemSusChem, 7: 229–235.

+ 68.3 kJ mol-1 H2 + 71 kJ mol-1 H2

Hydrogen mass capacity: ~ 6.2 wt.% ~ 600 Nm3 H2 / m3 LOHC

slide-5
SLIDE 5

Institute for Micro Process Engineering, KIT 5

Membrane reactor

In-situ hydrogen removal

Martin Cholewa – Workshop Helsinki

  • Integration of membranes: Beneficial for

reaction and separation

  • In-situ selective H2 removal shifts

reaction equilibrium to product side

  • H2 purification directly from reaction

zone

Heating Pd-Membrane Reaction Separation Catalyst

Pd-based membrane

H2 MCH TLU + 3 H2

28.02.2017

  • Microchannels: Highly efficient

heat and mass transfer

  • High surface to volume ratio
  • Good thermal coupling of

endothermic reaction and heating zone

  • High system compactness
slide-6
SLIDE 6

Institute for Micro Process Engineering, KIT 6

Membrane reactor In-situ hydrogen removal

Martin Cholewa – Workshop Helsinki 28.02.2017

Holder

  • Swagelock fitting for

connection to the experimental setup

  • electrically heated
  • Reactor plate for catalyst bed with

pillars

  • Microchannels for transport of the

permeated hydrogen

slide-7
SLIDE 7

Institute for Micro Process Engineering, KIT 7

Membrane reactor

In-situ hydrogen removal

Martin Cholewa – Workshop Helsinki 28.02.2017

catalyst powder

pillar

H2

pillar

Metal sheet with 70 µm holes

Feed/Retentate: catalytic fixed-bed, 4 pillars in width

zone length: 20 mm, distance pillars: 1 mm

Permeate: 17 microchannels, length: 20 mm, width: 0.2 mm

Pd membrane: 12.5 μm thick

catalyst powder

pillar

H2

pillar

1 mm

slide-8
SLIDE 8

Institute for Micro Process Engineering, KIT 8

Membrane Reactor

Thermodynamics

Martin Cholewa – Workshop Helsinki 28.02.2017 20 40 60 0.0 0.5 1.0

conversion [-] pressure [bar] T = 623 K T = 673 K T = 573 K

500 600 700 0.0 0.5 1.0

conversion / - Temperature / K p = 1 bar p = 30 bar

500 600 700 0.0 0.5 1.0

conversion / - Temperature / K p = 1 bar p = 30 bar p= 30 bar, pm = 3 bar

High Temperature and low pressure preferred – endothermic reaction

  • Membrane could avoid limitation
  • with 3 bar permeate pressure still

high separation and conversion

  • Steep decrease of conversion

with higher pressure

  • Temperature as driving force
slide-9
SLIDE 9

Institute for Micro Process Engineering, KIT 9

Experimental

Martin Cholewa – Workshop Helsinki 28.02.2017

Catalyst 1 wt.% Pt - Al2O3

BET-surface in m²/gcat 28.9 Dispersion in % 47.4 Size in µm 200 – 300 (particle)

Pt distribution (EPMA recording)

Reaction/ Reactor conditions varied:

  • Pressure 9 - 30 bar
  • Bed height 500 - 2000 µm
  • Membrane thickness 4 - 16 µm

Is the hydrogen separation efficient ? How stable are the membrane and the catalyst ?

50 µm

  • H. Kreuder, Catalyst development for the dehydrogenation of MCH in a microstructured membrane reactor - for heat storage

by a Liquid Organic Reaction Cycle. Cat. Today 242, 2015.

slide-10
SLIDE 10

Institute for Micro Process Engineering, KIT 10 Martin Cholewa – Workshop Helsinki 28.02.2017

Results Membrane reactor

1000 2000 3000 20 30 40 50 60 70 80 90 100

conversion / % tos / min Microreactor, 9 bar, 400 °C Berty, 1 bar, 365 °C Membrane, 9 bar, 350 °C

  • High Conversion
  • Good catalyst stability

200 400 600 800 1000 0.5 0.6 0.7 0.8 0.9 1.0

2000 µm 1000 µm 500 µm efficiency / -- flow rate / ml min

  • 1

catalyst bed height:

  • Good separation efficiency through

microchannels

Separation experiments with H2:N2 75:25 mixtures

pH2 pH2,perm p*H2

Membrane

Catalyst bed 200µm 2000µm

Influence of mass transfer ? Catalyst performance ?

slide-11
SLIDE 11

Institute for Micro Process Engineering, KIT 11 Martin Cholewa – Workshop Helsinki 28.02.2017

Results Membrane reactor

1000 2000 3000 20 30 40 50 60 70 80 90 100

conversion / % tos / min Microreactor, 9 bar, 400 °C Berty, 1 bar, 365 °C Membrane, 9 bar, 350 °C

  • High Conversion
  • Good catalyst stability

200 400 600 800 1000 0.5 0.6 0.7 0.8 0.9 1.0

2000 µm 1000 µm 500 µm efficiency / -- flow rate / ml min

  • 1

catalyst bed height:

  • Good separation efficiency through

microchannels

Separation experiments with H2:N2 75:25 mixtures

Influence of mass transfer ? Catalyst performance ?

slide-12
SLIDE 12

Institute for Micro Process Engineering, KIT 12

Results membrane modules

Comparison

  • Thinner membrane shows

despite of lower conversion same level of hydrogen separation

  • Still total separation is low

Martin Cholewa – Workshop Helsinki 28.02.2017

MCH conversion with 1wt.% Pt/Al2O3 catalyst in membrane module, tmod = 250 kg s m-3, p = 9 bar, T=350° C

Redesign of the module for the existing test rig

500 1000 1500 0.00 0.25 0.50 0.75 1.00

Conversion MCH / - tos / min 12 µm Pd - Membrane 4 µm Pd - Membrane

0.00 0.25 0.50 0.75 1.00

hydrogen recovery factor / -

ሶ nH2,perm ሶ nH2,total

Hydrogen recovery factor:

slide-13
SLIDE 13

Institute for Micro Process Engineering, KIT 13

Simulation

Optimization with 1-D model

Martin Cholewa – Workshop Helsinki 28.02.2017

Comparison with simulation at T=350 °C, tmod = 125 kg s m-3

Conclusion from Experiments and Simulation:

  • lower bed depth
  • Higher membrane area to

catalyst ratio Constant reactor volume but 4 times higher membrane surface area

8.0E+05 1.0E+06 1.2E+06 1.4E+06 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Conversion, hydrogen recovery / - pressure / Pa / Simulation original module / Exp.

slide-14
SLIDE 14

Institute for Micro Process Engineering, KIT 14

Simulation

Optimization with 1-D model

Martin Cholewa – Workshop Helsinki 28.02.2017

Extrapolation with simulation for new geometry at T=350 °C, tmod = 125 kg s m-3

Reactor is wider and longer

8.0E+05 1.0E+06 1.2E+06 1.4E+06 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Conversion, hydrogen recovery / - pressure / Pa / Simulation original module / Simulation rescaled module / Exp.

slide-15
SLIDE 15

Institute for Micro Process Engineering, KIT 15

Results

Comparison between large and small module

Martin Cholewa – Workshop Helsinki 28.02.2017

  • Higher hydrogen

recovery and conversion of MCH at same pressure level

at 9 bar to 13 bar, 350 °C and τmod= 125 (kg s)/m³ 500 1000 1500 2000 2500 3000 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Conversion Methylcyclohexane / - tos / min small module (12 µm membrane) large module (16 µm membrane)

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

hydrogen recovery factor / -

slide-16
SLIDE 16

Institute for Micro Process Engineering, KIT 16

Results

High pressure experiment with large module

Martin Cholewa – Workshop Helsinki 28.02.2017

500 1000 1500 2000 2500 0.0 0.2 0.4 0.6 0.8 1.0

Conversion H2 recovery factor

tos / min Conversion / -

0.0 0.2 0.4 0.6 0.8 1.0 31 bar 28 bar 25 bar

Hydrogen recovery factor / -

  • Almost total amount of

hydrogen separated

  • But conversion

significantly lower

Conversion and hydrogen recovery at high pressures with module B at 350°C, tmod = 125 kg s m-3 , Separation efficiency was determined with measured permeate flow and calculated amount of produced hydrogen

slide-17
SLIDE 17

Institute for Micro Process Engineering, KIT 17

Membrane Stability

Influence of Regeneration

Martin Cholewa – Workshop Helsinki 28.02.2017

  • Coke can be removed by oxidation regeneration step and activity is restored

T = 350°C, p = 8 bar, τmod = 250 kg*s/m3, XEq = 99.5%

Regeneration of catalyst by oxidation at 400°C and following reduction

  • H. Kreuder et al., Heat storage by the dehydrogenation of methylcyclohexane - Experimental studies for the design of a microstructured

membrane reactor. International Journal of Hydrogen Energy, 2016

slide-18
SLIDE 18

Institute for Micro Process Engineering, KIT 18 Martin Cholewa – Workshop Helsinki 28.02.2017

Membrane Stability

Influence of Regeneration

  • Decrease in perm selectivity
  • Further steps will lead to

total damage of membrane

  • Slight increase of leakage

flow after regeneration for supported membrane

Measured with pure Nitrogen at T = 350°C, p = 8 bar

1x10

4

2x10

4

0,0000 0,0005 0,0010 0,0015 0,0020

without regeneration

  • 1. Regeneration
  • 2. Regeneration
  • 3. Regeneration

VN2 [ml/min] tos [min]

Tests with pure nitrogen as an indicator for leakages

  • H. Kreuder et al., Heat storage by the dehydrogenation of methylcyclohexane - Experimental studies for the design of a microstructured

membrane reactor. International Journal of Hydrogen Energy, 2016

slide-19
SLIDE 19

Institute for Micro Process Engineering, KIT 19

100 µm 100 µm

Martin Cholewa – Workshop Helsinki 28.02.2017

Membrane Stability

Analysis of used membranes

Without support With support Additional cracks due to pressure Only slight pitting due to regeneration 10 µm 6 µm

slide-20
SLIDE 20

Institute for Micro Process Engineering, KIT 20

Summary

LOHC concept for hydrogen storage with microstructured membrane reactor for enhanced reaction Successful test of different membrane module with methylcyclohexane as LOHC 1-D Simulation of module for an optimized membrane module

  • Further detailed studies of the optimized module
  • Combination of membrane with other LOHC reactor concept for liquid-

gas phase reaction

Martin Cholewa – Workshop Helsinki 28.02.2017

620 640 660 680 0.5 0.6 0.7 0.8 0.9 1.0

conversion / - Temperature / K / /

0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

  • ptimized module
  • riginal module

hydrogen recovery factor / -

500 1000 1500 0.00 0.25 0.50 0.75 1.00

Conversion MCH / - tos / min Membrane A1 Membrane A2

0.00 0.25 0.50 0.75 1.00

hydrogen recovery factor / -

slide-21
SLIDE 21

Institute for Micro Process Engineering, KIT 21 Martin Cholewa – Workshop Helsinki 28.02.2017

Thank you for your attention Questions ?
