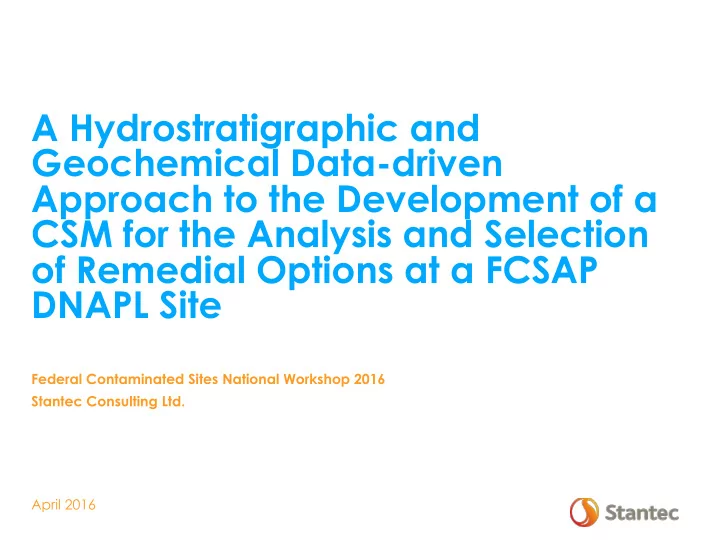

A Hydrostratigraphic and Geochemical Data-driven Approach to the Development of a CSM for the Analysis and Selection of Remedial Options at a FCSAP DNAPL Site Federal Contaminated Sites National Workshop 2016 Stantec Consulting Ltd. April


slide-1
SLIDE 1

Federal Contaminated Sites National Workshop 2016 Stantec Consulting Ltd. April 2016

A Hydrostratigraphic and Geochemical Data-driven Approach to the Development of a CSM for the Analysis and Selection

  • f Remedial Options at a FCSAP

DNAPL Site

slide-2
SLIDE 2

Agenda

1 Background 3 Conceptual Site Model (CSM) –Development

Methodology

4 CSM - Results 2 Study Objective

slide-3
SLIDE 3

Background

The facility is currently used as a refinishing facility, which was constructed in stages between 2009 and 2012.

1

slide-4
SLIDE 4

Background

  • During the facility inception, subsurface impacts

were observed in building excavations during construction.

  • In order to address the observed impacts,

approximately 3,242 tonnes of solvent impacted soil and 1,363,054 litres of solvent impacted groundwater were removed for off-site disposal.

slide-5
SLIDE 5

Background

  • Additional subsurface investigations completed

within the vicinity of facility resulted in expanding the boundary of groundwater impacts to the north and south of the facility (Site).

  • The Site and surrounding area (Study Area) is

comprised of unconsolidated fill and native glaciolacustrine or glacial deposits overlying the Paleozoic bedrock.

slide-6
SLIDE 6

Background

  • The primary contaminants of concern (COC)

within the Study Area groundwater are Chlorinated Volatile Organic Compounds (CVOCs).

  • Impacted media include soil, groundwater, and

soil vapour.

slide-7
SLIDE 7

Study Objective

A CSM capable of generating quantitative information for the analysis and selection of optimal remedial options was developed.

2

slide-8
SLIDE 8

Study Objective

  • A typical CSM is limited to the qualitative

presentation of contaminated site characteristics (e.g., illustration or cartoon).

  • The CSM development process often does not

provide sufficient quantitative information (e.g., mass discharge estimates, remediation time frames) to perform a robust analysis critical to the selection of remedial options.

slide-9
SLIDE 9

Study Objective

  • A CSM that generates quantitative information for

the analysis and selection of optimal remedial

  • ptions was developed.
slide-10
SLIDE 10

CSM – Development Methodology

A stepwise approach was used to develop the CSM for the Study Area, involving geospatial integration of geological, hydrogeological, geochemical, and site characterization datasets.

3

slide-11
SLIDE 11

CSM - Development Methodology

slide-12
SLIDE 12

CSM - Development Methodology

slide-13
SLIDE 13

CSM - Development Methodology

slide-14
SLIDE 14

CSM - Development Methodology

slide-15
SLIDE 15

CSM - Development Methodology

slide-16
SLIDE 16

CSM - Development Methodology

slide-17
SLIDE 17

CSM - Results

4

The quantitative information (e.g., estimates of contaminant mass and discharge rates by each hydrostratigraphic unit) derived during the CSM development process allowed for the identification of hydrostratigraphic units where enhanced passive or active remediation will be required.

slide-18
SLIDE 18

CSM - Geological Setting

slide-19
SLIDE 19

CSM – Conceptual Geological Model

Elevation (m AMSL) Major Soil or Bedrock Classification Group Geological Description USCS Symbols Conceptual Geological Units for the Site + 89 + 76 Topsoil, fill, asphalt Non-native Not Applicable (NA) Fill Coarse and Fine grained deposits Glaciolacustrine deposit SP, SP-SM, SM, ML Shallow Overburden Unit Coarse grained deposits Glacial Till or Diamicton (poorly sorted unconsolidated sediment) GP, GW, GM, SP, SP Till Fractured to sound bedrock Paleozoic bedrock of Verulam Formation NA Fractured Bedrock (RQD1 values <70) NA Sound Bedrock (RQD1 values ≥70)

Notes:

1 Rock Quality Designation (RQD) values expressed in percentage

slide-20
SLIDE 20

CSM – Hydrogeological Model

slide-21
SLIDE 21

CSM - Groundwater Flow

slide-22
SLIDE 22

CSM – Potential TCE Source Areas in Soil

Notes: 1 In the fractured media, the bulk retention capacity can be in the range of 0.0002 to 0.002 (UK EA, 2003). Fractured media cannot retain as much DNAPL per unit volume as unconsolidated deposits. In unconsolidated deposits (i.e., glacial till) can be in the range of 0.005 to 0.03 (UK EA, 2003). 2 Estimate based on information obtained from SSI#3 (December 2014). Potential Source Area Hydrostratigraphic Units /Lithology Surficial Extent of Source Area (m2) Average Thickness

  • f

Source Area (m) Soil /Bedrock Volume (m3) Bulk Retention Capacity1 TCE Volume (m3)2 Dry Density

  • f Soil

/Bedrock Unit (kg/m3) Estimated TCE mass (kg) Source Area “A” Interface Aquifer – Glacial Till 320 2.76 883.2 0.005 4.42 1937 8561 Source Area “A” Interface Aquifer – Fractured Bedrock 320 0.79 252.8 0.0002 0.05 1427 71 Total Estimated TCE Mass in the Interpreted Potential Source Area “A”

8632

Source Area “B” Interface Aquifer – Glacial Till 1830 0.26 475.8 0.005 2.38 1937 4610 Source Area “B” Interface Aquifer – Fractured Bedrock 1830 3.49 6386.7 0.0002 1.28 1427 1826

Total Estimated TCE Mass in the Interpreted Potential Source Area “B” 6436

slide-23
SLIDE 23

CSM – Contaminant Mass in Groundwater

Hydrostratigraphic Units Chemical Estimates of Groundwater Volumes with Groundwater Concentrations ≥ Remediation Target Levels (m3) Shallow

  • verburden unit

Dichloroethene, cis-1,2- Dichloroethene, trans-1,2- Trichloroethene Vinyl chloride

Total for the Shallow Overburden Unit

Interface Aquifer Dichloroethene, cis-1,2- 34,100 Dichloroethene, trans-1,2- Trichloroethene 120,000 Vinyl chloride 67,500

Total for the Interface Aquifer 221,600

Sound Bedrock Dichloroethene, cis-1,2- Dichloroethene, trans-1,2- Trichloroethene 18,800 Vinyl chloride

Total for the Sound Bedrock 18,800

slide-24
SLIDE 24

CSM – Conceptual Geochemical Model

Elevation (m AMSL) Major Soil or Bedrock Classification Group Geological Description USCS Symbols Conceptual Geological Units Conceptual Hydrostratigraphic Units Hydrogeological Setting Geochemical Setting + 89 + 76 Topsoil, fill, asphalt Non-native Not Applicable (NA) Fill Unsaturated Zone Coarse and Fine grained deposits Glaciolacustrine deposit SP, SP-SM, SM, ML Shallow Overburden Unit Shallow Overburden Unit Faster Flow Regime with significant heterogeneities Largely aerobic with large sub-

  • xic and

anaerobic zones Coarse grained deposits Glacial Till or Diamicton (poorly sorted unconsolidated sediment) GP, GW, GM, SP, SP Till Interface Aquifer Faster Flow Regime with significant heterogeneities Largely anaerobic with pockets of aerobic and sub-oxic zones Fractured to sound bedrock Paleozoic bedrock of Verulam Formation NA Fractured Bedrock (RQD1 values <70) NA Sound Bedrock (RQD1 values ≥70) Sound Bedrock Aquifer Simple, slower flow regime Predominantly anaerobic

Notes: 1 Rock Quality Designation (RQD) values expressed in percentage

slide-25
SLIDE 25

CSM – Sustainability of Biologically Mediated Dechlorination – Dissolved Phase Plume in Groundwater (Interface Aquifer)

Notes: 1 Mass of BTEX (carbon donor) compared to mass of CVOC (TCE, cis-1, 2-DCE, Vinyl Chloride) estimated based

  • n December 2014 groundwater sampling results.

2 Estimated mass of BTEX in the source area based on December 2014 sampling results. 3 Available donor mass (kg-H2) = Carbon Donor to CVOC ratio x Mass of Carbon Donor required for the Dechlorination of TCE

Location Carbon Donor (Kg-H2 equivalent) to CVOC (Kg-H2 equivalent) Ratio1 Mass of TCE Daughter Products2 (kg –H2 equivalent) Available Donor Mass3 (kg –H2 equivalent) Sustainability of MNA Dissolved Phase Plume in groundwater (CVOC concentrations above the RTLS) 0.01 6.24 0.05 Unlikely, available donor mass < donor demand from competing electron acceptors (267 kg- H2/yr)

slide-26
SLIDE 26

Conceptual Site Model

A A’

slide-27
SLIDE 27

Conceptual Site Model

B B’

slide-28
SLIDE 28

Contributors/Collaborators:

Sonny Sundaram, Ph.D, P.Geo. Jean Philippe Gobeil, M.Sc. Marc Bouchard, P.Eng. David Wilson, M.A.Sc., P.Eng. Stantec Ottawa

slide-29
SLIDE 29

Questions?
